ADT1-ED8424/1+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> ADT1-ED8424/1+

ADT1-ED8424/1+: DescriptionRF Transformer, 1MHz Min, 700MHz Max; CategoryPower management transformer; File Size95KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ADT1-ED8424/1+ Overview

RF Transformer, 1MHz Min, 700MHz Max

ADT1-ED8424/1+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OHMS RATIO IS 1
maximum cutoff frequency	700 MHz
minimum cutoff frequency	1 MHz
high	2.845 mm
JESD-609 code	e3
length	7.874 mm
Manufacturer's serial number	ADT1-ED8424/1
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	L7.874XB5.588XH2.845 (mm)
surface mount	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier
Transformer type	RF TRANSFORMER
width	5.588 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

RF Transformer

Impedance Ratio : 1

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

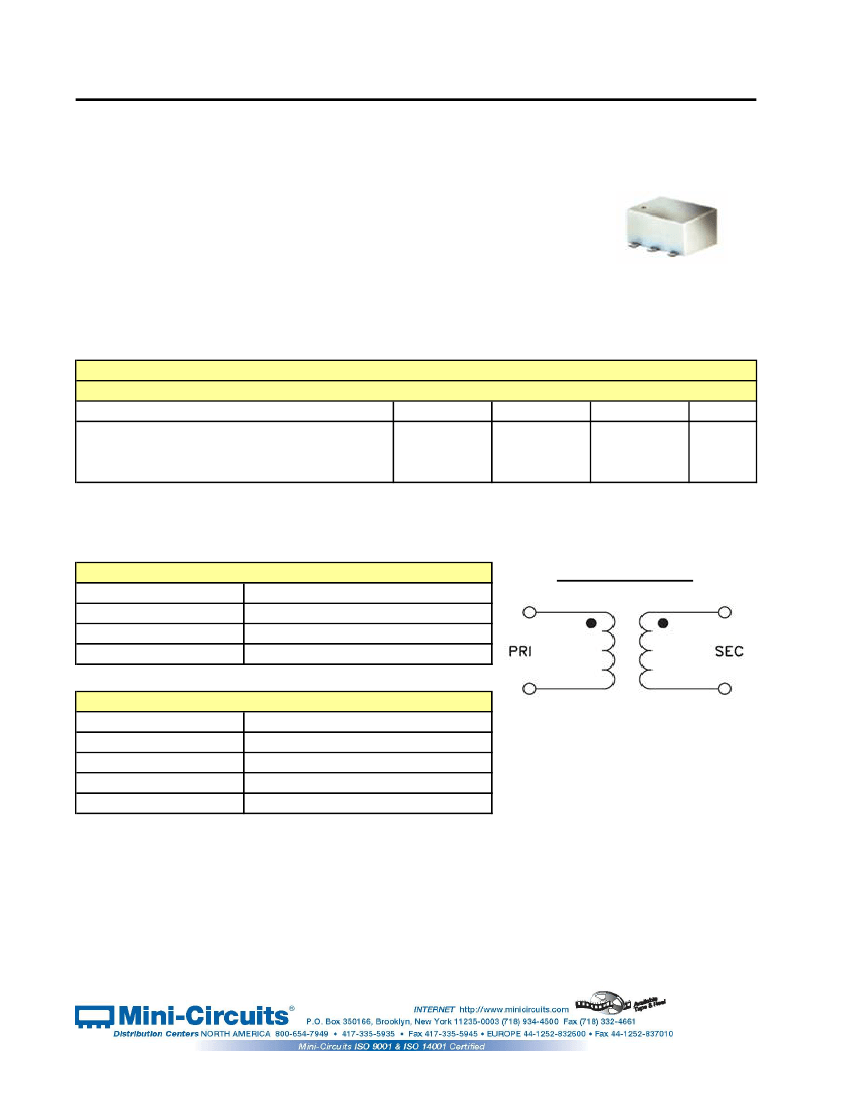

ADT1-ED8424/1

Please click "Back", and then click "Contact Us" for Applications support.

CASE STYLE : CD542

ELECTRICAL SPECIFICATIONS 50Ω @ +25°C

Parameter

Frequency

Insertion Loss *

Min.

3 dB Bandwidth

2 dB Bandwidth

1 dB Bandwidth

Typ.

1 - 700

1 - 600

1 - 500

Max.

700

Units

MHz

Note:

* Insertion Loss is referenced to mid-band loss, 0.81dB typ.

MAXIMUM RATINGS

-20°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

0.25 W

RF Power

30 mA

DC Current

PIN CONNECTIONS

PRIMARY DOT

PRIMARY

SECONDARY DOT

SECONDARY

NOT USED

2,5

Configuration : C

REV. X1

ADT1-ED8424/1

060808

Page 1 of 1

ADT1-ED8424/1+ Related Products

	ADT1-ED8424/1+	ADT1-ED8424/1
Description	RF Transformer, 1MHz Min, 700MHz Max	RF Transformer, 1MHz Min, 700MHz Max
Is it lead-free?	Lead free	Contains lead
Is it Rohs certified?	conform to	incompatible
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	OHMS RATIO IS 1	OHMS RATIO IS 1
maximum cutoff frequency	700 MHz	700 MHz
minimum cutoff frequency	1 MHz	1 MHz
high	2.845 mm	2.845 mm
JESD-609 code	e3	e0
length	7.874 mm	7.874 mm
Manufacturer's serial number	ADT1-ED8424/1	ADT1-ED8424/1
Installation features	SURFACE MOUNT	SURFACE MOUNT
method of packing	TAPE & REEL	TAPE & REEL
physical size	L7.874XB5.588XH2.845 (mm)	7.874mm X 5.588mm X 2.845mm
surface mount	YES	YES
Terminal surface	Tin (Sn) - with Nickel (Ni) barrier	Tin/Lead (Sn/Pb)
Transformer type	RF TRANSFORMER	RF TRANSFORMER
width	5.588 mm	5.588 mm
Base Number Matches	1	1
