M83723/69A188N Overview

MIL Series Connector, LANYARD RELEASE, QUICK-DISCONNECT PLUG, SOCKET

M83723/69A188N Parametric

Parameter Name	Attribute value
package instruction	LANYARD RELEASE, QUICK-DISCONNECT PLUG, SOCKET
Reach Compliance Code	unknown
Connector type	MIL SERIES CONNECTOR
Manufacturer's serial number	M83723/69
Base Number Matches	1

Preview

Download Datasheet

View All

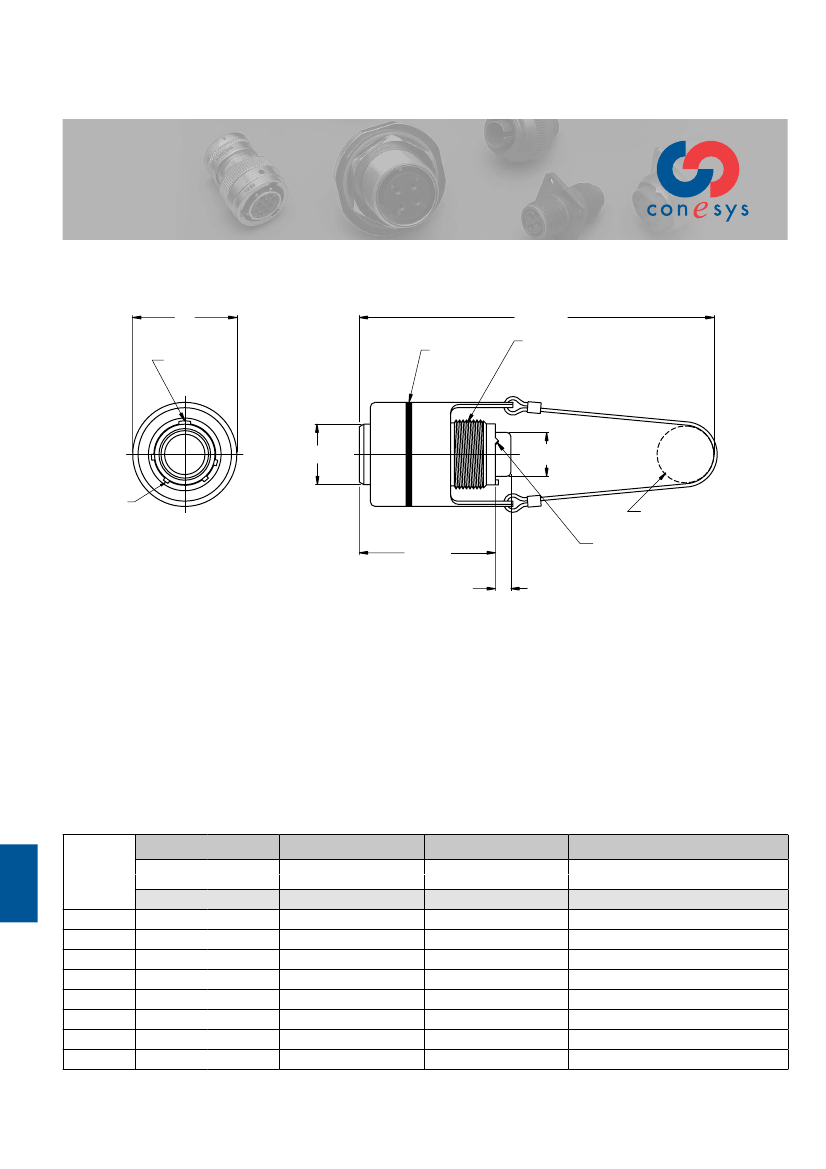

M83723/68, 69

Lanyard Release, Quick-Disconnect Plug

AE83368, 69

Quick-Disconnect, Threaded Coupling, Crimp Removable, Rear Release

MAX

BLUE COLOR BAND

7.500(190.50)

MAX

ACCESSORY THREAD

MASTER

KEY

MAX GROMMET

4 MINOR KEYS

LENGTH TO BE MEASURED WITH A

.750(19.05)±.060(1.52) BAR TO PULL

LANYARD TAUT

1.180(29.97)

MAX

.190(4.83)

.130(3.30) GROMMET EXTENSION

3 ACCESSORY TEETH

EQUALLY SPACED

Page 129

Page 145

Pages 148,149

Page 128

Page 147

Page 143

Completed Part Number

Contacts, Sealing Plugs and Tools

Insert Arrangements

Performance Specifications

Insert Availability and Contact Information

Polarization

Note 1:

M83723/70 receptacle adapter (page 142) is required

to mate the Quick-Disconnect Plug with a receptacle.

Note 2:

Not available in shell size 8.

Shell

Size

Accessory Thread

Class 2A

10.29

13.49

16.89

20.07

22.07

25.25

28.42

31.60

5/8-24UNEF

3/4-20UNEF

7/8-20UNEF

1-20UNEF

1-1/16-18UNEF

1-3/16-18UNEF

1-5/16-18UNEF

1-7/16-18UNEF

inch

.526/.517

.696/.687

.765/.756

.892/.883

.998/.989

1.123/1.114

1.248/1.239

1.373/1.364

83723 S III

Maximum

inch

1.240

1.432

1.490

1.711

1.815

1.962

2.070

2.195

31.50

36.37

37.85

43.46

46.10

49.83

52.58

55.75

inch

.405

.531

.665

.790

.869

.994

1.119

1.244

Maximum

13.36/13.13

17.68/17.45

19.43/19.20

22.66/22.43

25.35/25.12

28.52/28.30

31.70/31.47

34.87/34.65

www.conesys.com

– 141 –

sales

aero-electric.com
