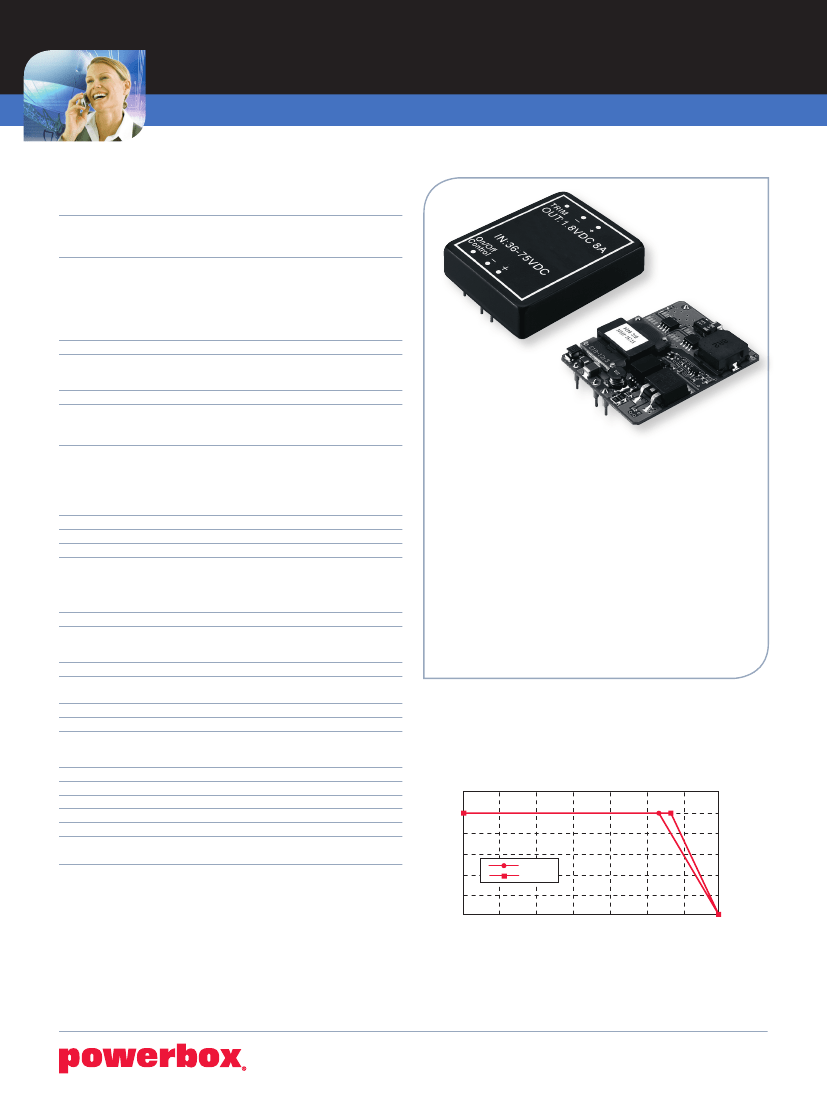

Communication Line – MAG25 Series

1 4 .4 - 2 5 W

2 :1

S ING LE

OU TP U T

D C/ DC

CO NV E RT ER

Specifications

INPUT

Voltage range

12V

24V

48V

Under voltage lockout

12Vin power Up

12Vin power down

24Vin power up

24Vin power down

48Vin power up

48Vin power down

Positive logic remote ON/OFF (se note 3 & 4).

Input filter

Pi type.

OUTPUT

Voltage accuracy

Transient response

9-18VDC

18-36VDC

36-75VDC

8.8V

8.0V

17V

16V

34V

33V

±1.0% max.

75-100% step load change.

Error band: ±5% Vout nominal.

Reovery time: <300us.

Ripple and noise

20MHz BW

1.8V, 2.5V, 3.3V & 5V:

20mV rms max, 75mV pk-pk max.

12 & 15V:

20mV rms max, 100mV pk-pk max

(measured with 0.1µF MLCC).

Temperature coefficient ±0.02%/°C max.

Line regulation

±0.5% max.

Load regulation

±0.5% max.

Over voltage protection 1-8V 3.3VDC typ, 2.5V 3.3VDC typ

3.3V 3.9VDC typ, 5V

6.2VDC typ

12V 15VDC typ, 15V

18VDC typ

(Zener or TVS clamp).

Output current limit

110-150%, % nominal output.

Short circuit protection Continuous (hiccup mode).

ENVIRONMENTAL

Operating temperature

Derating

Case temperature

Storage temperature

Thermal shutdown

GENERAL

Efficiency

Isolation voltage

Isolation resistance

Switching frequency

Metal case material

Dimensions

Weight

–40°C to +85°C.

Metal case, above 71°C, open frame, above 60°C:

Linearly to zero power at 100°C.

+100°C max.

–55°C to +125°C.

Case temperature 110°C typ.

See table.

1500VDC min.

ohms, min.

350KHz typ.

Black coated copper with non-conductive base.

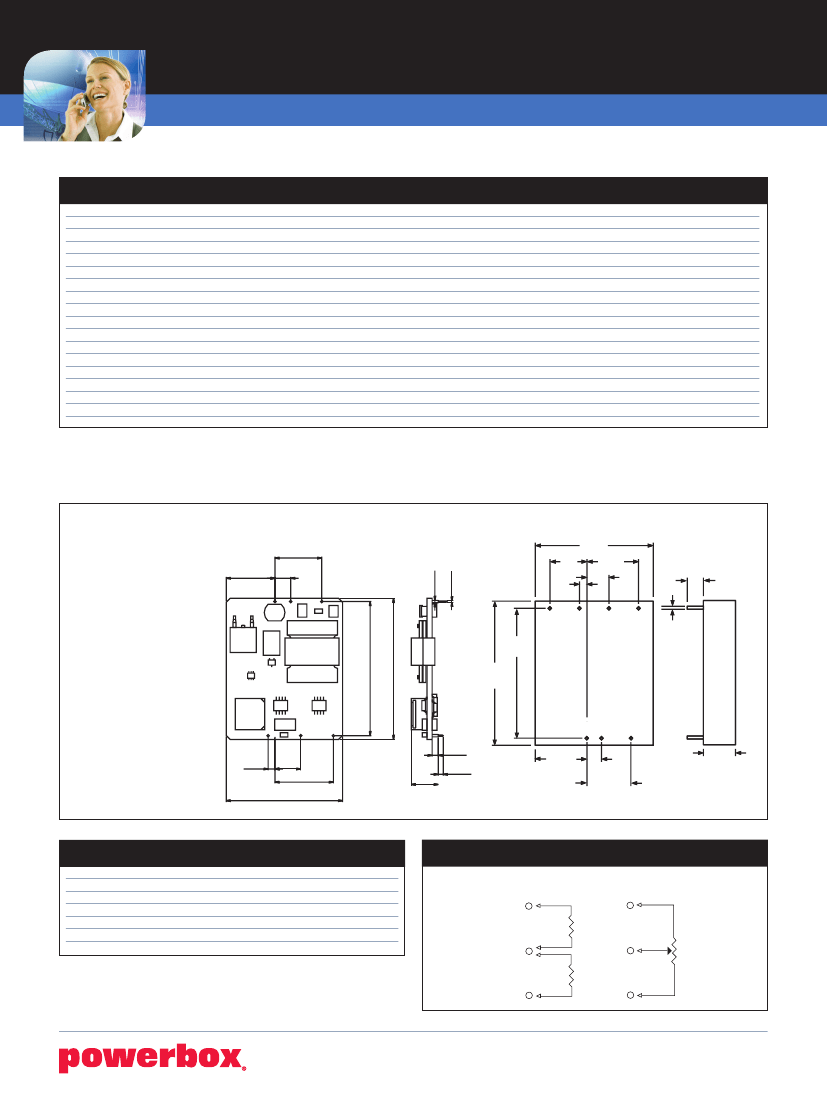

Metal case: 50.8 x 40.6 x 11.4 mm.

Open frame: 49.5 x 39.4 x 10.16mm

Metal case: 55g. Open frame: 25g.

Features

• High efficiency up to 90%

• Fixed 300KHz switching frequency

• 2:1 input range

• Regulated outputs

• Continuous short circuit protection

• Six-sided metal case or open frame

• 2” x 1.6” size

• Industry standard pin-out

• RoHS compliant

Derating Curve

120%

Output Load (%)

100%

80%

60%

40%

20%

Vo=3.3V

Others

Note:

1) Measured from high line to low line.

2) Measured from full load to 10% load.

3) Logic compatibility CMOS Open Collector TTL, ref to -Vin.

Module ON >+3.5VDC to 75VDC or Open Circuit. Module OFF <1.8VDC.

4) Suffix “N” to the model number with negative logic remote ON/OFF.

Module ON <1.8VDC. Module OFF >3.5VDC to 75VDC or Open Circuit.

5) Sufix “S” to the model number with Open Frame type.

6) Maximum case temperature under any operating condition should not be exceeded 100°C.

-40

-20

100

Ambient Temperature (C˚)

20120502

COMMUNICATION LINE

www.powerbox.info
