A22E-M-11 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> A22E-M-11

A22E-M-11: DescriptionPushbutton Switch, SPST, Momentary, 10A, 24VDC, Screw Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size4MB，18 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

A22E-M-11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A22E-M-11	-	-	View	Buy Now

A22E-M-11 Overview

Pushbutton Switch, SPST, Momentary, 10A, 24VDC, Screw Terminal, Panel Mount-threaded

A22E-M-11 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	MEDIUM TYPE
body height	34 mm
Body length or diameter	41.2 mm
Contact (AC) maximum rated R load	10A@24VAC
Maximum contact current (AC)	10 A
Maximum contact current (DC)	10 A
Contact (DC) maximum rated R load	10A@24VDC
Maximum contact voltage (AC)	24 V
Maximum contact voltage (DC)	24 V
Electrical life	300000 Cycle(s)
Manufacturer's serial number	A22E
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
seal	IP65
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	SCREW
Base Number Matches	1

Preview

Download Datasheet

View All

Emergency Stop Switch (22-dia./25-dia.)

A22E

CSM_A22E_DS_E_12_1

Install in 22-dia. or 25-dia. Panel Cutout

• Direct opening mechanism to open the circuit when the contact

welds

→

• Safety lock mechanism prevents operating errors.

• Easy mounting and removal of Switch Blocks using a lever.

• Mount three Switch Units in series to improve wiring efficiency

(with non-lighted Switch Units, three Units can be mounted for

multiple contacts).

• Finger protection mechanism on Switch Unit provided as a

standard feature.

• Install using either round, or forked crimp terminals.

• Oil-resistant to IP65 (non-lighted models)/IP65 (lighted models)

• A lock plate is provided as a standard feature to ensure that the

control box and switch are not easily separated.

Be sure to read the

“Safety Precautions”

on page 16.

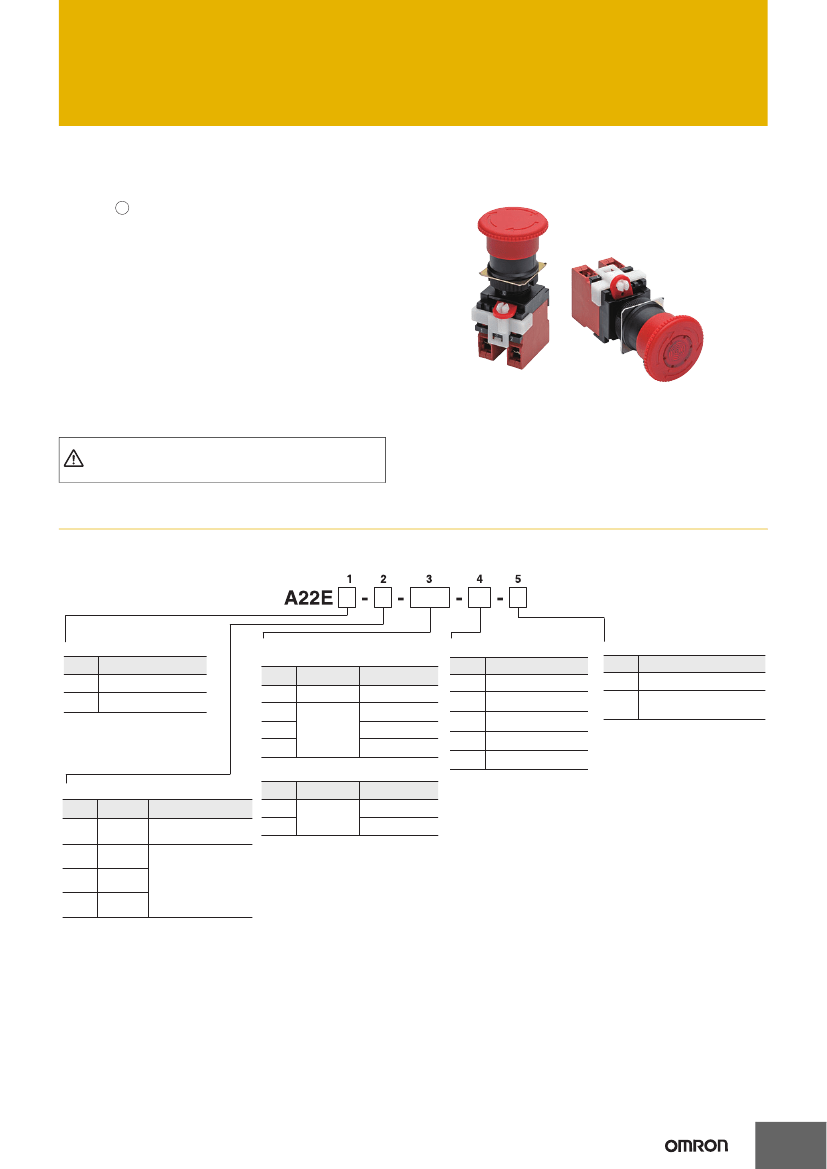

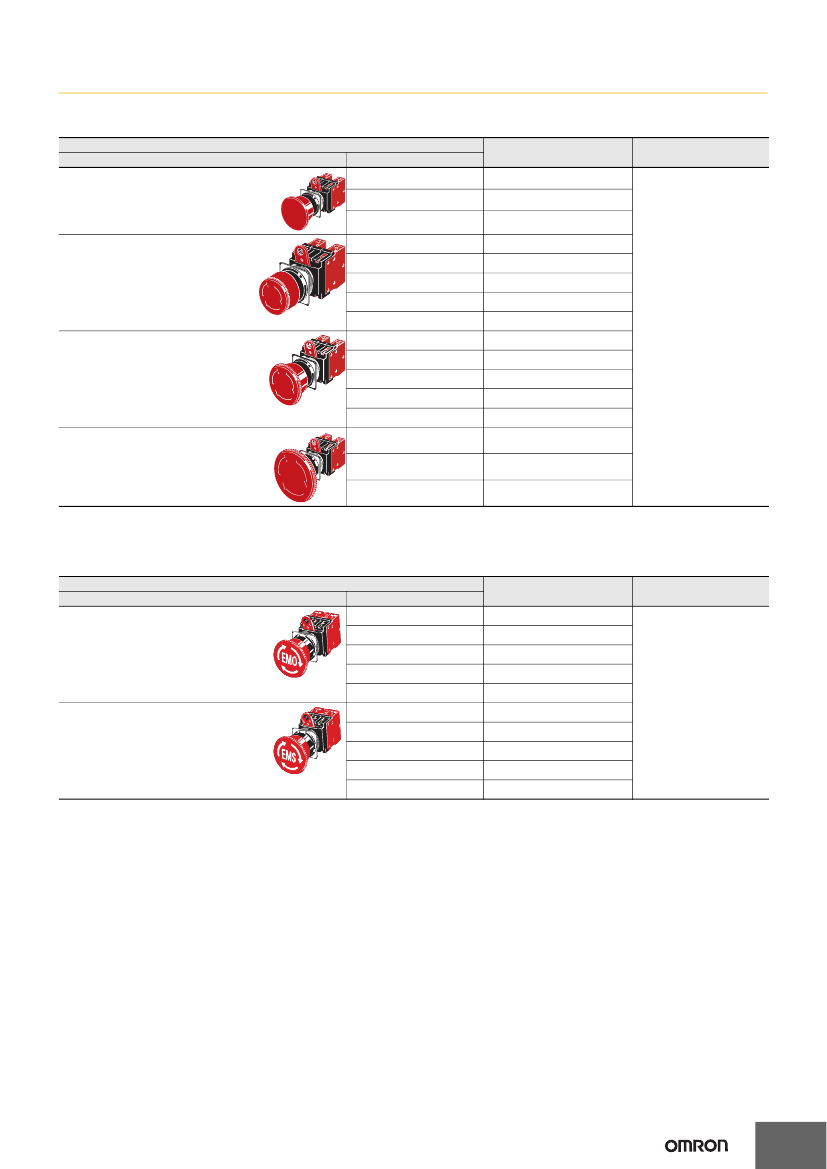

Model Number Structure

Model Number Legend (Completely Assembled)

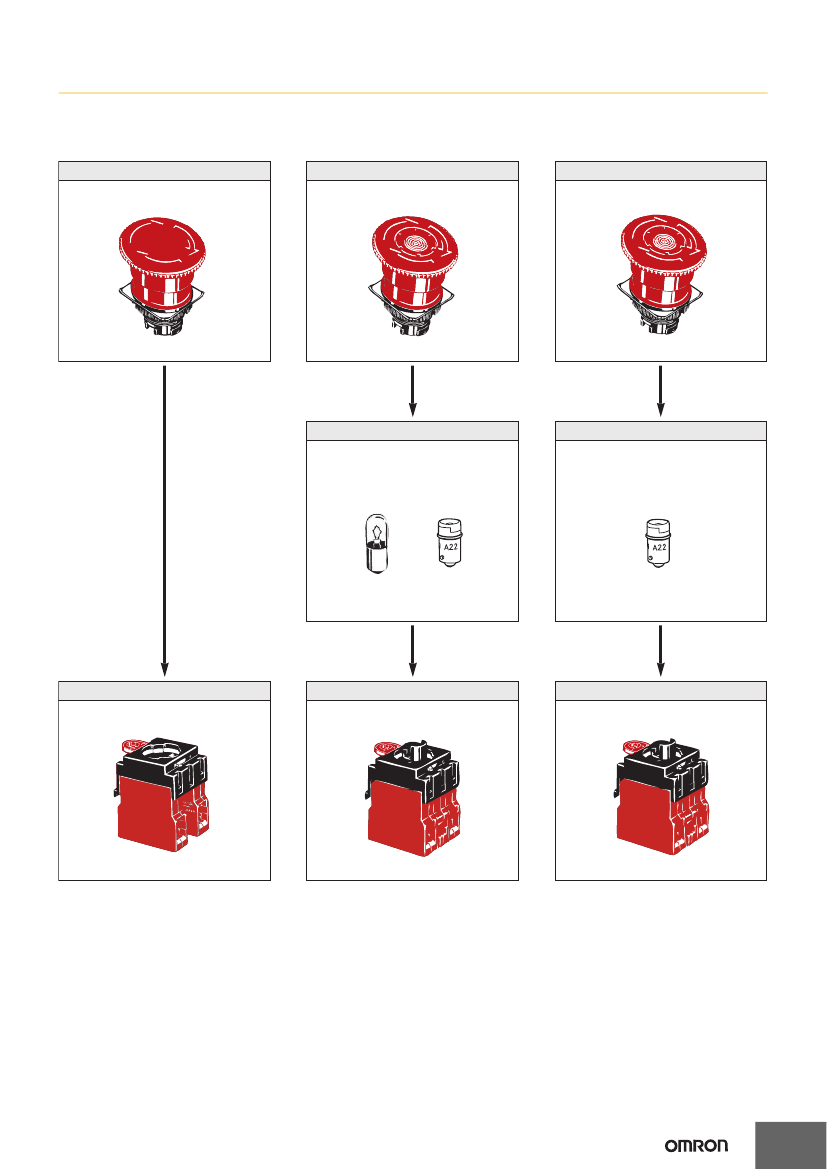

........ Shipped as a set which includes the Operation Unit, Lamp

(lighted models only), and Switch.

1. Lighted/Non-lighted

Code

Description

24A

4. Contacts

Code

Description

SPST-NC

SPST-NO + SPST-NC

DPST-NC

DPST-NC + SPST-NO

TPST-NC

5. Configuration

Code

Configuration

3. Light Source

Without Voltage Reduction Unit

Code

None

12A

24A

Description Operating Voltage

Non-lighted

LED

---

6 VAC/VDC

12 VAC/VDC

24 VAC/VDC

None Non-lighted

Lighted

None Switch only

Switch

with

Integrated

Control Box

Lighted Emergency Stop

Switches are available only

for the medium (M).

push-lock turn-reset models.

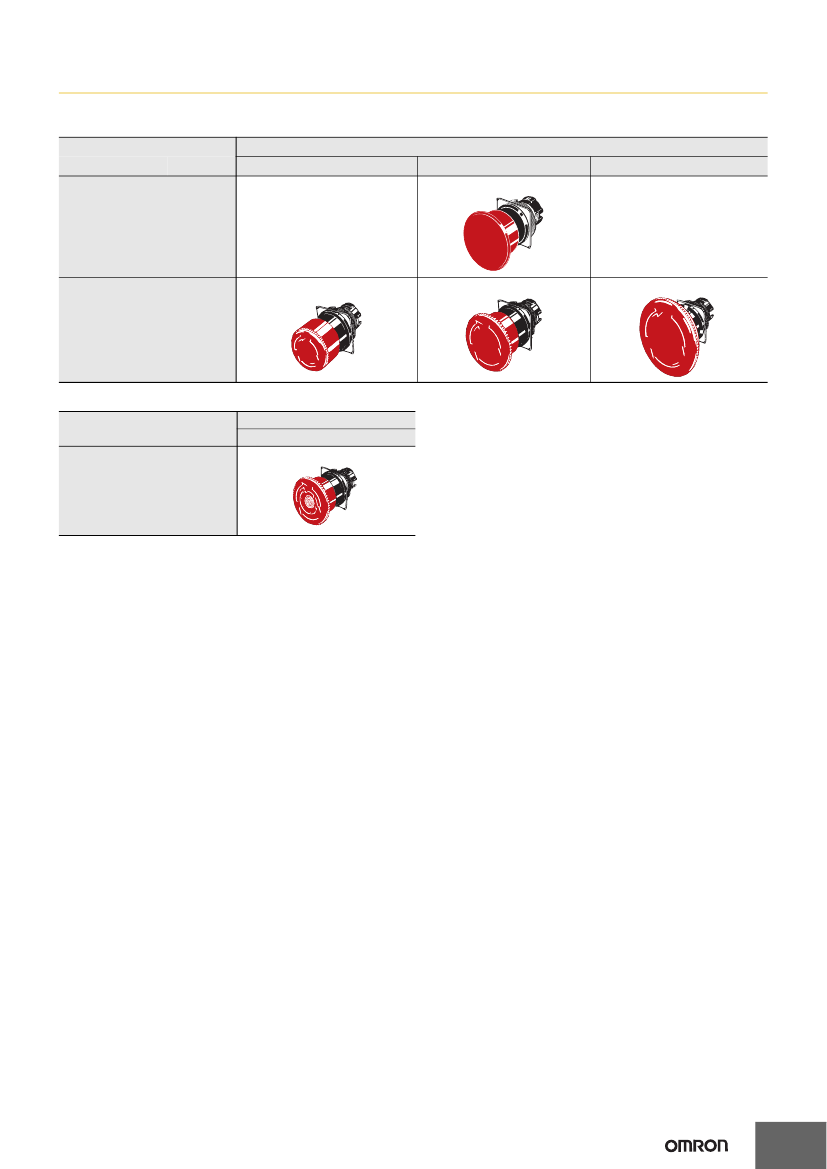

2. Head Size

Code

Size

Medium

40 dia.

Small

30 dia.

Medium

40 dia.

Large

60 dia.

Description

Push-pull

With Voltage Reduction Unit

Code

Description Operating Voltage

LED

100 VAC

200 VAC

Equipped

with

24-VAC/DC LED.

Push-lock turn-reset
