ASE-27.000MHZ-L-R-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASE-27.000MHZ-L-R-T

ASE-27.000MHZ-L-R-T: DescriptionCMOS Output Clock Oscillator, 27MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size893KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE-27.000MHZ-L-R-T Overview

CMOS Output Clock Oscillator, 27MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASE-27.000MHZ-L-R-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
JESD-609 code	e4
Installation features	SURFACE MOUNT
Nominal operating frequency	27 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 1.0mm
longest rise time	4 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Silver (Ag)
Base Number Matches	1

Preview

Download Datasheet

View All

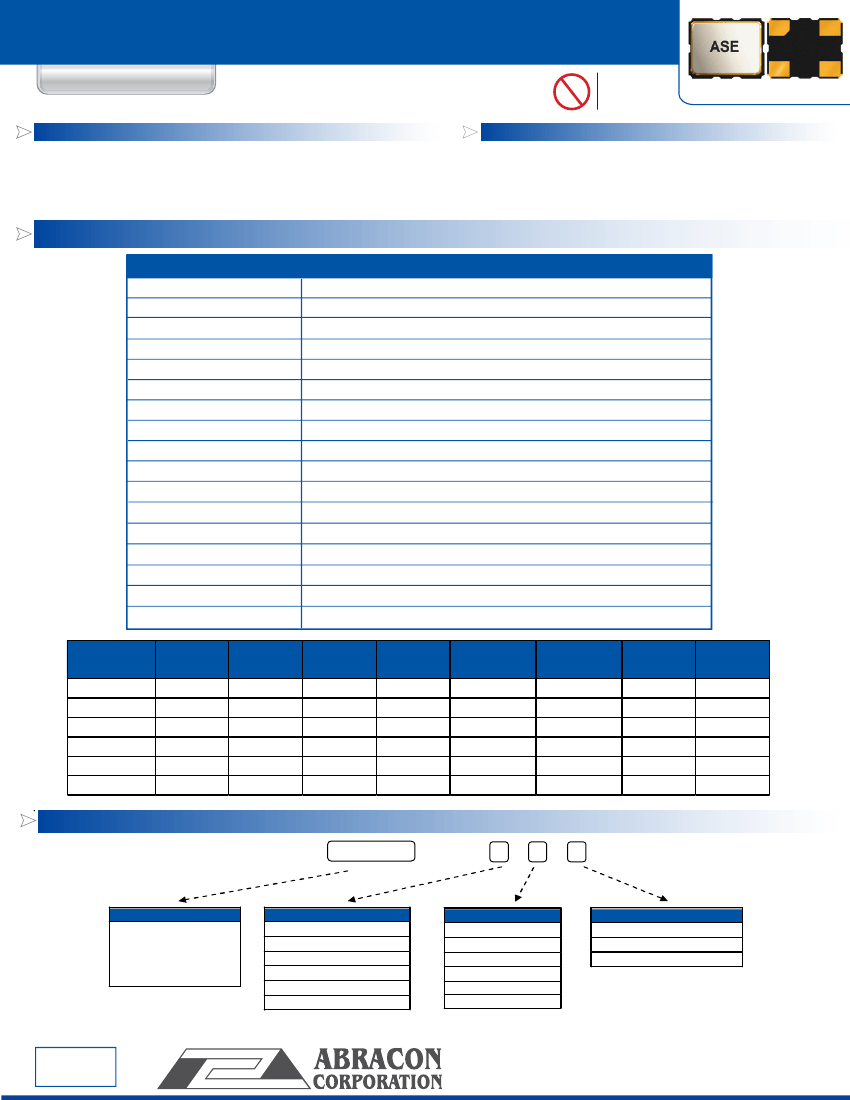

3.3Vdc CMOS SMD CRYSTAL CLOCK OSCILLATOR

ASE SERIES

FEATURES:

• Low height 1.0mm max

• Tri-state function

• Low current consumption

20mA max for 200MHz

• Low RMS jitter 5ps max

• Suitable for RoHS reflow

• Available for tight stability option

RoHS

Compliant

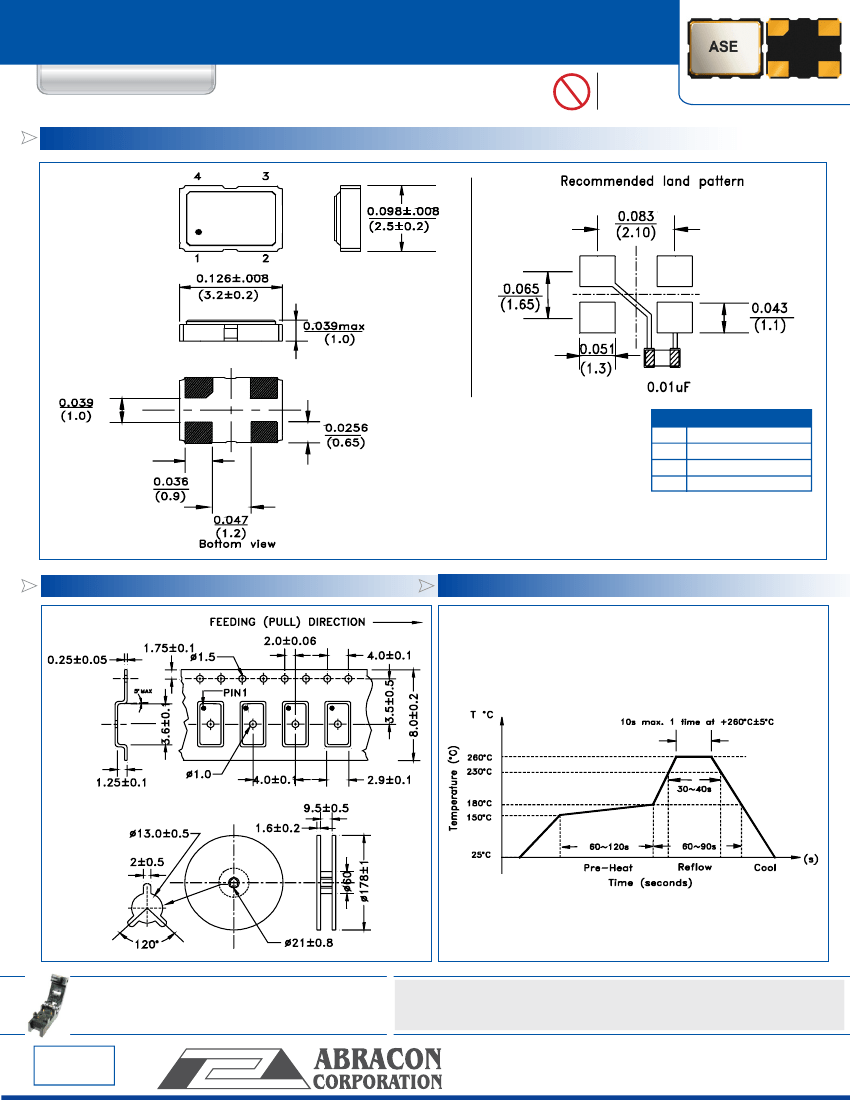

3.2 x 2.5 x 1.0mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• CCD clock for VTR camera

• Equipment connected to PC or PC cards

• PDA, wireless communication.

• Laptop, SSD (Solid State Drive)

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency Range

Operating Temperature

Storage Temperature

Overall Frequency Stability

Supply Voltage (Vdd)

Input Current

Symmetry

Rise and Fall Time (Tr/Tf)

Output Load

Start-up time:

Output Voltage

Tristate Function

Peak to Peak Jitter

RMS Jitter

Stand-By Current

Aging (first year):

TABLE 1

Frequency

(MHz)

0.5 ~ 20

20.01 ~ 40.0

40.01 ~ 60.0

60.01 ~ 75.0

75.01 ~ 133.0

133.01 ~ 200.0

Idd

mA (Typ)

2.5

4.4

6.5

12.7

7.4

11.7

Idd

mA (Max)

ASE Series

0.625 ~ 200 MHz

-10°C to + 70°C (See Options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 V ± 5%

See Table 1

45/55% @ 50%Vdd

See Table 1

15 pF max

See Table 1

VOH = 0.9* Vdd min., VOL = 0.1* Vdd max.

"1" (VIH >= 0.7* Vdd) or open: Oscillation, "0" (VIL < 0.3 Vdd) : Hi Z

28ps (Typical) (Reference only. Contact ABRACON for the Jitter)

See Table 1

10 µA max.

±3 ppm max.

Tr/Tf

ns (Typ)

2.5

2.4

2.3

1.5

1.9

Tr/Tf

ns (max)

4.0

Start-up time

ms (Typ)

1.2

1.5

Start-up time

ms (Max)

2.0

RMS Jitter

ps (Typ)

3.2

2.2

RMS Jitter

ps (Max)

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE -

Operating Temp.

I: 0°C ~ +50°C

D: -10°C ~ +60°C

E: -20°C ~ +70°C

F: -30°C ~ +70°C

N: -30°C ~ +85°C

L: -40°C ~ +85°C

Contact ABRACON for wider

temperature range.

MHz -

Packaging

Blank: Bulk

T: Tape & Reel (1kpcs)

T2: Tape & Reel (250pcs)

Frequency in MHz

e.g. 0.625MHz

24.576MHz

14.31818MHz

26.000MHz

200.000MHz

Freq. Stability

J*: ± 20 ppm

R: ± 25 ppm

K: ± 30 ppm

H: ± 35 ppm

B: ± 40 ppm

C: ± 50 ppm

*: Temp options I, D, E,

and -10°C to +70°C only

ABRACON IS

ISO9001:2008

CERTIFIED

Revised: 06.24.10

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
