AGOF5S3P-09.00MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> AGOF5S3P-09.00MHZ

AGOF5S3P-09.00MHZ: DescriptionHCMOS Output Clock Oscillator, 9MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4; CategoryPassive components oscillator; File Size155KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

AGOF5S3P-09.00MHZ Overview

HCMOS Output Clock Oscillator, 9MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4

AGOF5S3P-09.00MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Ageing	0.2 PPM/YEAR
Frequency Adjustment - Mechanical	NO
frequency stability	0.21%
Frequency Stability - Voltage	0.05 ppm
input power	0.375 W
Manufacturer's serial number	AGOF5S3P
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	9 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS
Output load	15 pF
Oven power supply voltage	5V
physical size	20.7mm x 12.95mm x 10.16mm
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
Preheating power	1.5 W
Maximum warm-up time	5 Minute
Base Number Matches	1

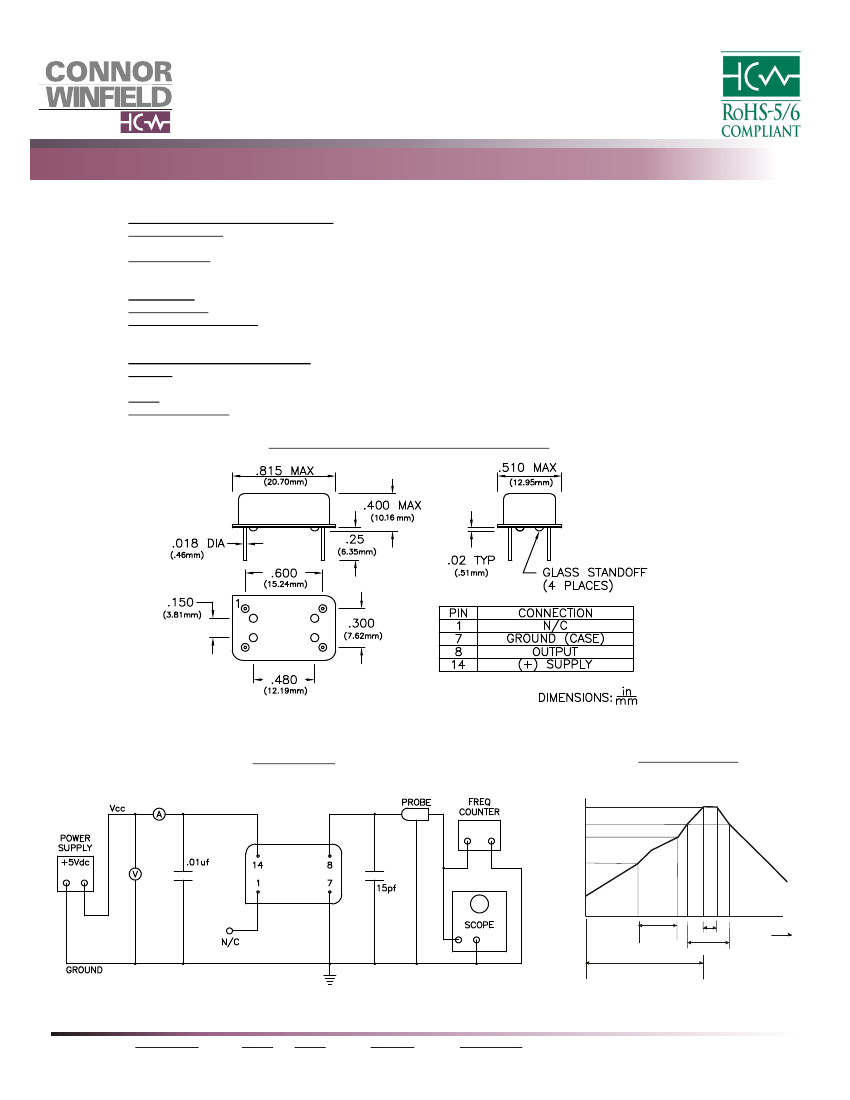

Preview

Download Datasheet

View All

AGOF5S3P-09.00MHZ Related Products

	AGOF5S3P-09.00MHZ	AGOF5S3P-FREQ	AGOF5S3P-10.00MHZ	AGOF5S3P-20.00MHZ	AGOF5S3P-9.00MHZ
Description	HCMOS Output Clock Oscillator, 9MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4	HCMOS Output Clock Oscillator, 9MHz Min, 20MHz Max, HERMETIC SEALED, WELDED, DIP-14/4	HCMOS Output Clock Oscillator, 10MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4	HCMOS Output Clock Oscillator, 20MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4	HCMOS Output Clock Oscillator, 9MHz Nom, HERMETIC SEALED, WELDED, DIP-14/4
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Ageing	0.2 PPM/YEAR	0.2 PPM/YEAR	0.2 PPM/YEAR	0.2 PPM/YEAR	0.2 PPM/YEAR
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO
frequency stability	0.21%	0.21%	0.21%	0.21%	0.21%
Frequency Stability - Voltage	0.05 ppm	0.05 ppm	0.05 ppm	0.05 ppm	0.05 ppm
input power	0.375 W	0.375 W	0.375 W	0.375 W	1.5 W
Manufacturer's serial number	AGOF5S3P	AGOF5S3P	AGOF5S3P	AGOF5S3P	AGOF5S3P
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	15 pF	15 pF	15 pF	15 pF	15 pF
Oven power supply voltage	5V	5V	5V	5V	5V
physical size	20.7mm x 12.95mm x 10.16mm	20.7mm x 12.95mm x 10.16mm	20.7mm x 12.95mm x 10.16mm	20.7mm x 12.95mm x 10.16mm	20.7mm x 12.95mm x 10.16mm
Maximum supply voltage	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO
Maximum warm-up time	5 Minute	5 Minute	5 Minute	5 Minute	5 Minute
Nominal operating frequency	9 MHz	-	10 MHz	20 MHz	9 MHz
Preheating power	1.5 W	1.5 W	1.5 W	1.5 W	-
Maker	-	-	Connor-Winfield	Connor-Winfield	Connor-Winfield
