ASVTX-03H-FREQ-D20-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASVTX-03H-FREQ-D20-T

ASVTX-03H-FREQ-D20-T: DescriptionCMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max; CategoryPassive components oscillator; File Size87KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm

Download Datasheet Parametric Compare View All

ASVTX-03H-FREQ-D20-T Overview

CMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max

ASVTX-03H-FREQ-D20-T Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	12 ppm
frequency stability	2%
Manufacturer's serial number	ASVTX-03H
Installation features	SURFACE MOUNT
Maximum operating frequency	25 MHz
Minimum operating frequency	2 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS/TTL
Output load	2 TTL, 15 pF
physical size	18.3mm x 11.7mm x 4.7mm
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

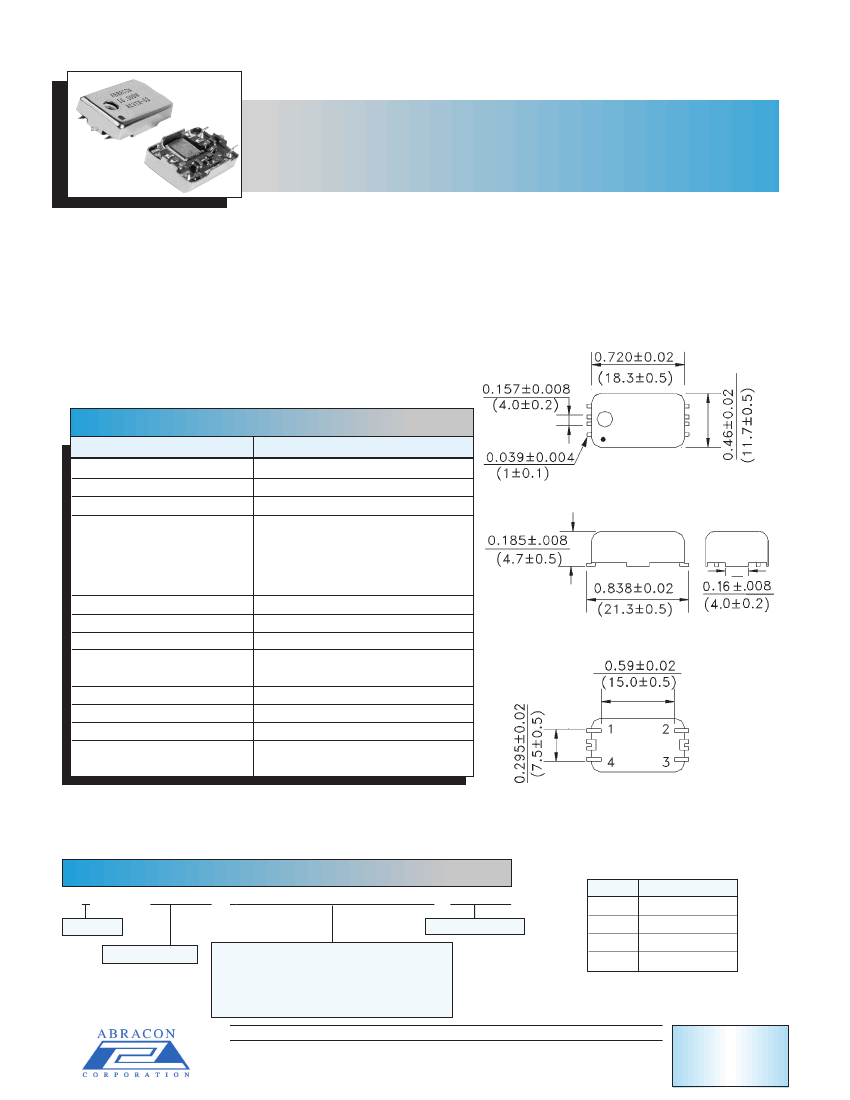

TTL/CMOS SURFACE MOUNT CRYSTAL OSCILLATORS

VOLTAGE-CONTROLLED TEMPERATURE-COMPENSATED

ASTX- 03H

and

ASVTX- 03H

FEATURES:

• Compact and low in height.

• Suitable for high-density SMT.

• SMD makes reflow soldering possible.

• Low current consumption.

• Vc function corresponds to PLL circuits.

APPLICATIONS:

•

Cellular and Cordless Phones

Standard OSC for Exact Equipment.

Mobile Communication Equipment.

Portable Radio Equipment.

STANDARD SPECIFICATIONS

PARAMETERS

)

Frequency Range

Operating Temperature (T

OPR

)

Storage Temperature

STO

)

(

/ F

)

Frequency Stability

-vs- 25°C

-vs- Temperature

-vs- Aging

-vs- Supply Voltage

Supply Voltage

)

Input Current

)

Output Load

Output Voltage

(Voh)

(Vol)

Transfer Function

Voltage Control

(V Series)

(Vc)

Frequency Pulling

(V Series)

Frequency Adjustment

(Internal Trimmer)

ASTX-03H

ASVTX-03H

2.0 MHz - 25.00 MHz

-30°C to + 75°C

(See Options)

-40°C to +85°C

± 0.5 ppm max.

± 2.5 ppm max.

(See Options)

± 1 ppm per year max.

± 0.2 ppm max.

5 Vdc ± 5%

20 mA max.

2TTL or 15 pF

0.9 x V

min.

0.5 VDC max.

Positive

2.5 V ± 2 V

± 5 ppm min, ± 12 ppm max

± 3 ppm min.

Environmental and mechanical specifications, Group 4.

Tape and Reel, (1,000 pcs./reel)

Please call us for other frequencies.

Dimensions: Inches (mm)

ORDERING OPTIONS

ASX TX- 03H - Frequency - Temperature & Frequency Stability - Packaging

Blank or V

PIN NO.

FUNCTION

-T (Tape & Reel)

-D20

-E20

-D25

-E25

for -10°C to + 60°C

for -20°C to + 70°C

for -10°C to + 60°C

for -20°C to + 70°C

± 2.0 ppm max

± 2.5 ppm max

XX.XXXXX MHz

NC or Vc (*)

GND / Case

Output

(*) For ASVTX-03H

NOTE: Left blank if standard

•

All specifications and markings subject to change without notice

29 Journey • Aliso Viejo, CA 92656 • USA

(949) 448-7070 •

: (949) 448-8484

E-

MAIL

abinfo

abracon.com •

NTERNET

DDRESS

www.abracon.com

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

ASVTX-03H-FREQ-D20-T Related Products

	ASVTX-03H-FREQ-D20-T	ASVTX-03H-FREQ-E20-T	ASVTX-03H-FREQ-D25-T	ASVTX-03H-FREQ-E25-T
Description	CMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max	CMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max	CMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max	CMOS/TTL Output Clock Oscillator, 2MHz Min, 25MHz Max
Reach Compliance Code	unknown	unknown	unknown	unknown
Ageing	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR	1 PPM/YEAR
Maximum control voltage	4.5 V	4.5 V	4.5 V	4.5 V
Minimum control voltage	0.5 V	0.5 V	0.5 V	0.5 V
Frequency Adjustment - Mechanical	YES	YES	YES	YES
Frequency offset/pull rate	12 ppm	12 ppm	12 ppm	12 ppm
frequency stability	2%	2%	2.5%	2.5%
Manufacturer's serial number	ASVTX-03H	ASVTX-03H	ASVTX-03H	ASVTX-03H
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	25 MHz	25 MHz	25 MHz	25 MHz
Minimum operating frequency	2 MHz	2 MHz	2 MHz	2 MHz
Maximum operating temperature	60 °C	70 °C	60 °C	70 °C
Minimum operating temperature	-10 °C	-20 °C	-10 °C	-20 °C
Oscillator type	CMOS/TTL	CMOS/TTL	CMOS/TTL	CMOS/TTL
Output load	2 TTL, 15 pF	2 TTL, 15 pF	2 TTL, 15 pF	2 TTL, 15 pF
physical size	18.3mm x 11.7mm x 4.7mm	18.3mm x 11.7mm x 4.7mm	18.3mm x 11.7mm x 4.7mm	18.3mm x 11.7mm x 4.7mm
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES
