ASE5-50.0MHZ-R-T: DescriptionCMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE5-50.0MHZ-R-T Overview

CMOS Output Clock Oscillator, 50MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASE5-50.0MHZ-R-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	25%
Manufacturer's serial number	ASE5
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	3.2mm x 2.5mm x 0.9mm
longest rise time	3 ns
Maximum supply voltage	1.4175 V
Minimum supply voltage	1.2825 V
Nominal supply voltage	1.35 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

1.35Vdc CMOS OUTPUT 3.2 x 2.5 SMD

CRYSTAL CLOCK OSCILLATOR

ASE5 SERIES

Pb

RoHS

Compliant

APPLICATIONS:

• Ideal for high density SMT

• IR reflow capable

• Tight stability option

• CCD clock for VTR camera

• Computer peripherals

• Digital camera, MP3 player

• Mobile communications

• PDA

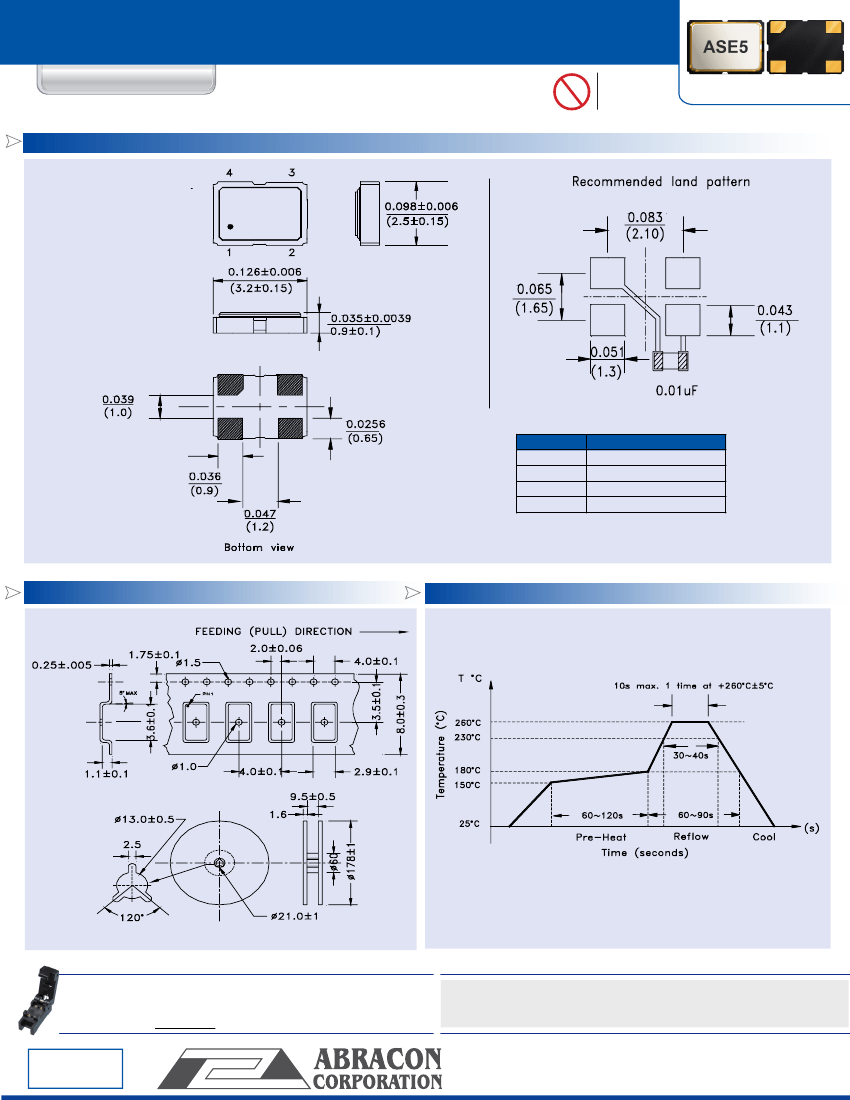

3.2 x 2.5 x 0.9 mm

| | | | | | | | | | | | | | |

FEATURES:

• Compact and low profile

• Low current consumption

• Tri-state function

• 1.35Vdc supply voltage

ideal for low power ASIC's

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency range:

Operating temperature:

Storage temperature:

Overall frequency stability:

Supply voltage (Vdd):

Input current

Symmetry:

Rise and fall time (Tr/Tf):

Output load:

Output voltage:

Tri-state function :

Disable current:

ASE5 Series

1.0MHz ~ 50 MHz

-10° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

1.35 Vdc ± 5%

See Table 1

45/55 % @ 50% Vdd

See Table 1

CMOS 15 pF max.

VOH = 0.9 * Vdd min.; VOL = 0.1 * Vdd max.

"1" (VIH ≥ 0.7*Vdd) or open: Oscillation; "0" (VIL < 0.3*Vdd) : Hi Z

10µA max.

TABLE 1- Input Current

Frequency

(MHz)

0.5 ~ 20

20.01 ~ 40.0

40.01 ~ 50.0

Idd

mA (Typ)

1.2

1.8

2.3

Idd

mA (Max)

1.5

2.5

3.0

Tr/Tf

ns (Typ)

1.3

Tr/Tf

ns (max)

3.0

Start-up time

ms (Typ)

1.0

Start-up time

ms (Max)

2.0

RMS Jitter

ps (Typ)

3.3

RMS Jitter

ps (Max)

5.0

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE5 - Frequency -

-

Packaging

Tape and

T

Reel

Operating Temp.

0°C to +50°C

I

-10°C to +60°C

D

-20°C to +70°C

E

-30°C to +70°C

F

-30°C to +85°C

N

-40°C to +85°C

L

Contact ABRACON for

wider temperature range.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Overall Frequency Stability

J(*)

±20ppm

R

±25ppm

K

±30ppm

H

±35ppm

B

±40ppm

C

±50ppm

Temp options I, D, E, and -10 to +70

˚C

only

Revised: 08.26.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
