ASVP-1.000000MHZ-N-C-B-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> ASVP-1.000000MHZ-N-C-B-T

Preview

ASVP-1.000000MHZ-N-C-B-T: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size608KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASVP-1.000000MHZ-N-C-B-T Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ASVP-1.000000MHZ-N-C-B-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	TAPE AND REEL
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	ASVP
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Oscillator type	HCMOS/TTL
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.6mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

PROGRAMMABLE HCMOS

/

TTL SMD CLOCK OSCILLATOR

ASVP Series

FEATURES:

• IR reflow capable

• Quick delivery within one to five days for small quantities.

• Tri-state E/ D or Stand-By function.

• Seam sealed

Pb

RoHS

Compliant

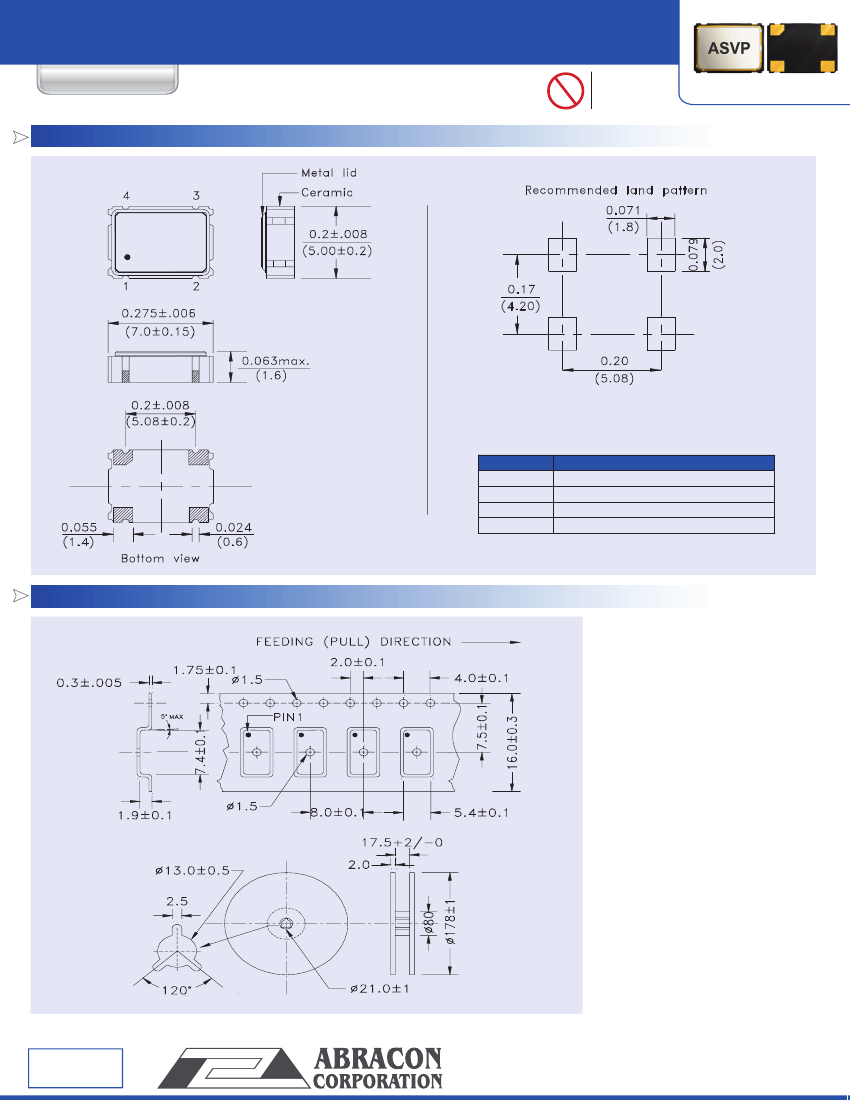

7.0 x 5.0 x 1.6 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Clocks for a wide range of applications.

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Frequency range:

Operating temperature:

Storage temperature:

Overall frequency stability:

Supply voltage (Vdd):

Input current:

Symmetry at 1/2Vdd:

Rise and fall time (Tr/Tf):

Output load:

Output voltage:

Start-up time:

Tristate function :

Disable current:

Stand-by current (option -B):

Jitter peak-to-peak:

RMS Jitter:

ASVP Series

1.000000 MHz to 133.000000 MHz

- 20° C to + 70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3 Vdc ± 10%

50 mA max.

45/55 % max.

4 ns max.

15pF max.

VOH = 0.7 * Vdd min.

VOL = 0.2 Vdc max.

10 ms max.

"1" (VIH = 0.7 V min) or open: Oscillation

"0" (VIL = 0.2 V max) : Hi Z

15mA max.

20µA max.

± 250ps max. for F<=40MHz, ±90ps typ.

± 100ps max. for F>40MHz, ±50ps typ.

± 50ps max. for F<=40MHz, ± 25ps typ.

± 40ps max. for F>40MHz, ± 20ps typ.

For Small

Quantities,

Delivery Time

is 1-5 days

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASVP-Frequency-

-

Packaging

T

Tape and Reel

(1K/reel)

Temp. Range

I

-0°C to +50°C

D

-10°C to +60°C

E

-20°C to +70°C

F

-30°C to +70°C

N

-30°C to +85°C

-40°C to +85°C

L

Frequency Stability

Over Operating Temp.

C

± 50 ppm

Please contact ABRACON for tighter stability

B

Stand-By

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 11.03.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
