Accutek
Microcircuit
Corporation

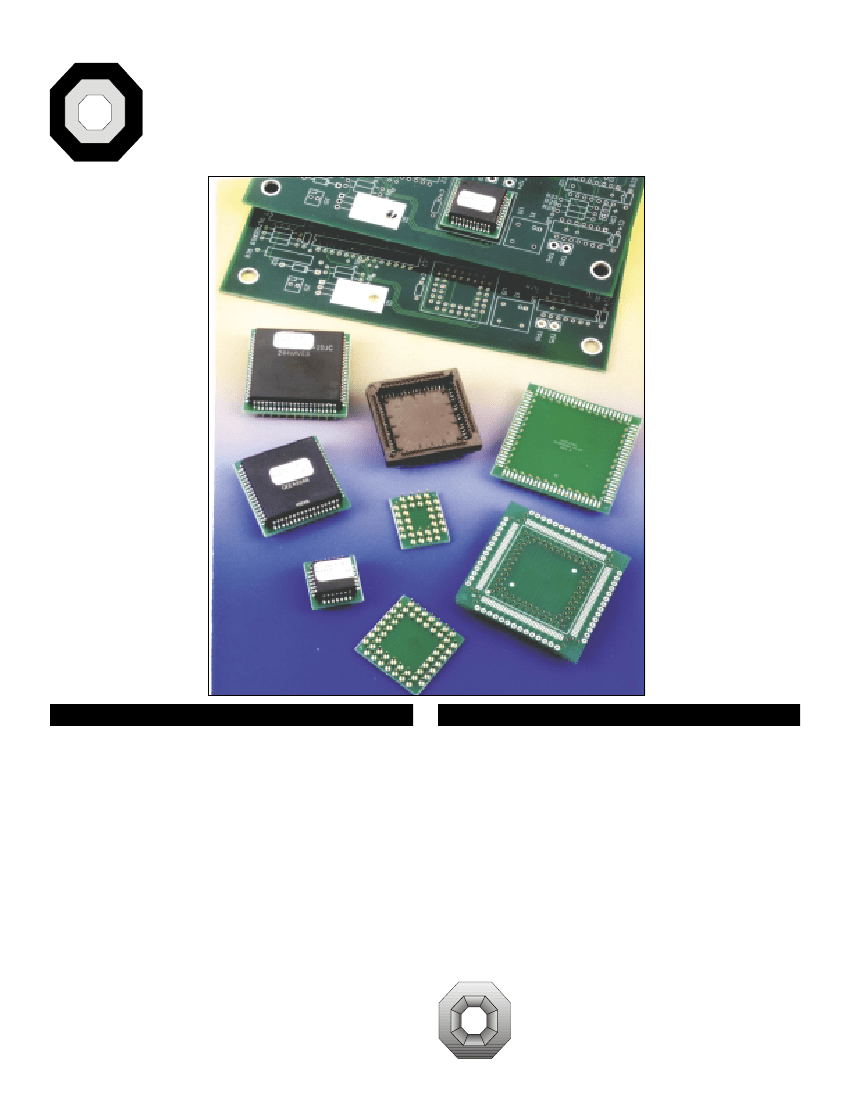

AccuPGA Adapter Modules
DESCRIPTION
The Accutek family of AccuPGA Adapter Modules are designed to
permit the soldering of surface mount PLCC devices into a standard
PGA through-hole PC board. These AccuPGA modules are a pin
compatible drop in replacement for end-of-life PGA devices. Stan-

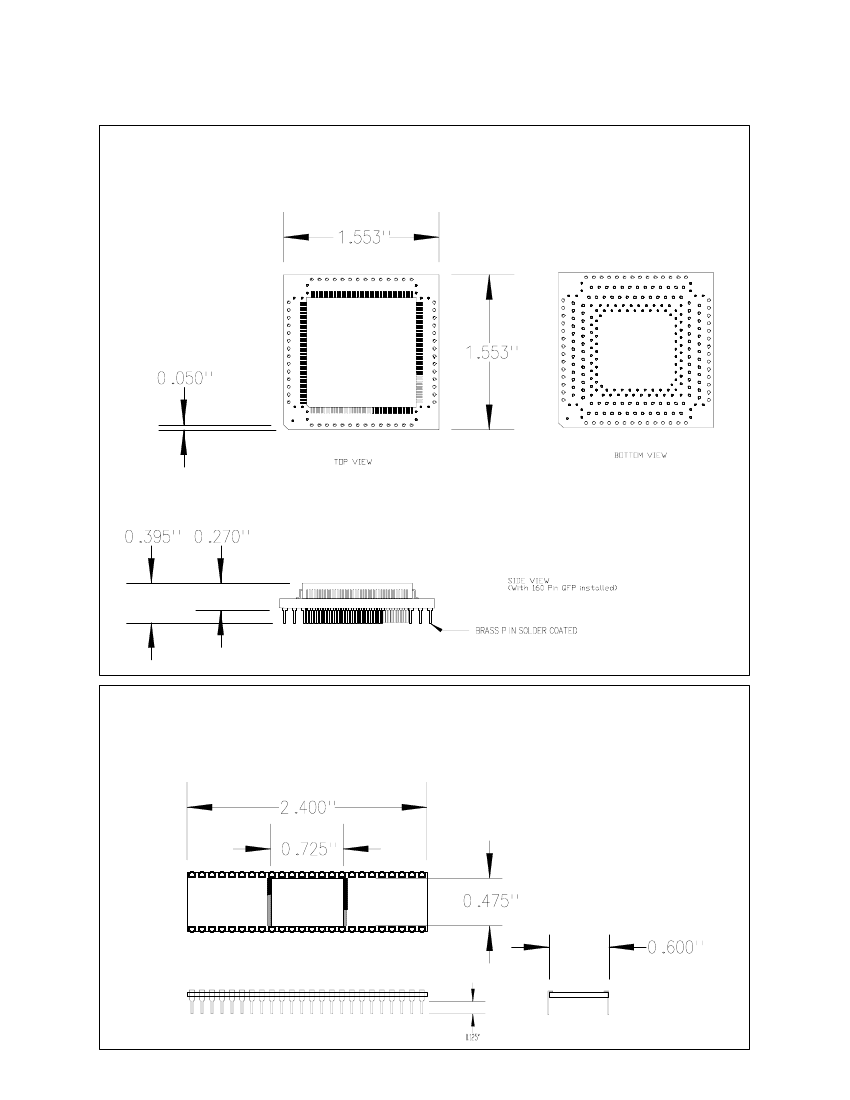

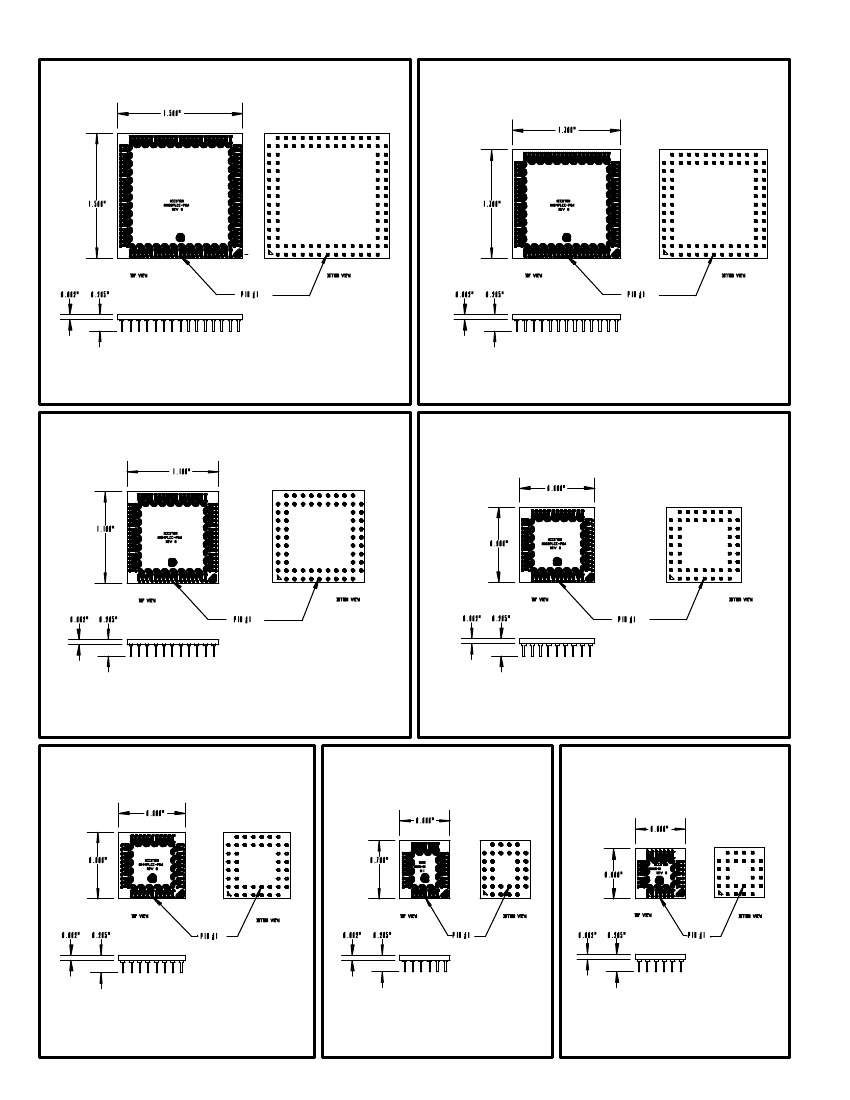

dard pin counts include 28, 32, 44, 52, 68, 84 and 100 pins. Can ac-
commodate square and rectangular PLCCs with 0.050” lead pitch
and sizes from 0.600” to 1.500”. They feature 0.018” diameter ma-
chined pins with integral standoffs. Plating options are tin, solder or
gold pins.
·
·
·
·
·
·
·
AccuPGAs were developed for users with motherboard designs
that require PGA’s, now obsoleted by manufacturers. These
adapter modules are designed for soldering directly into a
through-hole PC board and save costly motherboard redesigns.
AccuPGA Adapter Modules are fully assembled and tested.
AccuPGAs can be manufactured turnkey or from customer supplied
surface mount chips.
Custom multi-chip and double sided configurations are also avail-
able for special functions.
·
Features
Saves costly redesign of current motherboards
Fully tested with life time limited warranty
Standard pin counts include 28, 32, 44, 52, 68, 84 and 100
Tin, solder or gold plated pins available
0.018” diameter machined PGA pins with integral standoffs,
custom sizes available
IC assembly and testing available
EPROM and Flash programming available
Custom multi-chip and double-sided modules available
Accutek Reserves the right to make changes in specifications at any time and without
notice. Accutek does not assume any responsibility for the use of any circuitry de-
scribed; no circuit patent licenses are implied. Preliminary data sheets contain mini-
mum and maximum limits based upon design objectives, which are subject to change
upon full characterization over the specific operating conditions.
ACCUTEK MICROCIRCUIT CORPORATION
BUSINESS CENTER at NEWBURYPORT
2 NEW PASTURE ROAD, SUITE 1
NEWBURYPORT, MA 01950-4054
PHONE: 978-465-6200 FAX: 978-462-3396
E-Mail: accutek@seacoast.com
Internet: www.accutekmicro.com
