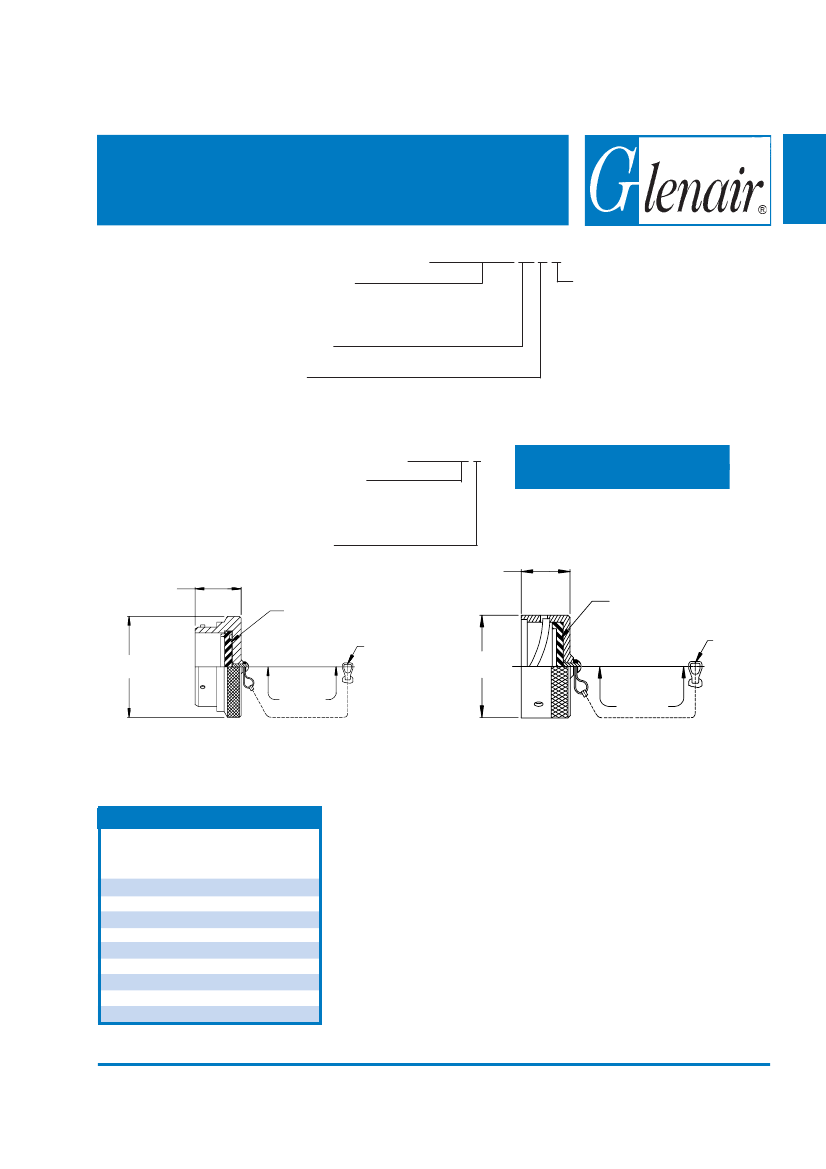

M83723/59-2, M83723/60-2, MS27293
and MS27295 Protective Covers
M83723/59-2 10 A C
Basic Part No.
M83723/59-2 = Plug Cover
M83723/60-2 = Receptacle Cover
Shell Size
Finish
A = Black Anodize
R = Electroless Nickel
W = Cadmium Over Electroless Nickel
MS27293-1
Basic Part No.
MS27293 = Plug Cover
MS27295 = Receptacle Cover
Dash No.
.757 (19.2)
Max
.618
(15.7)
Max
.125 (3.2)
Max Dia.
Length
MIL-DTL-83723
Series III
Bayonet
Attachment Style
C = 5.0” (127.0) Chain
P = 8.0” (203.2) Chain
R = 5.0” (127.0) Rope
T = 8.0” (203.2) Rope
N = No Attachment
Superceded Part Number
See Note 3
Gasket
Gasket
.125 (3.2)
Max Dia.
F
F
Length
M83723/59-2 Plug Cover
M27293 Plug Cover (See Note 3)
TABLE I
Shell
Size
8
10
12
14
16
18
20
22
24
M27294
M27295
Dash No.
7
1
2
3
4
5
8
6
9
F Dia
Max
.776 (19.7)
.906 (23.0)
1.078 (27.4)
1.141 (29.0)
1.266 (32.2)
1.375 (34.9)
1.510 (38.4)
1.625 (41.3)
1.760 (44.7)
M83723/60-2 Receptacle Cover
M27295 Receptacle Cover (See Note 3)
1. For complete dimensions see applicable Military Specifica-
tion.
2. Metric dimensions (mm) are indicated in parentheses.
3. MS27293 and MS27295 have a black anodize finish. Dash
no.’s 1, 2, and 7 have 3.0” (76.2) wire rope attachment and
other dash no.’s have a 5.0” (127.0) wire rope attachment.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
66-11
Protective
Covers
