IC STEPPER MOTOR CONTROLLER, 0.4 A, PDIP16, 0.600 INCH, PLASTIC, DIP-16, Motion Control Electronics

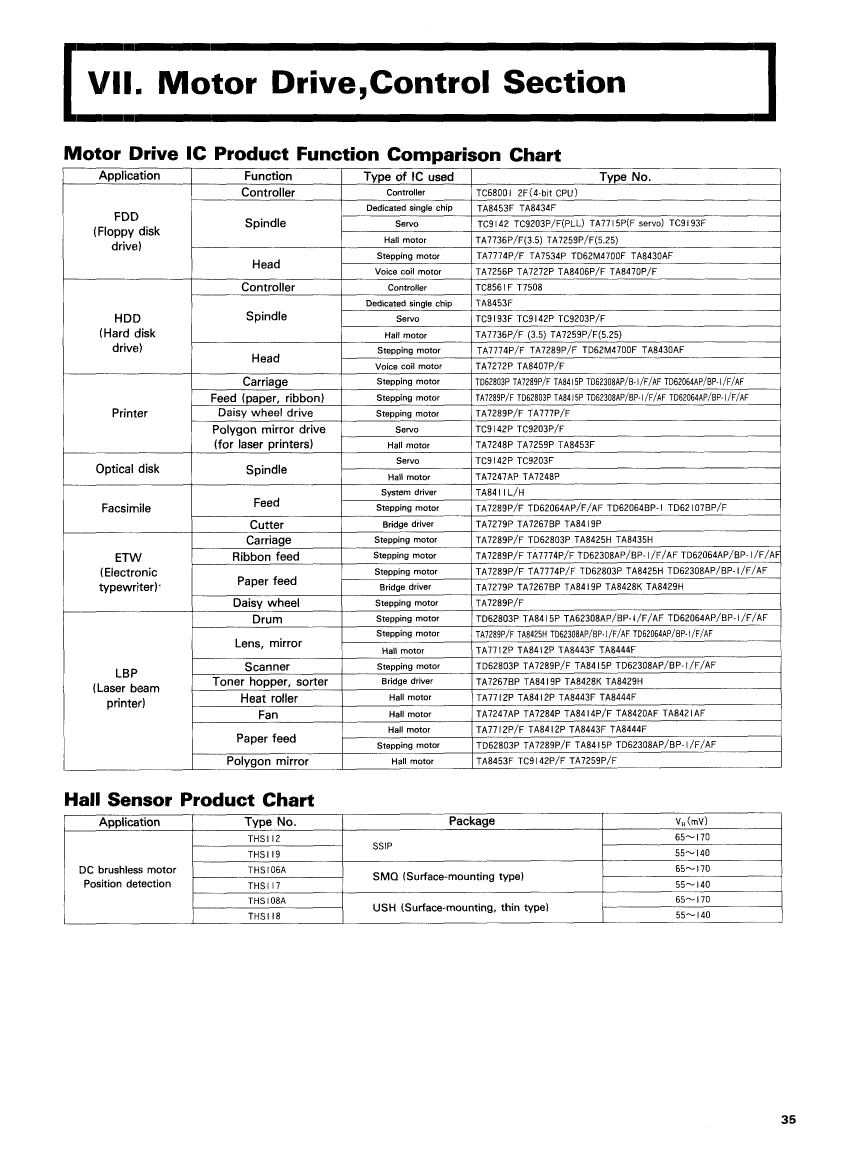

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | DIP |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Analog Integrated Circuits - Other Types | STEPPER MOTOR CONTROLLER |
| JESD-30 code | R-PDIP-T16 |
| JESD-609 code | e0 |
| length | 22 mm |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -30 °C |
| Maximum output current | 0.4 A |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 6.4 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | NO |
| Temperature level | OTHER |
| Terminal surface | TIN LEAD |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| Base Number Matches | 1 |
| TD62803P | TA8411H | TA8434F | TC9193F | TA8444F | TA8443F | TA8414F | TA8414P | |
|---|---|---|---|---|---|---|---|---|
| Description | IC STEPPER MOTOR CONTROLLER, 0.4 A, PDIP16, 0.600 INCH, PLASTIC, DIP-16, Motion Control Electronics | IC STEPPER MOTOR CONTROLLER, 0.8 A, PZIP25, PLASTIC, HZIP-25, Motion Control Electronics | IC BRUSHLESS DC MOTOR CONTROLLER, 0.7 A, PQFP30, 10 X 10 MM, HEAT SINK, POWER, PLASTIC, QFP-30, Motion Control Electronics | IC SPECIALTY ANALOG CIRCUIT, PDSO20, PLASTIC, MFP-20, Analog IC:Other | IC BRUSHLESS DC MOTOR CONTROLLER, 0.25 A, PQFP60, 14 X 14 MM, PLASTIC, QFP-60, Motion Control Electronics | IC BRUSHLESS DC MOTOR CONTROLLER, 0.25 A, PQFP60, 14 X 14 MM, PLASTIC, QFP-60, Motion Control Electronics | IC BRUSHLESS DC MOTOR CONTROLLER, PDSO8, 0.225 INCH, PLASTIC, SOP-8, Motion Control Electronics | IC BRUSHLESS DC MOTOR CONTROLLER, PDIP8, 0.300 INCH, PLASTIC, DIP-8, Motion Control Electronics |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | ZIP | QFP | SOIC | QFP | QFP | SOIC | DIP |
| Contacts | 16 | 25 | 30 | 20 | 60 | 60 | 8 | 8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| Analog Integrated Circuits - Other Types | STEPPER MOTOR CONTROLLER | STEPPER MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER | ANALOG CIRCUIT | BRUSHLESS DC MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER | BRUSHLESS DC MOTOR CONTROLLER |
| JESD-30 code | R-PDIP-T16 | R-PZIP-T25 | S-PQFP-G30 | R-PDSO-G20 | S-PQFP-G60 | S-PQFP-G60 | R-PDSO-G8 | R-PDIP-T8 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 22 mm | 36 mm | 10 mm | 12.8 mm | 14 mm | 14 mm | 5 mm | 9.6 mm |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 25 | 30 | 20 | 60 | 60 | 8 | 8 |
| Maximum operating temperature | 85 °C | 85 °C | 75 °C | 75 °C | 75 °C | 75 °C | 85 °C | 85 °C |
| Minimum operating temperature | -30 °C | -40 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C | -30 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | DIP | HZIP | HQFP | SOP | QFP | QFP | SOP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | SQUARE | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE, HEAT SINK/SLUG | FLATPACK, HEAT SINK/SLUG | SMALL OUTLINE | FLATPACK | FLATPACK | SMALL OUTLINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 6.4 mm | 17.3 mm | 2.7 mm | 1.8 mm | 2.3 mm | 2.3 mm | 1.9 mm | 4.25 mm |
| Maximum supply voltage (Vsup) | 5.5 V | 5.5 V | 15 V | 5.5 V | 5.5 V | 5.5 V | 28 V | 28 V |
| Minimum supply voltage (Vsup) | 4.5 V | 4.5 V | 4.25 V | 4.5 V | 4.5 V | 4.5 V | 4 V | 4 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 12 V | 12 V |
| surface mount | NO | NO | YES | YES | YES | YES | YES | NO |
| Temperature level | OTHER | INDUSTRIAL | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | OTHER | OTHER |
| Terminal surface | TIN LEAD | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | TIN LEAD | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING | GULL WING | GULL WING | GULL WING | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1 mm | 1.27 mm | 0.8 mm | 0.8 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | ZIG-ZAG | QUAD | DUAL | QUAD | QUAD | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Maximum output current | 0.4 A | 0.8 A | 0.7 A | - | 0.25 A | 0.25 A | - | - |
| width | 15.24 mm | 5 mm | 10 mm | - | 14 mm | 14 mm | 4.4 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | - | - | - |
| package instruction | - | HZIP, | 10 X 10 MM, HEAT SINK, POWER, PLASTIC, QFP-30 | SOP, | QFP, | 14 X 14 MM, PLASTIC, QFP-60 | SOP, | DIP, |
