A0325222LF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> A0325222LF

A0325222LF: DescriptionBoard Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size164KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

A0325222LF Overview

Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

A0325222LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.288 inch
subject depth	0.345 inch
body length	4.48 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL (100)
Contact completed and terminated	TIN (100) OVER NICKEL (20)
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	A0325222
Plug contact pitch	0.15 inch
Match contact row spacing	0.15 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.12 inch
Terminal pitch	3.81 mm
Termination type	SOLDER
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

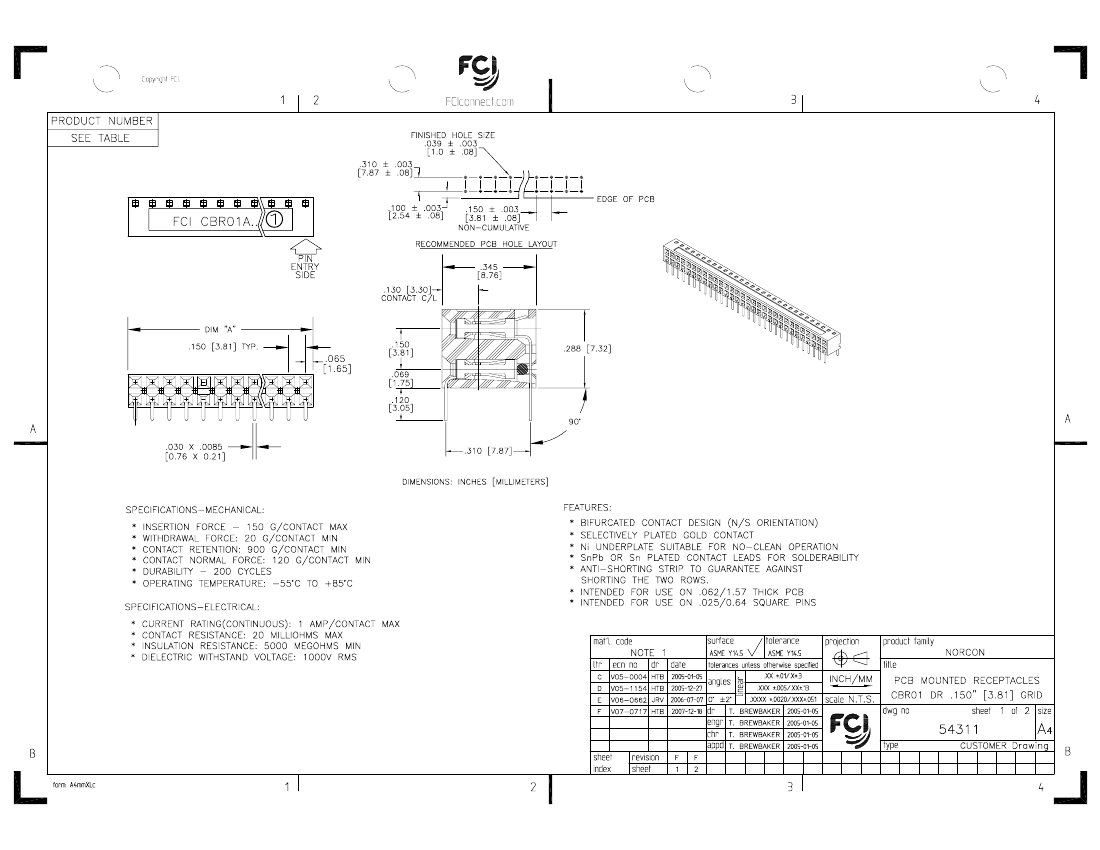

Preview

Download Datasheet

View All

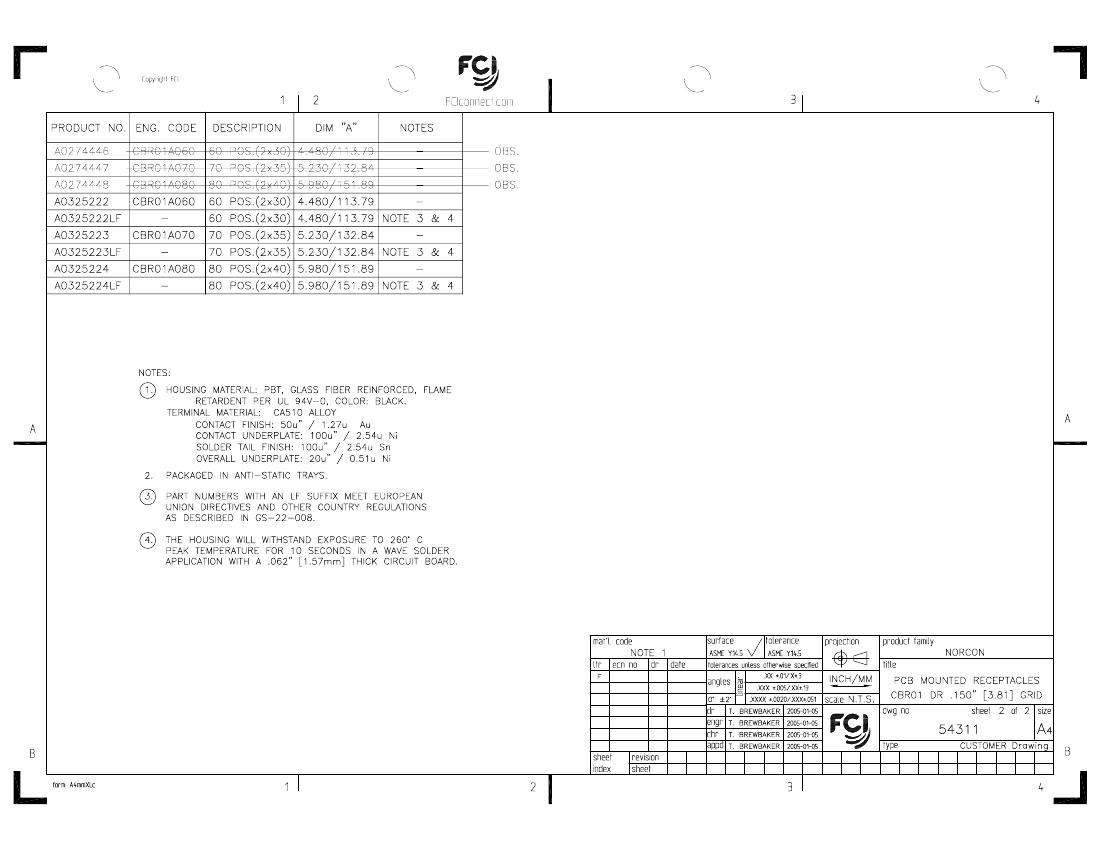

PDM: Rev:F

STATUS:

Released

Printed: Jan 15, 2008

A0325222LF Related Products

	A0325222LF	A0325222	A0325223LF	A0325223	A0325224LF	A0325224	A0274446	A0274447	A0274448
Description	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.15 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle	Board Connector, 60 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 70 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle	Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (50) OVER NICKEL (100)	GOLD (50) OVER NICKEL	NOT SPECIFIED	GOLD (50) OVER NICKEL	NOT SPECIFIED	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL	GOLD (50) OVER NICKEL
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	60	60	70	70	80	80	60	70	80
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
body width	0.288 inch	0.288 inch	0.288 inch	0.288 inch	0.288 inch	0.288 inch	-	-	-
subject depth	0.345 inch	0.345 inch	0.345 inch	0.345 inch	0.345 inch	0.345 inch	-	-	-
body length	4.48 inch	4.48 inch	5.23 inch	5.23 inch	5.98 inch	5.98 inch	-	-	-
Contact completed and terminated	TIN (100) OVER NICKEL (20)	TIN (100) OVER NICKEL	-	TIN (100) OVER NICKEL	-	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL	TIN (100) OVER NICKEL
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	-	-	-
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	-	-
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	-	-	-
Durability	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	200 Cycles	-	-	-
maximum insertion force	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	-	-	-
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	-	-	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-	-	-
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	-	-
JESD-609 code	e3	e3	-	e3	-	e3	e3	e3	e3
Manufacturer's serial number	A0325222	A0325222	-	A0325223	-	A0325224	A0274446	A0274447	A0274448
Plug contact pitch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	-	-	-
Match contact row spacing	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	-	-	-
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	-	-	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	-	-	-
PCB row number	2	2	2	2	2	2	-	-	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-	-	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	-	-
PCB contact row spacing	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	7.874 mm	-	-	-
Plating thickness	50u inch	50u inch	50u inch	50u inch	50u inch	50u inch	-	-	-
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	-	-	-
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	-	-	-
Guideline	UL	UL	UL	UL	UL	UL	-	-	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	-	-
Terminal length	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	0.12 inch	-	-	-
Evacuation force-minimum value	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	.1946 N	-	-	-
