AXK(3/4)S
NARROW-PITCH
CONNECTORS FOR
BOARD-TO-BOARD
CONNECTION

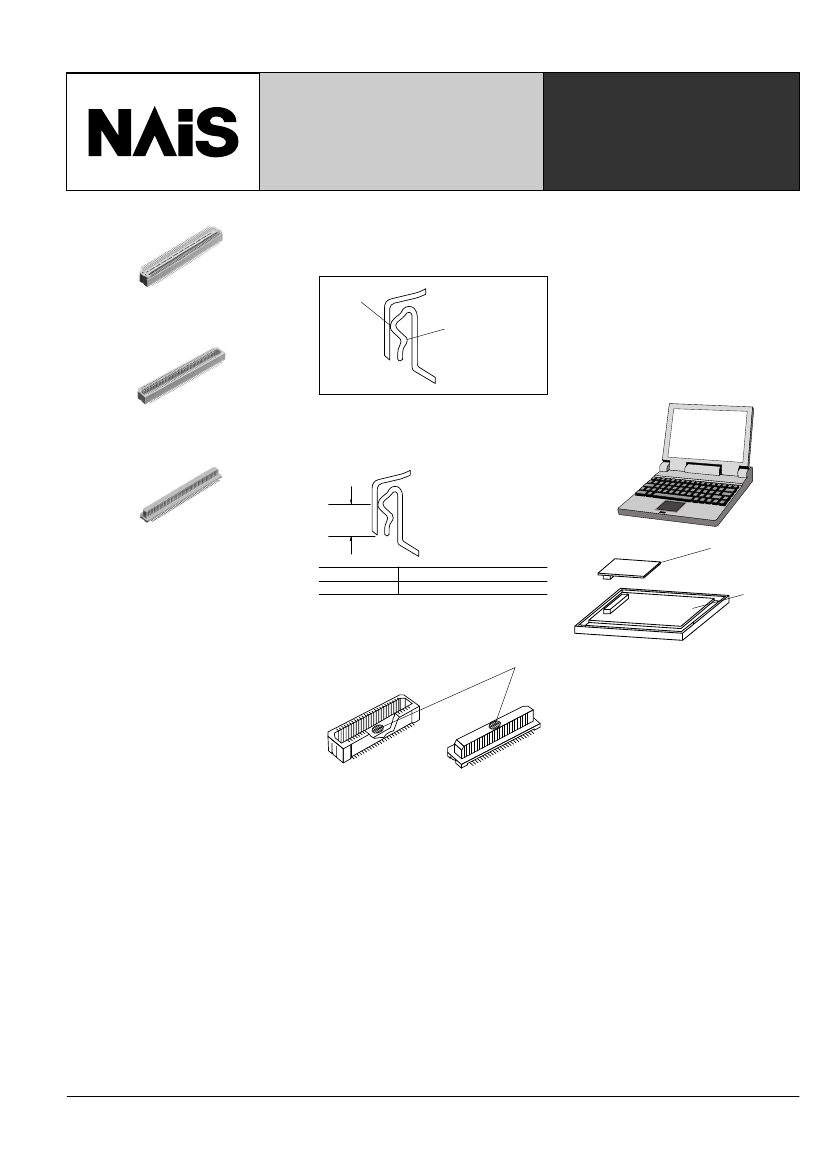

FEATURES
1. Bellows-type contacts
Bellows-type contacts resist mating stress
and offer high contact reliability.
Socket and header are mated
Round corner
makes contact.
The bellows type
contacts are fabricated
by bending thin sheet
metal. They offer reliable
contact since a rounded
corner, instead of a
sharp edge, is used for
tuning fork type contact.
NARROW PITCH
(0.6 mm) CONNECTORS
P6 SERIES — P6S —
APPLICATIONS
1. Small portable equipment, personal
computers, word processors, video
equipment, radio communication
equipment
2. This is ideal in applications involving
information devices such as notebook
computers, where connections are
required between a backplane and a
CPU board or another type of multi-
wiring expansion board.
Socket
2. Mating length 1.1mm
The effective mating length has been
extended to ensure that there is some
latitude in the mating.
A longer effective mating
length means that normal
electrical connection can
be maintained even if the
connectors are not
perfectly coupled.
Effective mating length
1.1mm
Effective
mating
length
Header
Type
P6S
Expansion board
requiring multi-wiring,
such as CPU board.
Motherboard
3. Automatic mounting
1) Suction area for suction-type automatic
mounting machines is employed.
Suction face
Socket
Header
2) Embossed tape packaging is standard.
3) Terminal construction which is virtually
resistant to solder bridging.
39
AXK(3/4)S
PRODUCT TYPES
Mated height
No. of contacts
20
30
40
4.0 mm
50
60
80
100
20
30
40
5.0 mm
50
60
80
100
20
30
40
6.0 mm
50
60
80
100
20
30
40
7.0 mm
50
60
80
100
20
30
40
8.0 mm
50
60
80
100
20
30
40
9.0 mm
50
60
80
100
Part No.
Socket
AXK3S20035*
AXK3S30035*
AXK3S40035*
AXK3S50035*
AXK3S60035*
AXK3S80035*
AXK3S00035*
AXK3S20035*
AXK3S30035*
AXK3S40035*
AXK3S50035*
AXK3S60035*
AXK3S80035*
AXK3S00035*
AXK3S20035*
AXK3S30035*
AXK3S40035*
AXK3S50035*
AXK3S60035*
AXK3S80035*
AXK3S00035*
AXK3S20335P
AXK3S30335P
AXK3S40335P
AXK3S50335P
AXK3S60335P
AXK3S80335P
AXK3S00335P
AXK3S20335P
AXK3S30335P
AXK3S40335P
AXK3S50335P
AXK3S60335P
AXK3S80335P
AXK3S00335P
AXK3S20335P
AXK3S30335P
AXK3S40335P
AXK3S50335P
AXK3S60335P
AXK3S80335P
AXK3S00335P
Header
AXK4S20435*
AXK4S30435*
AXK4S40435*
AXK4S50435*
AXK4S60435*
AXK4S80435*
AXK4S00435*
AXK4S20535P
AXK4S30535P
AXK4S40535P
AXK4S50535P
AXK4S60535P
AXK4S80535P
AXK4S00535P
AXK4S20635P
AXK4S30635P
AXK4S40635P
AXK4S50635P
AXK4S60635P
AXK4S80635P
AXK4S00635P
AXK4S20435*
AXK4S30435*
AXK4S40435*
AXK4S50435*
AXK4S60435*
AXK4S80435*
AXK4S00435*
AXK4S20535P
AXK4S30535P
AXK4S40535P
AXK4S50535P
AXK4S60535P
AXK4S80535P
AXK4S00535P
AXK4S20635P
AXK4S30635P
AXK4S40635P
AXK4S50635P
AXK4S60635P
AXK4S80635P
AXK4S00635P
Notes) 1. Please add following suffix at * marked positions.
J: Inner carton (1 reel) 1,500 pcs. (Outer carton: 3,000 pcs.)
P: Inner carton (1 reel) 1,000 pcs. (Outer carton: 2,000 pcs.)
As for the part No. P is suffixed, only 1,000 pcs. reel is available.
2. Regarding ordering units: During production: Please make orders in 1 reel units.
Samples for mounting confirmation: Please consult us. (See “Regarding sample orders to confirm proper mounting” on page 9.)
Samples: Small lot orders are possible. Change the suffix “J” to the suffix “P,” or place a “P” where the “*” is located.
3. The standard type comes with no positioning bosses. Connectors with positioning bosses are available for on-demand production.
For this type of connector, 9th digit of the part no. changes from 3 to 4 e.g. AXK3S20045P.
40
AXK(3/4)S
SPECIFICATIONS
1. Characteristics
Item
Rated current
Electrical
characteristics
Rated voltage
Breakdown voltage
Insulation resistance
Contact resistance
Composite insertion force
Mechanical
characteristics
Composite removal force
Post holding force
Ambient temperature
Soldering heat resistance
Specifications
Mated height: 4mm, 5mm, 6mm, 7mm, 8mm, 9mm
0.5A/terminal
(Max. 16 A)
60V AC/DC
150V AC for 1 min.
Min. 1,000MΩ
Max. 80mΩ
Max. 0.785N {80gf}
×
no. of contacts
(initial)
Min. 0.0588N {6gf}
×
no. of contacts
Min. 0.98N
{100gf}
–55°C to +85°C
Max. peak temperature of 245°C
300°C within 5 sec.
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 80mΩ
120 hours,
insulation resistance min. 100MΩ,
contact resistance max. 80mΩ
24 hours,
insulation resistance min. 100MΩ,
contact resistance max. 80mΩ
48 hours,
contact resistance max. 80mΩ
50 times
P6S Mated height: 4mm
50 contacts; Socket: 0.29g Header: 0.26g
Conditions
Detection current: 1mA
Using 500V DC megger
Measured based on the HP4338B measurement
method of JIS C 5402
Measures the maximum load in the post axial direction
until removal
No freezing at low temperatures
Infrared reflow soldering
Soldering iron
Sequence Temperature (°C) Time
Sequence/Temperature(°C)/Time(min.) (minutes)
1
–55
+0
30
1/-55
+0-3
/30
−3
2/25
+10-5
/Max.5
2
25
+10
Max. 5
−5
3/85
+3-0
/30
3
85
+3
30
−0
+10
4/25
+10-5
/Max.5
4
25
−5
Max. 5
Bath temperature 40±2°C,
humidity 90 to 95% R.H.
Bath temperature 35±2°C,
saltwater concentration 5±1%
Bath temperature 40±2°C,
gas concentration 3±1 ppm, humidity 75 to 80% R.H.
Repeated insertion and removal speed of max. 200
times/hours
Thermal shock resistance
(header and socket mated)
Environmental
characteristics
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
2. Material and surface treatment
Part name
Molded portion
Contact/post
Mated height: 4mm, 5mm, 6mm, 7mm, 8mm, 9mm
Material
Surface treatment
Heat-resistant resin
—
(UL94V-0)
Contact portion: Au plating over Ni
Copper alloy
Terminal portion: Au plating over Ni

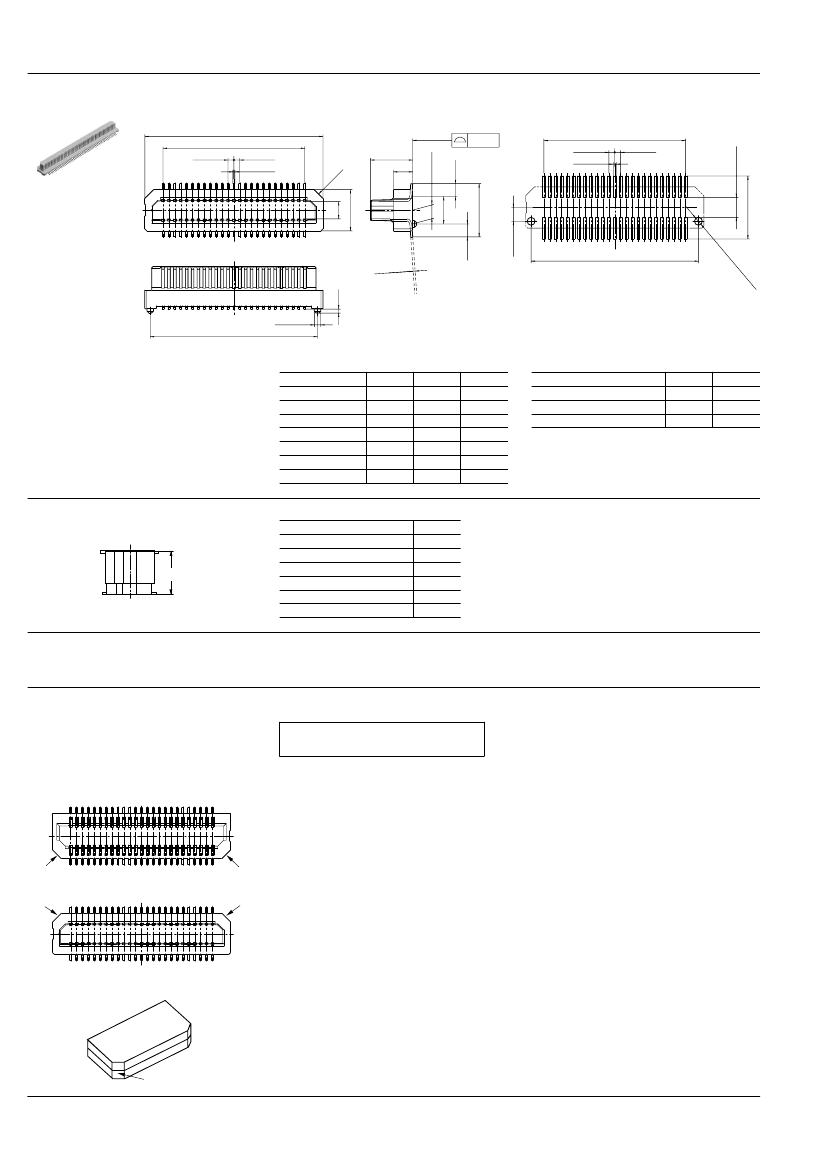

DIMENSIONS
• Mated height: 4mm, 5mm, 6mm, 7mm, 8mm, 9mm
• Socket
A
±0.10
B
±0.08
mm General tolerance:
±0.2
Recommended PC board pattern
(TOP VIEW)
B
0.10
0.60
0.20
±0.05
±0.03
±0.05
±0.05
D
C
1.60
0.
(1.3)
2.40
6.80
±0.05
0.60
±0.05
0.60
0.30
±0.05
±0.05
0.60
±0.05
1.82
9
4.6
3.2
5.8
(1.3)
1.60
±0.05
8
0.
2-
C
±0.05
.1
+0 0
dia
0.65
C
±0.10
±0.05
dia.
Dimension table (mm)
No. of contact
20
30
40
50
60
80
100
A
9.1
12.1
15.1
18.1
21.1
27.1
33.1
B
5.40
8.40
11.40
14.40
17.40
23.40
29.40
C
8.00
11.00
14.00
17.00
20.00
26.00
32.00
Mated height
4mm, 5mm, 6mm
7mm, 8mm, 9mm
D
3.05
6.05
0.4
0.15
±0.0
3
ole
.h
41
AXK(3/4)S
• Header
mm General tolerance:
±0.2
Recommended PC board pattern (TOP VIEW)
A
±0.10
B
±0.08
0.10
0.60
0.20
±0.05
±0.03
B
0.60
±0.05
±0.05
C
1.40
0.
9
D
(1.3)
2.00
6.40
±0.05
.1
+0
0.60
±0.05
E
0.30
±0.05
1.72
4.2
2.8
5.4
(1.3)
1.40
±0.05
C
±0.05
0.20
±0.0
3
±0.05
0.60
±0.05
0.
2-
8
0
le
ho
a.
di
0.65
C
±0.10
±0.05
dia.
Dimension table (mm)
No. of contact
20
30
40
50
60
80
100
A
9.1
12.1
15.1
18.1
21.1
27.1
33.1
B
5.40
8.40
11.40
14.40
17.40
23.40
29.40
C
8.00
11.00
14.00
17.00
20.00
26.00
32.00
Mated height
4 mm, 7mm
5 mm, 8mm
6 mm, 9mm
D
0.95
1.95
2.95
E
3.3
4.3
5.3
Socket and header are mated
Mated height
4 mm
5 mm
6 mm
7 mm
8 mm
9 mm
H
4.0
5.0
6.0
7.0
8.0
9.0
H
+0.2
-0.1
EMBOSSED TAPE DIMENSIONS
Please refer to page 65.
NOTES
1. Prevention of reverse mating
Excessive mating force may damage the
key, so be sure to match chamfered
corners when mating.
Outline (top view)
Regarding general notes, please
refer to pages 8 and 9.
Chamfered corner
Chamfered corner
Chamfered corner
Chamfered corner
Mating state
Chamfered corner
42
0.4
