Environmental

Backshells

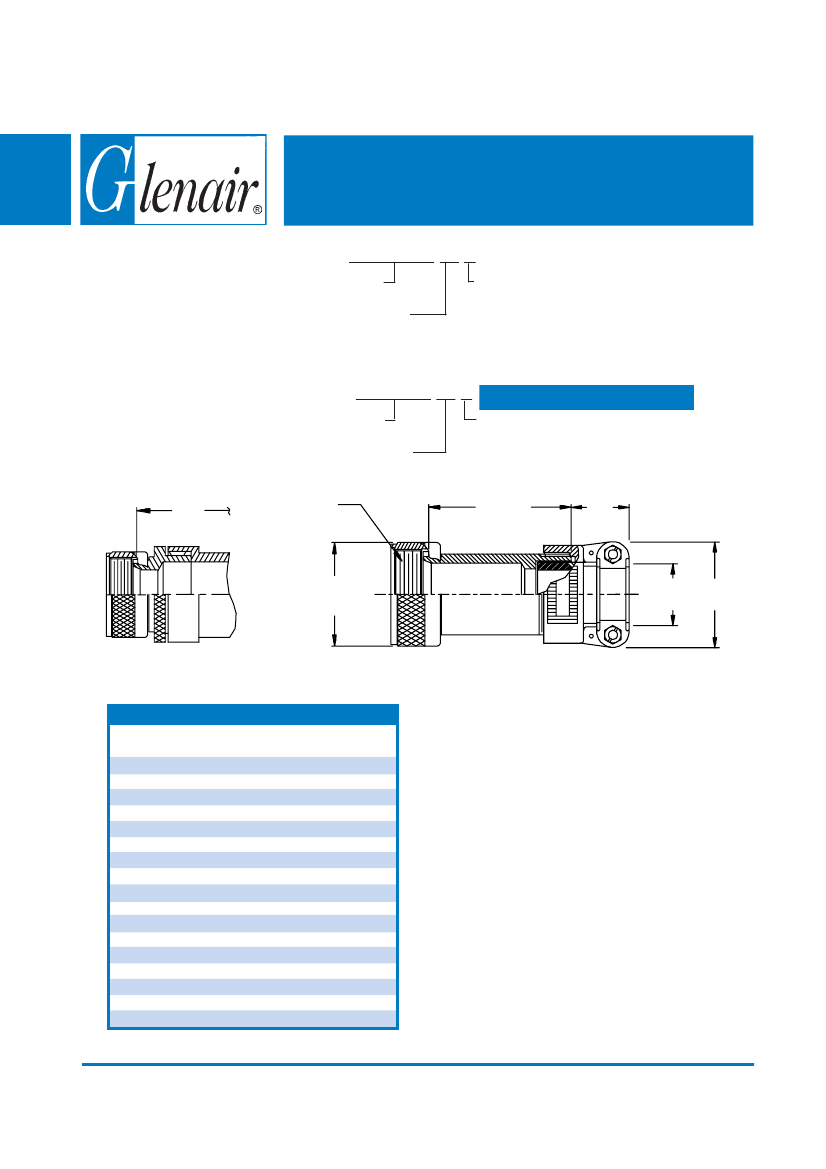

AS85049/11 and MS3437B

Environmental Backshells

Glenair Connector

Designator A

MIL-DTL-5015 Series 3400,

MIL-DTL-26482 Series 2,

AS81703 Series 3,

MIL-DTL-83723 Series I &

III, 40M39569, DEF 5326-3,

EN 2997, EN 3646,

ESC 10, ESC 11, LN 29504,

NFC93422 Series HE302,

PAN 6432-1, PAN 6432-2,

PATT 602

M85049/11-21 N

Basic Part No.

Dash No. (Table II)

Finish and Material

B = Black Cadmium, Stainless Steel

N = Electroless Nickel, Aluminum

S = Passivated Stainless Steel

W = 1,000 Hour Cadmium Olive Drab Over

Electroless Nickel, Aluminum

MS3437B 21 N

Basic Part No.

Dash No. (Table II)

Superceded Part Number

Finish (Material is Aluminum Only)

A = Cadmium Olive Drab over Nickel

C = Cadmium Olive Drab

N = Electroless Nickel

A Thread

Cable

Range

STYLE 2

STYLE 1

TABLE I

Shell

Size

A Thread

Class 2B

.562 - 24 UNEF

.500 - 20 UNF

.625 - 24 UNEF

.750 - 20 UNEF

.875 - 20 UNEF

1.000 - 20 UNEF

1.062 - 18 UNEF

1.188 - 18 UNEF

1.313 - 18 UNEF

1.438 - 18 UNEF

1.750 - 18 UNS

2.000 - 18 UNS

2.250 - 16 UN

2.500 - 16 UN

2.750 - 16 UN

3.000 - 16 UN

1.500 - 18 UNEF

C Dia

Max

.669 (17.0)

.617 (15.7)

.734 (18.6)

.858 (21.8)

.984 (25.0)

1.112 (28.2)

1.218 (30.9)

1.345 (34.2)

1.468 (37.3)

1.593 (40.5)

1.969 (50.0)

2.219 (56.4)

2.469 (62.7)

2.719 (69.1)

2.969 (75.4)

3.219 (81.8)

1.653 (42.0)

CAGE Code 06324

1. For complete dimensions see applicable

Military Specification.

2. Metric dimensions (mm) are indicated in

parentheses.

3. Cable range is defined as the accommoda-

tions range for the wire bundle or cable.

Dimensions shown are not intended for

inspection criteria.

4. When maximum cable entry is exceeded,

Style 2 will be supplied.

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
