BPA Series
Side Actuated DIP Switches
Features/Benefits
•
Side actuated contacts
•
Available in thru-hole or
Typical Applications
•
Address switch for industrial controls
•
Logic switching for computers and
peripherals
•
Function controlling for numerous
applications
I
DIP
SMT models
•
High pressure contact system does
not require tape seal for washing
•
RoHS compliant & compatible
How To Order
Complete part numbers for BPA Series are shown on pages I–16 thru I–18. All switches supplied in “OFF” position.
Specifications
SWITCH FUNCTION: 1 thru 10 position available.
CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.
@ 24 V DC.
MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.
@ 5 V DC 10mA.
CONTACT RESISTANCE: 50 milliohms initial max.
INSULATION RESISTANCE: 100 V DC 100 megohms min.
DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.
STORAGE TEMPERATURE: -40°C to 85°C.
OPERATING TEMPERATURE: -20°C to 85°C.
OPERATING FORCE: 800 grams max.
SOLDERABILITY: Flow solderable and washable
(soldering: 260°C for 10 sec. max.)
PACKAGING: Switches supplied in rigid dispensing tubes in full-
tube quantities only, this may affect order quantity. Numbers
of switches per tube varies with model. Tape and reel
packaging available for SMT options.
Materials
HOUSING: PPS, color black (UL94V-0).
COVER: PPS, color black (UL94V-0).
ACTUATOR: PA-6T UL94V-0).
CONTACTS: Beryllium Copper with Gold over Nickel plate.
TERMINALS: Brass, Gold over Nickel plate.
Note:
Specifications and materials listed above are for switches with standard options.
For information on specific and custom switches, consult Customer Service Center.
How To Order
Our easy Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete
listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate box.
B P A
Model
BPA01
BPA02
BPA03
BPA04
BPA05
BPA06
BPA07
BPA08
BPA09
BPA10
1 position
2 positions
3 positions
4 positions
5 positions
6 positions
7 positions
8 positions
9 positions
10 positions
B
On Position
NONE
Down
R
Up
Terminations
NONE
PC
S
Surface Mount
Contact material
B
BeCu,
Gold over nickel plate
Packaging
NONE
Tube
R
Tape and Reel (Surface Mount only)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-16
www.ck-components.com
BPA Series
Side Actuated DIP Switches

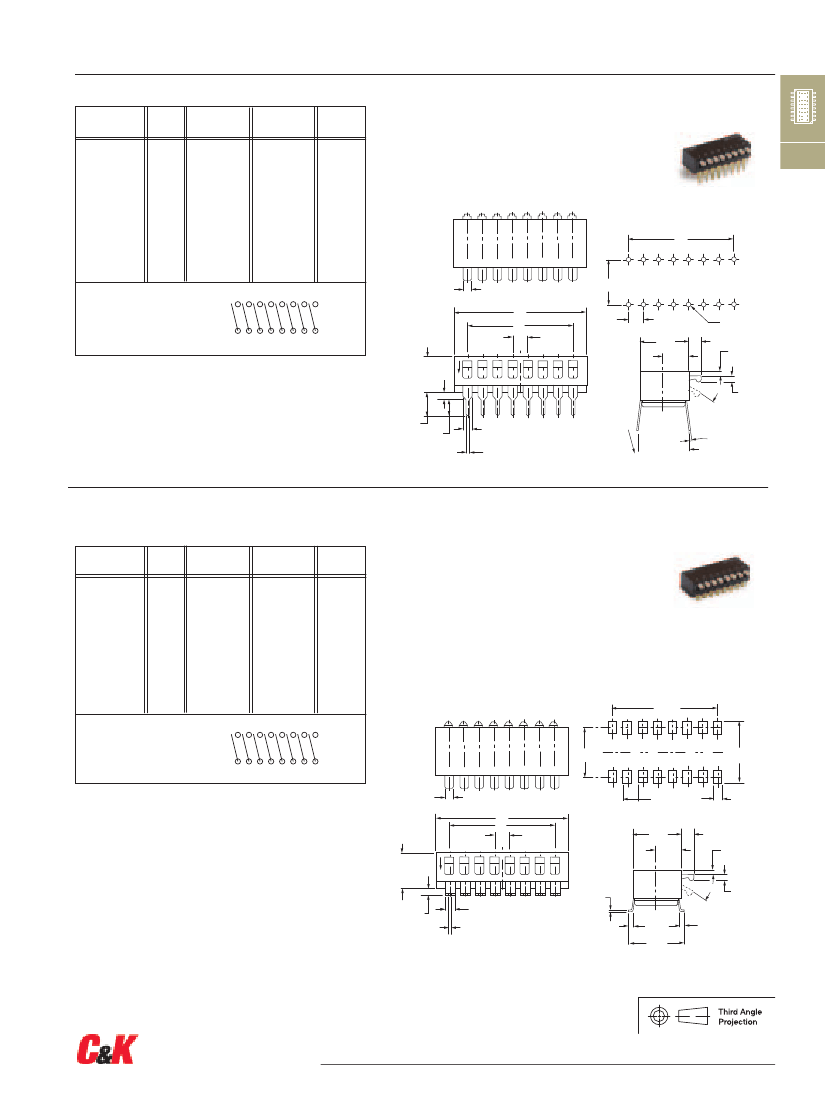

Side Actuator – Thru-hole Terminals
ROHS
PART NUMBER
NO.
POS.
1
2
3
4
5
6
7
8
9
10
DIM. ‘A’
.176 (4,48)
.276 (7,0)
.376 (9,6)
.476 (12,1)
.575 (14,6)
.677 (17,2)
.776 (19,7)
.878 (22,3)
.976 (24,8)
1.075 (27,3)
DIM. ‘B’
N/A
.100 (2,54)
.200 (5,08)
.300 (7,62)
.400 (10,16)
.500 (12,70))
.600 (15,24)
.700 (17,78)
.800 (20,32)
.900 (22,56)
QUANTITY
PER TUBE
100
60
45
35
30
25
20
20
15
1
2
3
4
5
6
7
8
BPA01B
BPA02B
BPA03B
BPA04B
BPA05B
BPA06B
BPA07B
BPA08B
BPA09B
BPA10B
Schematic
I
DIP
BPA08B
C&K
BPA08
5B
“B”
15
0.055
(1,4)
“A”
“B”
0.100
(2,54)
0.100
(2,54)
PITCH
0.321
(8,15)
0.173
(4,4)
0.300
(7,6)
+.008
ø0.032 -.000
(0,8+0,2/-0)
0.083
(2,1)
0.029
(0,75)
SPST
NOTE:
Reverse throw available, contact C&K for P/N and quote.
0.236 0.051
(6,0) (1,3)
ON 1
2
3
4
5
6
7
8
25
0
0.039
(1,0)
0.157
(4,0)
0.106
(2,7)
+.000
0.063 -.008
(1,6+0/-0,2)
+.000
0.024 -.004
(0,6+0/-0,2)
0.299/0.343
(7,6/8,7)
0.010
(0,25)
Side Actuator – Surface Mount Terminals
ROHS
PART NUMBER
NO.
POS.
1
2
3
4
5
6
7
8
9
10
QUANTITY
PER TUBE
100
60
45
35
30
25
20
20
15
15
C&K
BPA08
5B
0.325
(8,26)
0.410 MIN.
(10,41)
DIM “B”
DIM. ‘A’
.176 (4,48)
.276 (7,0)
.376 (9,6)
.476 (12,1)
.575 (14,6)
.677 (17,2)
.776 (19,7)
.878 (22,3)
.976 (24,8)
1.075 (27,3)
DIM. ‘B’
N/A
.100 (2,54)
.200 (5,08)
.300 (7,62)
.400 (10,16)
.500 (12,70))
.600 (15,24)
.700 (17,78)
.800 (20,32)
.900 (22,56)
BPA01SB
BPA02SB
BPA03SB
BPA04SB
BPA05SB
BPA06SB
BPA07SB
BPA08SB
BPA09SB
BPA10SB
Schematic
BPA08SB
SPST
1
2
3
4
5
6
7
8
NOTE:
Tape and reel packaging available by adding “R” to end of
project number.
0.055
(1,4)
“A”
“B”
0.100
(2,54)
PITCH
0.100
(2,54)
0.060 MIN.
(1,52)
0.321
(8,15)
0.173
(4,4)
0.083
(2,1)
0.029
(0,75)
0.236
(6,0)
ON 1
2
3
4
5
6
7
8
25
0
0.010
(0,25)
0.039
(1,0)
0.033/0.041
(0,85/1,04)
+.000
0.063 -.008
(1,6+0/-0,2)
+.000
0.024 -.004
(0,6+0/-0,1)
0.031
(0,8)
0.366
(9,3)
0.031
(0,8)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-17
www.ck-components.com
BPA Series
Side Actuated DIP Switches

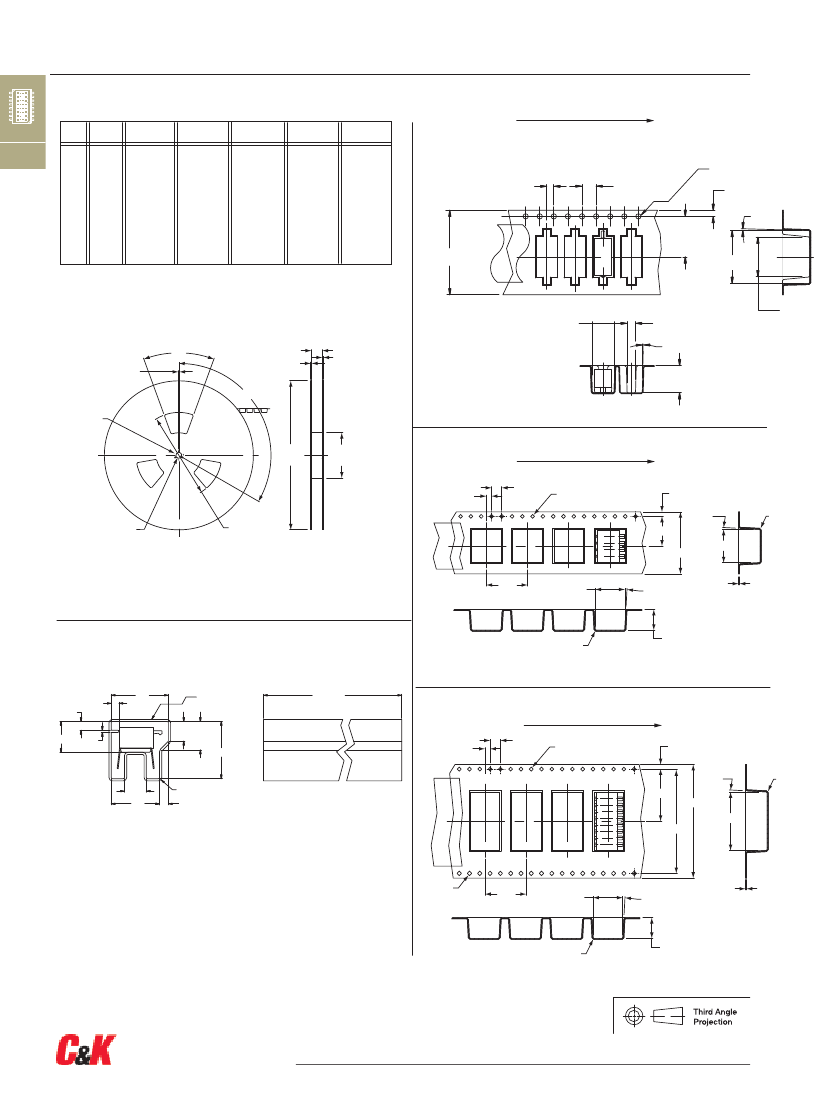

Tape & Reel Packaging – Surface Mount Options Only
FEED DIRECTION
QTY/
REEL
POLES
1
2
3
4
5
6
7
8
9
10
DIM. ‘A’
.453
.453
.453
.453
.453
.559
.559
.795
.795
.795
(11,5)
(11,5)
(11,5)
(11,5)
(11,5)
(14,2)
(14,2)
(20,2)
(20,2)
(20,2)
DIM. ‘B’
––
––
––
––
––
1.118 (28,4)
1.118 (28,4)
1.590 (40,4)
1.590 (40,4)
1.590 (40,4)
DIM. ‘C’
.945 (24,0)
.945 (24,0)
.945 (24,0)
.945 (24,0)
.945 (24,0)
1.260 (32,0)
1.260 (32,0)
1.732 (44,0)
1.732 (44,0)
1.732 (44,0)
DIM. ‘D’
.530 (13,45)
.311 (7,9)
.409 (10,4)
.508 (12,9)
.606 (15,4)
.709 (18,0)
.807 (20,5)
.894 (22,7)
1.004 (25,5)
1.106 (28,1)
DIM. ‘E’
.960 (24,4)
.960 (24,4)
.960 (24,4)
.960 (24,4)
.960 (24,4)
1.275 (32,4)
1.275 (32,4)
1.748 (44,4)
1.748 (44,4)
1.748 (44,4)
1 Position
Ø.012
(0,30)
MAX.
0.079
(2,00)
0.157
(4,0)
Ø 0.059
(Ø 1,50)
0.069
(1,75)
3
0
MAX
DIM 'A'
BPA01
I
DIP
1000
500
500
500
500
500
500
500
500
500
DIM 'C'
DIM 'D'
Note:
For tape and reel packaging, add ‘R’ to end of part number.
0.360
0.209
(5,3)
40
0
.079
(2,00)
DIM. 'E'
.079
(2,00)
3x
120
0
2 x .079 (2P-7P)
(2 x 2.0)
2 x .118 (8P-10P)
(2 x 3.0)
0.098
(2,5)
3
0
MAX
0.315
(8,0)
ø.827
ø(21,0)
2, 3, 4 & 5 Positions
13.0
(330)
3.937
(100,0)
.157
(4,00)
FEED DIRECTION
.079
(2,00)
ø.512
ø(13,0)
ø7.48
ø(190,0)
Ø.059
(1,50)
.069
(1,75)
DIM. 'A'
DIM. 'C'
3
0
MAX.
DIM 'D'
Ø.012
(0,30)
MAX.
1234
.630
(16,0)
.450
(11,5)
3
0
MAX.
0.020
(0,5)
Tube Packaging
MARKING LABEL ON
END OF TUBE
Ø.012
(0,30)
MAX.
.315
(8,00)
0.079
(2,0)
0.276 ± .008
(7,0 ± 0,2)
0.071
(1,8)
0.512
(13,0)
19.68 ± 0.04
(500,0 ± 1,0)
6, 7, 8, 9 & 10 Positions
FEED DIRECTION
0.020
(0,5)
0.177 0.256
(4,5) (6,5)
0.512
(13,0)
.079
(2,00)
.157
(4,00)
Ø.059
(1,50)
.069
(1,75)
3
0
MAX.
DIM. 'C'
DIM 'D'
DIM. 'B'
Ø.012
(0,30)
MAX.
1234 5 6 78
0.197
(5,0)
0.433
(11,0)
0.020 MAX.
(0,5) TYP
0.079 REF.
(2,0)
DIM. 'A'
SEE
DETAIL A
.630
(16,0)
.450
(11,5)
3
0
MAX.
0.020
(0,5)
.315
(8,00)
Dimensions are shown: Inch (mm )
Specifications and dimensions subject to change
I-18
www.ck-components.com
