PA004N

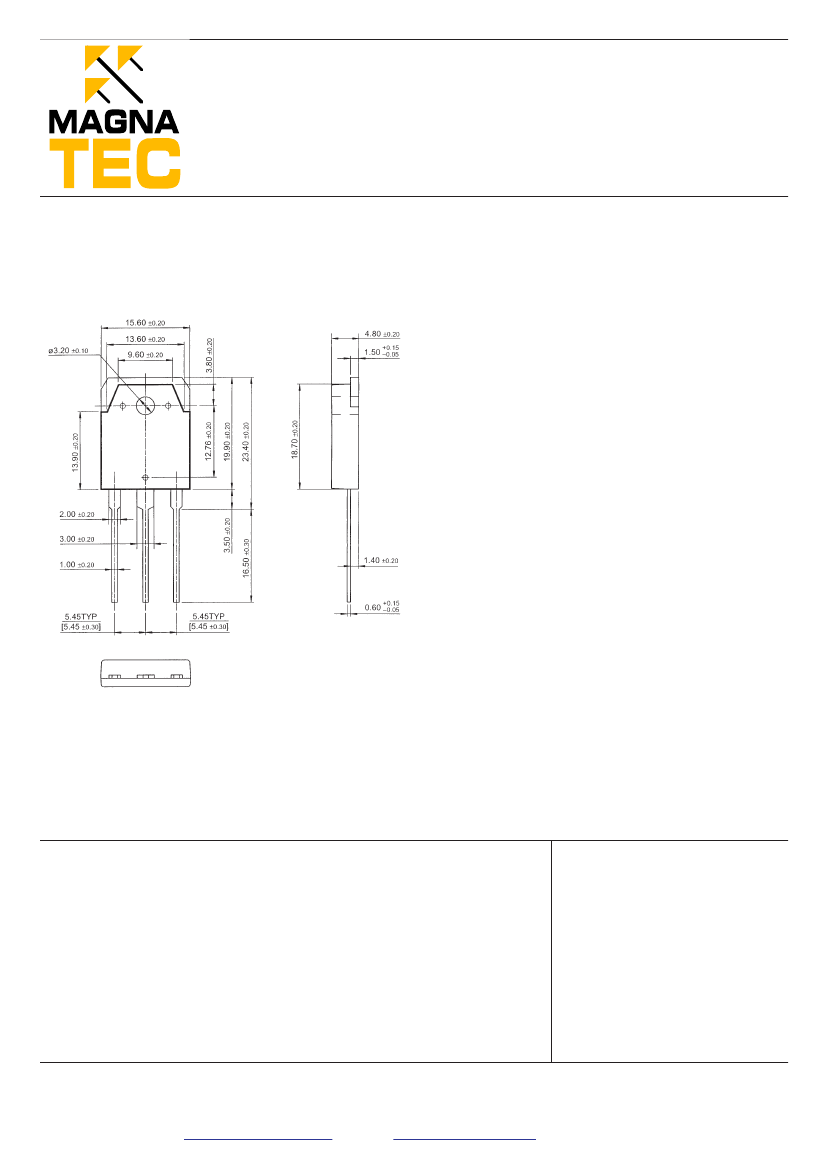

MECHANICAL DATA
Dimensions in mm
SILICON NPN
POWER TRANSISTOR
Complimentary to PA004P
FEATURES
• AUDIO POWER AMPLIFIER
• HIGH POWER CAR STEREO
• WIDE SOA
• HIGH POWER DISSIPATION
• HIGH CURRENT - 18A
• GOOD LINEARITY
TO3P
Pin 1 — Base
Pin 2 — Collector
Pin 3 — Emitter
ABSOLUTE MAXIMUM RATINGS
(T
amb
= 25°C unless otherwise stated)
BV
CBO
BV
CEO
BV
EBO
I
C
I
C
P
TOT
T
J
T
STG
Collector – Base Voltage
Collector – Emitter Voltage
Collector – Base Voltage
Collector Current
Collector Current (pulse)
Collector Power Dissipation
Junction Temperature
Storage Temperature Range
160V
120V
9V
12A
22A
90W
150°C
–55 to 150°C
Magnatec.
Telephone +44(0)1455 554711.
Fax +44(0)1455 558843.
E-mail:
magnatec@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim.1/00
NEW PRODUCT FOR
POWER AUDIO APPLICATION
Magnatec’s New Complimentary PA Range of
Power Audio Devices Launch for the
MILLENNIUM
PA004N
ELECTRICAL CHARACTERISTICS
(Tcase = 25°C unless otherwise stated)
Parameter
V
(BR)CEO
V
CBO
V
EBO
I
CBO
I
EBO
h
FE*
V
CE(SAT)*
V
BE(SAT)*
Collector – Emitter Breakdown
Voltage
Collector – Base Voltage
Emitter – Base Voltage
Collector Base Leakage Current
Emitter Base Leakage Current
DC Current Gain
Collector -Emitter Saturation
Voltage
Base - Enitter Saturation Voltage
Test Conditions
I
C
= 10mA
I
C
= -1mA
I
E
= -1mA
V
CB
= 150V
V
EB
= 8V
I
C
= 1A
I
C
= 7A
I
C
= 1.0A
I
C
= 7A
I
C
= 7A
V
CB
= 10V
I
C
= 1.0A
V
CE
= 5V
V
CE
= 5V
I
B
= 0.1A
I
B
= 0.7A
I
B
= 0.7A
f=1MHz
V
CE
= -5V
Min.
120
160
9
Typ.
Max. Unit
V
V
V
10
10
m
A
60
25
150
0.5
2.0
2.0
95
35
—
V
V
DYNAMIC CHARACTERISTICS
Output Capacitance
C
ob
f
T
Transition Frequency
MHz
* Pulse test tp =300
m
s,
d
< 2%
Magnatec.
Telephone +44(0)1455 554711.
Fax +44(0)1455 558843.
E-mail:
magnatec@semelab.co.uk
Website:
http://www.semelab.co.uk
Prelim.1/00
NEW PRODUCT FOR
POWER AUDIO APPLICATION
Magnatec’s New Complimentary PA Range of
Power Audio Devices Launch for the
MILLENNIUM
PA004N
Typical Characteristics at T
a
= 25°C
h
FE
- I
C
Characteristic
1000
10
Collector-Emitter Saturation Voltage
100
h
FE
V
CE(sat)
(V)
0.1
1
Collector Current (A)
10
100
1
10
0.1
1
0.01
0.01
0.1
1
10
100
Collector Current (A)
Base-Emitter Saturation Voltage (V)
10
Collector Current (A)
100
Safe Operation Area
100
m
s
1ms
10
10ms
100ms
V
BE(SAT)
1
1
DC
0.1
0.1
0.1
1
Collector Current (A)
10
100
0.01
1
10
100
1000
Collector Emitter Voltage (V)
Power Derating Curve
100
90
Maximum Power (W)
80
70
60
50
40
30
20
10
0
0
20
40
60
80
100
Case Temperature °C
120
140
160
