V62C1802096L-85V datasheet, PDF

Datasheet> All Categories > storage> storage> V62C1802096L-85V

V62C1802096L-85V: DescriptionStandard SRAM, 256KX8, 85ns, CMOS, PDSO32, 8 X 13.40 MM, PLASTIC, STSOP-32; Categorystorage storage; File Size86KB，9 Pages; ManufacturerMosel Vitelic Corporation ( MVC ); Websitehttp://www.moselvitelic.com

Download Datasheet Parametric View All

V62C1802096L-85V Overview

Standard SRAM, 256KX8, 85ns, CMOS, PDSO32, 8 X 13.40 MM, PLASTIC, STSOP-32

V62C1802096L-85V Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	TSOP
package instruction	TSOP1, TSSOP32,.56,20
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A991.B.2.A
Maximum access time	85 ns
I/O type	COMMON
JESD-30 code	R-PDSO-G32
JESD-609 code	e0
length	12.4 mm
memory density	2097152 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of terminals	32
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP32,.56,20
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.00001 A
Minimum standby current	1.8 V
Maximum slew rate	0.02 mA
Maximum supply voltage (Vsup)	2.2 V
Minimum supply voltage (Vsup)	1.8 V
Nominal supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm
Base Number Matches	1

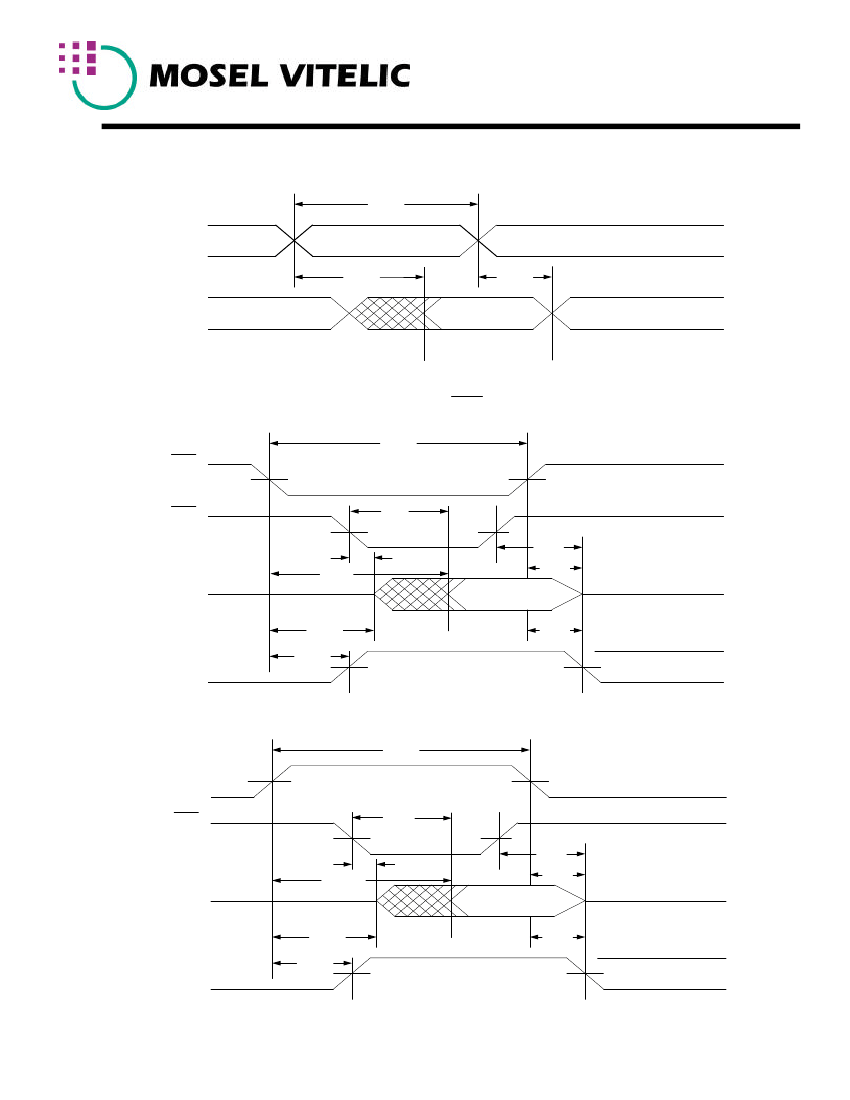

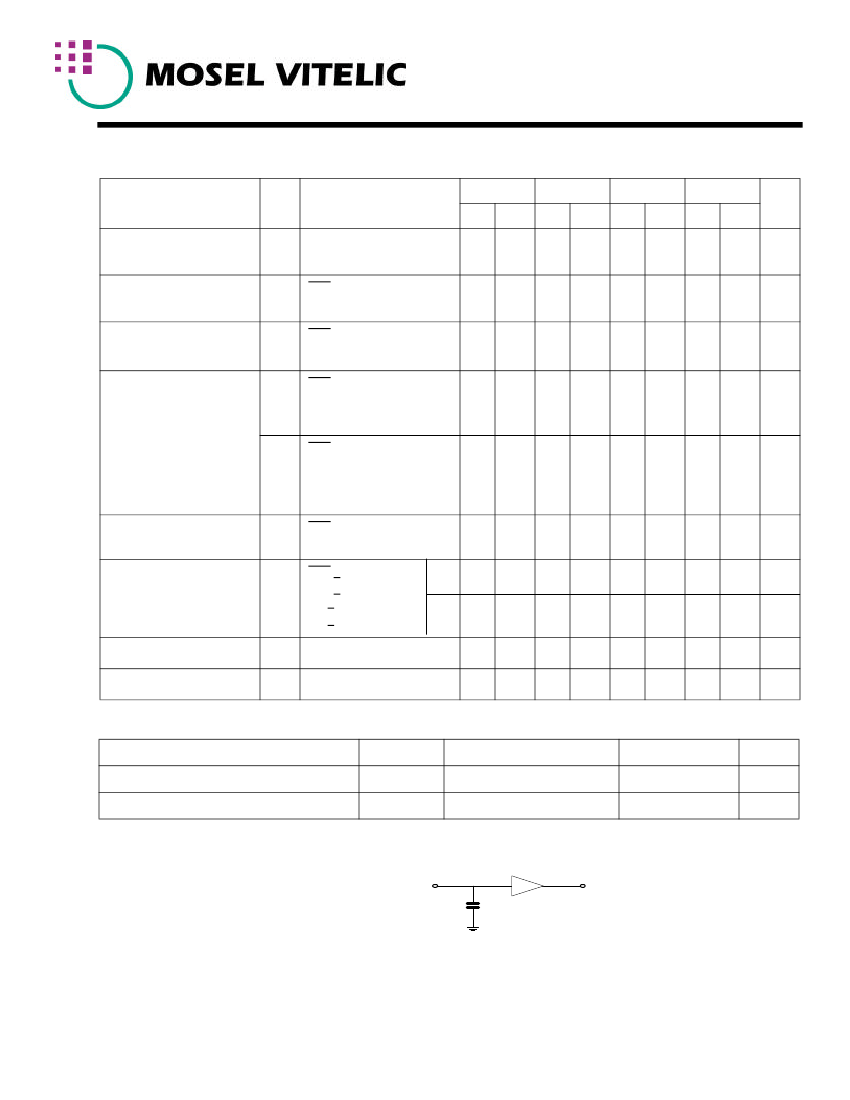

Preview

Download Datasheet

View All

V62C1802096L(L)

Ultra Low Power

256K x 8 CMOS SRAM

Features

• Ultra Low-power consumption

- Active: 25mA at 70ns

- Stand-by: 10

(CMOS input/output)

CMOS input/output, L version

• Single + 1.8V to 2.2V Power Supply

• Equal access and cycle time

• 70/85/100/150 ns access time

• Easy memory expansion with CE1, CE2

and OE inputs

• 1.0V data retention mode

• TTL compatible, Tri-state input/output

• Automatic power-down when deselected

• Package available: 32-TSOP1 / STSOP

Functional Description

The V62C1802096L is a low power CMOS Static RAM orga-

nized as 262,144 words by 8 bits. Easy memory expansion is p-

rovided by an active LOW CE1 , an active HIGH CE2, an act-

ive LOW OE , and Tri-state I/O’s. This device has an auto-

matic power-down mode feature when deselected.

Writing to the device is accomplished by taking Chip E-

nable 1 (CE1 ) with Write Enable (WE ) LOW, and Chip En-

able 2 (CE2) HIGH. Reading from the device is performed

by taking Chip Enable 1 (CE1 ) with Output Enable

(OE ) LOW while Write Enable (WE ) and Chip Enable 2

(CE2) is HIGH. The I/O pins are placed in a high-imped-

ance state when the device is deselected: the outputs are

disabled during a write cycle.

The V62C1802096LL comes with a 1V data retention feature

and Lower Standby Power. The V62C1802096L is available in

a 32-pin 8 x 13.4 & 8 x 20 mm TSOP1 / STSOP packages.

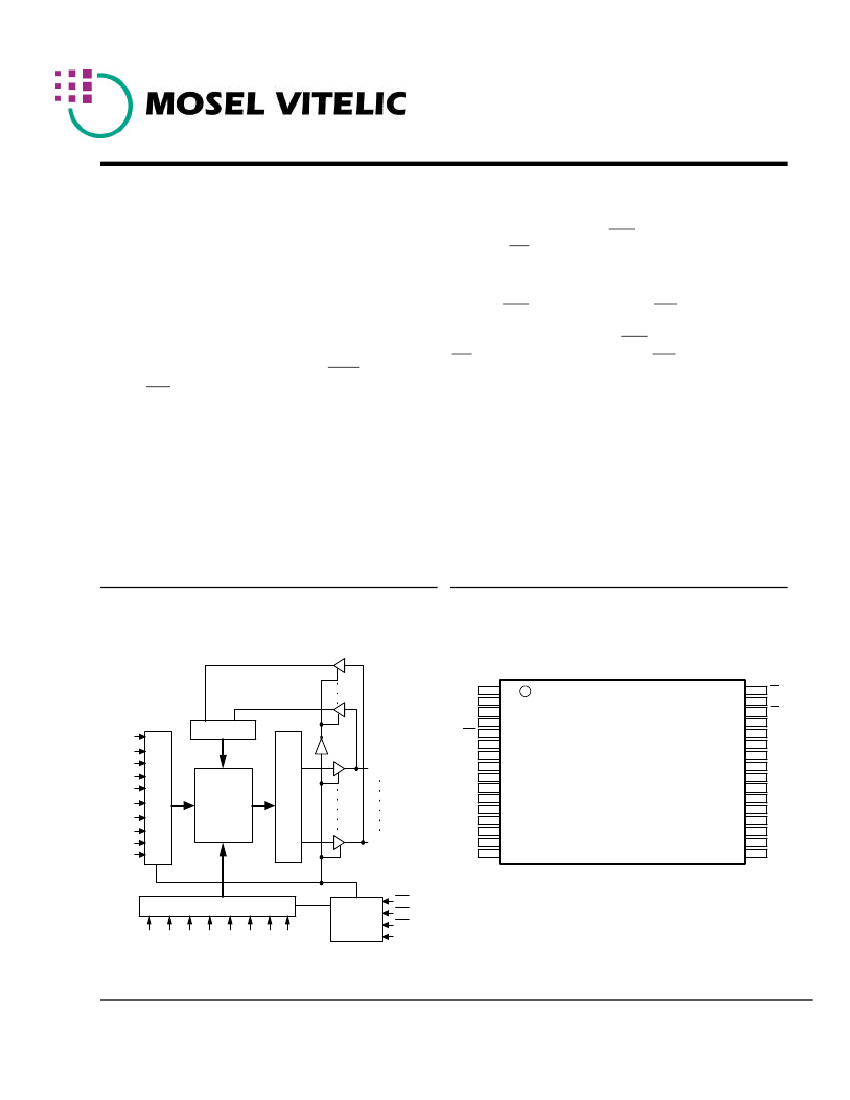

Logic Block Diagram

32-Pin TSOP1 / STSOP

CE1

I/O

GND

I/O

INPUT BUFFER

ROW DECODER

SENSE AMP

I/O8

Vcc

A17

Cell Array

I/O1

COLUMN DECODER

CONTROL

CIRCUIT

CE1

CE2

REV. 1.1

April

2001 V62C1802096L(L)
