HGP.2E.275.CTLP
SUMMARY
# Wires
Low
High
Coax
Triax
Quad
Fiber
Fluidic
Series
Termination type
IP rating
Cable Ø
Matching parts
Status
Alternative part
0
0
1
0
0
0
0
2E
Female solder
68
0.00 - 0.00 mm
FFA.2E.275.CLAC65
active
Image is for illustrative purpose only
Download
Request a quote
Catalog
TECHNICAL DETAILS
Mechanics
Shell Style/Model
Keying
Housing Material
Cable Fixing
Variant
Weight
HGP*: Fixed receptacle, nut fixing, watertight or vacuum-tight
Circular (can rotate), plug has male contact(s)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
P : Watertight
38.54 g
Performance
Configuration
Insulator
Rated Current
2E.275 : 1 Coax (75 Ohm)
T: PTFE
12 Amps
Specifications
Contact Type: Solder
Vtest: 1500 V (AC), 2100 V (DC)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Impedance: 75 Ohm
VSWR: 1.02 + 0.03 * f/GHz
Cable type: RG 58 C/U, RG 302 /U, RG 400 /U, 2YCCY, RG 59 B/U, RG 223 /U, HF-5408
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -20°C / +80°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >144 hr
Climatical Category: 20/80/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
Pressure: 40 bars
IP Rating: 68

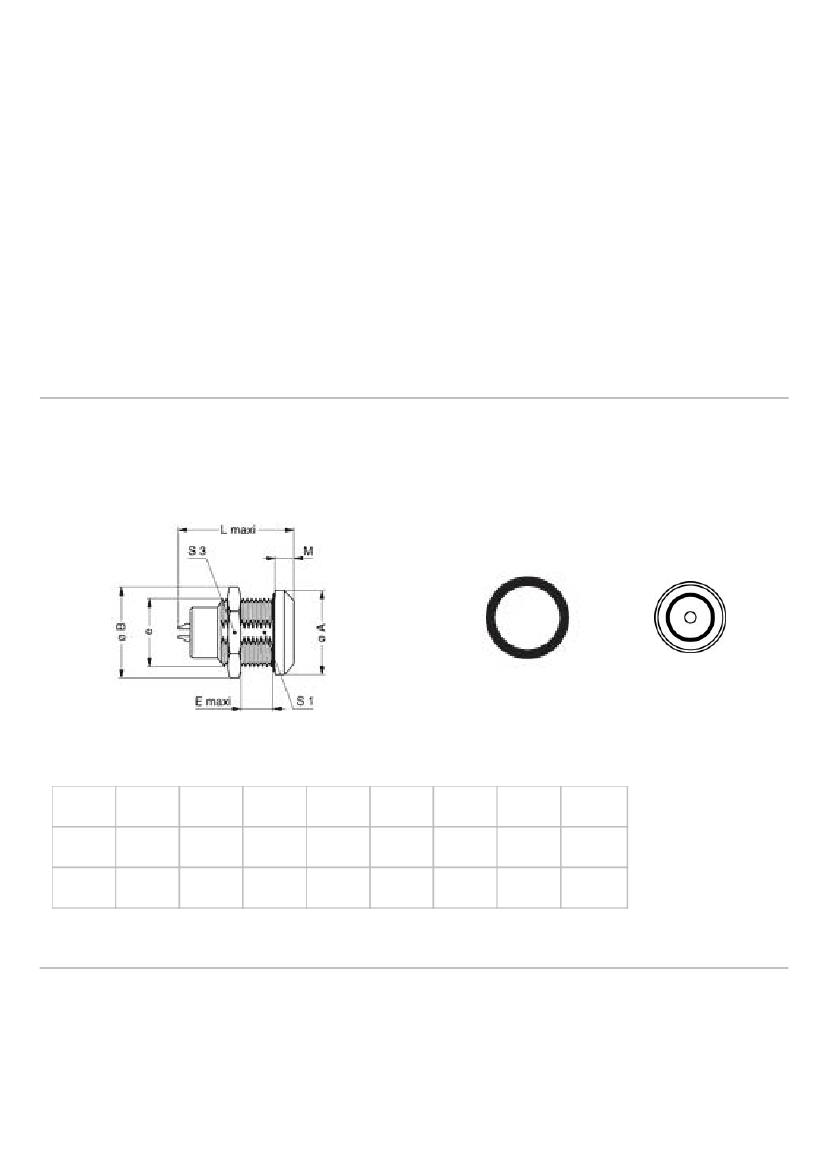

DRAWINGS
Draws
Dimensions
A
mm.
in.
25
0,98
B
27.5
1,08
E
10.5
0,41
L
32.5
1,28
M
5
0,20
S1
18.5
0,73
S3
24
0,94
e
M20x1.0
RECOMMENDED BY LEMO
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
Tools
None
Cables
CCN.50.051.1529NMC
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
3/3
