HIgH PoweRed multI-lIne VSIP® tVS ARRAy
deScRIPtIon
The VSIP Series are high powered multi-line TVS arrays available in a 10 pin VSIP package. This series is designed to
protect telecommunications equipment from the damaging effects of ESD, EFT and secondary transient threats.
The VSIP Series “A” has a peak pulse power rating of 800 Watts for an 8/20µs waveshape and the VSIP Series “B” has a
peak pulse power rating of 3400 Watts for an 8/20µs waveshape. These devices meets the IEC 61000-4-2, IEC 61000-
4-4 and IEC 61000-4-5 requirements.
10 PIn VSIP® PAckAge
FeAtuReS
• Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV
• Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns
• Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line-
Gnd) & Level 3(Line-Line)
• Series “A” - 800 Watts Peak Pulse Power per Line (tp = 8/20µs)
• Series “B” - 3400 Watts Peak Pulse Power per Line (tp = 8/20µs)
• Bidirectional Configuration
• ESD Protection > 25 kilovolts
• High Surge Capability & Low Capacitance Option
• Available in Multiple Voltages
• Protects 8 to 9 Bidirectional Lines
• RoHS Compliant
• REACH Compliant
APPlIcAtIonS
• RS-232 & RS-423 Data Lines
• Telecommunications T/R Protection: ISDN, xDSL, V.34/V.90, HDLC, T1/
E1 & T3/E3
• Low & High Speed Data Lines: Ethernet & Token Ring
• I/O Port Protection
mecHAnIcAl cHARActeRIStIcS
•
•
•
•
Molded 10 Pin Plastic VSIP® Package
Approximate Weight: 1.5 grams
Lead-Free Pure-Tin Plating (Annealed)
Solder Reflow Temperature:
Pure-Tin - Sn, 100: 260-270°C
• Flammability Rating UL 94V-0

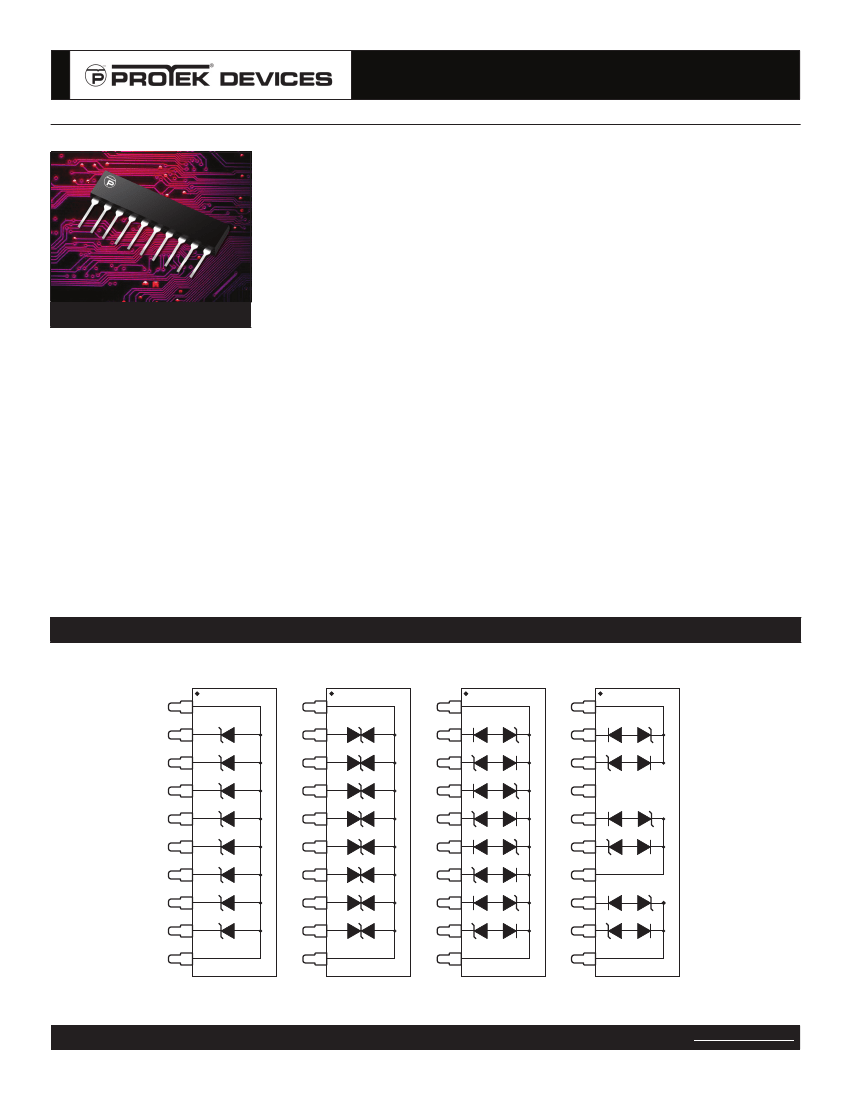

PIn conFIguRAtIonS
UNIDIRECTIONAL
BIDIRECTIONAL
LOW CAPACITANCE
ISOLATED
LOW CAPACTIANCE
05015.R11 11/10
Page 1
www.protekdevices.com
05015
Only One Name Means ProTek’Tion™
VSIP® Series - A & B
tyPIcAl deVIce cHARActeRIStIcS
mAXImum RAtIngS
@ 25°c unless otherwise Specified
PARAmeteR
Series “A” Peak Pulse Power (tp = 8/20µs) - See Figure 1
Series “B” Peak Pulse Power (tp = 8/20µs) - See Figure 1
Operating Temperature
Storage Temperature
SymBol
P
PP
P
PP
T
L
T
STG
VAlue
800
3400
-55 to 150
-55 to 150
unItS
Watts
Watts
°C
°C
SeRIeS “A” electRIcAl cHARActeRIStIcS PeR lIne
@ 25°c unless otherwise Specified
PARt
numBeR
(note 1-4)
RAted
StAnd-oFF
VoltAge
mInImum
BReAkdown
VoltAge
@1mA
V
(BR)
VoltS
6.0
6.0
6.0
6.0
8.5
8.5
8.5
8.5
13.3
13.3
13.3
13.3
16.7
16.7
16.7
16.7
26.7
26.7
26.7
26.7
mAXImum
clAmPIng
VoltAge
(Fig. 2)
@ IP = 1A
V
c
VoltS
9.8
9.8
9.8
9.8
13.4
13.4
13.4
13.4
19.5
19.5
19.5
19.5
24.4
24.4
24.4
24.4
39.1
39.1
39.1
39.1
mAXImum
clAmPIng
VoltAge
(Fig. 2)
@ IP = 10A
V
c
VoltS
12.5
12.5
12.5
12.5
16.6
16.6
16.6
16.6
22.7
22.7
22.7
22.7
28.5
28.5
28.5
28.5
45.6
45.6
45.6
45.6
mAXImum
leAkAge
cuRRent
@V
wm
I
d
µA
100
100
100
100
10
10
10
10
1
1
1
1
1
1
1
1
1
1
1
1
mAXImum
PeAk PulSe
cuRRent
(Fig. 2)
I
PP
amps
45
45
45
45
40
40
40
40
34
34
34
34
27
27
27
27
22
22
22
22
V
wm
VoltS
VS10P05
VS10P05C
VS10P05LC
VS10P05LCI
VS10P08
VS10P08C
VS10P08LC
VS10P08LCI
VS10P12
VS10P12C
VS10P12LC
VS10P12LCI
VS10P15
VS10P15C
VS10P15LC
VS10P15CLI
VS10P24
VS10P24C
VS10P24LC
VS10P24LCI
1.
2.
3.
4.
5.0
5.0
5.0
5.0
8.0
8.0
8.0
8.0
12.0
12.0
12.0
12.0
15.0
15.0
15.0
15.0
24.0
24.0
24.0
24.0
noteS
The “C” suffix denotes a bidirectional device, such as VS10P5c.
Forward voltage (Unidirectional Configurations Only): V
F
= 1.5V @ 200mA.
The “LC” suffix denotes a low capacitance device, such as VS10P05lc. These devices have a capacitance of 25pF.
The “LCI” suffix denotes an isolated low capacitance device, such as VS10P05LCI.
