VSH55012-33MHZ datasheet, PDF - EEWORLD Datasheet

VSH55012-33MHZ: DescriptionHCMOS Output Clock Oscillator, 33MHz Nom, HERMETIC SEALED, LEADLESS, CERAMIC PACKAGE-10; CategoryPassive components oscillator; File Size69KB，1 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric View All

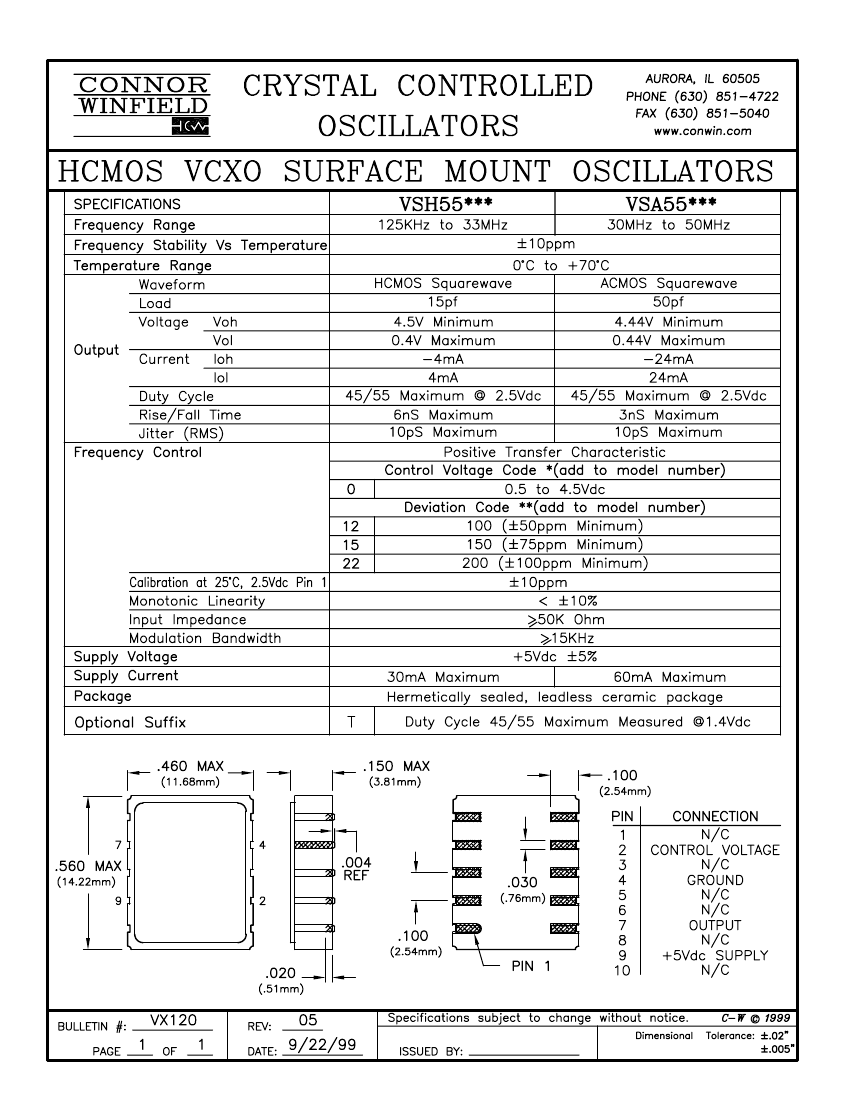

VSH55012-33MHZ Overview

HCMOS Output Clock Oscillator, 33MHz Nom, HERMETIC SEALED, LEADLESS, CERAMIC PACKAGE-10

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	10%
linearity	10%
Manufacturer's serial number	VSH55
Installation features	SURFACE MOUNT
Nominal operating frequency	33 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	HCMOS
Output load	15 pF
physical size	11.68mm x 14.22mm x 3.81mm
longest rise time	6 ns
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1
