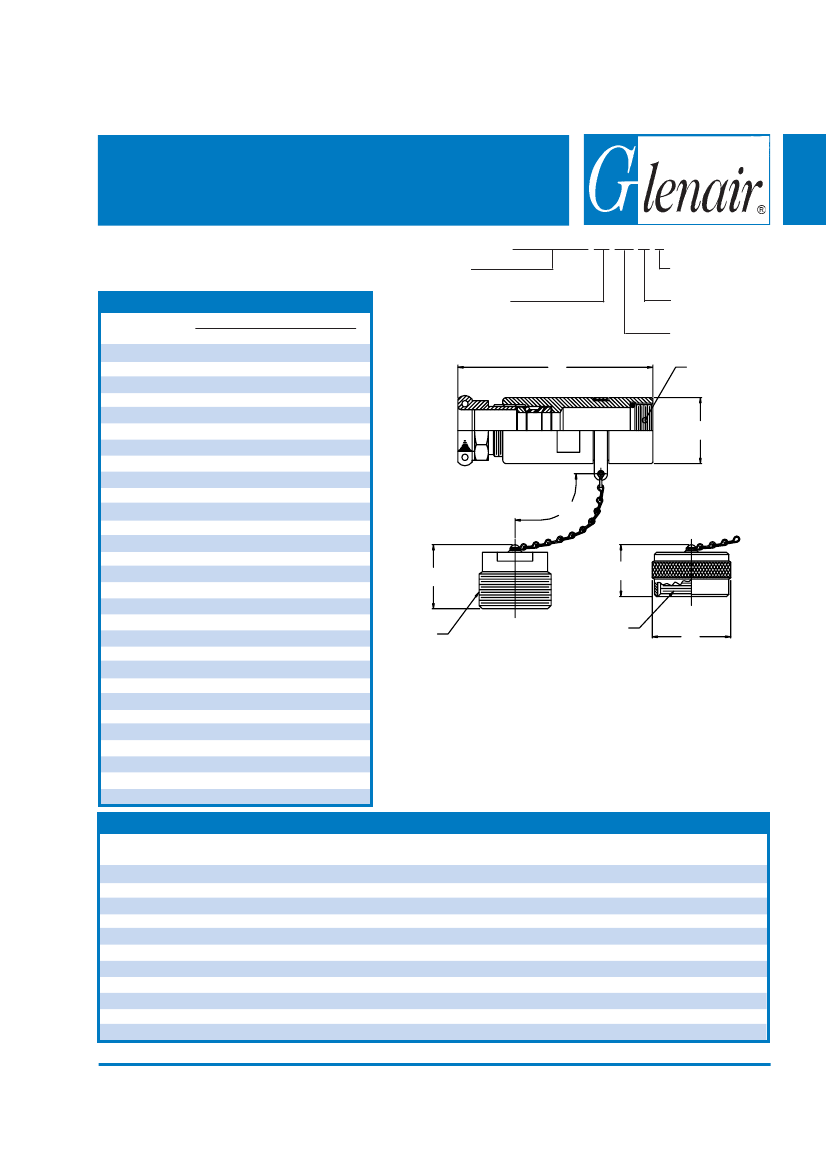

AS85049/3 Style 1
Environmental Backshells
Glenair Connector Designator C
MIL-C-22992 Classes C, J, and R
M85049/3 W 10 A 1
Basic Part No.
Body and Cap Finish
A = Anodize
W = 1,000 Hour Cadmium Olive Drab
Over Electroless Nickel
E
Style 1
Type (A or B)
Dash Number
(Table II)
A Thread
TABLE II
Cable Range
Dash Shell
No. Size
Min
Max
12
1
.281 (7.1)
.375 (9.5)
12
2
.188 (4.8)
.281 (7.1)
14
3
.344 (8.7)
.438 (11.1)
16
4
.511 (13.0) .605 (15.4)
16
5
.436 (11.1) .530 (13.5)
16
6
.311 (7.9)
.405 (10.3)
18
7
.531 (13.5) .625 (15.9)
18
8
.605 (15.4) .699 (17.8)
18
9
.406 (10.3) .500 (12.7)
18
10
.361 (9.2)
.455 (11.6)
20
11
.715 (18.2) .828 (21.0)
20
12
.449 (11.4) .562 (14.3)
22
13
.637 (16.2) .750 (19.1)
22
14
.787 (20.0) .900 (22.9)
22
15
.692 (17.6) .805 (20.4)
24
16
.930 (23.6) 1.055 (26.8)
24
17
.675 (17.1) 1.000 (25.4)
24
18
.984 (25.0) 1.109 (28.2)
24
19
.755 (19.2) .880 (22.4)
28
20
1.055 (26.8) 1.180 (30.0)
28
21
1.105 (28.1) 1.230 (31.2)
28
22
1.185 (30.1) 1.310 (33.3)
32
23
1.320 (33.5) 1.455 (37.0)
32
24
1.406 (35.7) 1.531 (38.9)
32
25
1.250 (31.8) 1.375 (34.9)
36
26
1.531 (38.9) 1.656 (42.1)
36
27
1.437 (36.5) 1.562 (39.7)
44
28
2.105 (53.5) 2.250 (57.2)
44
29
2.025 (51.4) 2.170 (55.1)
B
Note 4
1.50 (38.1) Max
H
J Thread
J Thread
G
TYPE A - Plug Cap
For use with MS17344
TYPE B - Receptacle Cap
For use with MS17343,
MS17345, and MS17347
1. For complete dimensions see applicable Military Specification.
2. Cable range is defined as the accommodations range for the
wire bundle or cable. Dimensions shown are not intended for
inspection criteria.
3. Approx. Chain Lengths: Dash No. 01-12 = 5.0 (127.0);
Dash No. 13-29 = 6.0 (152.4)
TABLE I
Shell
Size
12
14
16
18
20
22
24
28
32
36
44
A Thread
Class 2B-LH
.7500 - 20 UNEF
.8750 - 20 UNEF
1.0000 - 20 UNEF
1.1250 - 18 UNEF
1.2500 - 18 UNEF
1.3750 - 18 UNEF
1.6250 - 18 UNEF
1.8750 - 16 UN
2.0625 - 16 UNS
2.3125 - 16 UNS
2.8750 - 16 UN
B Dia
±.015
(.4)
.933 (23.7)
1.057 (26.8)
1.183 (30.0)
1.307 (33.2)
1.433 (36.4)
1.557 (39.5)
1.807 (45.9)
2.057 (52.2)
2.307 (58.6)
2.557 (64.9)
3.120 (79.2)
E
Max
3.365 (85.5)
3.678 (93.4)
4.177 (106.1)
4.489 (114.0)
4.615 (117.2)
4.647 (118.0)
4.896 (124.4)
4.959 (126.0)
5.021 (127.5)
5.083 (129.1)
6.471 (164.4)
G Dia
Max
1.094 (27.8)
1.219 (31.0)
1.344 (34.1)
1.469 (37.3)
1.562 (39.7)
1.688 (42.9)
1.938 (49.2)
2.219 (56.4)
2.469 (62.7)
2.719 (69.1)
3.217 (81.7)
H
Max
.765 (19.4)
.765 (19.4)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
.980 (24.9)
J Thread (plated)
Class 2 (A or B)
0.875-0.1P-0.2L-DS
1.000-0.1P-0.2L-DS
1.125-0.1P-0.2L-DS
1.250-0.1P-0.2L-DS
1.375-0.1P-0.2L-DS
1.500-0.1P-0.2L-DS
1.750-0.1P-0.2L-DS
2.000-0.1P-0.2L-DS
2.250-0.1P-0.2L-DS
2.500-0.1P-0.2L-DS
3.000-0.1P-0.2L-DS
Printed in U.S.A.
© 2005 Glenair, Inc.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
37-5
Environmental
Backshells
