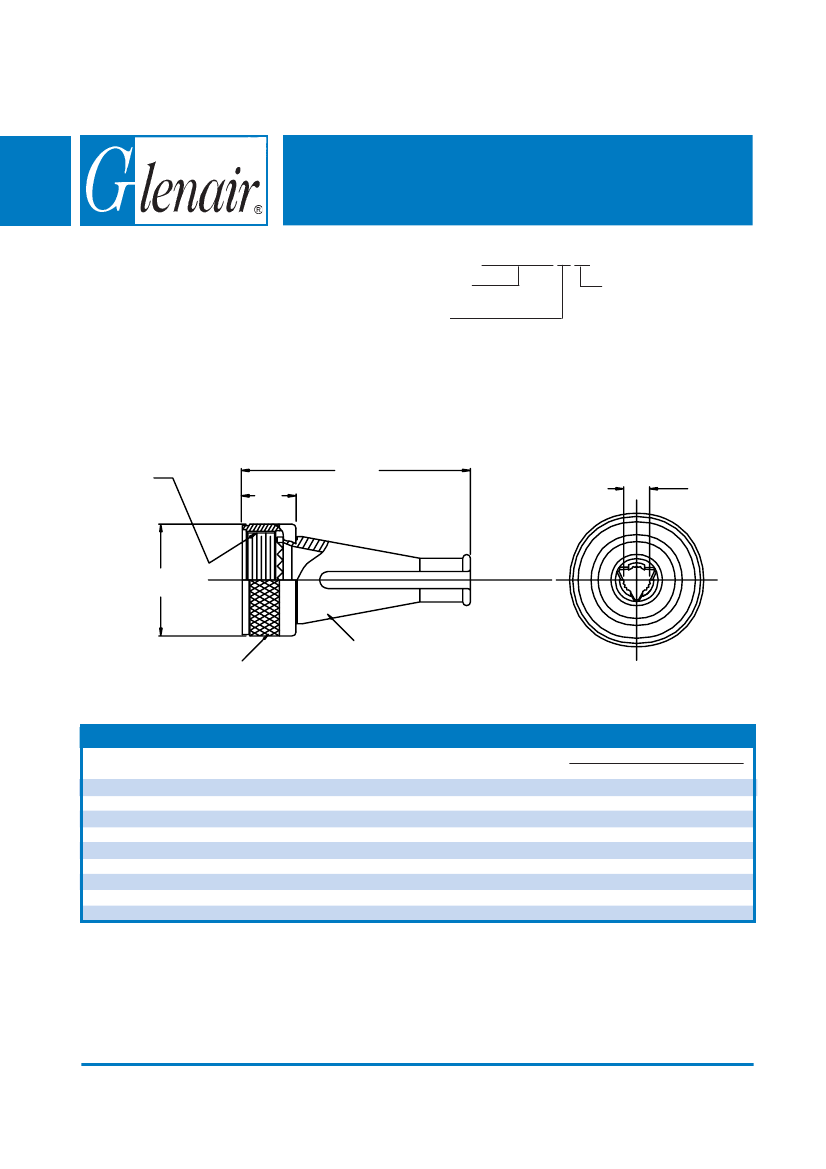

Strain
Reliefs
AS85049/45
Strain Relief
Glenair Connector
Designator F
Basic Part No.
MIL-DTL-38999 Series I & II,
40M38277, PAN 6433-1,
PATT 614, PATT 616,
NFC93422 Series HE308 &
HE309
M85049/45 W 10
Dash No.
Nut Finish
A = Black Anodize
W = 1,000 Hour Cadmium Olive Drab
Over Electroless Nickel
A Thread
F
E
Cable
Entry
C
Thermoplastic Body
Aluminum Nut
TABLE I
Dash Shell Size
A Thread
No.
Ref.
Class 2B
8
8/9
.438 - 28 UNEF
10
10/11
.562 - 24 UNEF
12
12/13
.688 - 24 UNEF
14
14/15
.813 - 20 UNEF
16
16/17
.938 - 20 UNEF
18
18/19 1.063 - 18 UNEF
20
20/21 1.188 - 18 UNEF
22
22/23 1.313 - 18 UNEF
24
24/25 1.438 - 18 UNEF
C Dia
Max
.578 (14.7)
.703 (17.9)
.828 (21.0)
.953 (24.2)
1.078 (27.4)
1.203 (30.6)
1.328 (33.7)
1.453 (36.9)
1.578 (40.1)
E
Max
1.344 (34.1)
1.344 (34.1)
1.344 (34.1)
1.344 (34.1)
1.344 (34.1)
1.344 (34.1)
1.422 (36.1)
1.422 (36.1)
1.422 (36.1)
F
Max
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.422 (10.7)
.344 (8.7)
Cable Entry
Max
Min
.203 (5.2)
.094 (2.4)
.250 (6.4)
.141 (3.6)
.323 (8.2)
.172 (4.4)
.422 (10.7)
.203 (5.2)
.500 (12.7)
.234 (5.9)
.562 (14.3)
.265 (6.7)
.625 (15.9)
.297 (7.5)
.703 (17.9)
.328 (8.3)
.765 (19.4)
.359 (9.1)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable Entry is defined as the accomodation entry for the wire bundle or cable.
Dimensions are not intended for inspection criteria.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
62-16
