HM2P65PM5111GCLF datasheet, PDF

Datasheet> All Categories > The connector> The connector> HM2P65PM5111GCLF

HM2P65PM5111GCLF: DescriptionBoard Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size178KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P65PM5111GCLF Overview

Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P65PM5111GCLF Parametric

Parameter Name	Attribute value
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL
Contact completed and terminated	GOLD (16) OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	HM2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	169
Base Number Matches	1

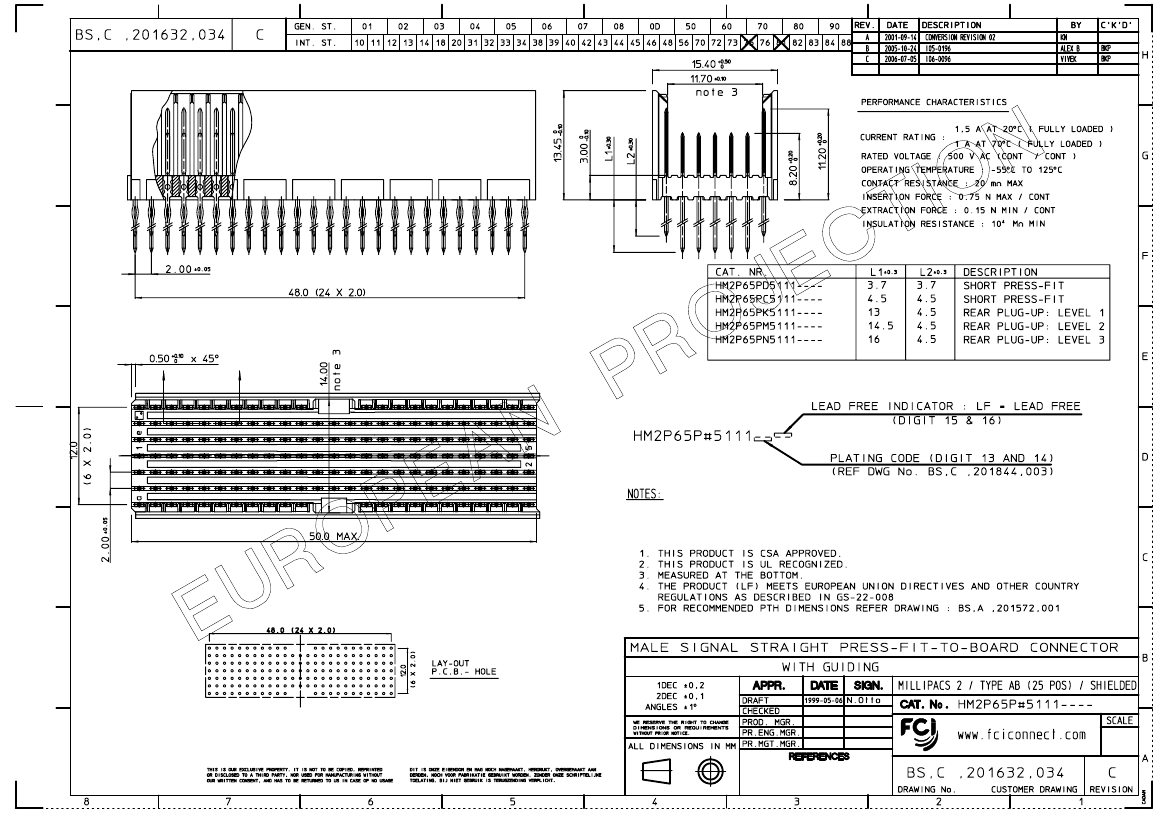

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 01, 2007

HM2P65PM5111GCLF Related Products

	HM2P65PM5111GCLF	HM2P65PM5111GC	HM2P65PM5111GLLF	HM2P65PM5111GL	HM2P65PN5111GFLF	HM2P65PN5111GF	HM2P65PN5111GLLF	HM2P65PN5111GL
Description	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 169 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE	44 GROUND SHIELD CONTACTS IN 2 ROWS AVAILABLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL	GOLD (39) OVER NICKEL
Contact completed and terminated	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (40) OVER NICKEL	GOLD (40) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (40) OVER NICKEL	GOLD (40) OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	HM2	HM2	HM2	HM2	HM2	HM2	HM2	HM2
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	169	169	169	169	169	169	169	169
Base Number Matches	1	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	-
