ZZ160

Description
Zener Diode, 160V V(Z), Silicon, Bidirectional
CategoryDiscrete semiconductor    diode
File Size61KB,2 Pages
ManufacturerTDK Corporation
Websitehttp://www.tdk.com

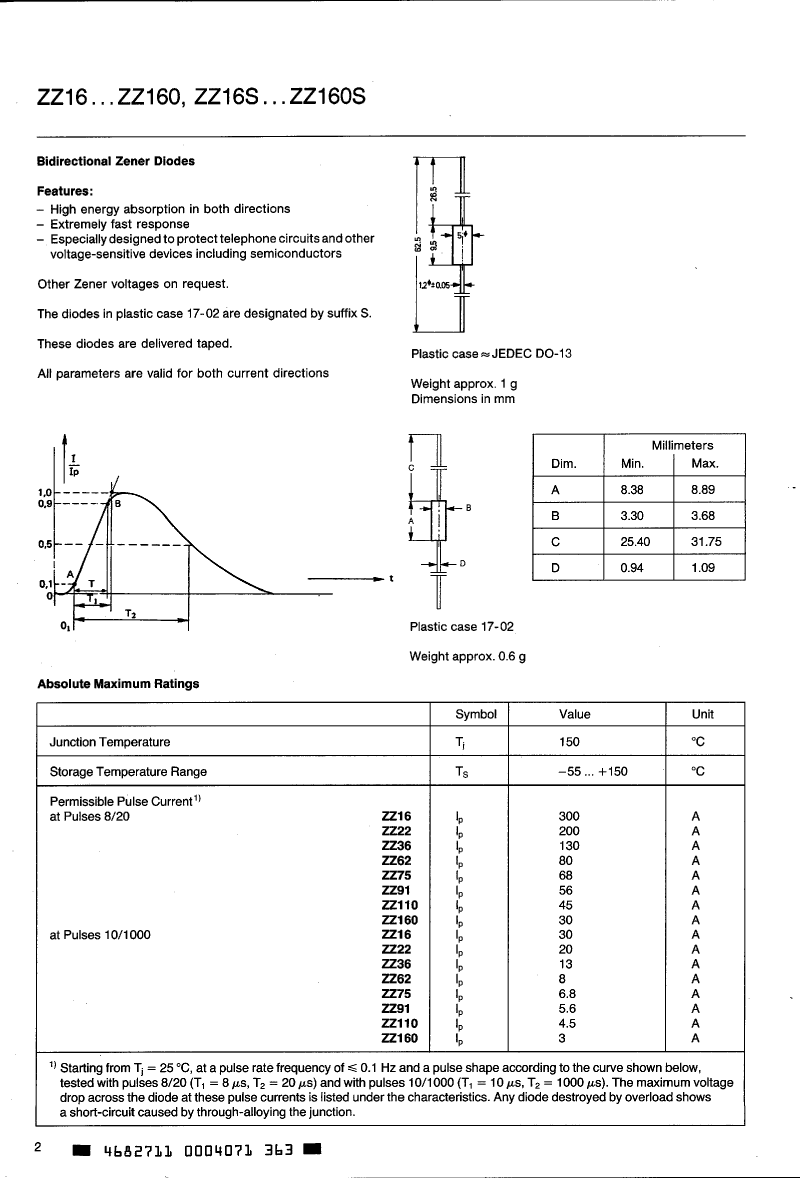

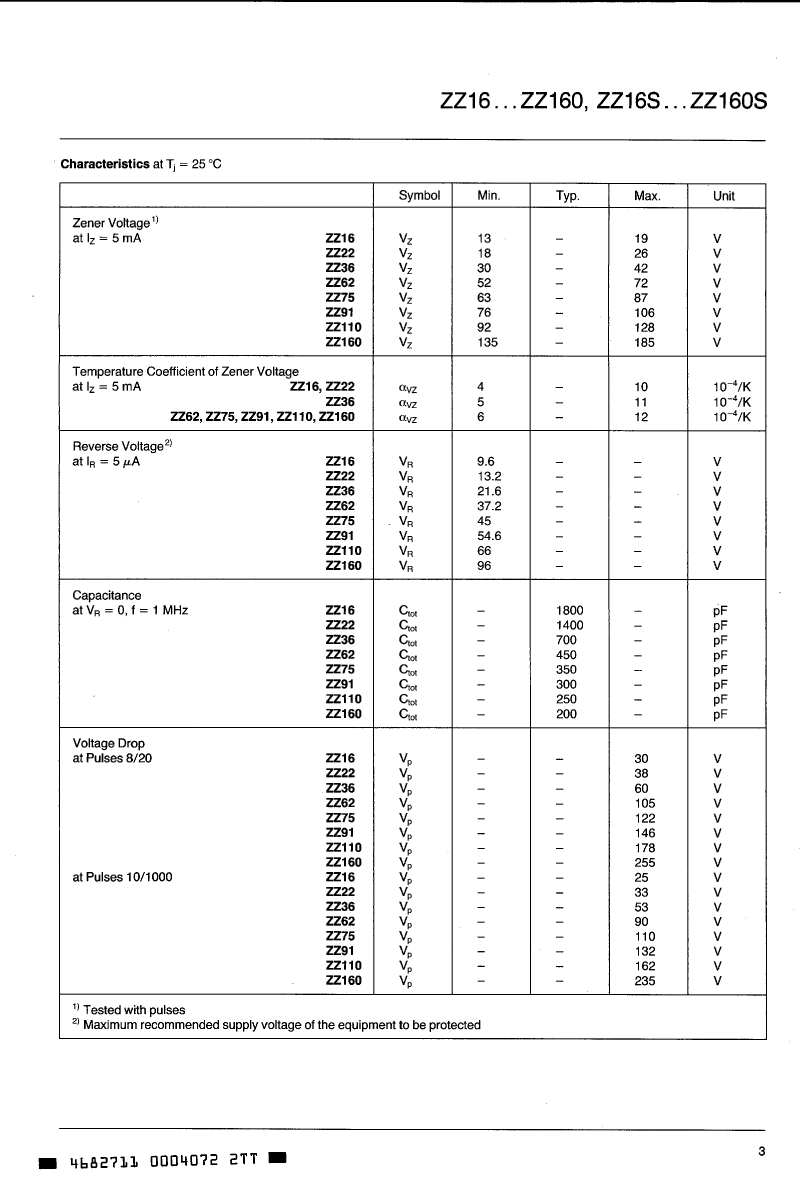

Download Datasheet Parametric Compare View All

ZZ160 Overview

Zener Diode, 160V V(Z), Silicon, Bidirectional

ZZ160 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
package instructionO-LALF-W2
Reach Compliance Codeunknown
ECCN codeEAR99
Breakdown voltage nominal value160 V
Shell connectionISOLATED
Maximum clamping voltage235 V
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
JESD-30 codeO-LALF-W2
JESD-609 codee0
Number of components1
Number of terminals2
Package body materialGLASS
Package shapeROUND
Package formLONG FORM
polarityBIDIRECTIONAL
Certification statusNot Qualified
Nominal reference voltage160 V
Maximum repetitive peak reverse voltage96 V
Maximum reverse current5 µA
surface mountNO
technologyZENER
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formWIRE
Terminal locationAXIAL
Voltage temperatureCoeff-Max192 mV/°C
Working test current5 mA
Base Number Matches1

ZZ160 Related Products

ZZ160 ZZ110 ZZ62 ZZ91
Description Zener Diode, 160V V(Z), Silicon, Bidirectional Zener Diode, 110V V(Z), Silicon, Bidirectional Zener Diode, 62V V(Z), Silicon, Bidirectional Zener Diode, 91V V(Z), Silicon, Bidirectional
Is it Rohs certified? incompatible incompatible incompatible incompatible
package instruction O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2
Reach Compliance Code unknown unknown unknown unknown
ECCN code EAR99 EAR99 EAR99 EAR99
Breakdown voltage nominal value 160 V 110 V 62 V 91 V
Shell connection ISOLATED ISOLATED ISOLATED ISOLATED
Maximum clamping voltage 235 V 162 V 90 V 132 V
Configuration SINGLE SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON SILICON
Diode type ZENER DIODE ZENER DIODE ZENER DIODE ZENER DIODE
JESD-30 code O-LALF-W2 O-LALF-W2 O-LALF-W2 O-LALF-W2
JESD-609 code e0 e0 e0 e0
Number of components 1 1 1 1
Number of terminals 2 2 2 2
Package body material GLASS GLASS GLASS GLASS
Package shape ROUND ROUND ROUND ROUND
Package form LONG FORM LONG FORM LONG FORM LONG FORM
polarity BIDIRECTIONAL BIDIRECTIONAL BIDIRECTIONAL BIDIRECTIONAL
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Nominal reference voltage 160 V 110 V 62 V 91 V
Maximum repetitive peak reverse voltage 96 V 66 V 37.2 V 54.6 V
Maximum reverse current 5 µA 5 µA 5 µA 5 µA
surface mount NO NO NO NO
technology ZENER ZENER ZENER ZENER
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form WIRE WIRE WIRE WIRE
Terminal location AXIAL AXIAL AXIAL AXIAL
Voltage temperatureCoeff-Max 192 mV/°C 132 mV/°C 74.4 mV/°C 109.2 mV/°C
Working test current 5 mA 5 mA 5 mA 5 mA
