M85049-49-55T12A: DescriptionStrain Reliefs; File Size23KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

M85049-49-55T12A Overview

Strain Reliefs

Preview

Download Datasheet

View All

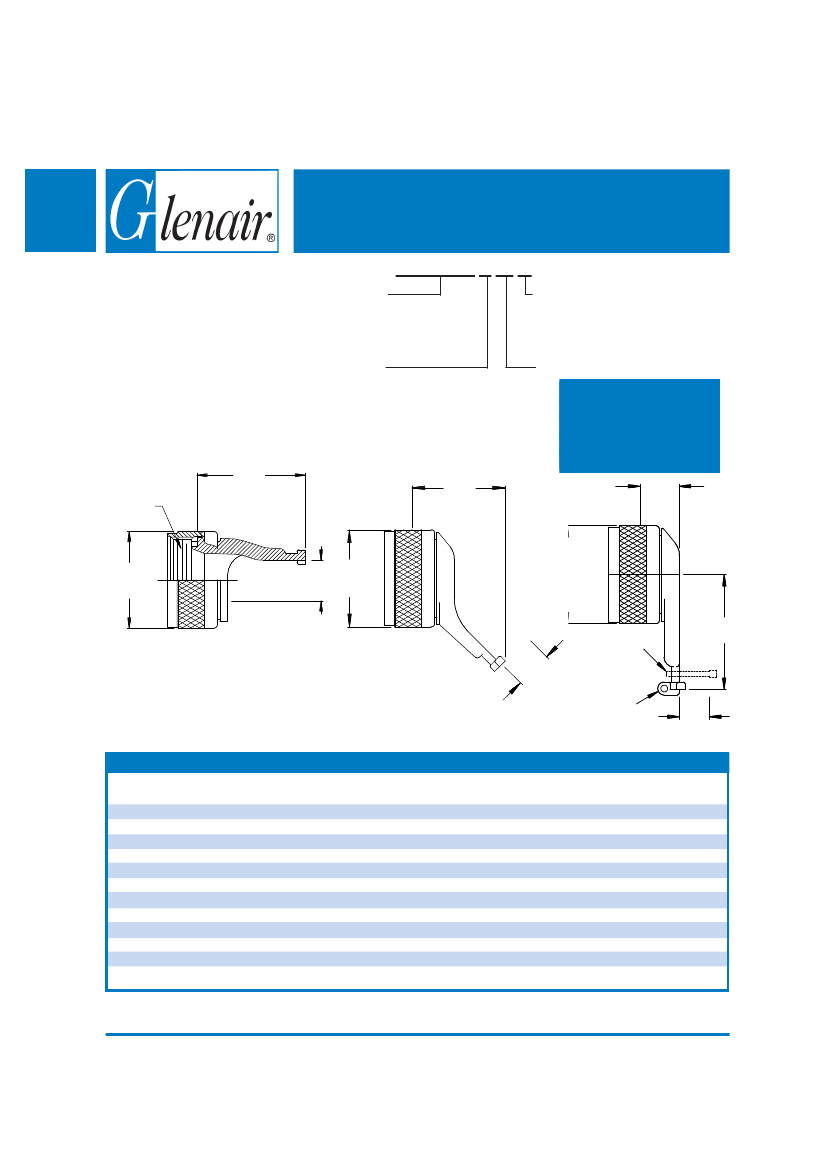

Qwik-Ty

Strain Reliefs

AS85049/53, AS85049/54, and AS85049/55

Qwik-Ty

Strain Reliefs

Glenair Connector

Designator A

MIL-DTL-5015 Series 3400,

MIL-DTL-26482 Series 2,

AS81703 Series 3,

MIL-DTL-83723 Series I &

III, 40M39569, DEF 5326-3,

EN 2997, EN 3646,

ESC 10, ESC 11, LN 29504,

NFC93422 Series HE302,

PAN 6432-1, PAN 6432-2,

PATT 602

A Thread

Typ.

M85049/55 G 22 W

Basic Part No.

M85049/53 = Straight

M85049/54 = 45°

M85049/55 = 90°

Configuration

G = Non-Self-Locking with

Ground Lug (/55 Only)

S = Self-Locking without

Ground Lug (/55 Only)

T = Self-Locking with Ground Lug

Use Dash for Non-Self-Locking

Finish

A = Black Anodize

W = 1,000 Hr. Cadmium Olive

Drab Over Electroless Nickel

Shell Size

FOR NEW DESIGN

APPLICATIONS

USE M85049/43 (45°),

M85049/51 (90°), and

M85049/52 (Str.),

Self

Lock.

C Non-Self Lock.

E Self Locking

1. For complete dimensions see applicable Military Specification.

2. Metric dimensions (mm) are indicated in parentheses.

3. Cable entry is defined as the accomodation range for the wire bundle or

cable. Dimensions shown are not intended for inspection criteria.

MS3367-1

Tie Strap or

Equivalent

(Typical)

Ground Lug

(G Option)

TABLE I

Shell

A Thread

Size

Class 2B

03 .562 - 24 UNEF

08 .500 - 20 UNF

10 .625 - 24 UNEF

12 .750 - 20 UNEF

14 .875 - 20 UNEF

16 1.000 - 20 UNEF

18 1.062 - 18 UNEF

20 1.188 - 18 UNEF

22 1.313 - 18 UNEF

24 1.438 - 18 UNEF

28 1.750 - 18 UNS

C Dia

Max

.78 (19.8)

.66 (16.8)

.78 (19.8)

.94 (23.9)

1.05 (26.7)

1.24 (31.5)

1.38 (35.1)

1.50 (38.1)

1.63 (41.4)

1.75 (44.5)

1.97 (50.0)

E Dia

Max

1.01 (25.7)

.89 (22.6)

1.01 (25.7)

1.14 (29.0)

1.26 (32.0)

1.39 (35.3)

1.51 (38.4)

1.64 (41.7)

1.76 (44.7)

1.89 (48.0)

2.14 (54.4)

Cable Entry

.260 (6.6)

.365 (9.3)

.501 (12.7)

.575 (14.6)

.700 (17.8)

.779 (19.8)

.904 (23.0)

1.029 (26.1)

1.144 (29.1)

1.379 (35.0)

Max

.903 (22.9)

.973 (24.7)

1.259 (32.0)

1.379 (35.0)

1.509 (38.3)

Max

1.181 (30.0)

1.431 (36.3)

1.418 (36.0)

Max

.73 (18.5)

.75 (19.1)

Max

1.29 (32.8)

1.29 (31.0)

1.29 (32.8)

1.62 (41.1)

1.66 (42.2)

1.72 (43.7)

1.79 (45.5)

1.85 (47.0)

1.91 (48.5)

2.06 (52.3)

* Consult factory for availability

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

45-4

45 I Qwik-Ty SR.p65

8/6/2008, 6:05 PM
