M85049-56G24W: DescriptionStrain Reliefs; File Size105KB，1 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet View All

M85049-56G24W Overview

Strain Reliefs

Preview

Download Datasheet

View All

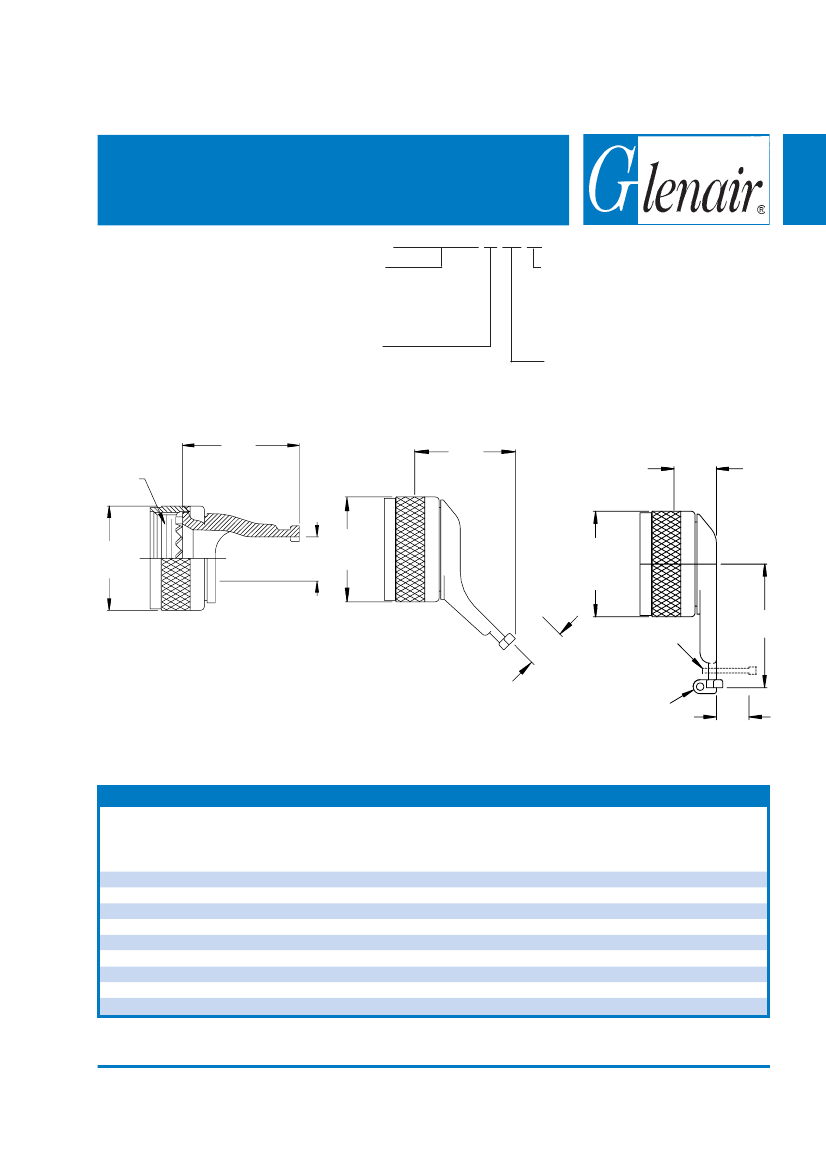

AS85049/56, AS85049/57, and AS85049/63

Qwik-Ty

Strain Reliefs

Glenair Connector

Designator F

MIL-DTL-38999 Series I &

II, 40M38277, PAN 6433-1,

PATT 614, PATT 616,

NFC93422 Series HE308 &

HE309

M85049/63 G 16 W

Basic Part No.

M85049/56 = Straight

M85049/57 = 45°

M85049/63 = 90°

Configuration

G = Self-Locking with Ground

Lug (/57 and /63 Only)

S = Self-Locking without Ground

Lug (/57 and /63 Only)

Use Dash for Non-Self Locking

Self-

Locking

Finish

A = Black Anodize

N = Electroless Nickel

W = 1,000 Hr. Cadmium Olive Drab

Over Electroless Nickel

Shell Size

A Thread

Typ.

Self

Lock.

C/E *

* C Non-Self Locking

E Self Locking

MS3367-1

Tie Strap or

Equivalent

(Typical)

Ground Lug

(G Option)

1. For complete dimensions see applicable Military Specification.

2. Metric dimensions (mm) are indicated in parentheses.

3. Cable entry is defined as the accomodation range for the wire bundle or cable.

Dimensions shown are not intended for inspection criteria.

TABLE I

Ser. 1

Shell

A Thread

Shell Size

Class 2B

Size Ref.

9 .438-28 UNEF

11 .562-24 UNEF

13 .688-24 UNEF

15 .813-20 UNEF

17 .938-20 UNEF

19 1.063-18 UNEF

21 1.188-18 UNEF

23 1.313-18 UNEF

25 1.438-18 UNEF

C Dia

Max

.75 (19.1)

.85 (21.6)

1.00 (25.4)

1.10 (27.9)

1.25 (31.8)

1.40 (35.6)

1.50 (38.1)

1.65 (41.9)

1.75 (44.5)

E Dia

F Max

Max

Cable Entry

.86 (21.8) .264 (6.7)

.98 (24.9) .392 (10.0)

1.16 (29.5) .506 (12.9)

1.28 (32.5) .631 (16.0)

1.41 (35.8) .756 (19.2)

1.52 (38.6) .845 (21.5)

1.64 (41.7) .970 (24.6)

1.77 (45.0) 1.095 (27.8)

1.89 (48.0) 1.220 (31.0)

Max

.895 (22.7)

.955 (24.3)

1.135 (28.8)

1.195 (30.4)

1.325 (33.7)

1.445 (36.7)

1.585 (40.3)

Max

1.21 (30.7)

1.39 (35.3)

Max

1.22 (31.0)

1.29 (32.8)

1.62 (41.1)

1.66 (42.2)

1.72 (43.7)

1.79 (45.5)

1.85 (47.0)

1.91 (48.5)

Max

.63 (16.0)

.70 (17.8)

.73 (18.5)

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

45-5

Qwik-Ty

Strain Reliefs
