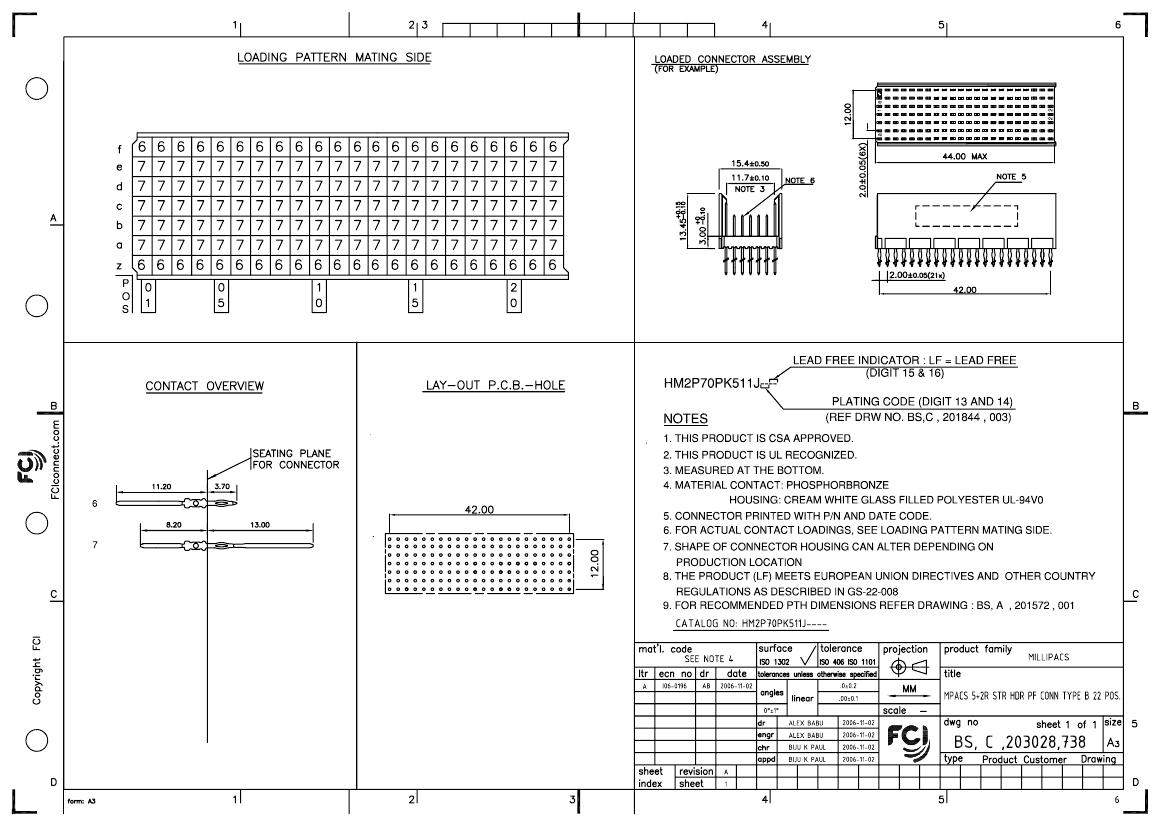

HM2P70PK511JGLLF: DescriptionBoard Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE; CategoryThe connector The connector; File Size265KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

HM2P70PK511JGLLF Overview

Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE

HM2P70PK511JGLLF Parametric

Parameter Name	Attribute value
Objectid	1725753402
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (39) OVER NICKEL
Contact completed and terminated	MATTE TIN
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	7
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	154
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 04, 2007

.

HM2P70PK511JGLLF Related Products

	HM2P70PK511JGLLF	HM2P70PK511JGCLF	HM2P70PK511JGC	HM2P70PK511JGFLF	HM2P70PK511JGF	HM2P70PK511JGL
Description	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal, LEAD FREE	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal	Board Connector, 154 Contact(s), 7 Row(s), Male, Straight, Press Fit Terminal
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (39) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (16) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (31) OVER NICKEL	GOLD (39) OVER NICKEL
Contact completed and terminated	MATTE TIN	MATTE TIN	TIN LEAD	MATTE TIN	TIN LEAD	TIN LEAD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e0	e3	e0	e0
MIL compliance	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	7	7	7	7	7	7
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	154	154	154	154	154	154
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Manufacturer's serial number	-	HM2P70PK511J	HM2P70PK511J	HM2P70PK511J	HM2P70PK511J	HM2P70PK511J
Base Number Matches	-	1	1	1	1	1
