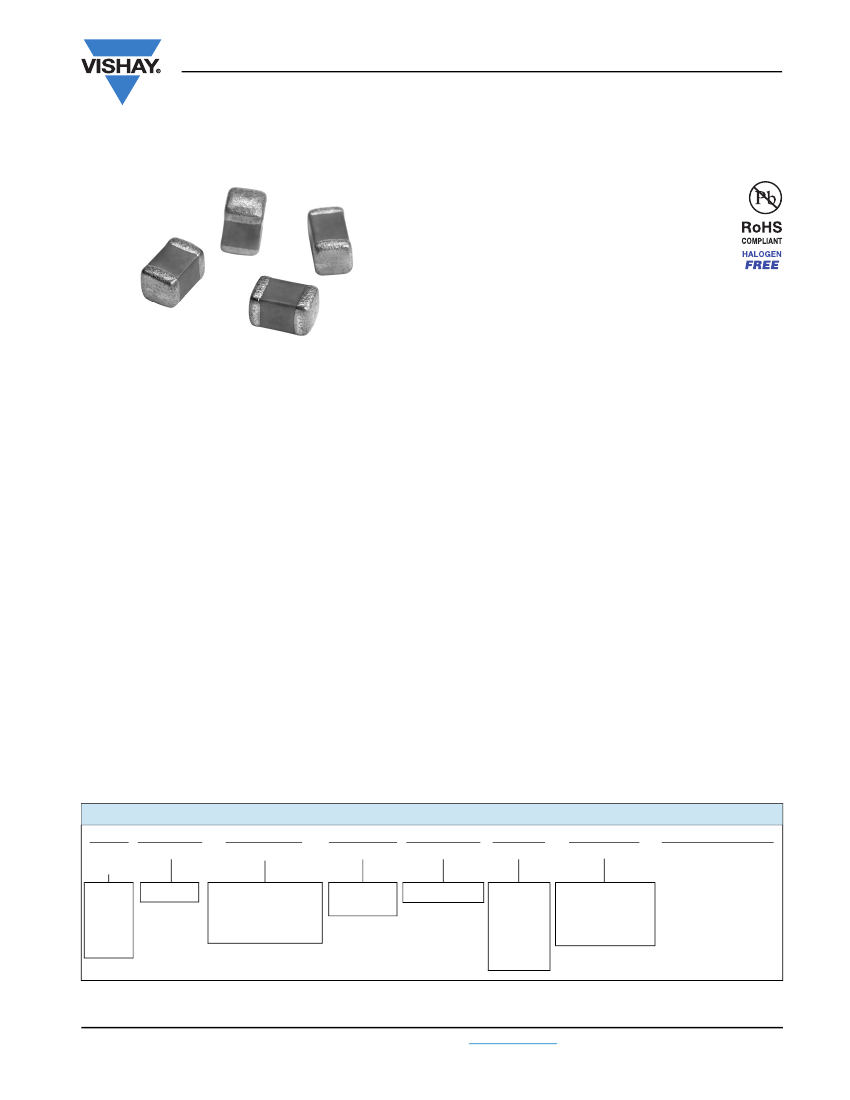

VJ....W1BC X5R Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications
FEATURES
•
•
•
•
•
•
•
•
Class 2 dielectric
Four standard sizes
High capacitance per unit volume
Supplied in tape and reel
Ni-barrier with 100 % tin terminations
Dry sheet technology process
Base Metal Electrode System (BME)
Halogen-free according to IEC 61249-2-21
APPLICATIONS
•
•
•
•
Consumer electronics
Telecommunications
Mobile application
Data processing
ELECTRICAL SPECIFICATION
N
ote:
Electrical characteristics values - temperature at 25 °C, unless otherwise specified
Operating Temperature:
- 55 °C to + 85 °C
Capacitance Range:
47 nF to 22 µF
Voltage Range:
6.3 Vdc to 25 Vdc
Temperature Coefficient of Capacitance (TCC)
:
± 15 % without voltage applied
Dissipation Factor (DF):
6.3 V:
≤
10 %
≤
15 % for 0805
≥
4.7 µF
10 V:
≤
5 %
≤
10 % for 0402
≥
0.33 µF; 0603
≥
0.33 µF; 0805
≥
2.2 µF;
1206
≥
2.2 µF, 1210
≥
22 µF
≤
15 % for 0402
≥
1 µF
16 V:
≤
3.5 %
≤
5 % for 0402
≥
0.033 µF; 0603
≥
0.15 µF; 0805
≥
0.68 µF;
1206
≥
2.2 µF, 1210
≥
4.7 µF
≤
10 % for 0603
≥
0.68 µF; 0805
≥
2.2 µF; 1206
≥
4.7 µF,
1210
≥
22 µF
25 V:
≤
3.5 %
≤
5 % for 0805
≥
1 µF, 1210
≥
10 µF
≤
7 % for 0603
≥
0.33 µF; 1206
≥
4.7 µF
≤
10 % for 0402
≥
0.10 µF; 0603
≥
0.47 µF; 0805
≥
2.2 µF;
1206
≥
6.8 µF
Aging Rate:
6.3 V/10 V: 3 % maximum per decade
16 V/25 V: 2 % maximum per decade
Insulation Resistance (IR):
10 GΩ or 500
ΩF
whichever is less
Dielectric Strength Test:
This is the maximum voltage the capacitors are tested for
1 s to 5 s period and the charge/discharge current does not
exceed 50 mA
≤
100 Vdc: 250 % of rated voltage
ORDERING INFORMATION
VJ0402
SIZE
CODE
0402
0603
0805
1206
1210
G
DIELECTRIC
104
CAPACITANCE
K
X
Q
VOLTAGE
C
PACKAGING
W1BC
PROCESS CODE FOR
BASIC COMMODITY
TOLERANCE TERMINATION
G = X5R
Two significant digits
followed by the
number of zeros:
104 = 100 000 pF
K = ± 10 %
M = ± 20 %
X = Ni Barrier
S=4V
Y = 6.3 V
Q = 10 V
J = 16 V
X = 25 V
A = 50 V
C = 7" reel/paper
P = 13" reel/paper
T = 7" reel/blister
R = 13" reel/blister
Document Number: 28523
Revision: 05-Aug-09
For technical questions, contact:
mlcc@vishay.com
www.vishay.com
1
VJ....W1BC X5R Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications
SELECTION CHART
DIELECTRIC
EIA CAP. EIA SIZE
CODE
CAP.
473
0.047 µF
563
0.056 µF
683
0.068 µF
823
0.082 µF
104
0.1 µF
124
0.12 µF
154
0.15 µF
184
0.18 µF
224
0.22 µF
274
0.27 µF
334
0.33 µF
394
0.39 µF
474
0.47 µF
564
0.56 µF
684
0.68 µF
824
0.82 µF
105
1 µF
155
1.5 µF
225
2.2 µF
335
3.3 µF
475
4.7 µF
685
6.8 µF
106
10 µF
156
15 µF
226
22 µF
336
33 µF
476
47 µF
686
68 µF
107
100 µF
0402
10 V 16 V
N
N
N
N
N
N
N
X5R
0603
10 V 16 V
0805
10 V 16 V
4V
6.3 V
25 V
50 V
6.3 V
25 V
50 V
4V
6.3 V
25 V
50 V
N
N
N
N
N
N
N
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
I
I
I
I
I
I
I
I
I
I
I
I
I
SELECTION CHART
DIELECTRIC
1206
EIA CAP. EIA SIZE
CODE
CAP.
6.3 V
10 V
16 V
105
1 µF
155
1.5 µF
J
J
225
2.2 µF
J
J
335
3.3 µF
P
P
475
4.7 µF
P
P
P
685
6.8 µF
P
P
P
P
P
106
10 µF
156
15 µF
P
226
22 µF
336
33 µF
476
47 µF
686
68 µF
107
100 µF
Note
• Letters indicate product thickness, see packaging quantities
X5R
25 V
50 V
6.3 V
10 V
K
K
K
K
1210
16 V
K
K
K
K
25 V
50 V
J
P
P
P
www.vishay.com
2
For technical questions, contact:
mlcc@vishay.com
Document Number: 28523
Revision: 05-Aug-09
VJ....W1BC X5R Dielectric
Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications
DIMENSIONS
in inches [millimeters]
SIZE
L
CODE
0402
0.040 ± 0.002
(1005)
[1.00 ± 0.05]
0603 0.063 + 0.006/- 0.004
(1608)
[1.60 + 0.15/- 0.10]
0805
0.080 ± 0.008
(2012)
[2.00 ± 0.20]
1206 0.126 + 0.012/- 0.008
(3216)
[3.20 + 0.30/- 0.20]
1210
0.126 ± 0.016
(3225)
[3.20 ± 0.40]
W
0.020 ± 0.002
[0.50 ± 0.05]
0.030 + 0.006/- 0.004
[0.80 + 0.15/- 0.10]
0.050 ± 0.008
[1.25 ± 0.20]
0.063 + 0.012/- 0.008
[1.60 + 0.30/- 0.20]
0.098 ± 0.012
[2.50 ± 0.30]
T
MAX.
0.022
[0.55]
0.038
[0.95]
0.057
[1.45]
0.075
[1.90]
0.110
[2.80]
MB
0.010 ± 0.004
[0.25 ± 0.10]
0.012 - 0.008/+ 0.010
[0.30 - 0.20/+ 0.25]
0.020 - 0.012/+ 0.008
[0.50 - 0.30/+ 0.20]
0.020 ± 0.012
[0.50 ± 0.30]
0.026 ± 0.014
[0.65 ± 0.35]
Vishay
T
W
MB
L
MB
STORAGE AND HANDLING CONDITIONS
(1) To store products at 5 °C to 40 °C ambient temperature and 20 % to 70 % related humdity conditions.
(2) The product is recommended to be used within one year after shipment. Check solderability in case of shelf life extension is
needed.
C
autions:
a. Don’t store products in a corrosive environment such as sulfide, chloride gas, or acid. It may cause oxidization of electrode,
which easily be resulted in poor soldering.
b. To store products on the shelf and avoid exposure to moisture.
c. Don’t expose products to excessive shock, vibration, direct sunlight and so on
.
PACKAGING QUANTITIES
SIZE CODE
(inch/mm)
0402 (1002)
0603 (1608)
MAX. THICKNESS
(mm)
0.55
0.90
0.95
0.75
0805 (2012)
0.95
1.40
1.45
0.95
1.05
1.30
1206 (3216)
1.35
1.80
1.80
1.90
1.05
1.05
1.35
1.80
1210 (3225)
2.00
2.20
2.70
2.80
2.80
THICKNESS SYMBOL
N
S
X
A
B
D
I
B
C
J
D
G
H
P
B
C
D
G
U
K
J
M
V
4K
15K
3K
3K
3K
2K
2K
2K
2K
3K
3K
2K
2K
1K
1K
1K
1K
4K
4K
4K
10K
10K
10K
8K
10K
10K
10K
PAPER TAPE
7" reel (C)
10K
4K
4K
4K
4K
13" reel (P)
50K
15K
15K
15K
15K
3K
3K
10K
10K
PLASTIC TAPE
7" reel (T)
13" reel (R)
Document Number: 28523
Revision: 05-Aug-09
For technical questions, contact:
mlcc@vishay.com
www.vishay.com
3
VJ....W1BC X5R Dielectric
Vishay
Surface Mount Multilayer Ceramic Chip Capacitors
for Commodity Applications

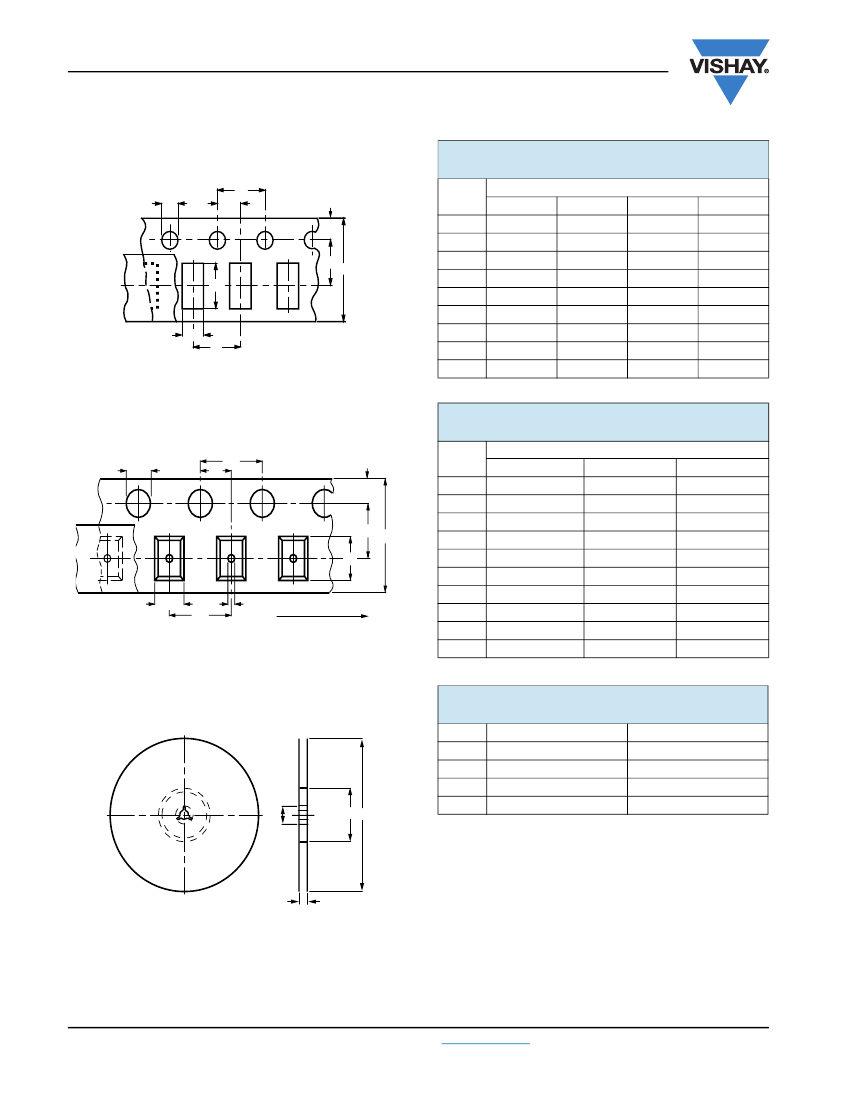

DIMENSIONS OF PAPER TAPE
in millimeters
SYM.
E
PAPER TAPE SPECIFICATIONS
P
0
D
0
P
2
PRODUCT SIZE CODE
0402
0.62 ± 0.05
1.12 ± 0.05
8.00 ± 0.10
1.75 ± 0.05
3.50 ± 0.05
1.55 ± 0.05
4.00 ± 0.10
2.00 ± 0.05
2.00 ± 0.05
0603
1.02 ± 0.05
1.82 ± 0.05
8.00 ± 0.10
1.75 ± 0.05
3.50 ± 0.05
1.55 ± 0.05
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
0805
1.50 ± 0.10
2.30 ± 0.10
8.00 ± 0.10
1.75 ± 0.05
3.50 ± 0.05
1.55 ± 0.05
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
1206
2.00 ± 0.10
3.50 ± 0.10
8.00 ± 0.10
1.75 ± 0.10
3.50 ± 0.05
1.50 ± 0.05
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
A
0
B
0
W
E
F
D
0
F
B
0
W
A
0
P
1
P
0
P
1
P
2
BLISTER TAPE SPECIFICATIONS
DIMENSIONS OF BLISTER TAPE
in millimeters
SYM.
E
PRODUCT SIZE CODE
0805
< 1.57
< 2.45
8.00 ± 0.10
1.75 ± 0.10
3.50 ± 0.05
1.50 ± 0.05
1.00 ± 0.10
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
1206
< 2.00
< 3.70
8.00 ± 0.10
1.75 ± 0.10
3.50 ± 0.05
1.50 ± 0.05
1.00 ± 0.10
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
1210
< 2.97
< 3.73
8.00 ± 0.10
1.75 ± 0.10
3.50 ± 0.05
1.50 ± 0.05
1.00 ± 0.10
4.00 ± 0.10
4.00 ± 0.10
2.00 ± 0.05
D
0
P
2
P
0
A
0
B
0
W
W
F
B
0
E
F
D
0
D
1
A
0
P
1
D
1
direction of
unreeling
P
0
P
1
P
2
REEL SPECIFICATIONS
REEL DIMENSIONS AND TAPE WIDTH
in millimeters
Ø 180 mm; 7"
A
B
C
A
D C
Ø 330 mm; 13"
13.0 ± 0.5
9.0 ± 1.0
330.0 ± 1.0
100.0 ± 1.0
13.0 ± 0.5
9.0 ± 1.0
178.0 ± 1.0
60.0 ± 1.0
D
B
www.vishay.com
4
For technical questions, contact:
mlcc@vishay.com
Document Number: 28523
Revision: 05-Aug-09
