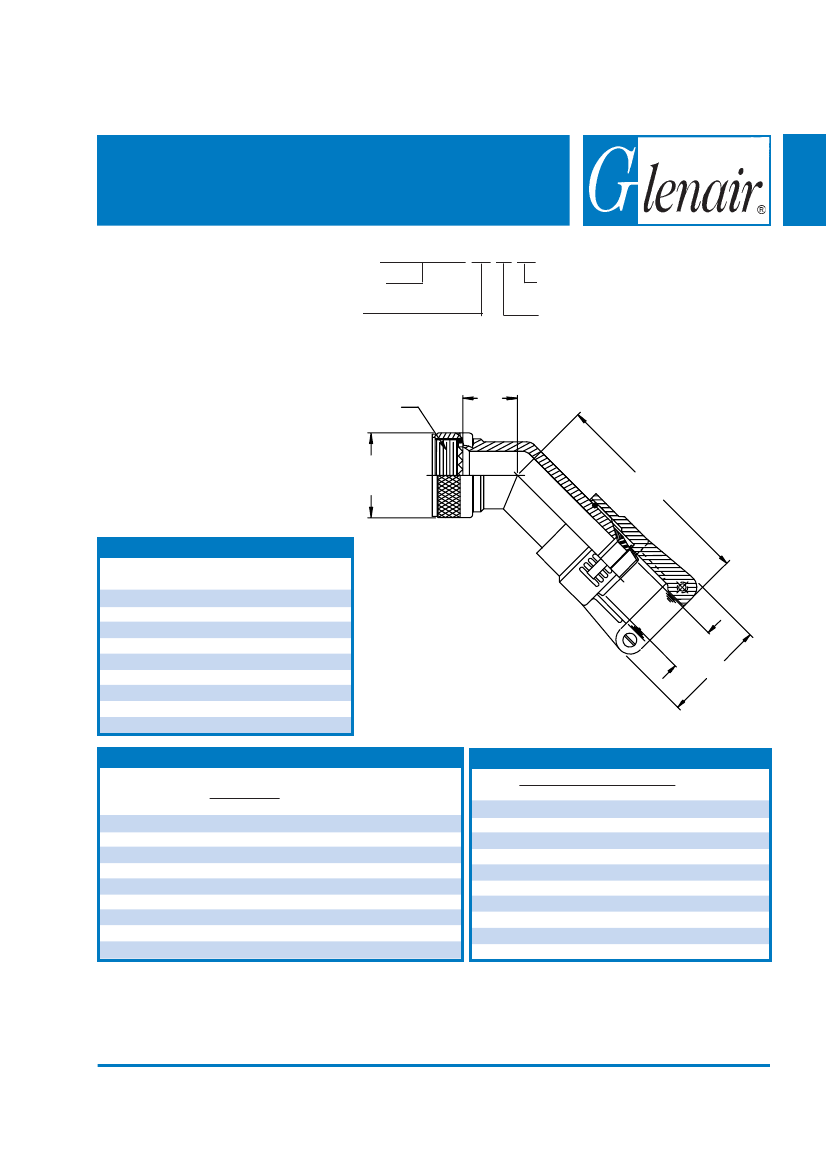

AS85049/77
EMI/RFI Environmental Backshell
Glenair Connector
Designator F
MIL-DTL38999 Series I & II,
40M38277, PAN 6433-1,
PATT 614, PATT 616,
NFC93422 Series HE308 &
HE309
M85049/77-10 W 01
Basic Part No.
Shell Size
Clamp Size
Finish
N = Electroless Nickel
W = 1,000 Hr. Cadmium Olive
Drab Over Electroless Nickel
E
A Thread
C
Dia
F
TABLE I
Shell
Size
08
10
12
14
16
18
20
22
24
A Thread
Class 2B
.438 - 28 UNEF
.562 - 24 UNEF
.688 - 24 UNEF
.813 - 20 UNEF
.938 - 20 UNEF
1.063 - 18 UNEF
1.188 - 18 UNEF
1.313 - 18 UNEF
1.438 - 18 UNEF
C Dia
Max
.75 (19.1)
.85 (21.6)
1.00 (25.4)
1.15 (29.2)
1.25 (31.8)
1.40 (35.6)
1.55 (39.4)
1.65 (41.9)
1.85 (47.0)
Cable
Range
G
TABLE II
Shell Size
Shell Series 1 Clamp Size
E
Size
Ref.
Min Max ±.062 (1.6)
08
09
.398 (10.1)
01
02
10
11
.458 (11.6)
01
03
12
13
.518 (13.2)
02
04
14
15
.588 (14.9)
02
05
16
17
.678 (17.2)
02
06
18
19
.868 (22.0)
03
07
20
21
.868 (22.0)
03
08
22
23
.958 (24.3)
03
09
24
25
.958 (24.3)
04
10
F
±.062
3.088
3.148
3.208
3.298
3.408
3.598
3.598
3.748
3.748
(1.6)
(78.4)
(80.0)
(81.5)
(83.8)
(86.6)
(91.4)
(91.4)
(95.2)
(95.2)
TABLE III
Cable Range
Clamp
Min
Max
Size
.062 (1.6) .125 (3.2)
01
.125 (3.2) .250 (6.4)
02
.250 (6.4) .375 (9.5)
03
.375 (9.5) .500 (12.7)
04
.500 (12.7) .625 (15.9)
05
.625 (15.9) .750 (19.1)
06
.750 (19.1) .875 (22.2)
07
.875 (22.2) 1.000 (25.4)
08
09 1.000 (25.4) 1.125 (28.6)
10 1.125 (28.6) 1.250 (31.8)
G
Max
.80 (20.3)
1.00 (25.4)
1.10 (27.9)
1.20 (30.5)
1.25 (31.8)
1.40 (35.6)
1.50 (38.1)
1.65 (41.9)
1.75 (44.5)
1.90 (48.3)
1. For complete dimensions see applicable Military Specification.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodation range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
39-19
EMI/RFI
Environmental
