NE703D: DescriptionIC PRESCALER, PDSO8, 0.157 INCH, PLASTIC, SOP-8, Prescaler/Multivibrator; Categorylogic logic; File Size84KB，4 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

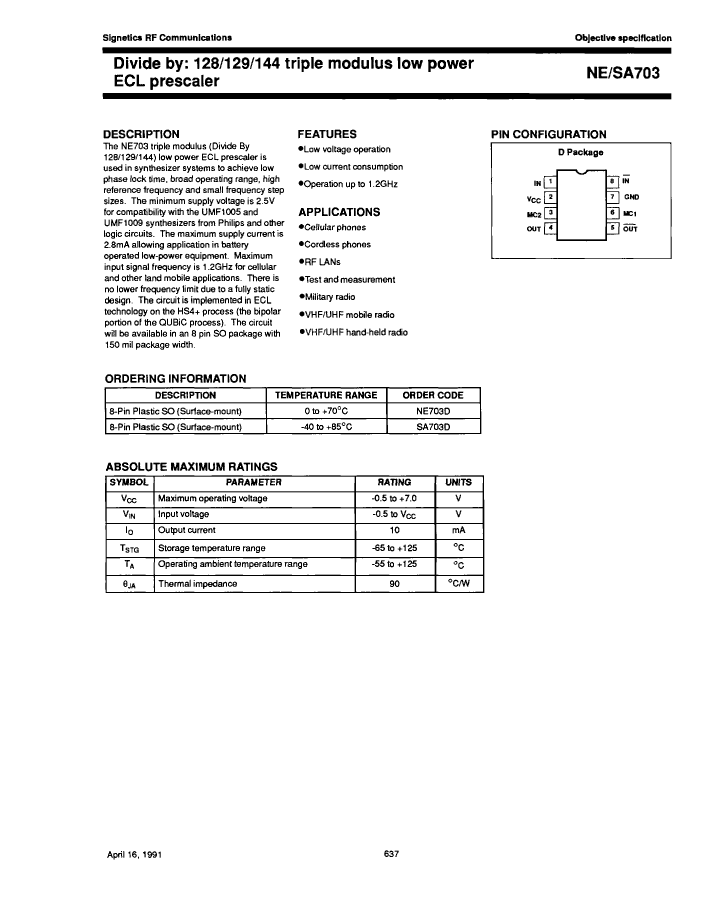

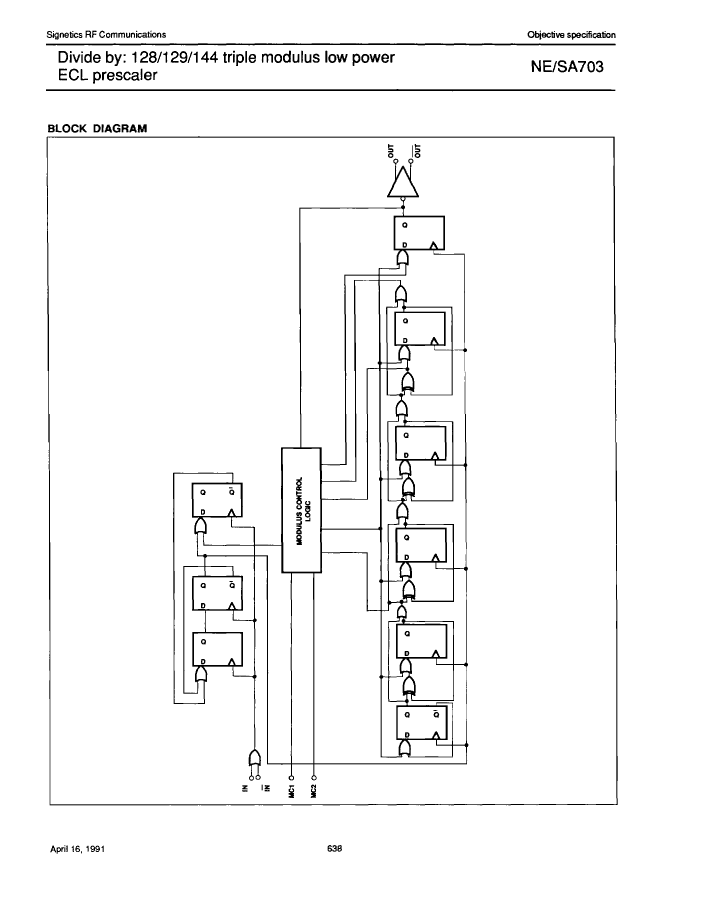

NE703D Overview

IC PRESCALER, PDSO8, 0.157 INCH, PLASTIC, SOP-8, Prescaler/Multivibrator

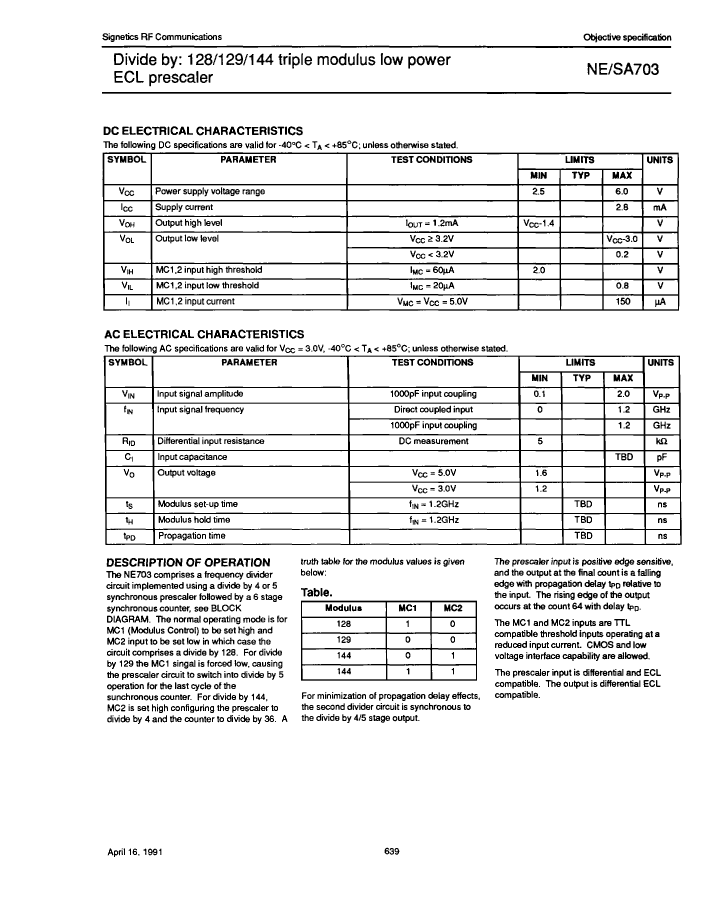

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	LSOP,
Contacts	8
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of data/clock inputs	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Maximum seat height	1.68 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2.5 V
Nominal supply voltage (Vsup)	3 V
surface mount	YES
technology	ECL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
minfmax	1200 MHz
Base Number Matches	1

	NE703D	NE703D-T
Description	IC PRESCALER, PDSO8, 0.157 INCH, PLASTIC, SOP-8, Prescaler/Multivibrator	IC PRESCALER, PDSO8, 0.157 INCH, PLASTIC, SOP-8, Prescaler/Multivibrator
Parts packaging code	SOIC	SOIC
package instruction	LSOP,	LSOP,
Contacts	8	8
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm
Number of data/clock inputs	1	1
Number of functions	1	1
Number of terminals	8	8
Maximum operating temperature	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	LSOP	LSOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.68 mm	1.68 mm
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V
Nominal supply voltage (Vsup)	3 V	3 V
surface mount	YES	YES
technology	ECL	ECL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
minfmax	1200 MHz	1200 MHz
