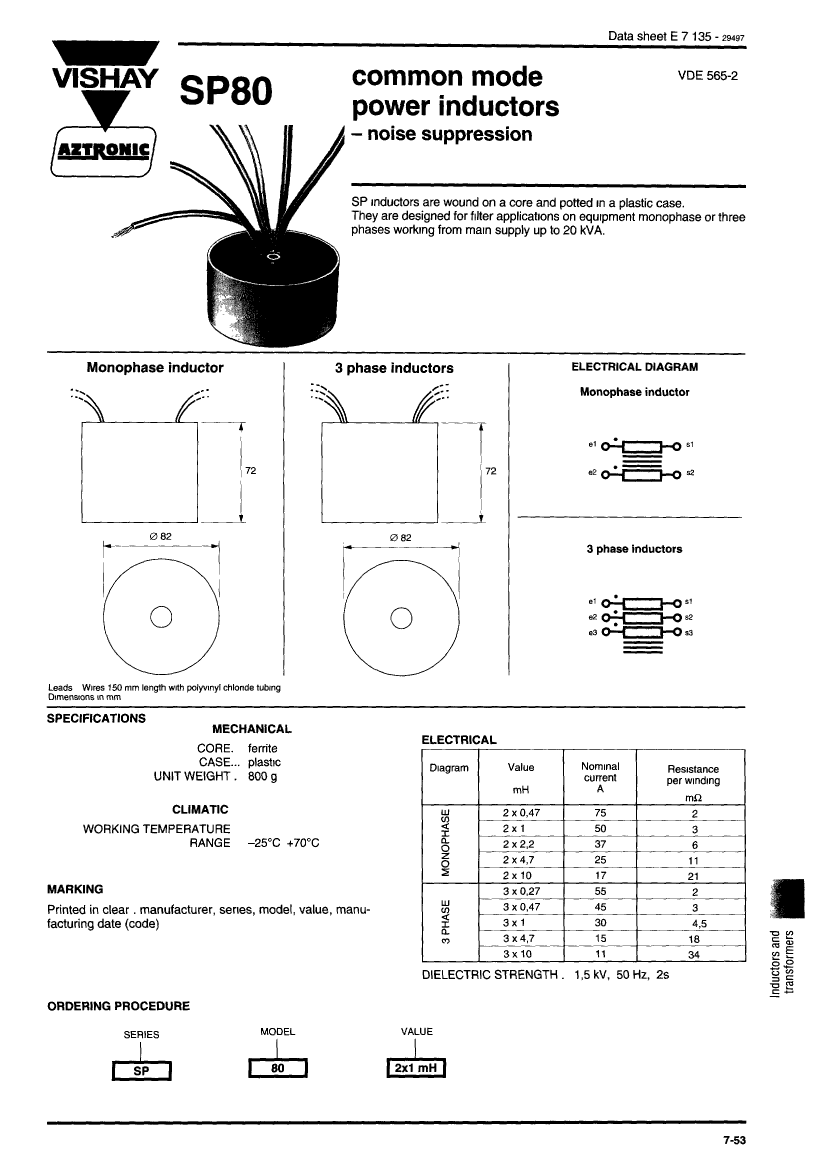

Preview

SP802X4.7MH: DescriptionMains Filter, SINGLE PHASE EMI FILTER, PANEL MOUNT; CategoryAnalog mixed-signal IC filter; File Size43KB，1 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

SP802X4.7MH Overview

Mains Filter, SINGLE PHASE EMI FILTER, PANEL MOUNT

SP802X4.7MH Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	INDUCTANCE 4.7 MILLI HENRY
Certification	VDE
diameter	82 mm
filter type	SINGLE PHASE EMI FILTER
high	72 mm
Manufacturer's serial number	SP80
Installation type	PANEL MOUNT
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
physical size	D82XH72 (mm)
Rated current	25 A
Base Number Matches	1

Preview

Download Datasheet

View All

SP802X4.7MH Related Products

	SP802X4.7MH	SP803X4.7MH	SP803X1MH	SP803X10MH	SP803X0.47MH	SP803X0.27MH	SP802X2.2MH	SP802X1MH
Description	Mains Filter, SINGLE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, THREE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, THREE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, THREE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, THREE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, THREE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, SINGLE PHASE EMI FILTER, PANEL MOUNT	Mains Filter, SINGLE PHASE EMI FILTER, PANEL MOUNT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	INDUCTANCE 4.7 MILLI HENRY	INDUCTANCE 4.7 MILLI HENRY	INDUCTANCE 1 MILLI HENRY	INDUCTANCE 10 MILLI HENRY	INDUCTANCE 0.47 MILLI HENRY	INDUCTANCE 0.27 MILLI HENRY	INDUCTANCE 2.2 MILLI HENRY	INDUCTANCE 1 MILLI HENRY
Certification	VDE	VDE	VDE	VDE	VDE	VDE	VDE	VDE
diameter	82 mm	82 mm	82 mm	82 mm	82 mm	82 mm	82 mm	82 mm
filter type	SINGLE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	THREE PHASE EMI FILTER	SINGLE PHASE EMI FILTER	SINGLE PHASE EMI FILTER
high	72 mm	72 mm	72 mm	72 mm	72 mm	72 mm	72 mm	72 mm
Manufacturer's serial number	SP80	SP80	SP80	SP80	SP80	SP80	SP80	SP80
Installation type	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
physical size	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)	D82XH72 (mm)
Rated current	25 A	15 A	30 A	11 A	45 A	55 A	37 A	50 A
Base Number Matches	1	1	1	1	1	1	1	1
