Conformity to RoHS Directive
EMC Filters for AC Power Line
For Single-phase, Mid-size Box Cased ZRCS-00S Series
FEATURES
• This is an EMC filter for preventing operation errors in devices
that use common mode choke coils with magnetic characteris-
tics of amorphous magnetic substances.
• Has sharp attenuation characteristics for high-voltage pulses
that can invade from power lines (attenuation efficiency is over
20dB for a pulse input of 2kV and 1µs).
• Excellent noise attenuation in the low range making it perfect
EMC prevention equipment for inverters.
• Screw terminal has a spring which moves the washer up and
has a safe design to prevent the screw from falling.
• It is a product conforming to RoHS directive.
APPLICATIONS
• Power line noise prevention
• Machine tools and NC control devices
• Medical equipment such as MRIs
• Other industrial equipment

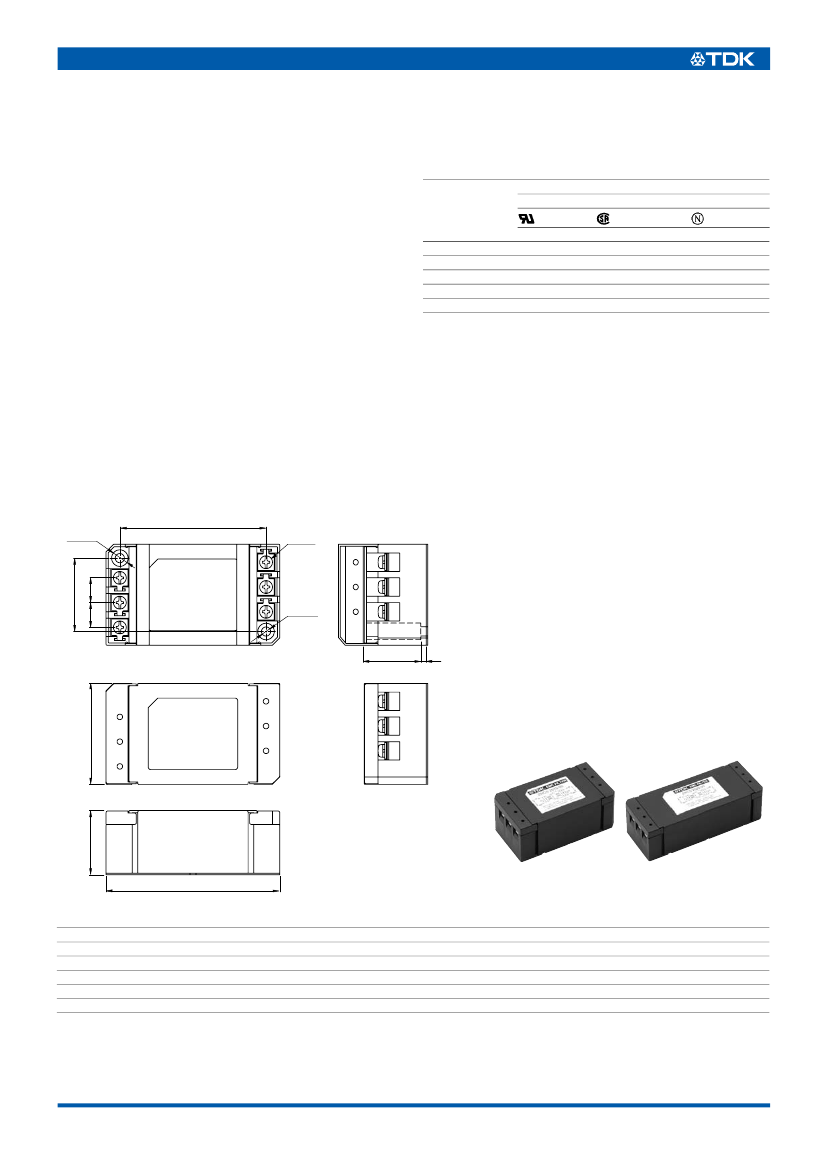

SHAPES AND DIMENSIONS
G
2-ø9.0
Bolt H
SAFETY STANDARDS
Standard and standard No.
U.S.A
Canada
Part No.
UL
UL1283
E62388
E62388
E62388
E62388
E62388
CSA
CSA C22.2 No.8
LR76849C
LR76849C
LR76849C
LR76849C
LR76849C
Europe
NEMKO
EN60939
P08209002
P08209002
P08209002
P08209002
P08209002
ZRCS2003-00S
ZRCS2006-00S
ZRCS2010-00S
ZRCS2020-00S
ZRCS2030-00S
13.5 13.5
F
2-ø5.0
D
E
4
1
A
3
2
C
B
Dimensions in mm
Part No.
ZRCS2003-00S
ZRCS2006-00S
ZRCS2010-00S
ZRCS2020-00S
ZRCS2030-00S
A
55
55
55
55
55
B
80
100
100
135
135
C
35
40
40
40
40
D
29.8
34.8
34.8
34.8
34.8
E
3
3
3
3
3
F
40
40
40
40
40
G
65
85
85
120
120
H
M4
M4
M4
M4
M4
• Case:plastic, block terminal: phillips head screw terminals, base: metal
• Conformity to RoHS Directive: This means that, in conformity with EU Directive 2002/95/EC, lead, cadmium, mercury, hexavalent chromium, and specific
bromine-based flame retardants, PBB and PBDE, have not been used, except for exempted applications.
• All specifications are subject to change without notice.
002-01 / 20080817 / e9133_zrcs_00s.fm
(2/3)

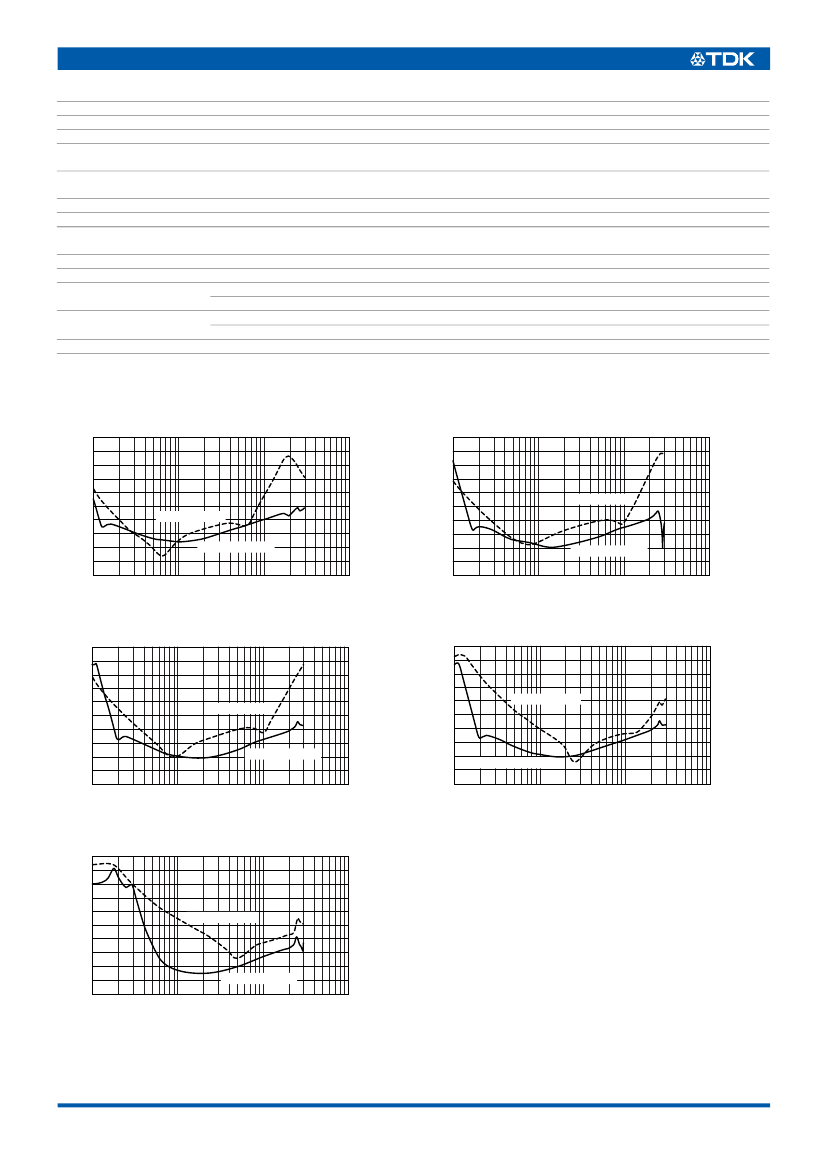

ELECTRICAL CHARACTERISTICS
Part No.
Rated voltage Eac(V)
Rated current(A)
Test voltage Eac (V)
[Between terminal and ground terminal]
Insulation resistance (MΩ)
[DC.500V,1min / between terminal and ground terminal]
Leakage current (mA)[250V • 60Hz]
DC resistance (mΩ)
Operating temperature range (° C)
[Including self-temperature rise]
With derating over(°C)
Temperature rise (° C)
Differential mode at 40dB
Attenuation frequency range
(MHz)[+5 to +35° C]
Common mode at 30dB
Pulse attenuation characteristics Differential mode at 20dB
input pulse voltage (kV)
Common mode at 20dB
Weight (g)
ZRCS2003-00S
250
3
2500
100min.
1.0max.
380max.
–25 to +85
55
30max.
0.2 to 30
0.2 to 10
0.7
0.7
200
ZRCS2006-00S
250
6
2500
100min.
1.0max.
135max.
–25 to +85
55
30max.
0.3 to 30
0.2 to 10
1.0
1.5
325
ZRCS2010-00S
250
10
2500
100min.
1.0max.
70max.
–25 to +85
55
30max.
0.3 to 30
0.2 to 10
1.0
1.3
345
ZRCS2020-00S
250
20
2500
100min.
1.0max.
24max.
–25 to +85
55
30max.
0.5 to 30
0.5 to 30
1.0 [10dB]
1.0 [10dB]
440
ZRCS2030-00S
250
30
2500
100min.
1.0max.
12max.
–25 to +85
55
30max.
0.5 to 30
1.0 to 30
1.0 [10dB]
1.0 [10dB]
450

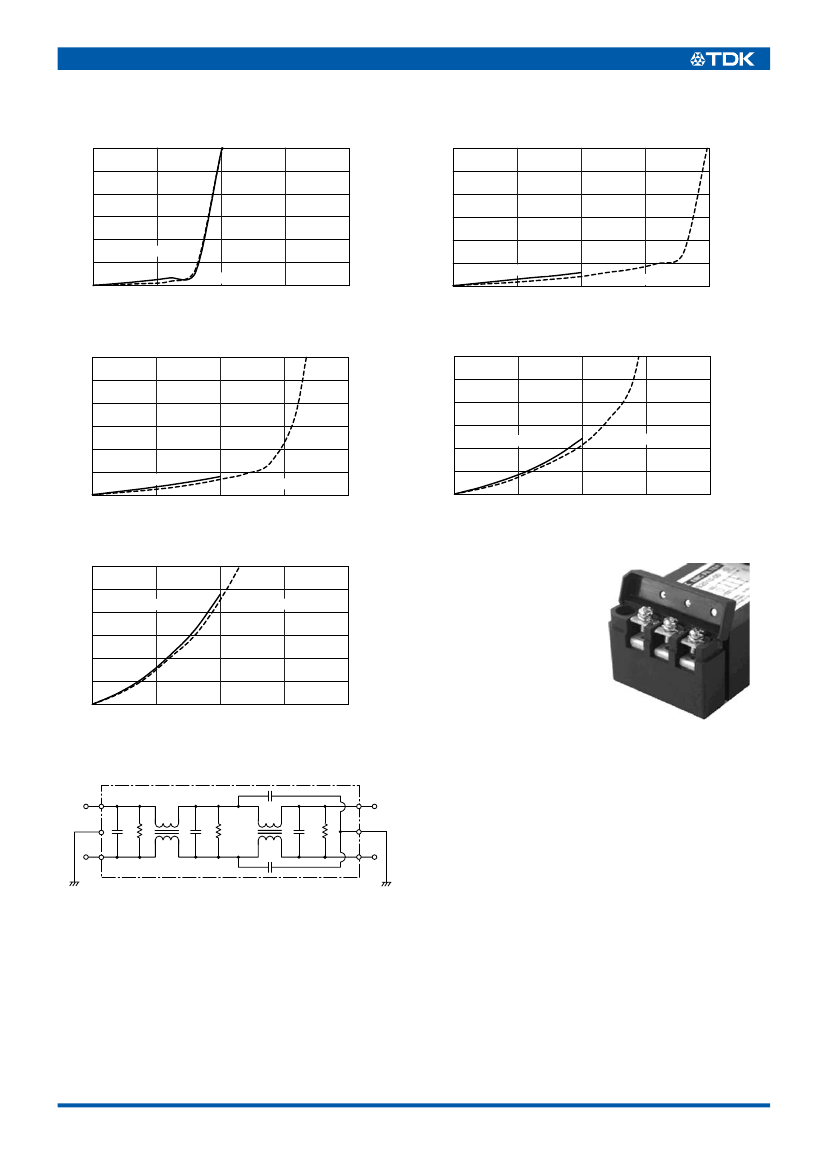

TYPICAL ELECTRICAL CHARACTERISTICS
ATTENUATION vs. FREQUENCY CHARACTERISTICS
ZRCS2003-00S
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
ZRCS2006-00S
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
Attenuation(dB)
Attenuation(dB)
Common mode
Common mode
Differential mode
Differential mode
0.1
1
Frequency (MHz)
0.1
1
Frequency (MHz)
10
100
10
100
ZRCS2010-00S
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
ZRCS2020-00S
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
Attenuation(dB)
Attenuation(dB)
Common mode
Common mode
Differential mode
Differential mode
0.1
1
Frequency (MHz)
0.1
1
Frequency (MHz)
10
100
10
100
ZRCS2030-00S
0
–10
–20
–30
–40
–50
–60
–70
–80
–90
–100
Attenuation(dB)
Common mode
Differential mode
0.1
1
Frequency (MHz)
10
100
• All specifications are subject to change without notice.
002-01 / 20080817 / e9133_zrcs_00s.fm
