ACPF-7141
Bandpass Filter for LTE Band 41
Data Sheet
Description

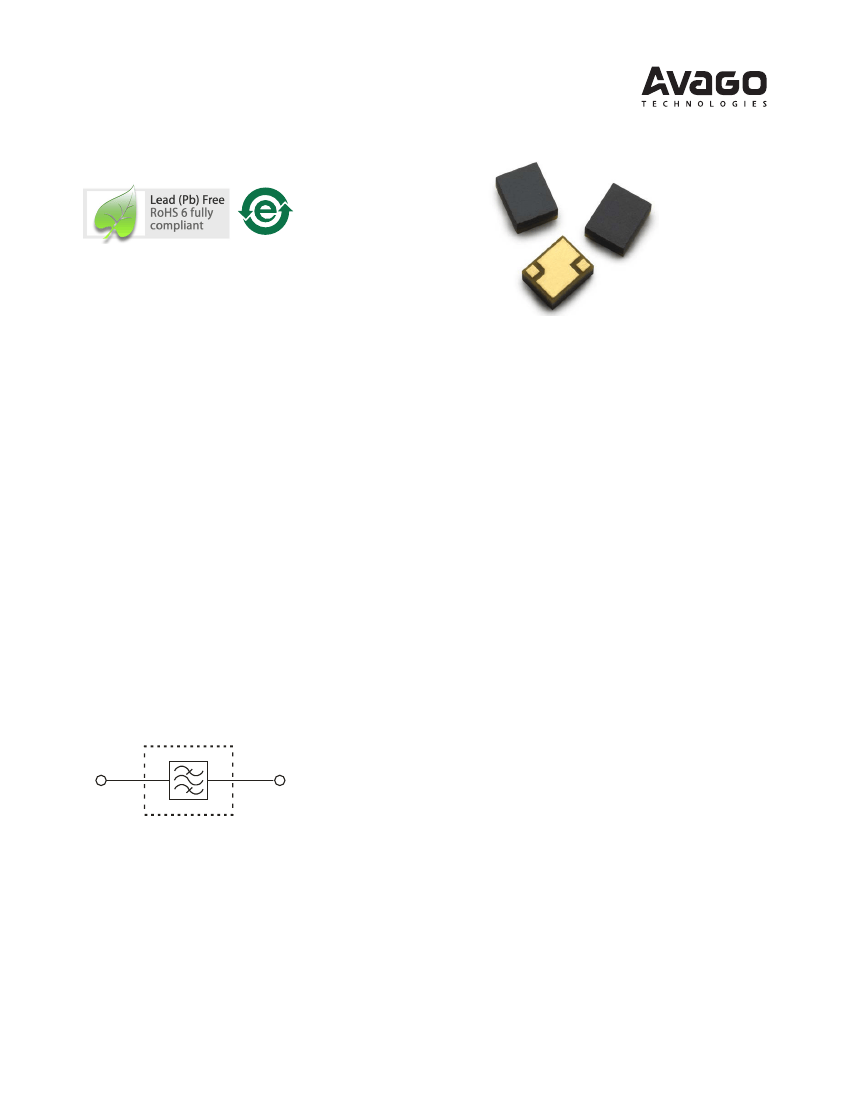

The Avago ACPF-7141 is a miniature Bandpass Filter de-
signed for use in LTE Band 41 (2496 – 2690 MHz) wireless
applications.
The ACPF-7141 is designed to enable concurrent op-
eration of Band 41 with applications in adjacent 2.4 GHz
Bands (Wi-Fi, WLAN, Bluetooth, ISM).
The ACPF-7141 utilizes Avago Technologies’ innovative
Film Bulk Acoustic Resonator (FBAR) technology, which
makes possible ultra-small, high-Q filters at a fraction of
their usual size.
The ACPF-7141 is compatible with high volume, lead-free
SMT soldering processes and can be direct surface mount-
ed to a PCB or a transfer molded module.
Features
•
50
Ω
Input/Output
•
No external matching required
•
Low Insertion Loss, High Interference Rejection
•
Specifications guaranteed –20
°C
to +85
°C
•
High Power Rating
– +31 dBm Abs Max Input Power
•
Miniature Size
– 2.0
×
1.6 mm Footprint
– 0.90 mm Max Height
•
Environmental
– RoHS 6 Compliant
– Halogen free
– TBBPA Free
Applications
LTE Band 41 applications such as smartphones, tablets,
and other mobile or portable communications devices.
Specifications
•
Band 41 Insertion Loss ≤ 2.1 dB (Typ., 25
°C)
•
IEEE 802.11 b/g/n, Ch 1-13 Rejection ≥ 35 dB
(Typ., 25
°C)
Functional Block Diagram
Port 1
TX
(Pin 1)
Port 2
ANT
(Pin 2)
Electrical Specifications
[1]
, Z
0
= 50
Ω,
T
C [2]
–20
°C
to +85
°C,
unless otherwise specified
Symbol
S21
Parameter
Insertion Loss, Band 41
2496 – 2500 MHz (+25
°C)
2496 – 2500 MHz (–20
°C
to –5
°C)
2496 – 2500 MHz (–5
°C
to +85
°C)
2500 – 2520 MHz (+25
°C)
2500 – 2520 MHz (–20
°C
to +85
°C)
2520 – 2680 MHz (+25
°C)
2520 – 2680 MHz (–20
°C
to +85
°C)
2680 – 2690 MHz (+25
°C)
2680 – 2690 MHz (–20
°C
to +85
°C)
Units
dB
Min.
Typ.
[3]
2.8
Max.
3.9
3.7
3.3
3.8
3.0
3.2
3.6
3.8
2.4
2.0
2.2
dB
dB
dB
dB
dB
dB
dB
dB
dB
35
35
25
25
30
25
18
12
35
35
30
—
—
20
18
20
24
20
20
8
76
56
47
35
40
34
27
22
45
44
44
30
18
37
28
27
32
32
30
16
(1.4)
S21
S21
S21
S21
S21
S21
S21
S21
S21
Attenuation, 0 – 699 MHz
Attenuation, 699 – 916 MHz
Attenuation, 916 – 1248 MHz
Attenuation, 1248 – 1565 MHz
Attenuation, 1565 – 1615 MHz
Attenuation, 1615 – 1660 MHz
Attenuation, 1660 – 1750 MHz
Attenuation, 1750 – 2400 MHz
Attenuation, Wi-Fi 802.11 b/g/n Band
[4]
2401 – 2453 MHz ( Wi-Fi Ch 1–7)
2436 – 2468 MHz ( Wi-Fi Ch 8–10)
2451 – 2473 MHz ( Wi-Fi Ch 11)
2456 – 2478 MHz ( Wi-Fi Ch 12)
2461 – 2483 MHz ( Wi-Fi Ch 13)
Attenuation, 2750 – 2850 MHz
Attenuation, 2850 – 3000 MHz
Attenuation, 3000 – 4992 MHz
Attenuation, 4992 – 5380 MHz
Attenuation, 5380 – 7488 MHz
Attenuation, 7488 – 8070 MHz
Return Loss (SWR), 2496 –2690 MHz
S21
S21
S21
S21
S21
S21
S11, S22
dB
dB
dB
dB
dB
dB
dB
(2.3)
Notes:
1. Min./Ma.x. specifications are guaranteed at the indicated temperature, unless otherwise noted.
2. T
C
is the case temperature and is defined as the temperature of the underside of the filter where it makes contact with the circuit board.
3. Typical data is the average value (arithmetic mean) of the parameter over the indicated band at +25
°C.
4. Wi-Fi Channel Average Attenuation, which is obtained by averaging |S21| over the center 19 MHz of the channels and converting to dB value.
2
Absolute Maximum Ratings
[1]
Parameter
Storage temperature
Maximum RF Input Power to Pin 1 (Tx)
[2]
Maximum DC Voltage, any Pin to Gnd or between Pins
[3]
Unit
°C
dBm
V
DC
Value
–40 to +125
+31
0
Maximum Recommended Operating Conditions
[4]
Parameter
Operating temperature, T
c [5]
Unit
°C
Value
–30 to +85
Notes:
1. Operation in excess of any one of these conditions may result in permanent damage to the device.
2. The ACPF-7141 is not symmetrical. Pin 1 is designed for higher power handling and is intended to be connected to the Tx blocks with Pin 2
connected to the system antenna.
3. Internal DC resistance of any port to ground or between ports is approximately a short circuit.
4. The device will function over the recommended range without degradation in reliability or permanent change in performance, but is not
guaranteed to meet electrical specifications.
5. T
C
is defined as case temperature, the temperature of the underside of the filter where it makes contact with the circuit board.
Applications Information
The ACPF-7141 is not symmetrical. Pin 1 should be connected to the highest system power level (e.g., Tx block) and Pin
2 to the Antenna.
The DC resistance from Pin 1 and Pin2 to Gnd is approximately zero. If either port is connected to adjacent components
having a DC voltage present, blocking capacitors should be used.
3
ACPF-7141 Typical Performance at T
c
= 25
°C
0
-0.5
-1.0
Attenuation (dB)
-2.0
-2.5
-3.0
-3.5
-4.0
-4.5
-5.0
2500
2550
2600
2650
Frequency (MHz)
2700
Attenuation (dB)
-1.5
0
-10
-20
-30
-40
-50
-60
2000
4000
Frequency (MHz)
6000
8000

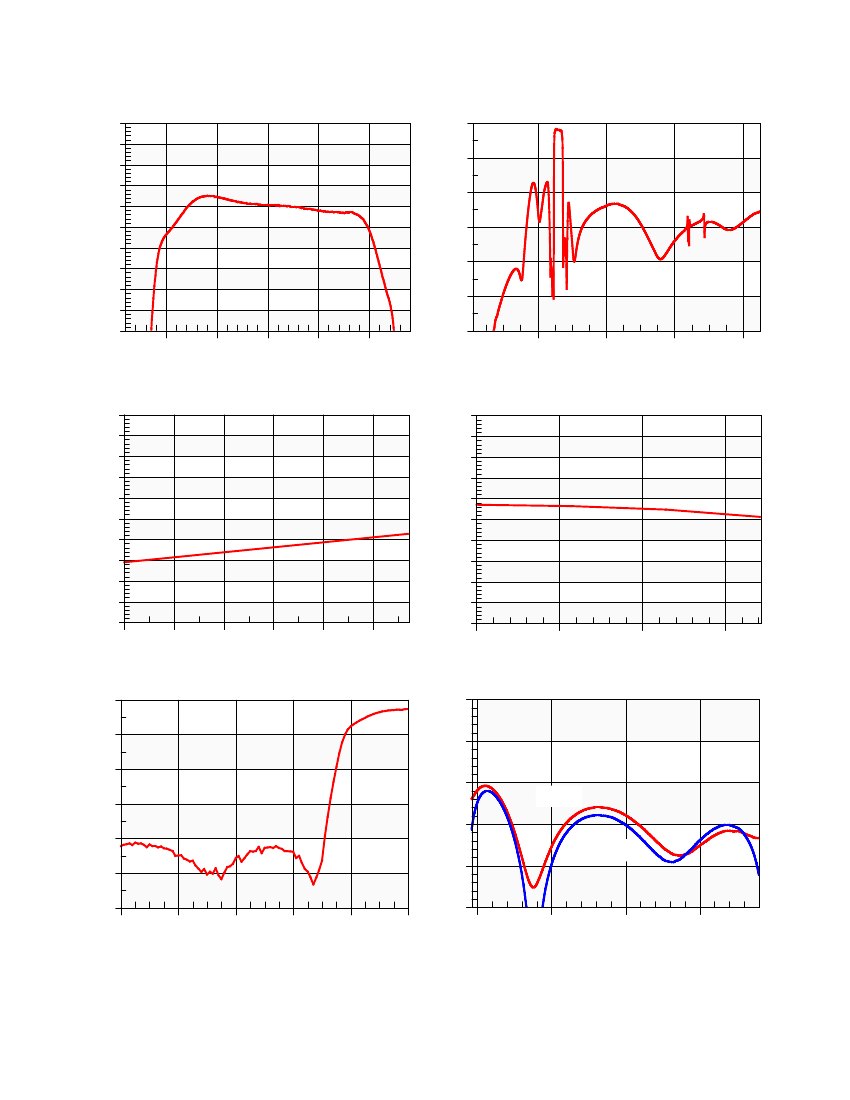

Figure 1. Insertion Loss in Passband, 2460 – 2740 MHz
0
-0.5
-1.0
Insertion Loss (dB)
-2.0
-2.5
-3.0
-3.5
-4.0
-4.5
-5.0
2490
2491
2492
2493
Frequency (MHz)
2494
2495
-1.5
Figure 2. Insertion Loss, wideband
0
-0.5
-1.0
Insertion Loss (dB)
-1.5
-2.0
-2.5
-3.0
-3.5
-4.0
-4.5
-5.0
2680
2685
2690
Frequency (MHz)
2695
Figure 3. Insertion Loss, low side of Passband, 2490 – 2500 MHz
0
-10
Insertion Loss (dB)
Figure 4. Insertion Loss, high side of Passband, 2680 – 2700 MHz
0
-5
Return Loss (dB)
-10
-15
-20
-25
2500
S22
-20
-30
-40
-50
-60
2400
S11
2420
2440
2460
Frequency (MHz)
2480
2500
2550
2600
Frequency (MHz)
2650
Figure 5. Attenuation, Wi-Fi Band (2400 – 2500 MHz)
Figure 6. In/Out Return Loss, Band 41 (2496 – 2690 MHz)
4
ACPF-7141 Typical Performance at T
c
= 25
°C
0.6
0.4
0.2
0.8
1
1.5
2
3
4
5
0.2
0.4
0.6
0.8
1
1.5
2
3
4
5
0.2
0.4 0.6 0.8 1
1.5 2
3 45
10
20
50
10
2050
-50
-20
-10
-5
-4
-0.2
0.2
0.4 0.6 0.8 1
1.5 2
3 45
10
20
50
10
2050
-50
-20
-10
-5
-4
-0.2
-0.4
-0.6
-2
-0.8
-1
-1.5
-3
-0.4
-0.6
-2
-0.8
-1
-1.5
-3

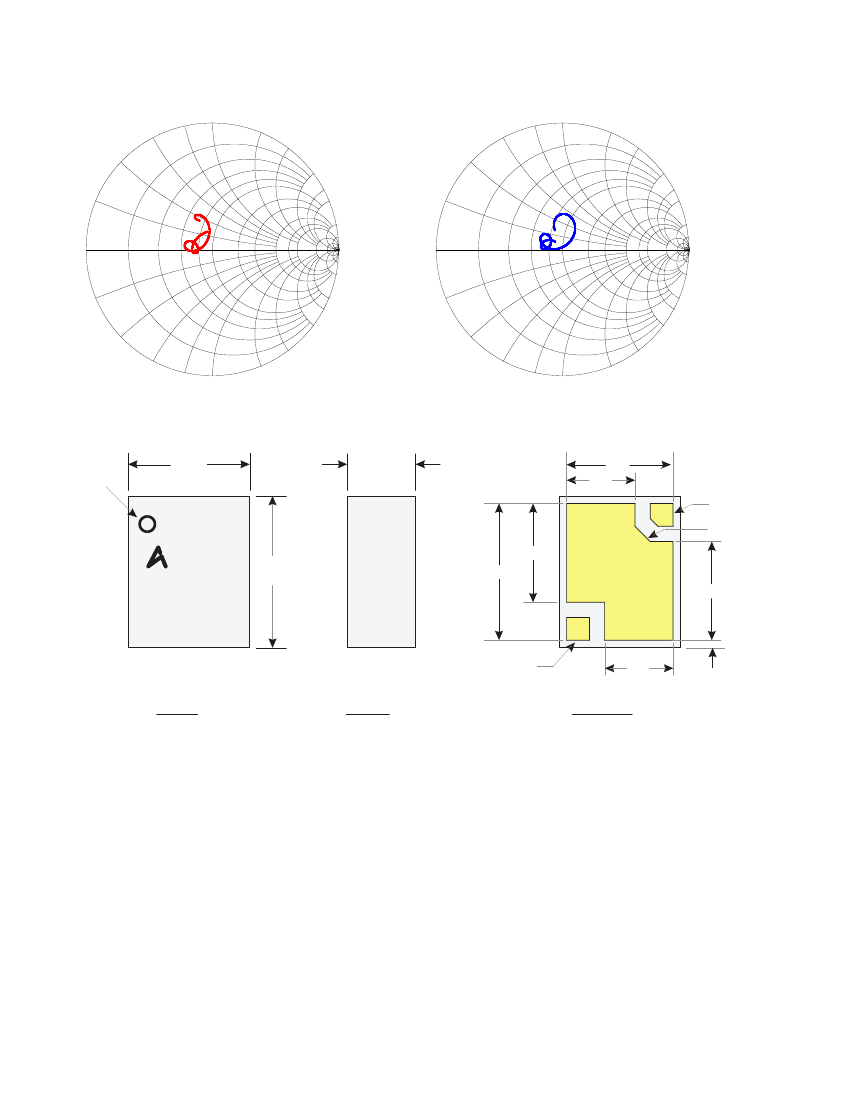

Figure 7. S11 (Port 1, Tx), 3GPP Band 41 (2496 – 2690 MHz)
Figure 8. S22 (Port 2, Ant), 3GPP Band 41 (2496 – 2690 MHz)
PIN 1
MARK
1.600
±0.075
0.830
±0.075
1.40
0.90
1
0.30
×
0.30
0.10
×
45°
0.20
×
45°
RYW
XXXX
2.000
±0.075
1.30
1.80
3
1.30
2
0.30
×
0.30
TOP VIEW
Notes:
1. Dimensions in millimeters
2. Tolerance, unless otherwise specified in drawing:
X.XX ± 0.05 mm
X.XXX ± 0.025 mm
3. Dimensions nominal. unless otherwise specified
4. Contact areas are gold plated
6. Package marking:
“A” = Avago logo
R = ACPF-7141
Y = Year (last digit)
W = Work Week
XXXX = Lot Number
Figure 9. Package Outline Drawing and Marking
SIDE VIEW
Pin Connections:
1
TX
2
ANT
3
Ground
0.90
BOTTOM VIEW
0.10
ALL AROUND
5
