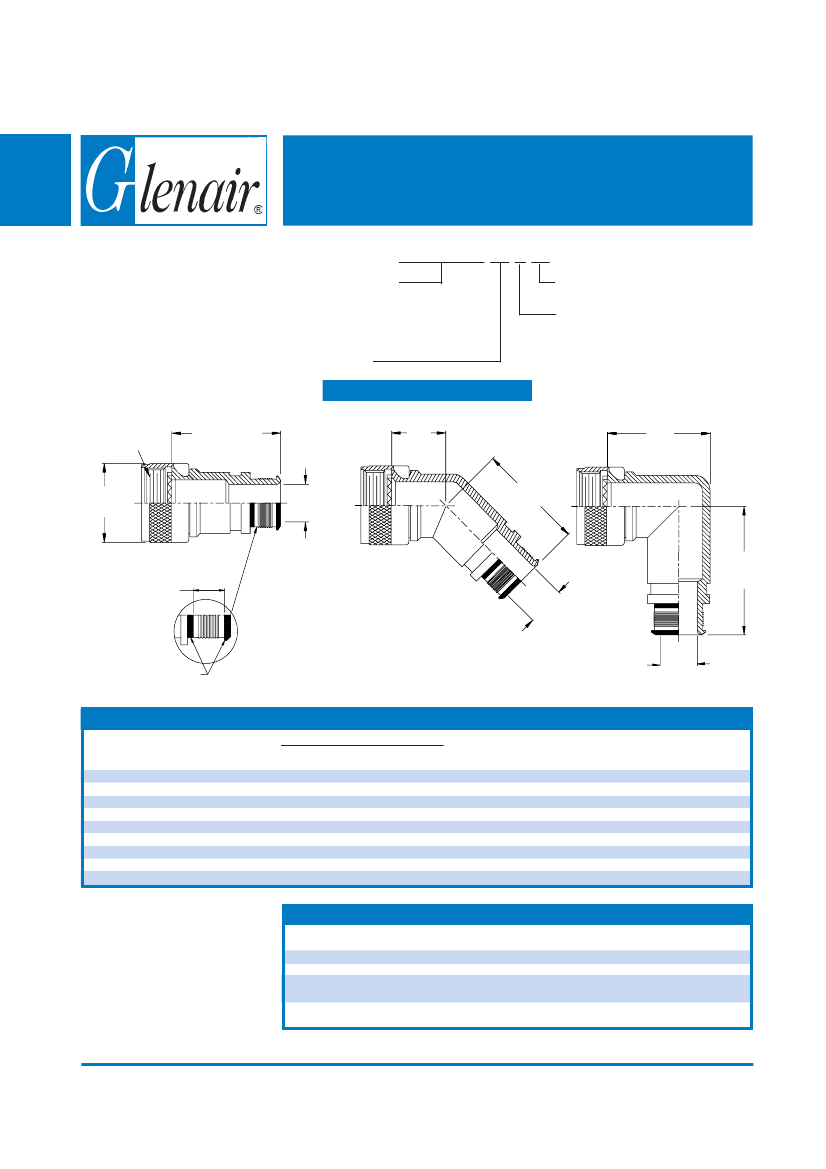

Banding Backshells

Preview

Download Datasheet

View All

Crimp Ring

and Banding

Backshells

AS85049/88, AS85049/89, and AS85049/90

Banding Backshells

Glenair Connector

Designator H

MIL-DTL-38999

Series III & IV,

EN3645

M85049/88-17 P 02

Basic Part No.:

M85049/88 = Straight

M85049/89 = 45°

M85049/90 = 90°

Shell Size

Entry Size

Finish and Material

Self Locking Coupling

A Thread

Typ.

1.35 (34.3)

Max

E Dia

Typ.

F

H

C Typ.

G

L and P Finish

Options (Typ.)

Band Term. Area

Free of Cadmium,

Knurl or Ridges

Mfr's Option

Polysulfide Strips

J

E Dia

E

Dia

TABLE I

Shell A Thread

Size Class 2B

9 M12 X 1 - 6H

11 M15 X 1 - 6H

13 M18 X 1 - 6H

15 M22 X 1 - 6H

17 M25 X 1 - 6H

19 M28 X 1 - 6H

21 M31 X 1 - 6H

23 M34 X 1 - 6H

25 M37 X 1 - 6H

C Dia

Max

.86 (21.8)

.99 (25.1)

1.16 (29.5)

1.28 (32.5)

1.41 (35.8)

1.52 (38.6)

1.64 (41.7)

1.77 (45.0)

1.89 (48.0)

E Dia Cable Entry

Size 02

Size 03

±.010

(.3) ±.010

(.3)

N/A

.250

(6.4)

N/A

.312

(7.9)

.312

(7.9)

.438

(11.1)

.438

(11.1)

.562

(14.3)

.500

(12.7)

.625

(15.9)

.625

(15.9)

.750

(19.1)

.625

(15.9)

.812

(20.6)

.688

(17.5)

.938

(23.8)

.750

(19.1) 1.000

(25.4)

F

Max

1.01 (25.7)

1.03 (26.2)

1.06 (26.9)

1.08 (27.4)

1.11 (28.2)

1.12 (28.4)

1.15 (29.2)

1.17 (29.7)

1.20 (30.5)

G

Max

1.16 (29.5)

1.19 (30.2)

1.21 (30.7)

1.24 (31.5)

1.26 (32.0)

1.27 (32.3)

1.30 (33.0)

1.33 (33.8)

1.35 (34.3)

H

Max

1.375

(34.9)

1.437

(36.5)

1.562

(39.7)

1.687

(42.8)

1.750

(44.5)

1.875

(47.6)

1.938

(49.2)

2.062

(52.4)

2.125

(54.0)

J

Max

1.417

(36.0)

1.480

(37.6)

1.553

(39.4)

1.614

(41.0)

1.678

(42.6)

1.733

(44.0)

1.796

(45.6)

1.859

(47.2)

(48.7)

1.919

1. For complete dimensions

see applicable Military

Specification.

2. Metric dimensions (mm) are

indicated in parentheses.

TABLE II

Finish Option

Aluminum Material

G

N

P

W

Finish Option

Composite Material

Not Available

M

L

J

Finish

Electroless Nickel (Space Grade)

Electroless Nickel

Cadmium Olive Drab Over Electroless Nickel

with Polysulfide Sealant Strips

1,000 Hour Cadmium Olive Drab Over

Electroless Nickel

Printed in U.S.A.

CAGE Code 06324

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

44-8
