UPC272G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> UPC272G

UPC272G: DescriptionComparator, 2 Func, 8000uV Offset-Max, 80ns Response Time, BIPolar, PDSO14, MINI, PLASTIC, FP-14; CategoryAnalog mixed-signal IC Amplifier circuit; File Size109KB，5 Pages; ManufacturerNEC Electronics

Download Datasheet Parametric Compare View All

UPC272G Overview

Comparator, 2 Func, 8000uV Offset-Max, 80ns Response Time, BIPolar, PDSO14, MINI, PLASTIC, FP-14

UPC272G Parametric

Parameter Name	Attribute value
package instruction	MINI, PLASTIC, FP-14
Reach Compliance Code	unknown
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	1 µA
Maximum input offset voltage	8000 µV
JESD-30 code	R-PDSO-G14
length	10 mm
Negative supply voltage upper limit	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified
Nominal response time	80 ns
Maximum seat height	1.5 mm
Maximum slew rate	12.5 mA
Supply voltage upper limit	18 V
Nominal supply voltage (Vsup)	15 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.25 mm
Terminal location	DUAL
width	4.4 mm
Base Number Matches	1

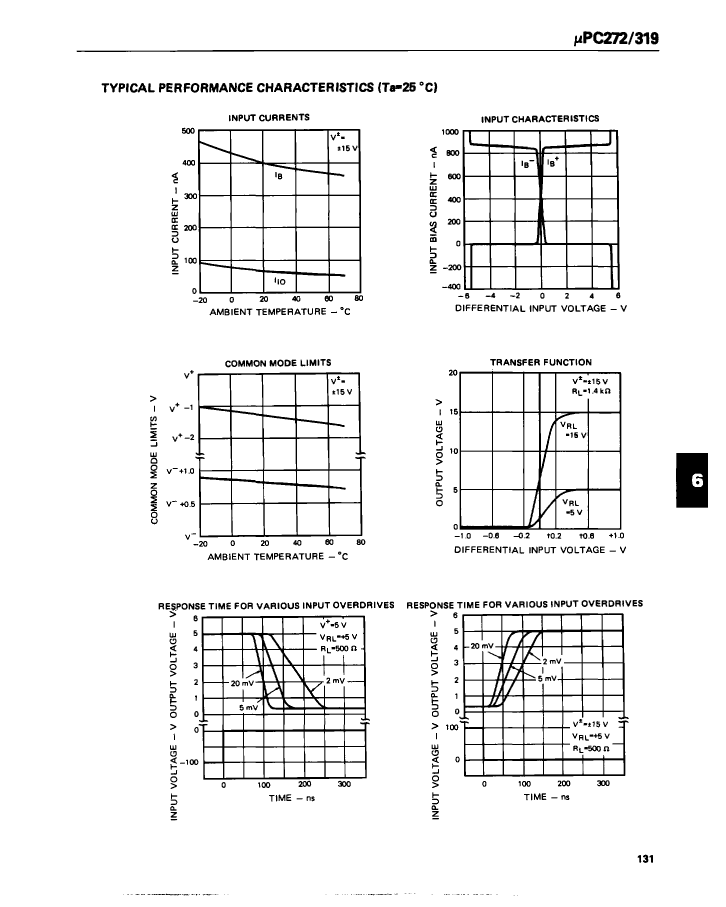

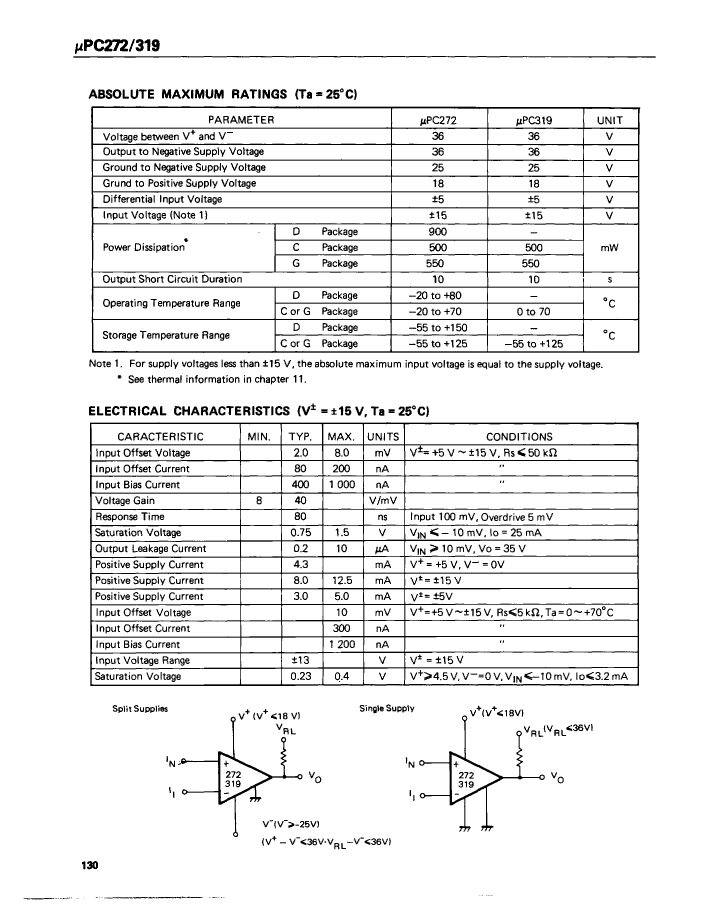

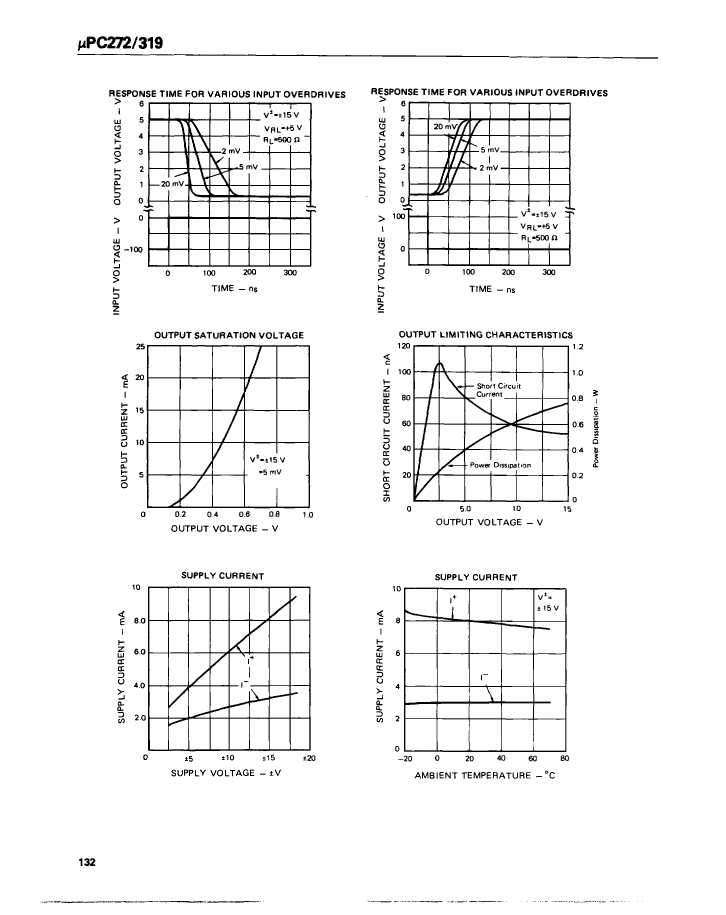

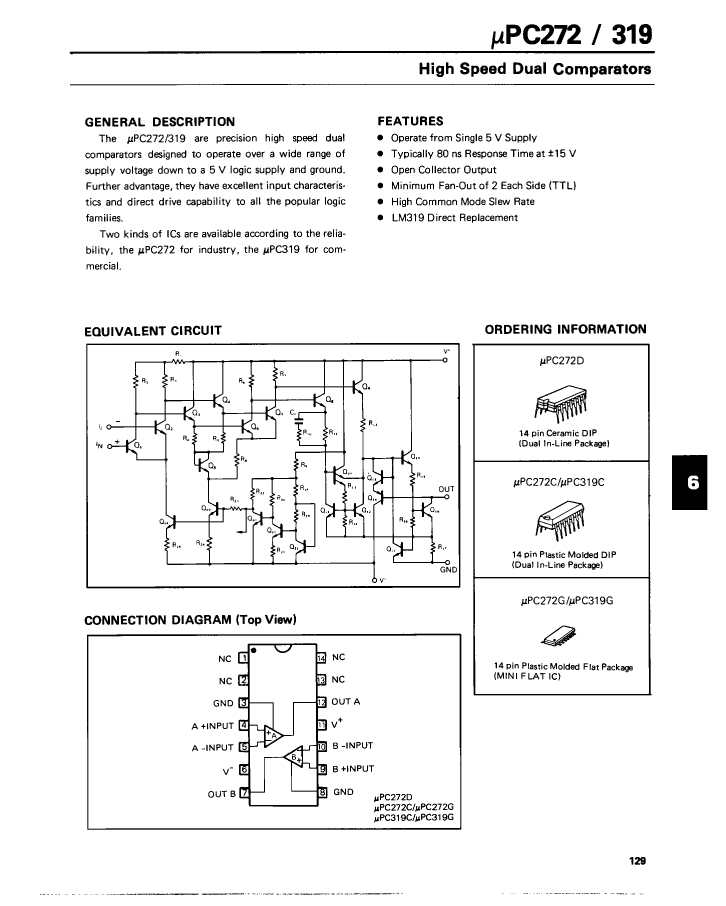

Preview

Download Datasheet

View All

UPC272G Related Products

	UPC272G	UPC272D	UPC319G
Description	Comparator, 2 Func, 8000uV Offset-Max, 80ns Response Time, BIPolar, PDSO14, MINI, PLASTIC, FP-14	Comparator, 2 Func, 8000uV Offset-Max, 80ns Response Time, BIPolar, CDIP14, CERAMIC, DIP-14	Comparator, 2 Func, 8000uV Offset-Max, 80ns Response Time, BIPolar, PDSO14, MINI, PLASTIC, FP-14
package instruction	MINI, PLASTIC, FP-14	CERAMIC, DIP-14	MINI, PLASTIC, FP-14
Reach Compliance Code	unknown	unknown	unknown
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	1 µA	1 µA	1 µA
Maximum input offset voltage	8000 µV	8000 µV	8000 µV
JESD-30 code	R-PDSO-G14	R-GDIP-T14	R-PDSO-G14
length	10 mm	19.304 mm	10 mm
Negative supply voltage upper limit	-18 V	-18 V	-18 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	2	2	2
Number of terminals	14	14	14
Maximum operating temperature	70 °C	80 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	LSOP	DIP	LSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE	IN-LINE	SMALL OUTLINE, LOW PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal response time	80 ns	80 ns	80 ns
Maximum seat height	1.5 mm	5.08 mm	1.5 mm
Maximum slew rate	12.5 mA	12.5 mA	12.5 mA
Supply voltage upper limit	18 V	18 V	18 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	YES	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	COMMERCIAL EXTENDED	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING
Terminal pitch	1.25 mm	2.54 mm	1.25 mm
Terminal location	DUAL	DUAL	DUAL
width	4.4 mm	7.62 mm	4.4 mm
Base Number Matches	1	1	1
