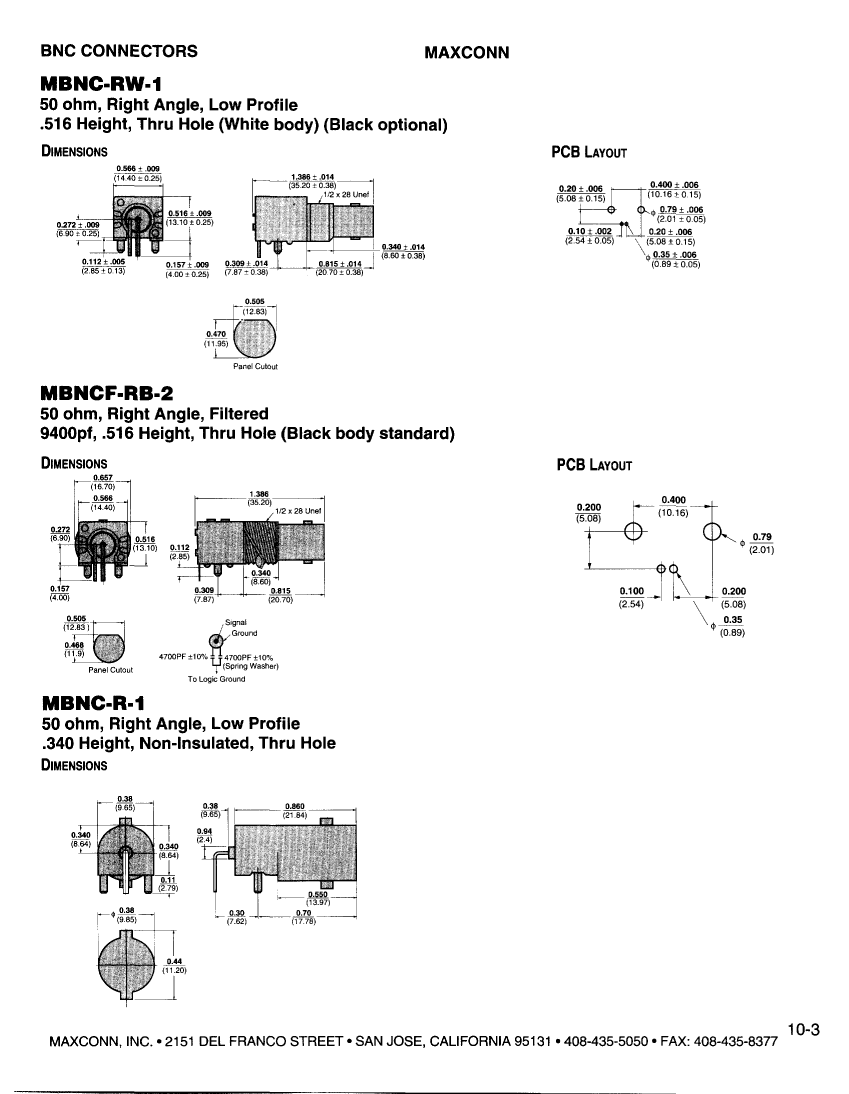

MBNC-R-1 datasheet, PDF - EEWORLD Datasheet

MBNC-R-1: DescriptionRF BNC Connector, Female, Board Mount, Solder Terminal, Receptacle,; CategoryThe connector The connector; File Size332KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

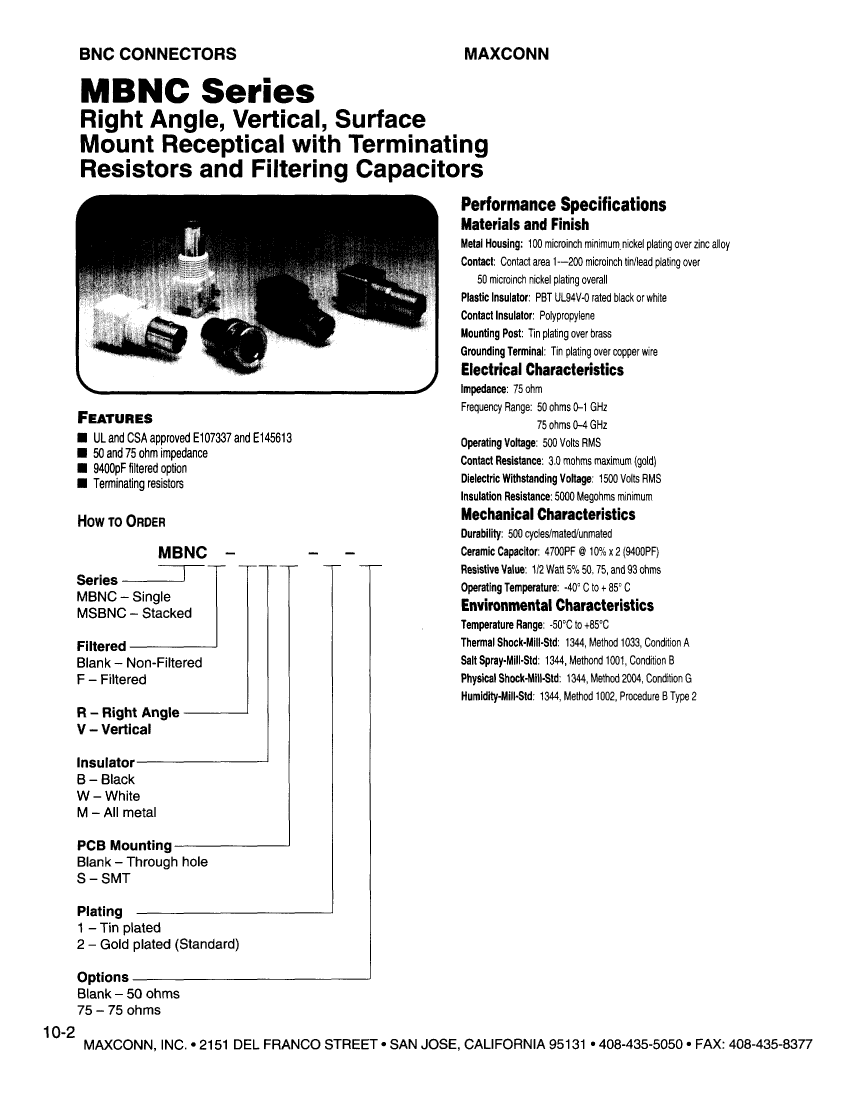

MBNC-R-1 Overview

RF BNC Connector, Female, Board Mount, Solder Terminal, Receptacle,

Parameter Name	Attribute value
Reach Compliance Code	compliant
Other features	LOW PROFILE
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	FEMALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYPROPYLENE
MIL compliance	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Maximum operating frequency	1 GHz
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

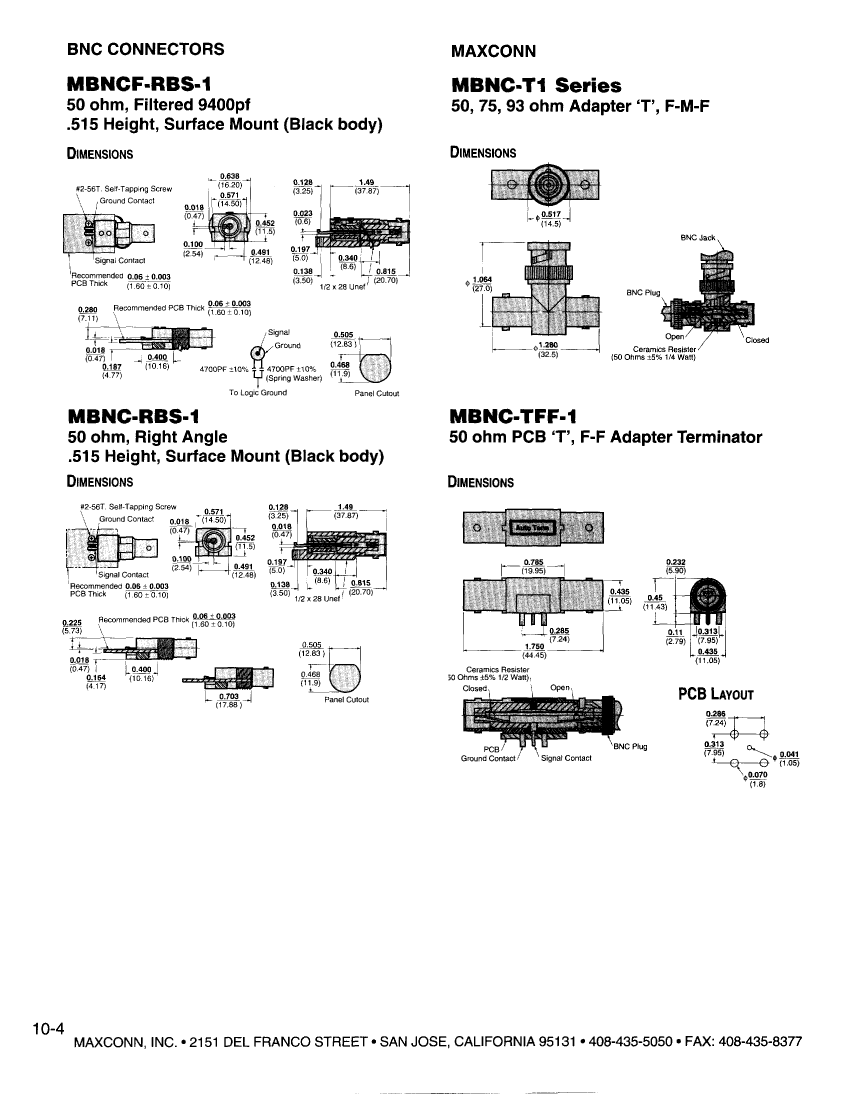

	MBNC-R-1	MBNCF-RBS-1	MBNC-RBS-1	MBNCF-RB-2	MBNC-RW-1
Description	RF BNC Connector, Female, Board Mount, Solder Terminal, Receptacle,	RF BNC Connector, Female, Panel Mount, Board Mount, Surface Mount Terminal, Receptacle,	RF BNC Connector, Female, Panel Mount, Board Mount, Surface Mount Terminal, Receptacle,	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle,	RF BNC Connector, Female, Panel Mount, Board Mount, Solder Terminal, Receptacle,
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	YES	NO	YES	NO
IEC compliance	NO	NO	NO	NO	NO
insulator material	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE	POLYPROPYLENE
MIL compliance	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD
Maximum operating frequency	1 GHz	1 GHz	1 GHz	1 GHz	1 GHz
Panel mounting	NO	YES	YES	YES	YES
Termination type	SOLDER	SURFACE MOUNT	SURFACE MOUNT	SOLDER	SOLDER
Base Number Matches	1	1	1	1	1
