M4R25XQJFREQ

Description
PECL Output Clock Oscillator, 19.44MHz Min, 160MHz Max
CategoryPassive components    oscillator
File Size51KB,1 Pages
ManufacturerMtronPTI
Websitehttp://www.mtronpti.com
Download Datasheet Parametric View All

M4R25XQJFREQ Overview

PECL Output Clock Oscillator, 19.44MHz Min, 160MHz Max

M4R25XQJFREQ Parametric

Parameter NameAttribute value
Reach Compliance Codeunknown
maximum descent time2.5 ns
Frequency Adjustment - MechanicalNO
frequency stability35%
Manufacturer's serial numberM4R
Installation featuresSURFACE MOUNT
Maximum operating frequency160 MHz
Minimum operating frequency19.44 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Oscillator typePECL
Output load50 OHM
physical size14.22mm x 9.78mm x 4.7mm
longest rise time2.5 ns
Nominal supply voltage5 V
surface mountYES
maximum symmetry40/60 %
Base Number Matches1

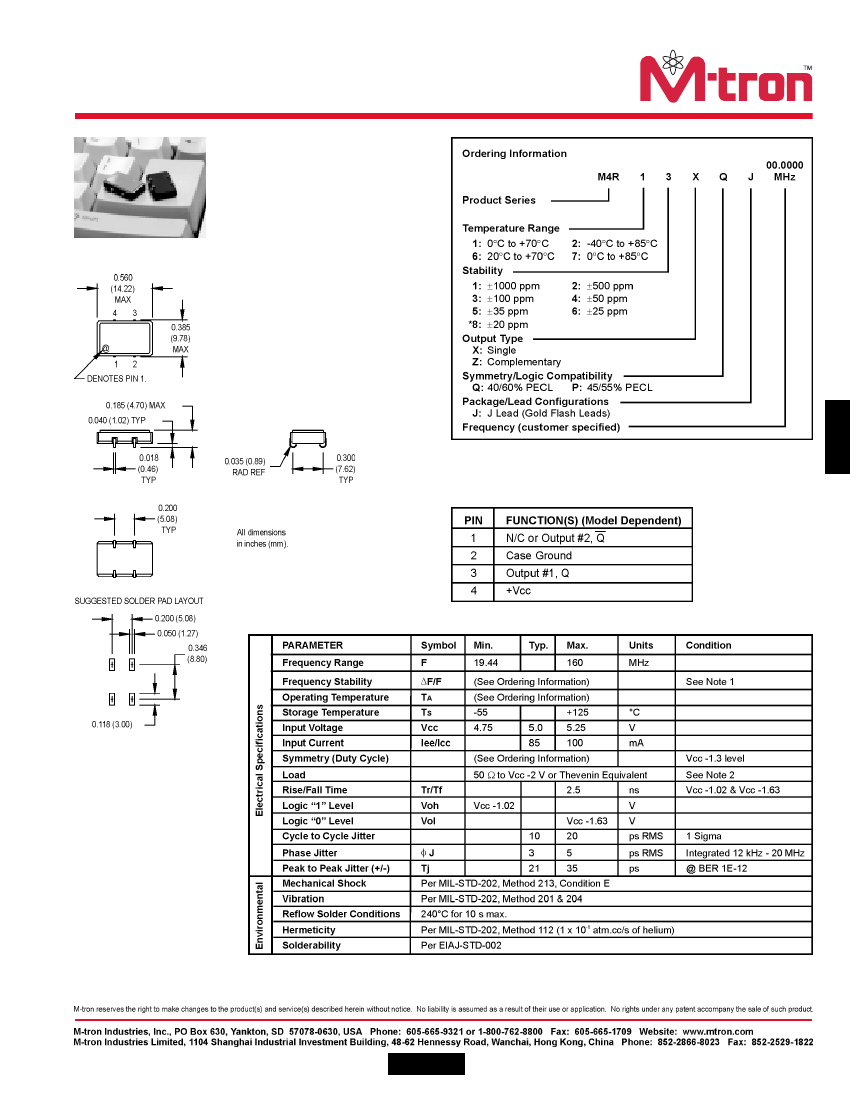

M4R Series 5.0 Volt Surface
Mount PECL Oscillators
* Contact factory for availability.
Pin Connections
1. Calibration, deviation over temperature, shock, vibration, and aging.
2. See load circuit diagram #3 on page 92.
