R-11-040-G-BB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> R-11-040-G-BB

R-11-040-G-BB: DescriptionPhotodiode Detector, 1100nm Min, 1650nm Max, TO-46, Through Hole Mount, TO-46, HEREMATICAL SEALED PACKAGE-3; CategoryWireless rf/communication Optical fiber; File Size1007KB，5 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

R-11-040-G-BB Overview

Photodiode Detector, 1100nm Min, 1650nm Max, TO-46, Through Hole Mount, TO-46, HEREMATICAL SEALED PACKAGE-3

R-11-040-G-BB Parametric

Parameter Name	Attribute value
package instruction	TO-46
Reach Compliance Code	unknown
body height	3.8 mm
Body length or diameter	4.56 mm
Maximum dark power	0.8 nA
Fiber optic equipment types	PHOTODIODE DETECTOR
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1650 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Package form	TO-46
Responsiveness	0.8 A/W
surface mount	NO
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

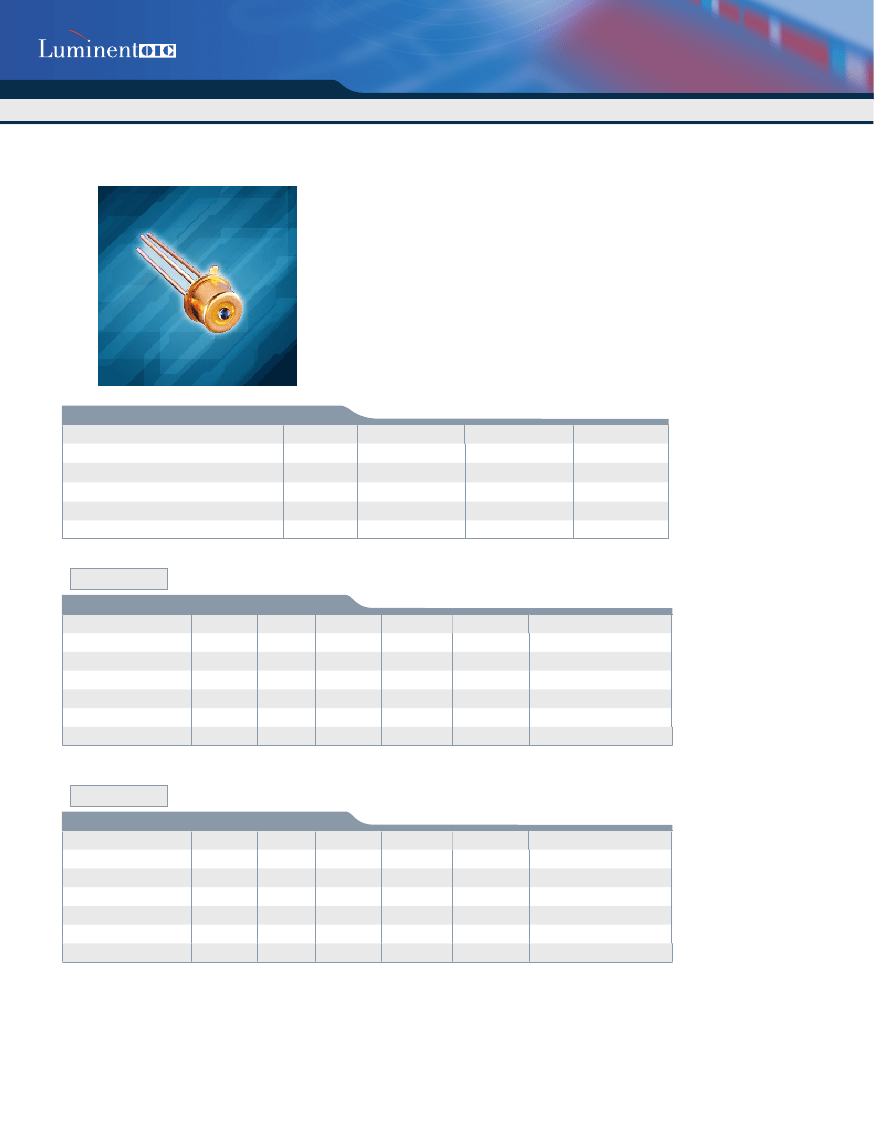

InGaAs PIN Photodiode

R-11-XXX-G-B(B)

Features

• InGaAs/InP PIN Photodiode

• High Responsivity @1310 nm and 1550 nm

• Low dark current

• Fast pulse response

• -40 to 85ºC operating temperature

• Hermetically sealed 3-pin metal case

• Active diameter is 40, 55, 75,100 or 300 µm

• TO-46 package wih intergrated ball lens cap

• Connectorized receptacle module application

• Coaxial pigtail module application

• Data and Telecommunication application

Absolute Maximum Rating (Tc=25ºC)

Parameter

Reverse Voltage

Forward Current

Reverse Current

Operating Temperature

Storage Temperature

Symbol

opr

stg

Min

-40

Max

+85

Unit

ºC

R-11-040-G-B(B)

Optical and Electrical Characteristics( Tc=25ºC )

Parameter

Active area(Dia)

Detection Range

Responsivity

Dark Current

Capacitance

Bandwidth

Symbol

dark

Min

1100

0.75

Typical

1310

0.8

0.7

Max

1650

0.8

Unit

µm

A/W

GHz

Test condition

= 5V,

λ=1310

= 5V

R-11-055-G-B(B)

Optical and Electrical Characteristics( Tc=25ºC )

Parameter

Active area(Dia)

Detection Range

Responsivity

Dark Current

Capacitance

Bandwidth

Symbol

dark

Min

1100

0.75

Typical

1310

0.8

Max

1650

0.8

Unit

µm

A/W

GHz

Test condition

= 5V,

λ=1310

= 5V

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS564-OCT1504

rev. A.1

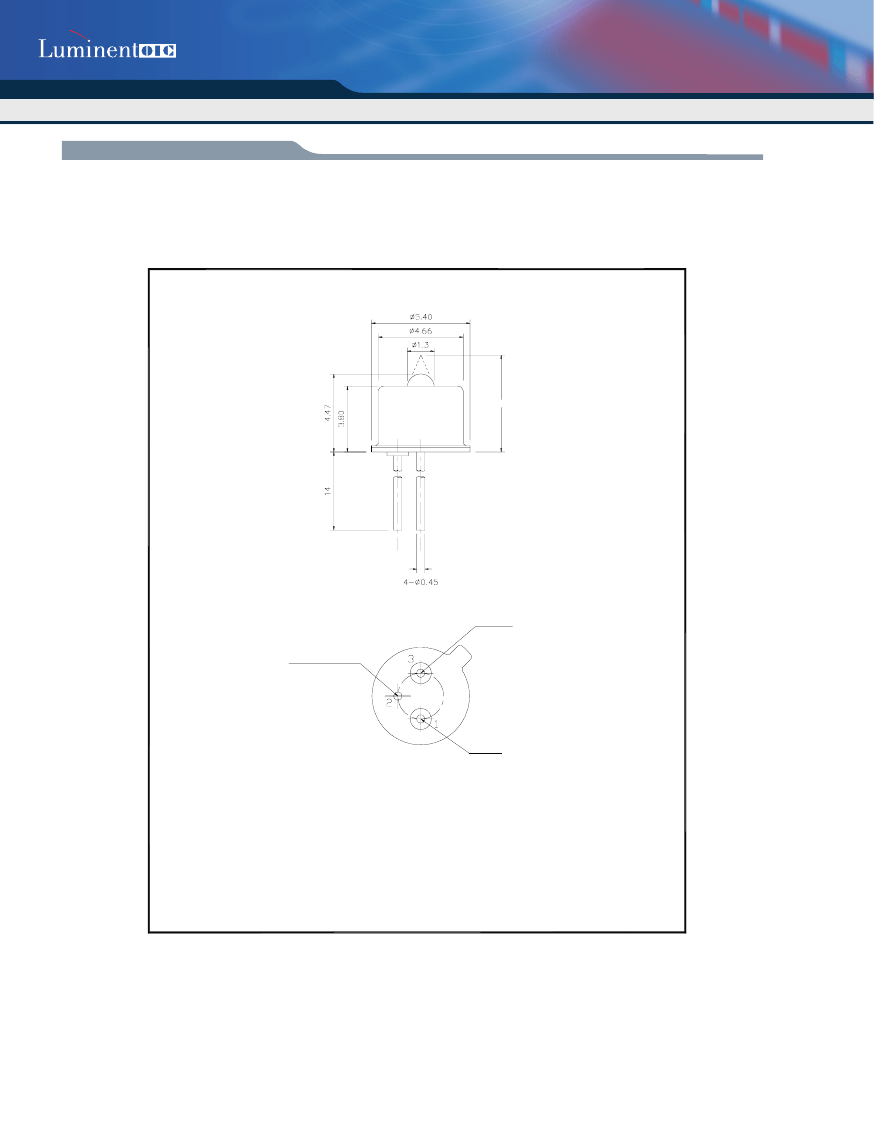

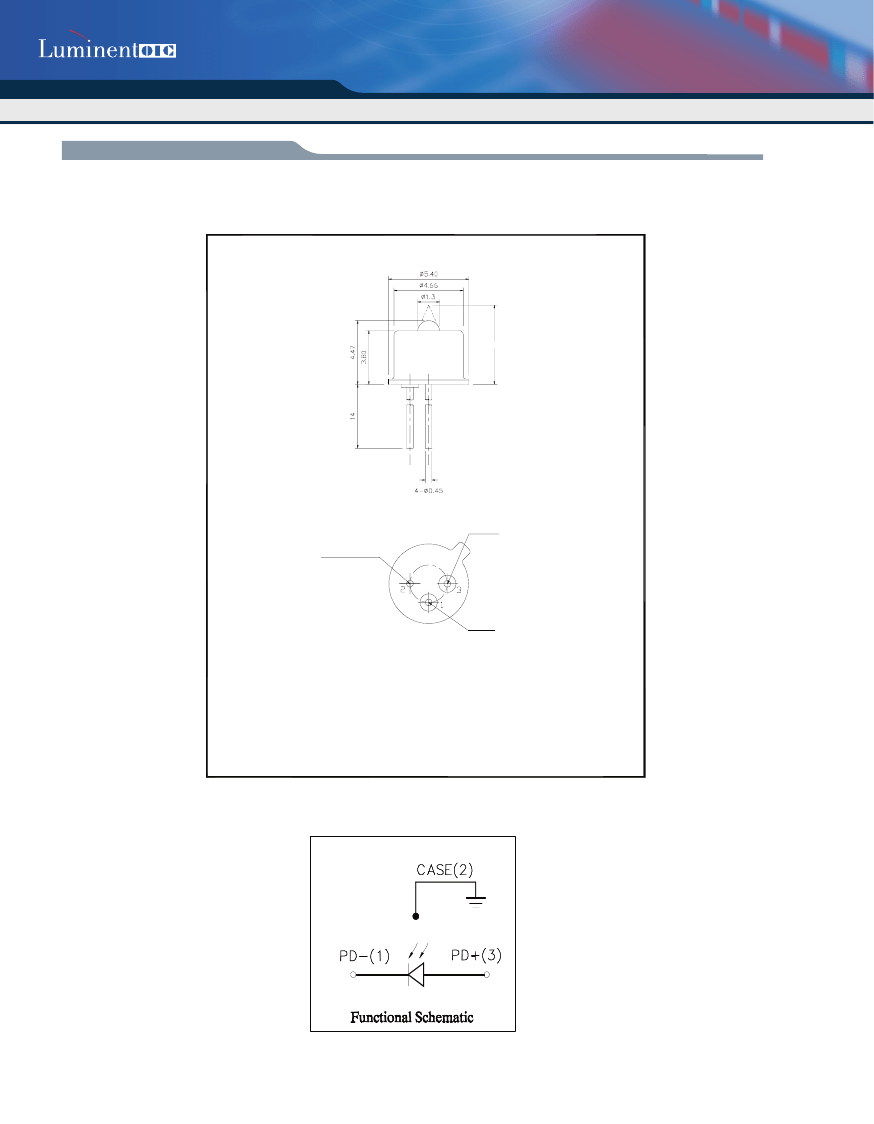

InGaAs PIN Photodiode

R-11-XXX-G-B(B)

Ordering Information

Available Options:

R-11-040-G-B

R-11-055-G-B

R-11-075-G-B

R-11-100-G-B

R-11-300-G-B

R-11-040-G-BB

R-11-055-G-BB

R-11-075-G-BB

R-11-100-G-BB

R-11-300-G-BB

R-11-XXX-G-B(B)

Active region size

040 : 40½m

055 : 55½m

075 : 75½m

100 : 100½m

300 : 300½m

B- = Coated ball lens cap with A-type pin assignment

BB= Coated ball lens cap with B-type pin assignment

½=

No symbol

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow

guidelines according to proper ESD procedures.

Laser Safety:

Radiation emitted by laser devices can be dangerous to human eyes. Avoid eye exposure to direct or indirect radiation.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at LuminentOIC’s sole and absolute discretion. LuminentOIC warrants performance

of its products to current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as “preliminary” are

given to describe components only, and LuminentOIC expressly disclaims any and all warranties for said products, including express, implied, and statutory warran-

ties, warranties of merchantability, fitness for a particular purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of

Sale for further warranty information.

LuminentOIC assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual

property described herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and LuminentOIC makes

no representations or warranties that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this docu-

ment are NOT intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. LuminentOIC customers

using or selling products for use in such applications do so at their own risk and agree to fully defend and indemnify LuminentOIC for any damages resulting from

such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that LuminentOIC is not liable for any

actual, consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact

LuminentOIC to obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

LUMINENTOIC.COM

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486

9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213

LUMNDS564-OCT1504

rev. A.1
