R-11-075-P-MST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> R-11-075-P-MST

R-11-075-P-MST: DescriptionPhotodiode Detector, 1100nm Min, 1650nm Max, ST Connector, Through Hole Mount, HEREMATICAL SEALED PACKAGE-3; CategoryWireless rf/communication Optical fiber; File Size413KB，2 Pages; ManufacturerSource Photonics

Download Datasheet Parametric Compare View All

R-11-075-P-MST Overview

Photodiode Detector, 1100nm Min, 1650nm Max, ST Connector, Through Hole Mount, HEREMATICAL SEALED PACKAGE-3

R-11-075-P-MST Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
body height	35 mm
Body length or diameter	6.3 mm
Connection Type	ST CONNECTOR
Maximum dark power	0.4 nA
Fiber optic equipment types	PHOTODIODE DETECTOR
Fiber type	50/125, MMF
Installation features	THROUGH HOLE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum operating wavelength	1650 nm
Minimum operating wavelength	1100 nm
Nominal operating wavelength	1310 nm
Responsiveness	0.85 A/W
surface mount	NO
Transmission type	DIGITAL
Base Number Matches	1

Preview

Download Datasheet

View All

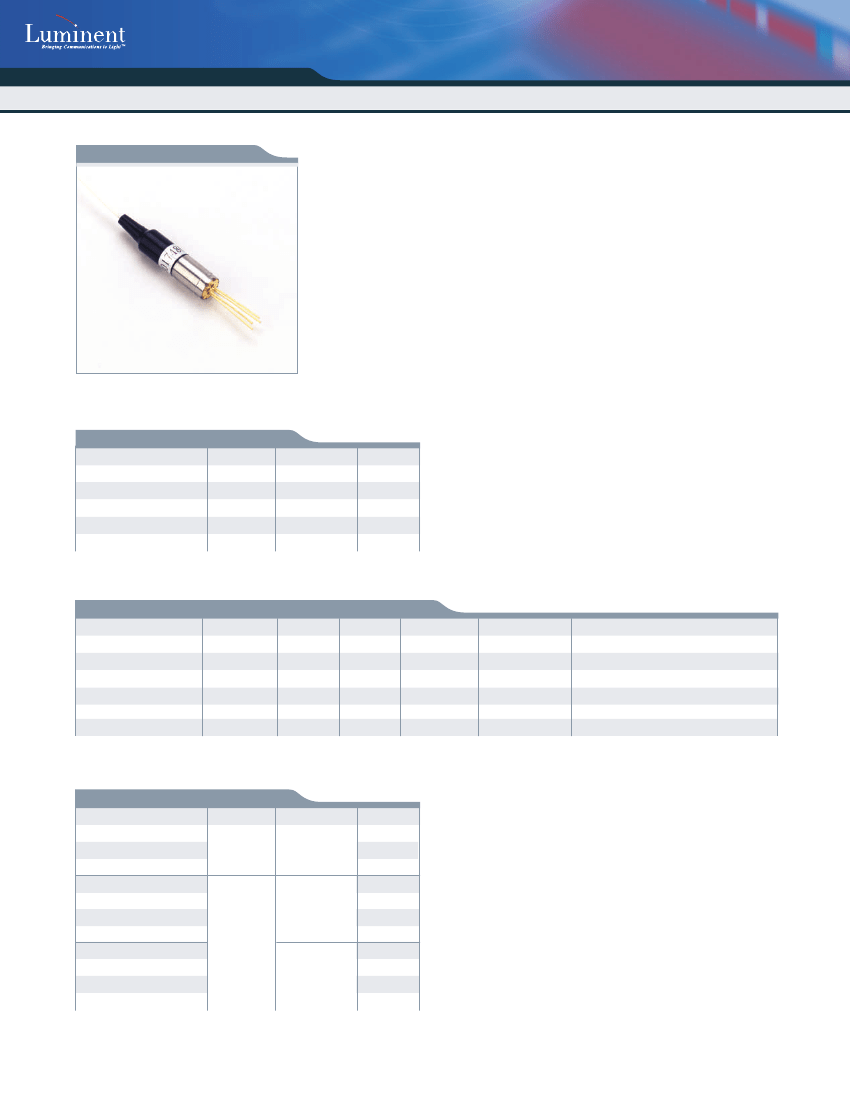

InGaAs PIN Photodiode Modules

R-11-075-R-SFC/ SC/ ST • R-11-075-P-SFC/ SC/ ST

Features

• InGaAs/ InP PIN Photodiode

• High responsivity at 1310 nm and 1550 nm

• Low dark current

• Fast pulse response

• -40 to +85ºC operating temperature

• Hermetically sealed 3-pin metal case

Packaging

• FC/ ST/ SC receptacle package

• SM/ MM fiber pigtailed with optional FC/ ST/ SC connector

Absolute Maximum Ratings (T

= 25˚C)

Parameter

Symbol

Reverse voltage

Forward Current

Reverse Current

Operating Temperature

Storage Temperature

opr

stg

Value

-40 to +85

Unit

ºC

Optical and Electrical Characteristics (T

= 25˚C)

Parameter

Min

Symbol

Detection Range

1100

Responsivity

Dark Current

Capacitance

Rise, Fall Time

Bandwidth

dark

, t

0.8

Typ

1310

0.85

0.5

0.7

Max

1650

0.8

0.9

0.5

Unit

A/W

GHz

Test Condition

= 5V,

= 1310 nm

= 5V

= 5V, 10% to 90%

= 5V

All optical data refer to a coupled 9/125

µm

SM fiber

Connector Options

Model

R-11-075-R-SFC

R-11-075-R-SST

R-11-075-R-SSC

R-11-075-P-SFC

R-11-075-P-SST

R-11-075-P-SSC

R-11-075-P-S

R-11-075-P-MFC

R-11-075-P-MST

R-11-075-P-MSC

R-11-075-P-M

Package

Receptacle

Fiber

Connector

(None)

Pigtailed

InGaAs PIN Photodiode Modules

R-11-075-R-SFC/ SC/ ST • R-11-075-P-SFC/ SC/ ST

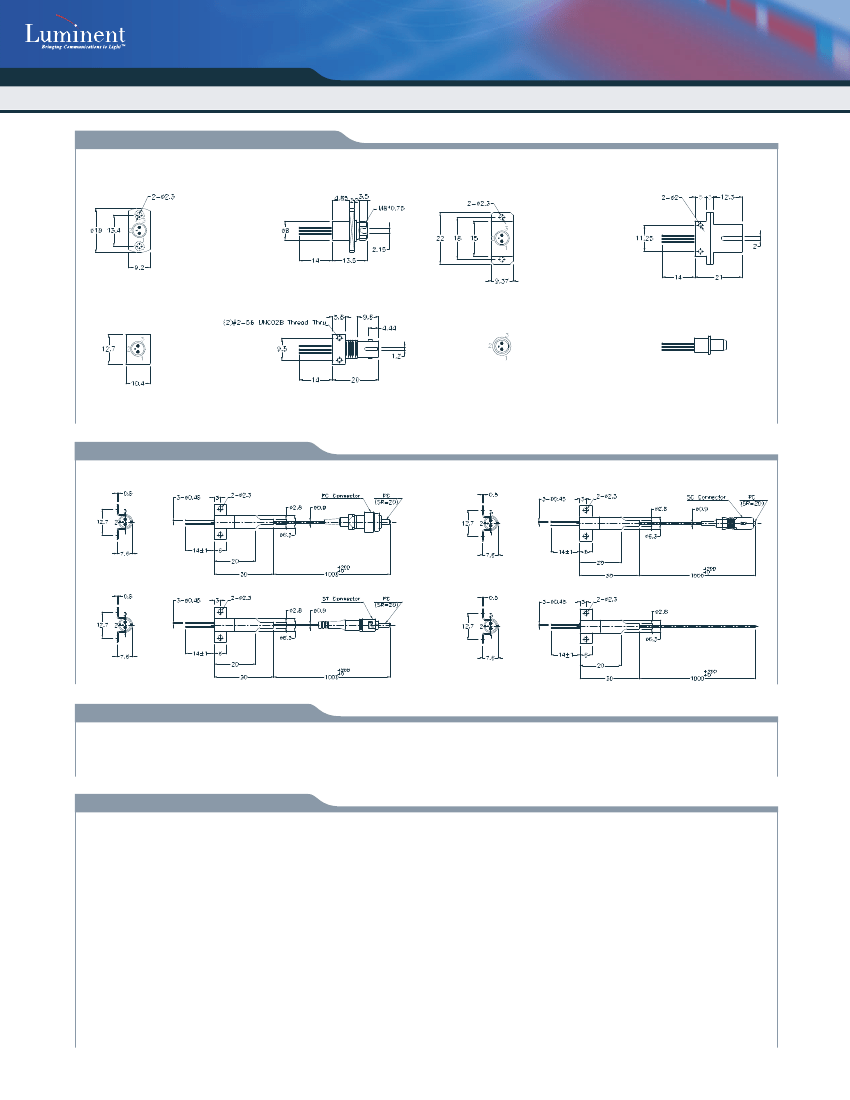

Outline Drawing InGaAs PD Modules-receptacle

FC Receptacle

R-11-075-R-SFC

SC Receptacle

R-11-075-R-SSC

Customer Specified

ST Receptacle

R-11-075-R-SST

Pin Assignment

1~PD (-)

2~CASE

3~PD (+)

Note: Pin assignment can be customized.

*Units in mm

InGaAs PD Modules-pigtailed

R-11-075-P-SFC

R-11-075-P-SSC

R-11-075-P-SST

R-11-075-P-S

*Units in mm

Warnings

Handling Precautions:

This device is susceptible to damage as a result of electrostatic discharge (ESD). A static free environment is highly recommended. Follow guidelines

according to proper ESD procedures.

Legal Notice

IMPORTANT NOTICE!

All information contained in this document is subject to change without notice, at Luminent’s sole and absolute discretion. Luminent warrants performance of its products to

current specifications only in accordance with the company’s standard one-year warranty; however, specifications designated as “preliminary” are given to describe components

only, and Luminent expressly disclaims any and all warranties for said products, including express, implied, and statutory warranties, warranties of merchantability, fitness for a

particular purpose, and non-infringement of proprietary rights. Please refer to the company’s Terms and Conditions of Sale for further warranty information.

Luminent assumes no liability for applications assistance, customer product design, software performance, or infringement of patents, services, or intellectual property described

herein. No license, either express or implied, is granted under any patent right, copyright, or intellectual property right, and Luminent makes no representations or warranties

that the product(s) described herein are free from patent, copyright, or intellectual property rights. Products described in this document are NOT intended for use in

implantation or other life support applications where malfunction may result in injury or death to persons. Luminent customers using or selling products for use in such

applications do so at their own risk and agree to fully defend and indemnify Luminent for any damages resulting from such use or sale.

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROVIDED ON AN “AS IS” BASIS. Customer agrees that Luminent is not liable for any actual,

consequential, exemplary, or other damages arising directly or indirectly from any use of the information contained in this document. Customer must contact Luminent to

obtain the latest version of this publication to verify, before placing any order, that the information contained herein is current.

20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486 •

LUMINENTINC.COM

LUMNDS080-0302
