MS27784-28 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> MS27784-28

MS27784-28: DescriptionToggle Switch, SPST, Momentary, 7.5A, 30VDC, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size94KB，1 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/

Download Datasheet Parametric Compare View All

MS27784-28 Overview

Toggle Switch, SPST, Momentary, 7.5A, 30VDC, Panel Mount-threaded

MS27784-28 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
body width	15.75 mm
body height	36.07 mm
Body length or diameter	28.7 mm
Contact (AC) maximum rated R load	7.5A@115VAC
Maximum contact current (AC)	7.5 A
Maximum contact current (DC)	7.5 A
Contact (DC) maximum rated R load	7.5A@30VDC
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	30 V
Manufacturer's serial number	MS27784
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C
seal	DUST PROOF; WATER PROOF
surface mount	NO
Switch action	MOMENTARY
switch function	SPST
Switch type	TOGGLE SWITCH
Base Number Matches	1

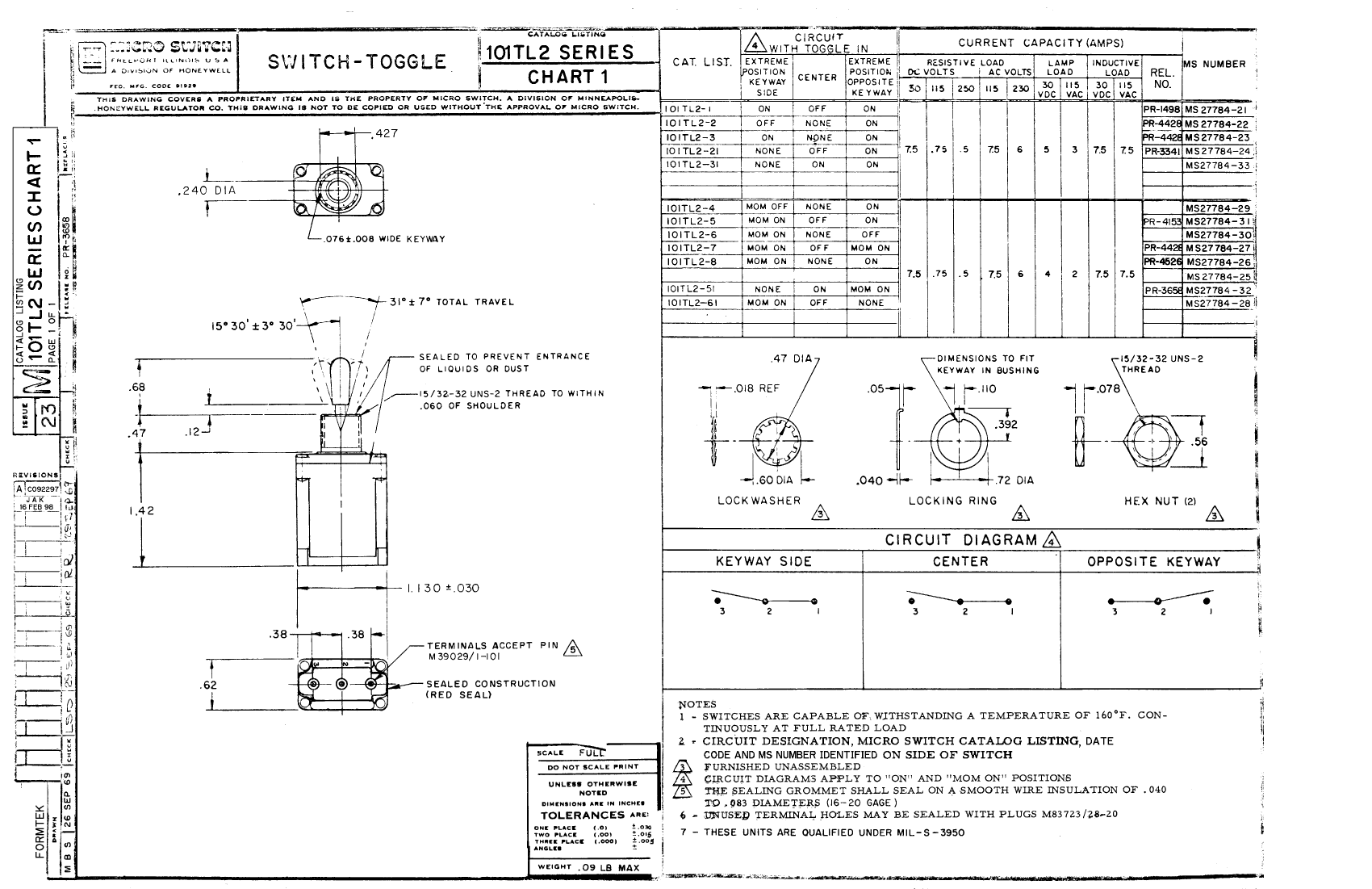

Preview

Download Datasheet

View All

MS27784-28 Related Products

	MS27784-28	RPE122C0G750J100V	RPE131911X7R122K100V	MS27784-27	MS27784-31	MS27784-26	MS27784-29	MS27784-23	MS27784-24	MS27784-32
Description	Toggle Switch, SPST, Momentary, 7.5A, 30VDC, Panel Mount-threaded	Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, 30ppm/Cel TC, 0.000075uF, Through Hole Mount, RADIAL LEADED	Ceramic Capacitor, Ceramic, 100V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.0012uF, Through Hole Mount, RADIAL LEADED	Toggle Switch, SPDT, Momentary, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPST, Latched And Momentary, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPST, Momentary, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPDT, Latched, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPST, Latched, 7.5A, 30VDC, Panel Mount-threaded	Toggle Switch, SPDT, Momentary, 7.5A, 30VDC, Panel Mount-threaded
Reach Compliance Code	unknown	compliant	compliant	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Installation features	PANEL MOUNT-THREADED	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED	PANEL MOUNT-THREADED
Maximum operating temperature	71 °C	125 °C	125 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C	71 °C
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
body width	15.75 mm	-	-	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm	15.75 mm
body height	36.07 mm	-	-	36.07 mm	36.07 mm	36.07 mm	36.07 mm	36.07 mm	36.07 mm	36.07 mm
Body length or diameter	28.7 mm	-	-	28.7 mm	28.7 mm	28.7 mm	28.7 mm	28.7 mm	28.7 mm	28.7 mm
Contact (AC) maximum rated R load	7.5A@115VAC	-	-	7.5A@115VAC	7.5A@115VAC	7.5A@115VAC	7.5A@115VAC	7.5A@115VAC	7.5A@115VAC	7.5A@115VAC
Maximum contact current (AC)	7.5 A	-	-	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Maximum contact current (DC)	7.5 A	-	-	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Contact (DC) maximum rated R load	7.5A@30VDC	-	-	7.5A@30VDC	7.5A@30VDC	7.5A@30VDC	7.5A@30VDC	7.5A@30VDC	7.5A@30VDC	7.5A@30VDC
Maximum contact voltage (AC)	115 V	-	-	115 V	115 V	115 V	115 V	115 V	115 V	115 V
Maximum contact voltage (DC)	30 V	-	-	30 V	30 V	30 V	30 V	30 V	30 V	30 V
Manufacturer's serial number	MS27784	RPE122	RPE131	-	MS27784	-	-	-	MS27784	MS27784
seal	DUST PROOF; WATER PROOF	-	-	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF	DUST PROOF; WATER PROOF
Switch action	MOMENTARY	-	-	MOMENTARY	LATCHED AND MOMENTARY	MOMENTARY	MOMENTARY	LATCHED	LATCHED	MOMENTARY
switch function	SPST	-	-	SPDT	SPST	SPDT	SPST	SPDT	SPST	SPDT
Switch type	TOGGLE SWITCH	-	-	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH	TOGGLE SWITCH
