BA-22E22GE15UD
●
1.
2.
3.
4.
5.
6.
Features :
Emitting area : double arrowhead
Low power requirement.
Excellent characters appearance.
Solid state reliability.
Categorized for luminous intensity.
Direct drive common anode.
●

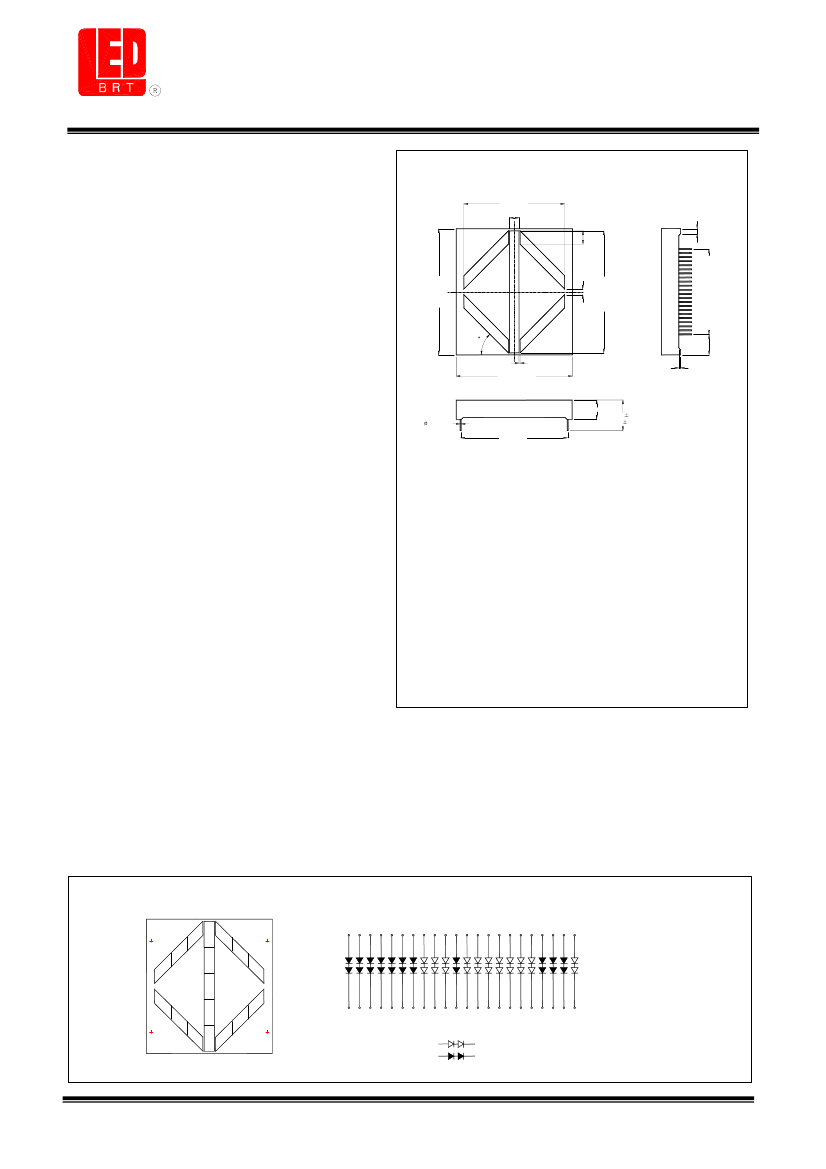

Package Dimensions :
63.5(2.500)
6.0(.240)
5.1(.201)
8.3(.327)
0.7(.028)
73.15(2.880)
2.0(.079)
●
1.
1.
Description :
The BA-22E22GE15UD have uniform
emitting light.
This product use hi-eff red chips and
super yellow green chips, the hi-eff red
chips are made from GaAsP on GaP
substrate, the super yellow green chips
are made from AlInGaP on GaAs
substrate.
0.6(.024)
67.4(2.654)
12.0(.472)
18.55 0.5
(.730 .02)
2.
3.
This product have a black face and
white segments.
This product doesn't contain restriction
substance, comply ROHS standard.
Notes:
1. All dimensions are in millimeters(inches).
2. Tolerance is ±0.25mm(.01")unless otherwise
specified.
3. Specifications are subject to change without
notice.
●
Internal Circuit Diagram :
PIN.1
A2
A3
B1
1
A4
A5
PIN.44
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
B2
A1
A6
B1 A3
B3
C6
B4
C2
PIN.22
C3
C4
Super Yellow Green
Hi-Eff Red
C5
PIN.23
B5
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
A2
A1 B2 B3
B4
C1 C2 C3 B5
B5 C4 C5 C6
B4
B3
B2 A6
A5
A4
B1
C1
Ver.1.0 Page 1 of 3
12.70(.50)
45
2.54x21=53.34(.100x21=2.10)
78.74(3.100)
76.2(3.000)
3.5(.138)
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BA-22E22GE15UD
●
Absolute Maximum Ratings(Ta=25℃)
Parameter
Power Dissipation Per Segment
Forward Current Per Segment
Peak Forward Current Per Segment
Reverse Voltage Per Segment
Operating Temperature
Storage Temperature
Soldering Temperature
(1/16" F
B d )
Symbol
Pd
I
F
I
FP
(Duty 1/10, 1KHZ)
V
R
Topr
Tstg
Tsol
Hi-Eff
Red
160
30
150
5
Super
Yellow
Green
80
30
150
Unit
mW
mA
mA
V
-
-
-
-40℃~80℃
-40℃~85℃
260℃ For 5 Seconds
●
Electrical And Optical Characteristics(Ta=25℃)
Hi-Eff Red
Parameter
Forward Voltage Per Segment
Luminous Intensity Per Segment
Reverse Current Per Segment
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Symbol Condition
Vf
Iv
I
R
λp
λd
∆λ
I
F
=10mA
I
F
=10mA
V
R
=5V
I
F
=10mA
I
F
=10mA
I
F
=10mA
Min.
-
-
-
-
626
-
Typ.
3.8
12.0
-
640
-
40
Max.
5.0
-
100
-
636
-
Unit
V
mcd
µA
nm
nm
nm
Super Yellow Green
Parameter
Forward Voltage Per Segment
Luminous Intensity Per Segment
Reverse Current Per Segment
Peak Wave Length
Dominant Wave Length
Spectral Line Half-width
Symbol Condition
Vf
Iv
I
R
λp
λd
∆λ
I
F
=10mA
I
F
=10mA
V
R
=5V
I
F
=10mA
I
F
=10mA
I
F
=10mA
Min.
-
-
-
-
567
-
Typ.
4.0
45.0
-
570
-
30
Max.
5.0
-
100
-
573
-
Unit
V
mcd
µA
nm
nm
nm
Ver.1.0 Page 2 of 3
BRIGHT LED ELECTRONICS CORP.
SINCE 1981
BA-22E22GE15UD
●

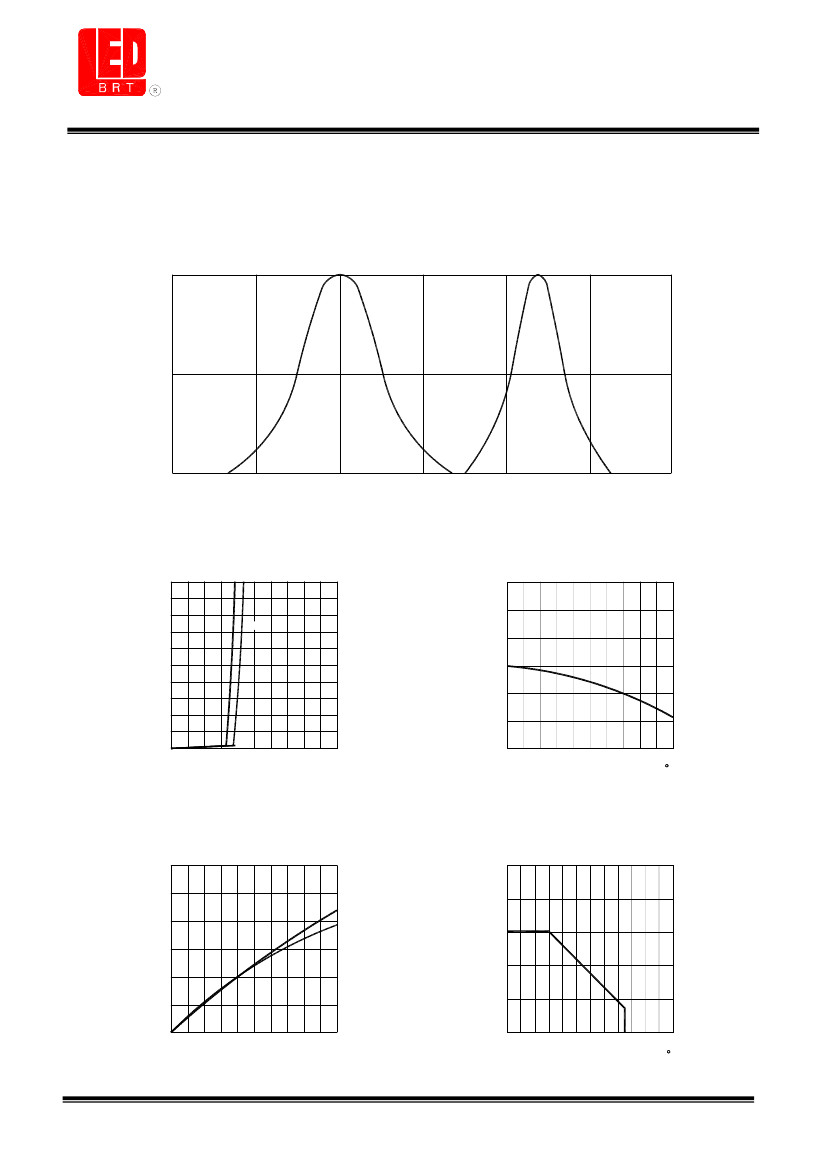

Typical Electro-Optical Characteristics Curves
(25℃ Ambient Temperature Unless Otherwise Noted)
Fig.1 Relative Radiant Intensity VS. Wavelength
1.0
GE
E
Relative Radiant Intensity
0.5
0
510
540
570
Wavelength(nm)
600
630
660
690
(E)
Relative Luminous Intensity
(@20mA)
3
4
5
50
Fig.2 Forward Current VS.
Forward Voltage
3.0
2.5
2.0
1.5
1.0
0.5
Fig.3 Relative Luminous
Intensity VS.
Ambient Temperature
Forward Current (mA)
40
(GE)
30
20
10
0
1
2
Forward Voltage (V)
Fig.4 Relative Luminous
Intensity VS.
Forward Current
0
-40
Ambient Temperature Ta( C)
Fig.5 Forward Current
Derating Curve VS.
Ambient Temperature
-20
0
20
40
60
Relative Luminous Intensity
(@20mA)
3.0
50
40
30
20
10
0
(E)
2.0
(GE)
1.0
0.0
Forward Current(mA)
10
20
30
40
50
20
40
60
80
100 120
Forward Current(mA)
Ambient Temperature Ta( C)
Ver.1.0 Page 3 of 3
