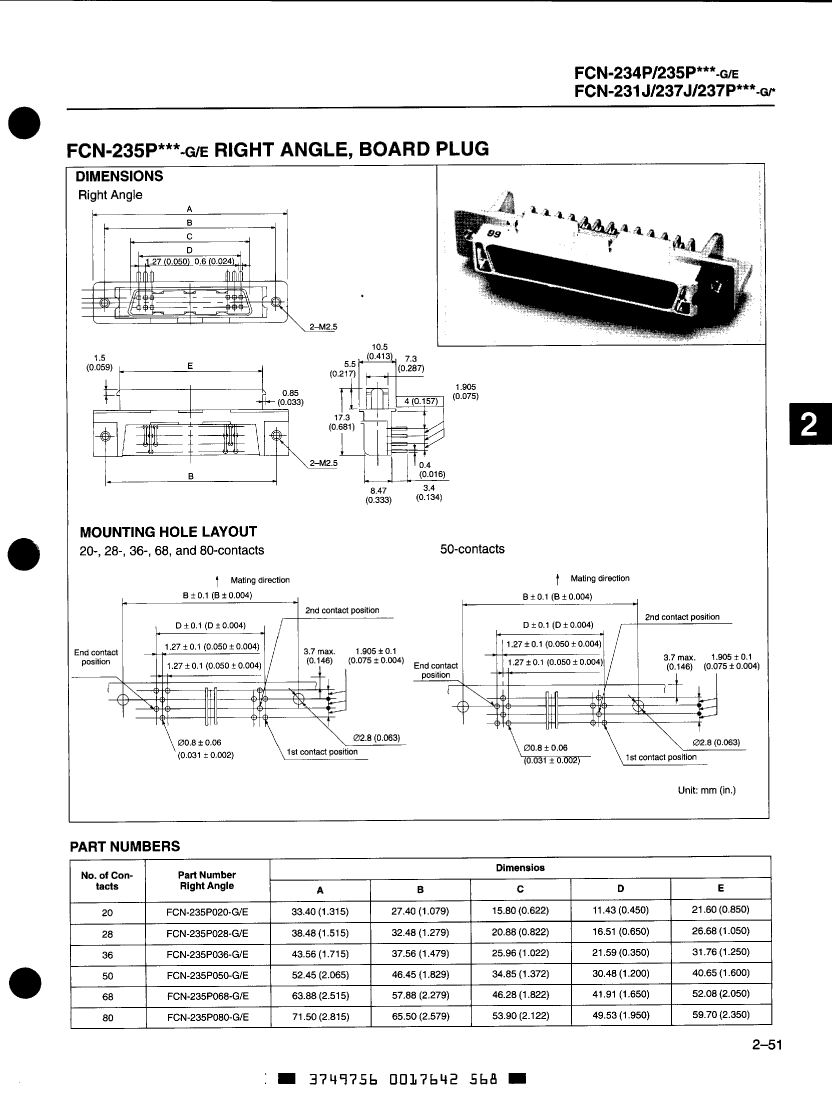

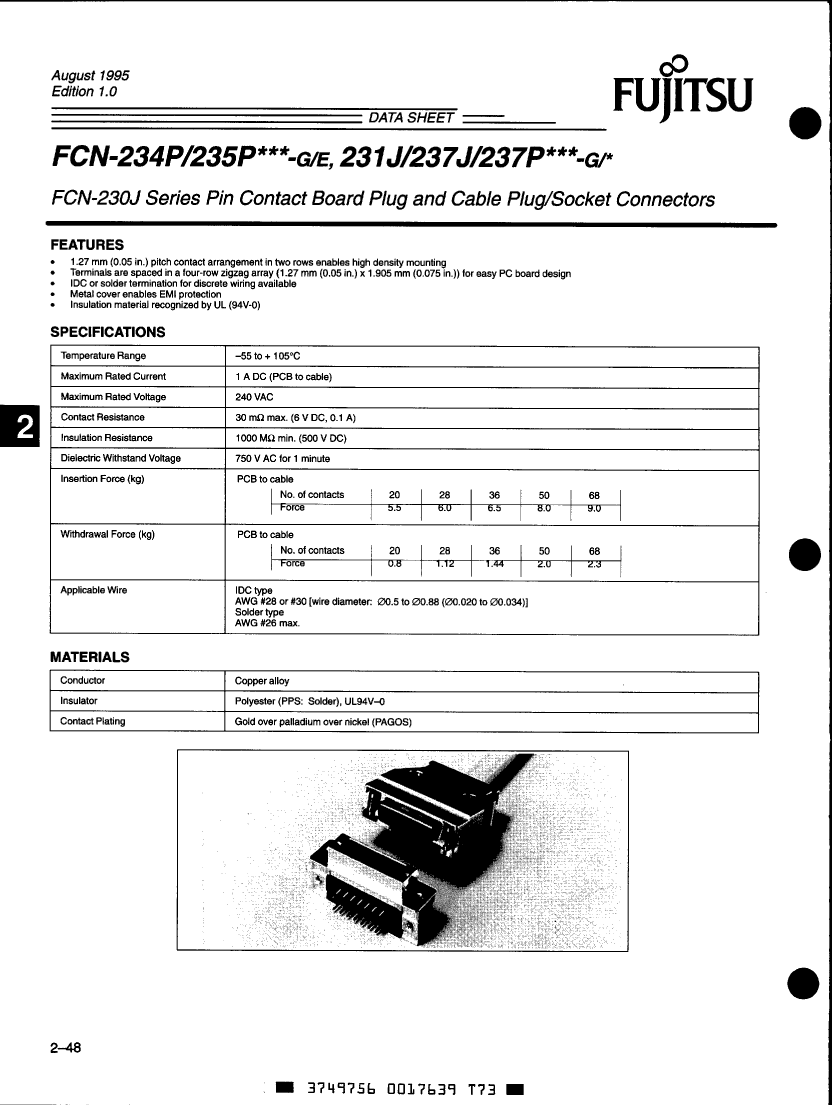

Board Connector, Plug
| Parameter Name | Attribute value |
| Reach Compliance Code | unknown |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| DIN compliance | NO |
| IEC compliance | NO |
| MIL compliance | NO |
| Manufacturer's serial number | FCN-235P |
| Base Number Matches | 1 |
| FCN-235P020-G/E | FCN-235P020-G/E-HN | FCN-235P050-G/E-HN | |
|---|---|---|---|
| Description | Board Connector, Plug | D Type Connector, 20 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.5, Receptacle | D Type Connector, 50 Contact(s), Male, 0.05 inch Pitch, Solder Terminal, M2.5, Receptacle |
| Reach Compliance Code | unknown | compliant | unknown |
| Body/casing type | PLUG | RECEPTACLE | RECEPTACLE |
| Manufacturer's serial number | FCN-235P | FCN-235P | FCN-235P |
| Base Number Matches | 1 | 1 | - |
| Other features | - | METAL COVER AVAILABLE | METAL COVER AVAILABLE |
| body width | - | 0.413 inch | 0.413 inch |
| subject depth | - | 0.464 inch | 0.464 inch |
| body length | - | 1.315 inch | 2.065 inch |
| Contact to complete cooperation | - | AU ON NI | AU ON NI |
| Contact completed and terminated | - | GOLD | GOLD |
| Contact point gender | - | MALE | MALE |
| Contact material | - | COPPER ALLOY | COPPER ALLOY |
| contact mode | - | RECTANGULAR | RECTANGULAR |
| Contact resistance | - | 30 mΩ | 30 mΩ |
| Contact style | - | SQ PIN-SKT | SQ PIN-SKT |
| Dielectric withstand voltage | - | 750VAC V | 750VAC V |
| maximum insertion force | - | 2.6966 N | 1.5568 N |
| Insulation resistance | - | 1000000000 Ω | 1000000000 Ω |
| insulator material | - | POLYESTER | POLYESTER |
| Plug contact pitch | - | 0.05 inch | 0.05 inch |
| Installation option 1 | - | M2.5 | M2.5 |
| Installation method | - | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | - | BOARD | BOARD |
| PCB row number | - | 4 | 4 |
| Number of rows loaded | - | 2 | 2 |
| Maximum operating temperature | - | 105 °C | 105 °C |
| Minimum operating temperature | - | -55 °C | -55 °C |
| PCB contact pattern | - | STAGGERED | STAGGERED |
| PCB contact row spacing | - | 1.905 mm | 1.905 mm |
| Plating thickness | - | 3u inch | 3u inch |
| Rated current (signal) | - | 1 A | 1 A |
| Guideline | - | UL, CSA | UL, CSA |
| reliability | - | COMMERCIAL | COMMERCIAL |
| Terminal length | - | 0.134 inch | 0.134 inch |
| Terminal pitch | - | 2.54 mm | 2.54 mm |
| Termination type | - | SOLDER | SOLDER |
| Total number of contacts | - | 20 | 50 |
| Evacuation force-minimum value | - | .3892 N | .3892 N |
