X24LC01SI datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> X24LC01SI

X24LC01SI: DescriptionEEPROM, 128X8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8; Categorystorage storage; File Size338KB，14 Pages; ManufacturerXicor Inc.

Download Datasheet Parametric Compare View All

X24LC01SI Overview

EEPROM, 128X8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8

X24LC01SI Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	PLASTIC, SOIC-8
Reach Compliance Code	unknown
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	100
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
memory density	1024 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	128 words
character code	128
Operating mode	SYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128X8
Output characteristics	OPEN-DRAIN
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP8,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	SERIAL
power supply	3.3/5 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Serial bus type	I2C
Maximum standby current	0.00005 A
Maximum slew rate	0.003 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Maximum write cycle time (tWC)	10 ms
Base Number Matches	1

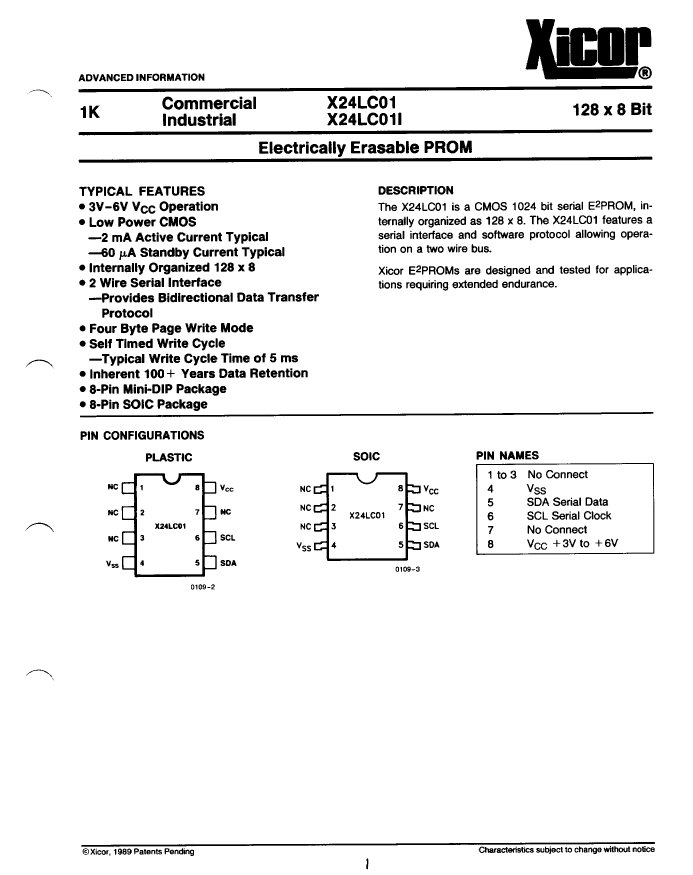

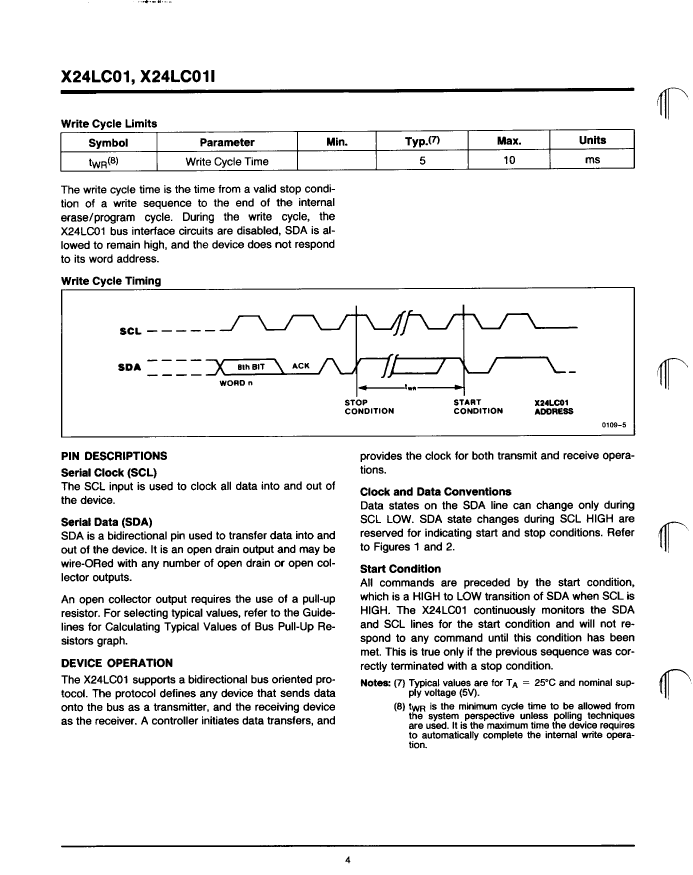

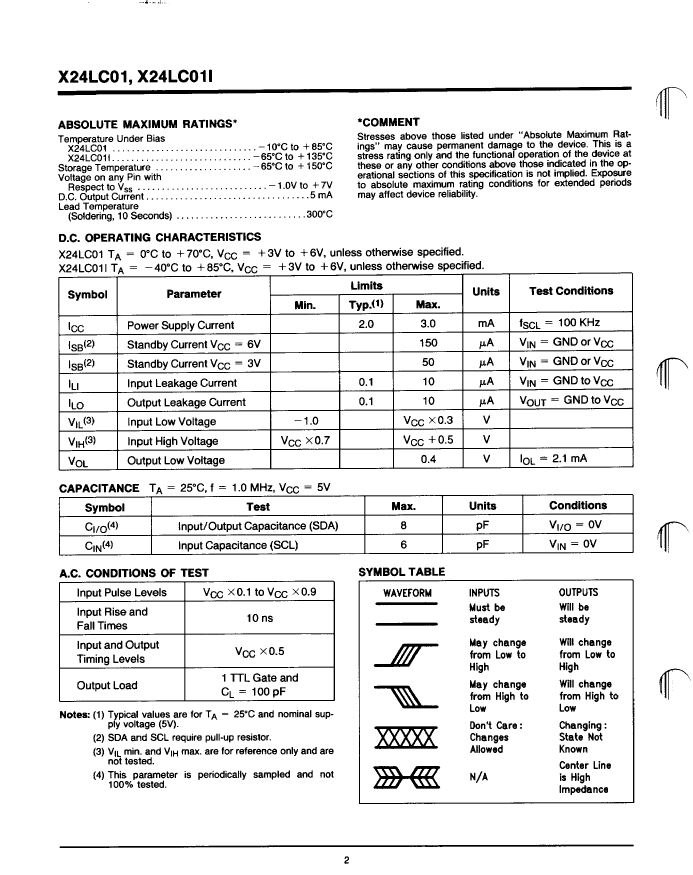

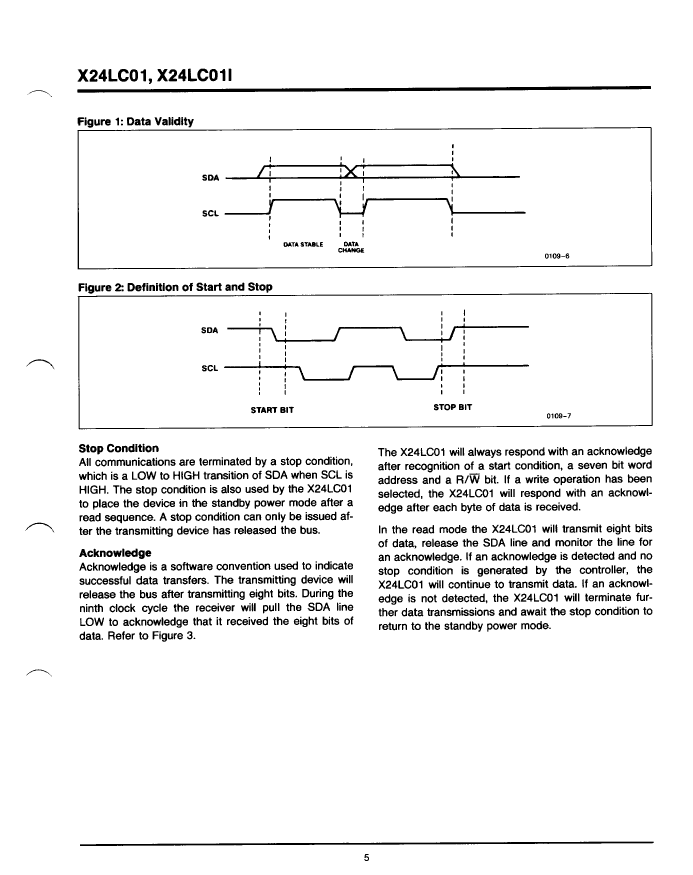

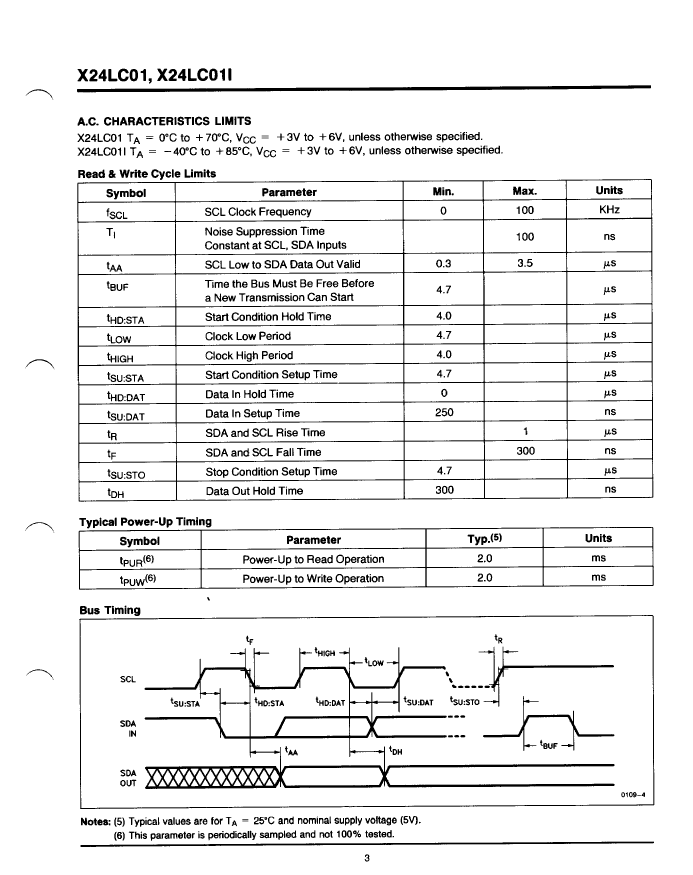

Preview

Download Datasheet

View All

X24LC01SI Related Products

	X24LC01SI	X24LC01S
Description	EEPROM, 128X8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8	EEPROM, 128X8, Serial, CMOS, PDSO8, PLASTIC, SOIC-8
Is it Rohs certified?	incompatible	incompatible
package instruction	PLASTIC, SOIC-8	PLASTIC, SOIC-8
Reach Compliance Code	unknown	unknown
Maximum clock frequency (fCLK)	0.1 MHz	0.1 MHz
Data retention time - minimum	100	100
JESD-30 code	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0
length	4.9 mm	4.9 mm
memory density	1024 bit	1024 bit
Memory IC Type	EEPROM	EEPROM
memory width	8	8
Number of functions	1	1
Number of terminals	8	8
word count	128 words	128 words
character code	128	128
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	85 °C	70 °C
organize	128X8	128X8
Output characteristics	OPEN-DRAIN	OPEN-DRAIN
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP8,.25	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Parallel/Serial	SERIAL	SERIAL
power supply	3.3/5 V	3.3/5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.75 mm
Serial bus type	I2C	I2C
Maximum standby current	0.00005 A	0.00005 A
Maximum slew rate	0.003 mA	0.003 mA
Maximum supply voltage (Vsup)	6 V	6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Maximum write cycle time (tWC)	10 ms	10 ms
Base Number Matches	1	1
