MA4EX1810M-1225T
Silicon Double Balanced HMIC
TM
Mixer
1300 - 1900 MHz
Features
•
•
•
•
•
•
•
•
Low Cost Miniature Plastic Package
5.5 dB Typical Conversion Loss at 1550 MHz
6.0 dB Typical Conversion Loss at 1800 MHz
+7 to +13 dBm LO Drive
HMIC™ Patented Process
Silicon Medium Barrier Schottky Diodes
DC - 500 MHz IF Bandwidth
Lead Free ( RoHS Compliant ) Equivalent Available
With 260 Deg.C. Reflow Capability
Rev. VP
Package Outline
(Topview)
3
2
1
Description and Applications
M/A-COM’s MA4EX180M-1225T is a silicon
monolithic 1300-1900 MHz, medium barrier, double
balanced mixer in a low cost miniature surface
mount SOT-25 package. The die uses M/A-COM’s
unique HMIC™ silicon/glass process to achieve low
loss passive elements while retaining the
advantages of medium barrier silicon Schottky
diodes.
This part is offered with Sn/Pb plating, as well as
with 100 % matte Sn plating on the RoHS compliant
part number.
These mixers are well suited for high volume
wireless and cellular applications where small size
and repeatability are required. Typical applications
include frequency conversion, modulation, and
demodulation for receivers and transmitters in both
portable cellular and base station applications.
4
5
PIN Configuration
PIN
1
2
3
Function
GND
GND
IF
PIN
4
5
Function
LO
RF
Ordering Information
Standard Part
Number
MA4EX180M-1225T
RoHS Compliant
Part Number
MA4EX180M1-1225T
Package
Tape and Reel
Absolute Maximum Ratings
1
Parameter
Operating Temperature
Storage Temperature
Incident LO Power
Incident RF Power
Soldering Temperature
(Standard Part Number)
Solder Temperature
(RoHS Compliant Part Number)
Maximum Ratings
-40 °C to +85 °C
-65 °C to +150 °C
+20 dBm
Functional Schematic
IF
RF
+20 dBm
+235 Deg C.
+260 Deg C.
LO
1. Exceeding these limits may cause permanent damage.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4EX1810M-1225T
Silicon Double Balanced HMIC
TM
Mixer
1300 - 1900 MHz
Electrical Specifications @ +25 °C
Parameter
Conversion Loss
Rev. VP
Frequency
Range
1550 MHz
1300-1900 MHz
Test Conditions
LO Drive = +10 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +10 dBm
RF Level = -10 dBm
LO Drive = +10 dBm
RF Level = -10 dBm
LO Drive = +10 dBm
RF Level = -10 dBm
LO Drive = +10 dBm
RF Level = -10 dBm
LO Drive = +10 dBm
RF Level = -10 dBm
LO Drive = +10 dBm
RF Level = -10 dBm
Units
dB
dB
dB
dB
dB
dB
dB
dB
Min.
Typ.
6.4
7.7
17.0
17.0
21.0
22.0
16.5
17.0
1.7:1
2.0:1
1.3:1
1.6:1
1.5:1
Max.
7.0
9.0
L - R Isolation
1550 MHz
1300-1900 MHz
L - I Isolation
1550 MHz
1300-1900 MHz
R - I Isolation
1550 MHz
1300-1900 MHz
LO VSWR
1550 MHz
1300-1900 MHz
RF VSWR
1550 MHz
1300-1900 MHz
IF VSWR
DC - 500 MHz
Input IP3
1550 MHz
1300-1900 MHz
LO Drive = +10 dBm
IF = 60 MHz
LO Drive = +10 dBm
IF = 60 MHz
dBm
dBm
dBm
dBm
MHz
12.5
12.0
15.0
17.0
5.0
6.0
Input 1 dB Compression
1550 MHz
1300-1900 MHz
IF 1 dB Bandwidth
0
500

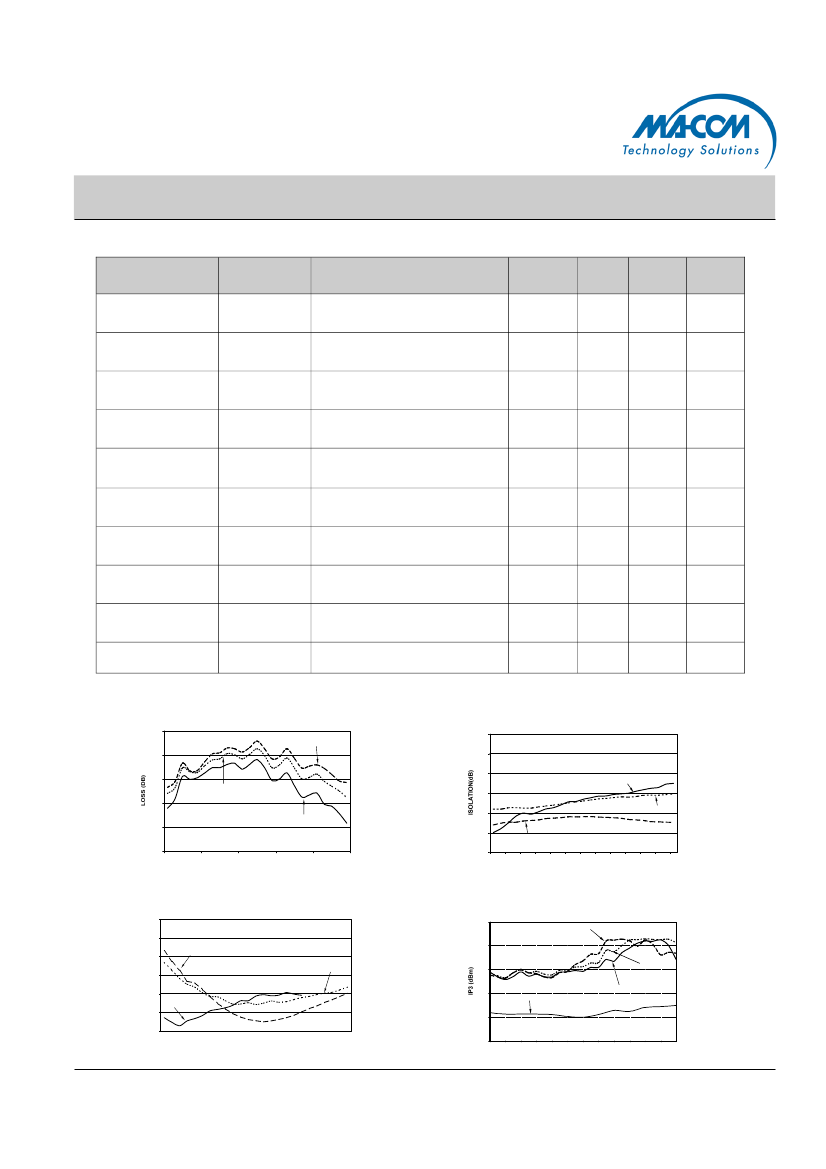

Typical Performance Curves (LO Drive = +15 dBm, RF = -10 dBm, IF = 60 MHz)
Conversion Loss
5.000
PLO = 13dBm
Isolation
0
5.500
-5
-10
6.000
PLO = 10dBm
-15
R-I
6.500
-20
L-R
PLO = 7dBm
7.000
-25
L-I
7.500
1300
1350
1400
1450
1500
1550
1600
1650
1700
1750
1800
1850
1900
-30
1300
1350
1400
1450
1500
1550
1600
1650
1700
1750
1800
1850
1900
FREQUENCY (MHz)
FREQUENCY (MHz)
IF VSWR
4.00
Input IP3 & 1 dB Compression Point
25
PLO = 13 dBm
3.50
20
3.00
R Port
VSWR
L Port
2.50
15
PLO = 7dBm
PLO = 10dBm
2.00
I Port
1.50
10
1db Compression
5
1.00
1300
50
1350
100
1400
150
1450
200
1500
250
1550
300
1600
350
1650
400
1700
450
1750
1800
1850
1900
500
0
1300 1350 1400 1450 1500 1550 1600 1650 1700 1750 1800 1850 1900
FREQUENCY (MHz)
FREQUENCY (MHz)
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MA4EX1810M-1225T
Silicon Double Balanced HMIC
TM
Mixer
1300 - 1900 MHz
Case Style - SOT-25
SOT-25 Dimensions
Inches
Dim
A
B
C
D
E
F
G
H
J
Min.
.106
.100
—
Max.
.122
.118
.051
.063 REF.
.032
.014
.003
.000
.043
.020
—
.006
Rev. VP
Millimeters
Min.
2.70
2.54
—
Max.
3.10
3.00
1.30
1.60 REF.
.80
.35
.08
.00
.45 REF.
1.10
.50
—
.15
.018 REF.
Notes: 1. Leads Coplanarity should be 0.003 (0.08) max.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
