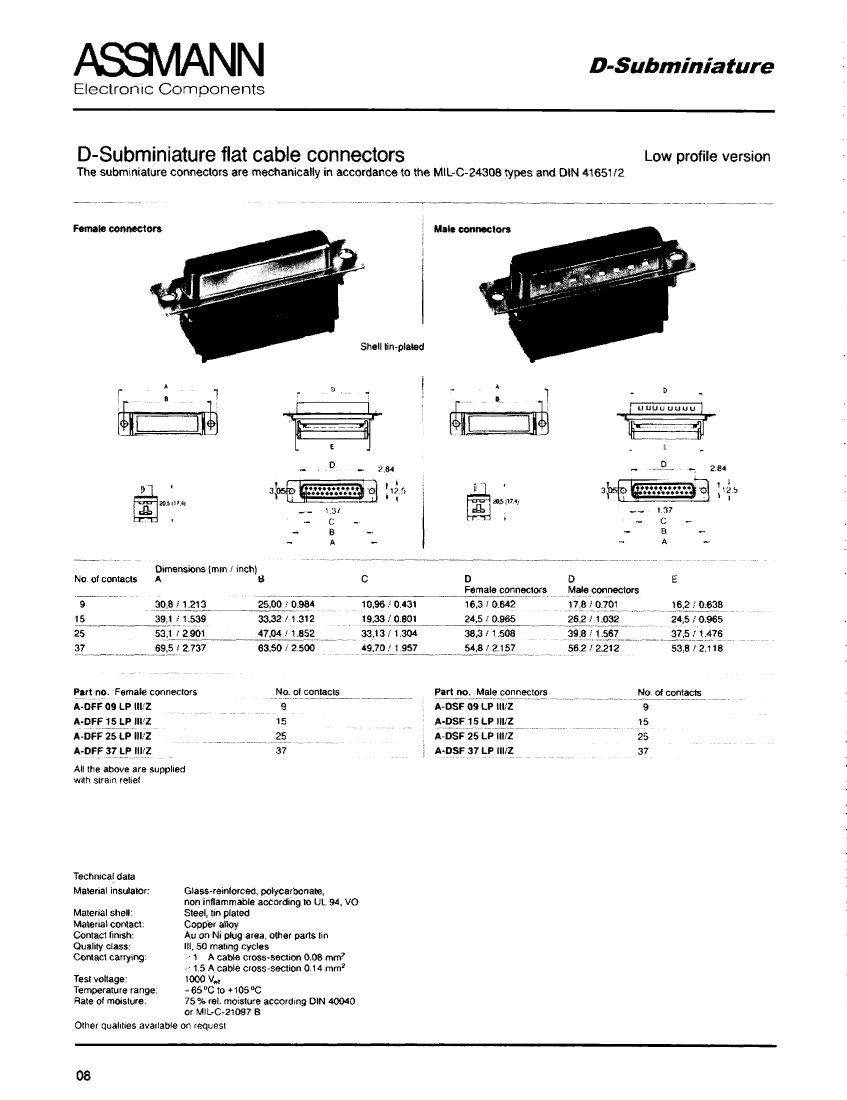

A-DSF09LPIII/Z: DescriptionD Subminiature Connector, 9 Contact(s), Male, 0.1 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle,; CategoryThe connector The connector; File Size60KB，1 Pages; ManufacturerASSMANN; Websitehttps://www.assmann.com/en/about-assmann/; Environmental Compliance

Download Datasheet Parametric Compare View All

A-DSF09LPIII/Z Overview

D Subminiature Connector, 9 Contact(s), Male, 0.1 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle,

A-DSF09LPIII/Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Other features	LOW PROFILE
body width	0.494 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYCARBONATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal length	0.083 inch
Termination type	IDC
Total number of contacts	9
UL Flammability Code	94V-0
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

A-DSF09LPIII/Z Related Products

	A-DSF09LPIII/Z	A-DSF25LPIII/Z	A-DSF37LPIII/Z	A-DSF15LPIII/Z	A-DFF25LPIII/Z	A-DFF15LPIII/Z	A-DFF09LPIII/Z	A-DFF37LPIII/Z
Description	D Subminiature Connector, 9 Contact(s), Male, 0.1 inch Pitch, IDC Terminal, Hole .112-.124, Receptacle,	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Receptacle	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Receptacle,	D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, IDC Terminal, Locking, Receptacle,	D Subminiature Connector, 25 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug	D Subminiature Connector, 9 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug,	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, IDC Terminal, Locking, Plug,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
body width	0.494 inch	0.482 inch	0.482 inch	0.482 inch	0.482 inch	0.482 inch	0.482 inch	0.482 inch
body length	1.213 inch	2.088 inch	2.729 inch	1.541 inch	2.088 inch	1.541 inch	1.213 inch	2.729 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	FEMALE	FEMALE	FEMALE	FEMALE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
empty shell	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE	POLYCARBONATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.1 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation option 1	HOLE .112-.124	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	LOCKING	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE	MOUNTING FLANGE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	3 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE	UL,VDE
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	1/E	3/B	4/C	2/A	3/B	2/A	1/E	4/C
Termination type	IDC	IDC	IDC	IDC	IDC	IDC	IDC	IDC
Total number of contacts	9	25	37	15	25	15	9	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maximum wire diameter	26 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG	28 AWG
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
subject depth	-	0.463 inch	0.463 inch	0.463 inch	0.463 inch	0.463 inch	0.463 inch	0.463 inch
Contactor design	-	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Maker	-	-	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN	ASSMANN
