B125C3700 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B125C3700

B125C3700: DescriptionBridge Rectifier Diode, 1 Phase, 2.7A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size113KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

B125C3700 Overview

Bridge Rectifier Diode, 1 Phase, 2.7A, 200V V(RRM), Silicon,

B125C3700 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4
Maximum non-repetitive peak forward current	80 A
Number of components	4
Phase	1
Number of terminals	4
Maximum output current	2.7 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
surface mount	NO
Terminal form	WIRE
Terminal location	SINGLE
Base Number Matches	1

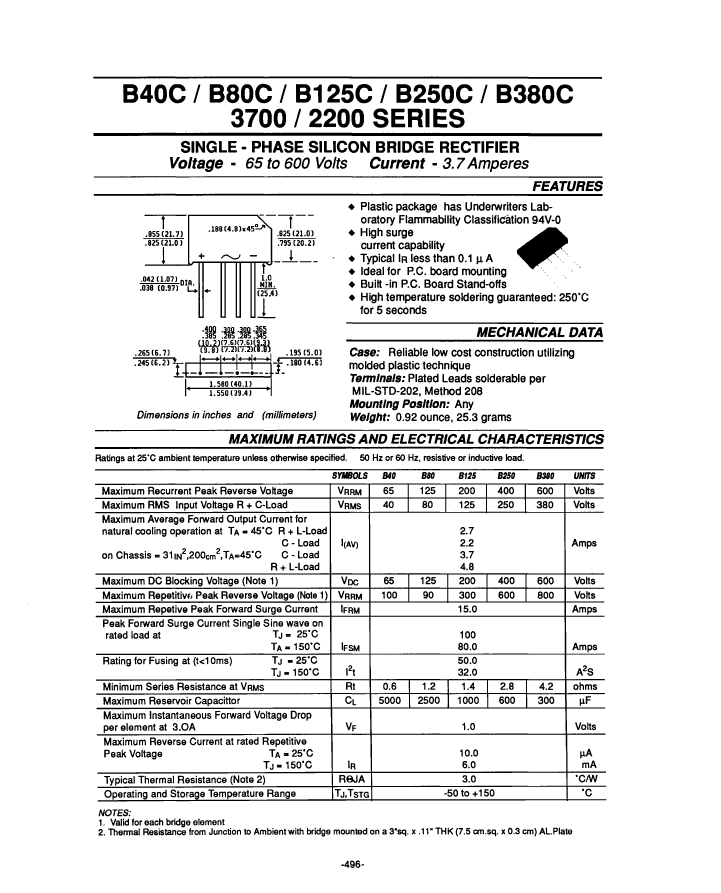

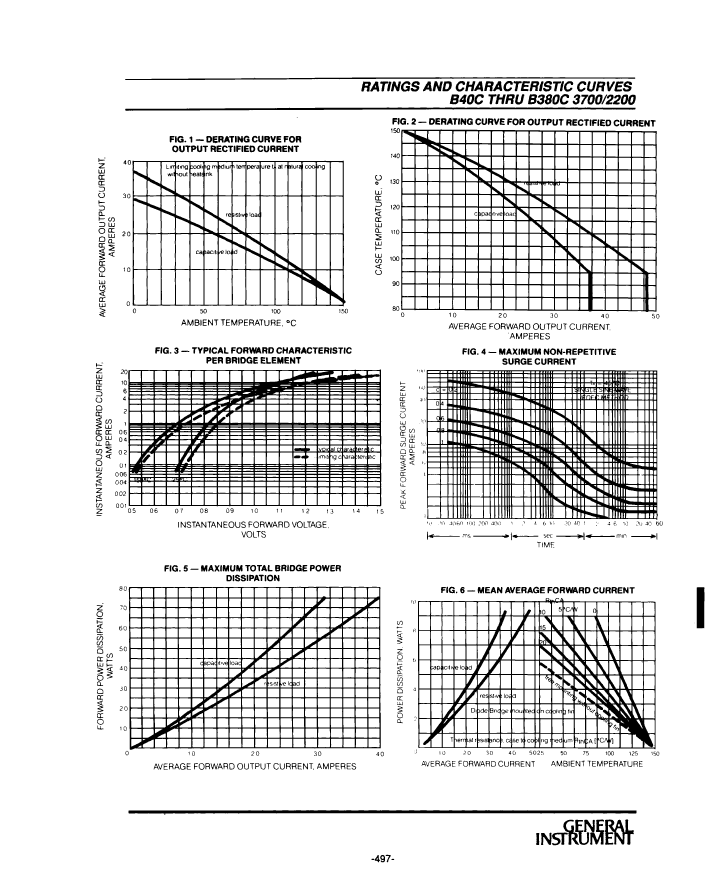

Preview

Download Datasheet

View All

B125C3700 Related Products

	B125C3700	B380C2200	B125C2200	B250C2200	B40C3700	B80C2200	B250C3700	B80C3700	B40C2200	B380C3700
Description	Bridge Rectifier Diode, 1 Phase, 2.7A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 600V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 200V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 65V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 125V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 400V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 125V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 65V V(RRM), Silicon,	Bridge Rectifier Diode, 1 Phase, 2.7A, 600V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4	R-PSIP-W4
Maximum non-repetitive peak forward current	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A	80 A
Number of components	4	4	4	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4	4	4	4
Maximum output current	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A	2.7 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	600 V	200 V	400 V	65 V	125 V	400 V	125 V	65 V	600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	-	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp	General Instrument Corp
