KILOVOLT
TM
Series
2000 Volt & 3000 Volt PIN Diodes
MA4PK2000, MA4PK3000
Features
•
•
•
•
•
•
•
•
Reverse Voltage up to 3000 Volts
25 Ampere Current Rating
Designed for HF, Multi-Throw Kilowatt Switches
Low Loss, Low Distortion
Rugged, Hermetically Sealed Packaging
Convenient Solder Lug Attachment
Low Magnetic Parts for MRI
RoHS* Compliant
Rev. V8

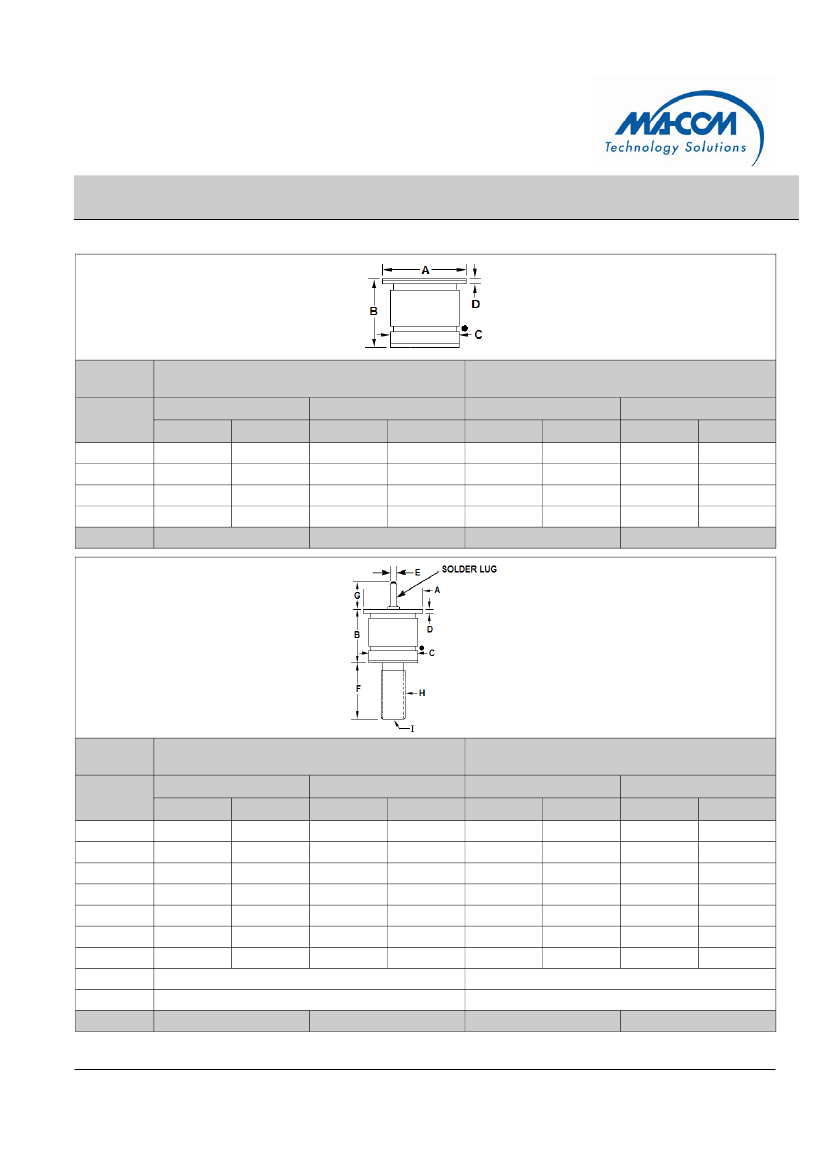

Package Outlines
Description
M/A-COM’s Kilovolt PIN diodes utilize modern semi-
conductor and packaging technology that assures
low loss, low distortion, and reliable performance in
multi-kilowatt switch applications at frequencies as
low as 1 MHz. The semiconductor chips employed
have low resistance, high power dissipation and very
high stand-off voltage capability. Kilovolt PIN diodes
employ ultra high resistively, long carrier lifetime,
float zone silicon intrinsic material onto which P+ and
N+ regions are deposited using an epitaxial process
specifically designed at M/A-COM for high voltage
PIN diodes. This process results in better preserva-
tion of the intrinsic carrier lifetime and superior junc-
tions in comparison to the conventional double dif-
fused process. The processing of the I-region width
is tightly controlled using modern lapping tech-
niques. Kilovolt PIN diode chips utilize M/A-COM’s
proprietary cermachip glass passivation. The hard
glass covers all exposed junction and intrinsic region
surfaces. This results in a hermetically sealed, pas-
sivated chip that has been accepted in many hi-rel
military programs.
Note:
Black dot
denotes cathode
Applications
The metal-ceramic packages were developed spe-
cifically for the Kilovolt PIN diode series. The pack-
ages are designed to withstand extremely high volt-
ages and currents and to be compatible with indus-
try standard semiconductor chip and RF circuitry.
These packages meet the environmental require-
ments of MIL-STD-202 and MIL-STD750. The PIN
diode chip is bonded to the package and the anode
strap is bonded to the chip at temperatures ex-
ceeding 300°C. The anode strap has a unique,
large cross-sectional area design allowing for high
current capability. The packages are sealed using
a projection welding technique in an inert environ-
ment. Kilovolt PIN diodes are available with a sol-
der lug on the anode electrode to allow for a con-
venient and reliable wrap-around wire connection.
Applications
M/A-COM’s Kilovolt PIN diodes are designed for use
as high power switching elements in multi-kilowatt
HF and VHF applications. These PIN diodes have
been extensively characterized for their electrical
and thermal properties to assure predictable low
loss, high power handling, and low distortion per-
formance. Some typical applications are as follows:
•
Filter Switches
•
Antenna Couplers
•
Power Amplifier By-pass Switches
•
MRI Switches
KILOVOLT
TM
is a trademark of
M/A-COM,
Inc.
Diode Part Numbers & Associated Packages
2000 Volts 3000 Volts
MA4PK2000 MA4PK3000
MA4PK2001 MA4PK3001
MA4PK2002 MA4PK3002
MA4PK2003 MA4PK3003
MA4PK2004 MA4PK3004

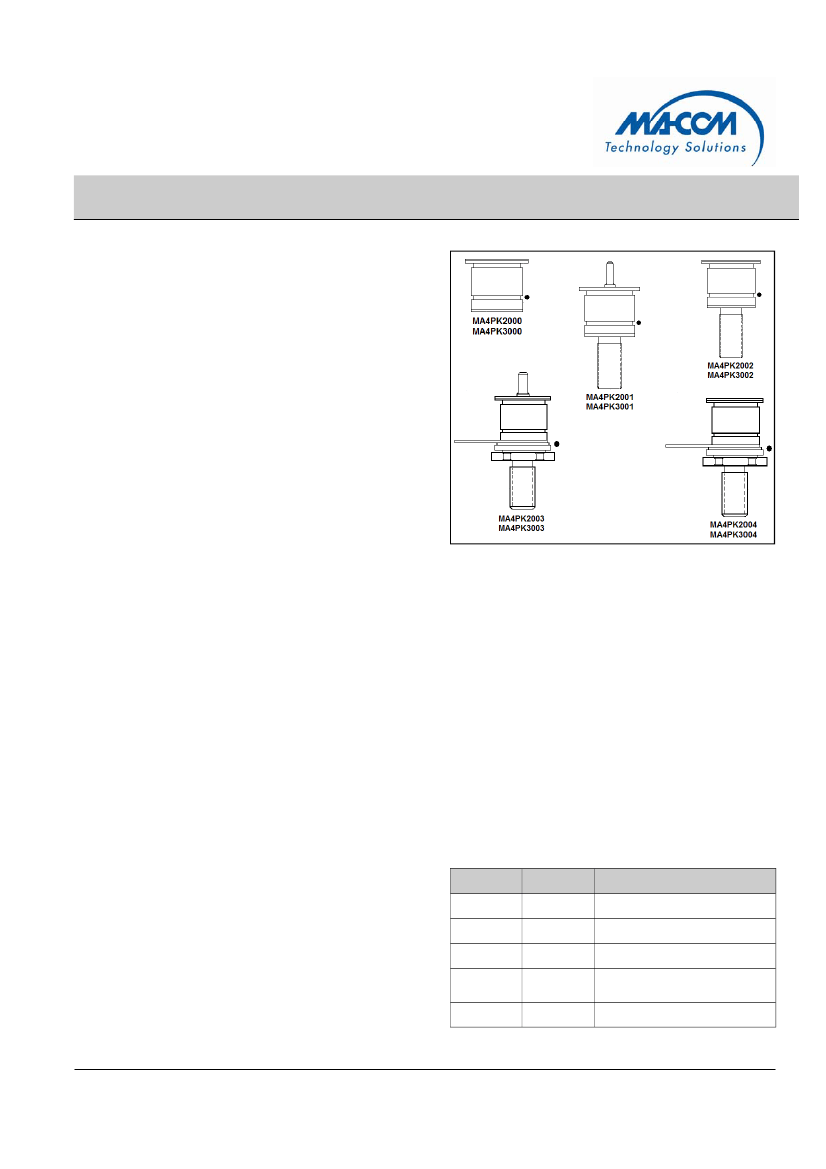

Package Type
Pill
Threaded Stud & Solder Lug
Threaded Stud Only
Insulated Threaded Stud & Solder
Lug
Insulated Threaded Stud Only
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
KILOVOLT
TM
Series
2000 Volt & 3000 Volt PIN Diodes
MA4PK2000, MA4PK3000
ABSOLUTE MAXIMUM RATINGS
Rev. V8
MAXIMUM POWER DISSIPATION @ T
CASE
= 25°C
Operating and Storage Temp.
Installation Temperature
Instantaneous Reverse Voltage
Forward Current (RF and DC)
-65°C to +175°C
250°C/30 Seconds
Voltage Rating
25 Amperes
MA4PK2001
MA4PK2002
MA4PK2003
MA4PK2004
MA4PK3001
MA4PK3002
MA4PK3003
MA4PK3004
50 Watts
37.5 Watts
75 Watts
50 Watts
Electrical Specifications
1
@ T
A
= 25°C
PARAMETER
CONDITION
MA4PK2000 Series
MA4PK3000 Series
Reverse Voltage (Max)
V
R
Series Resistance (Max)
R
S
Series Resistance (Typ.)
R
S
Total Capacitance (Max)
C
T
Parallel Resistance (Typ.)
R
P
Carrier Lifetime (Min)
T
L
Forward Voltage (Max)
V
F
Thermal Resistance (Max)
Ø
I-Region Width (Nom)
10
μA
F = 4 MHz, I = 0.5 A
F = 1.0 -100 MHz, I = 0.5 A
F = 1 MHz, V = 100 V
F =100 MHz, V = 0 V
IF = 10 mA
IF = 1 A
2000 Volts
0.20
Ω
0.10
Ω
3.2 pF
5K
Ω
10
μs
1.2 V
3°C/W (Stud)
4°C/W (Ins Stud)
200
μm
3000 Volts
0.25
Ω
0.15
Ω
4.0 pF
10K
Ω
20
μs
1.2 V
2°C/W (Stud)
3°C/W (Ins Stud)
325
μm
1. Specifications Subject to Change Without Notice
.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
KILOVOLT
TM
Series
2000 Volt & 3000 Volt PIN Diodes
MA4PK2000, MA4PK3000
Typical Performance Curves

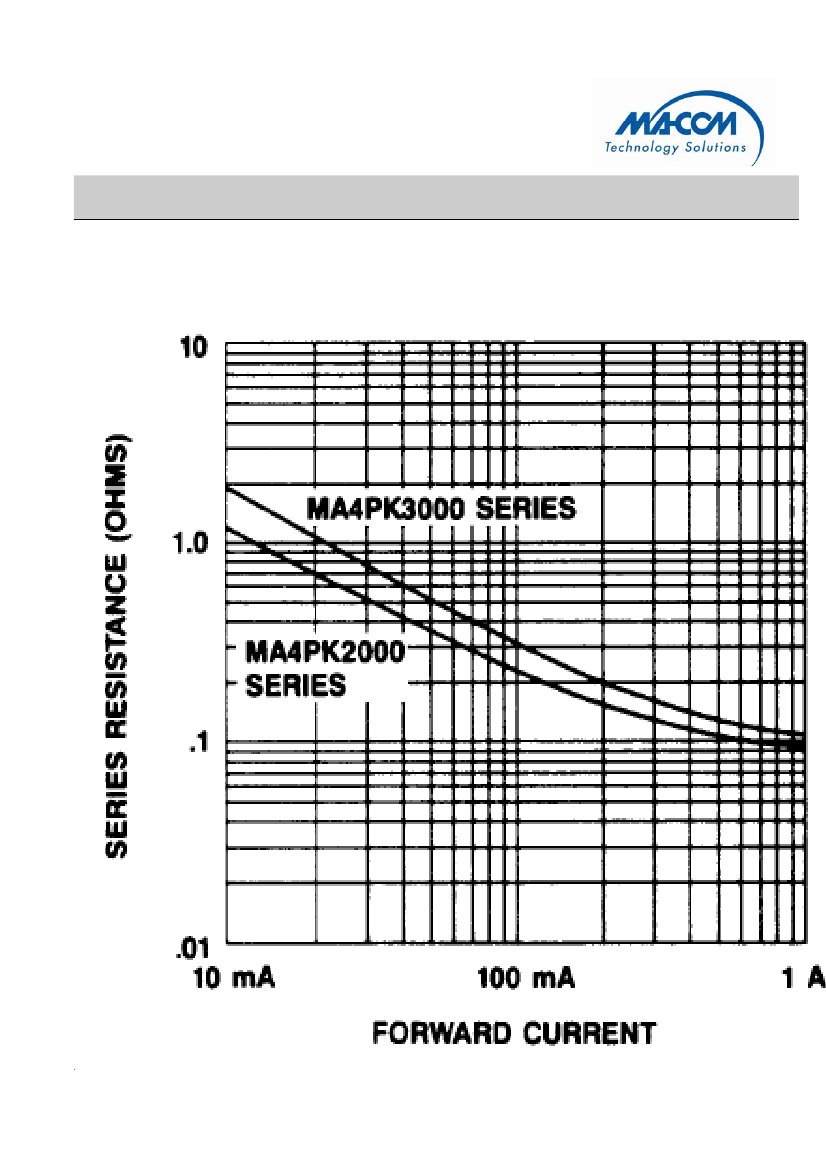

Series Resistance vs. Current Frequency @ 100 MHz
(MA4PK2000, MA4PK3000 Series)
DC Forward Voltage vs. Forward Current
(MA4PK2000, MA4PK3000 Series)
Rev. V8
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
KILOVOLT
TM
Series
2000 Volt & 3000 Volt PIN Diodes
MA4PK2000, MA4PK3000
Typical Performance Curves

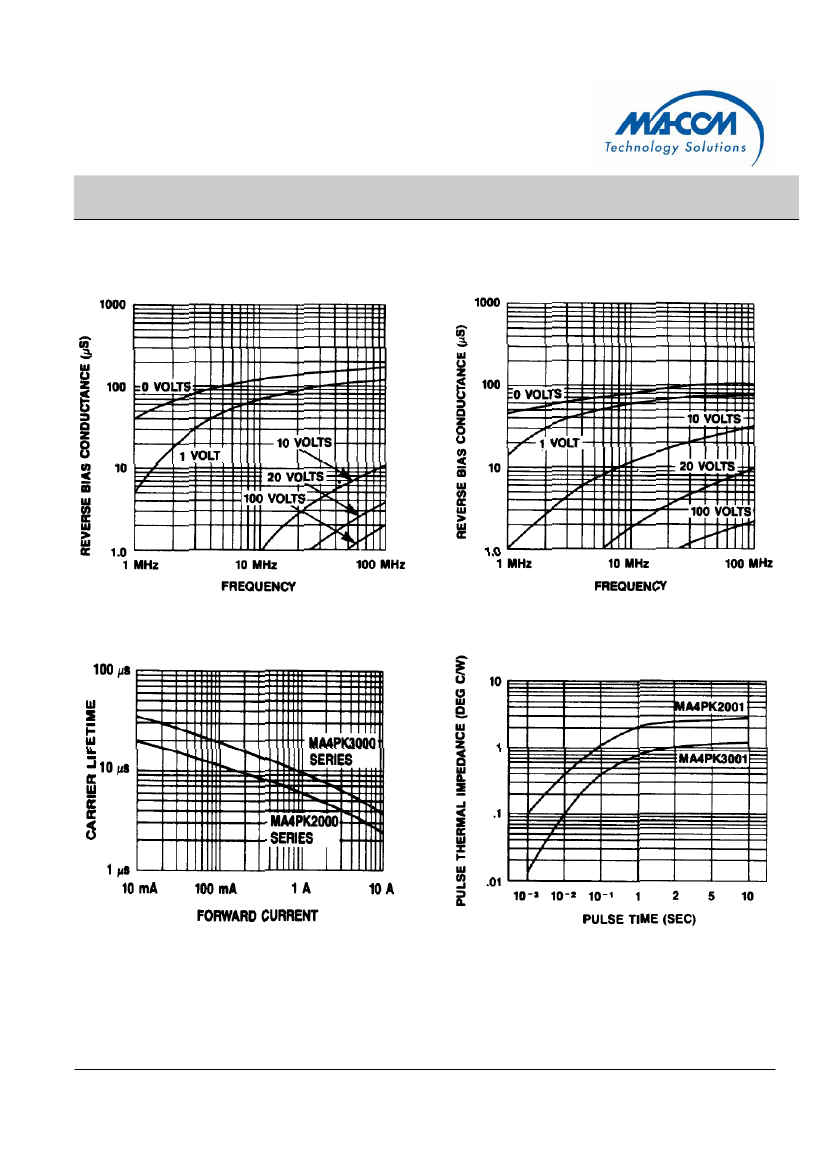

Reverse Bias Conductance vs. Frequency and
