CS-8140TH7 datasheet, PDF - EEWORLD Datasheet

CS-8140TH7: DescriptionIC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,ZIP,7PIN,PLASTIC; CategoryPower/power management The power supply circuit; File Size829KB，12 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

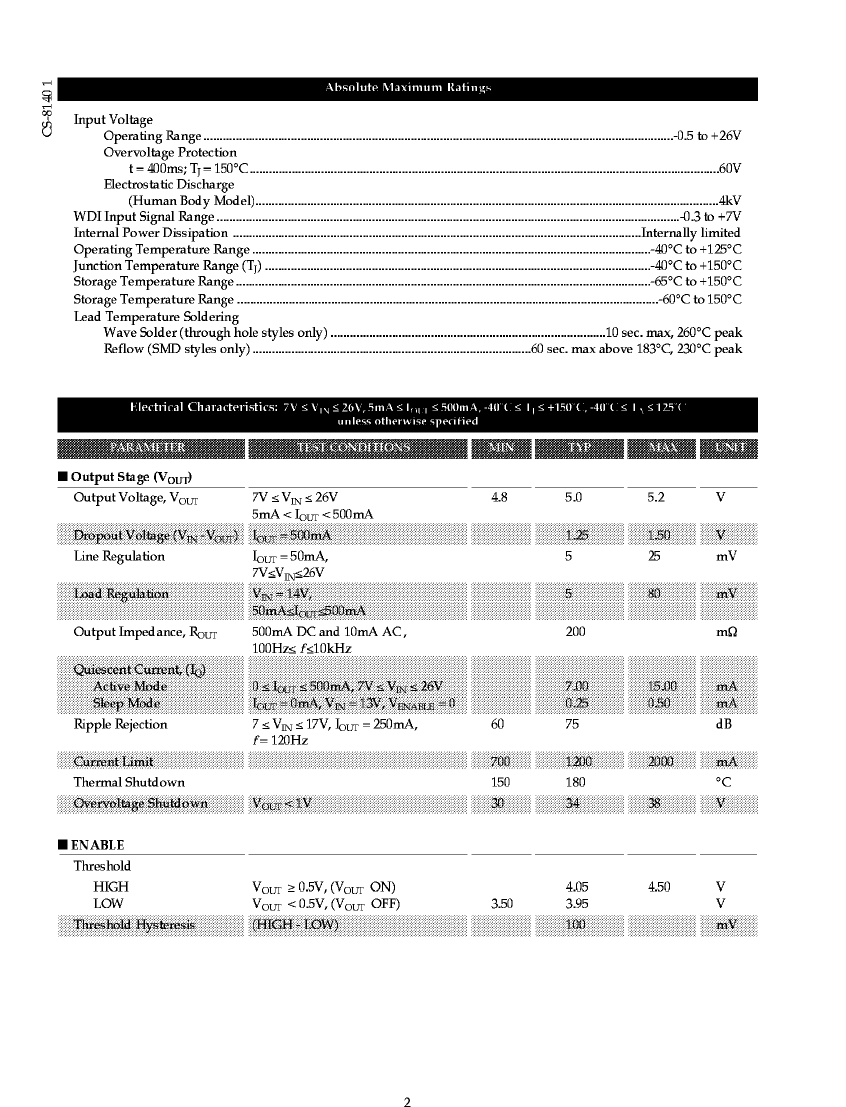

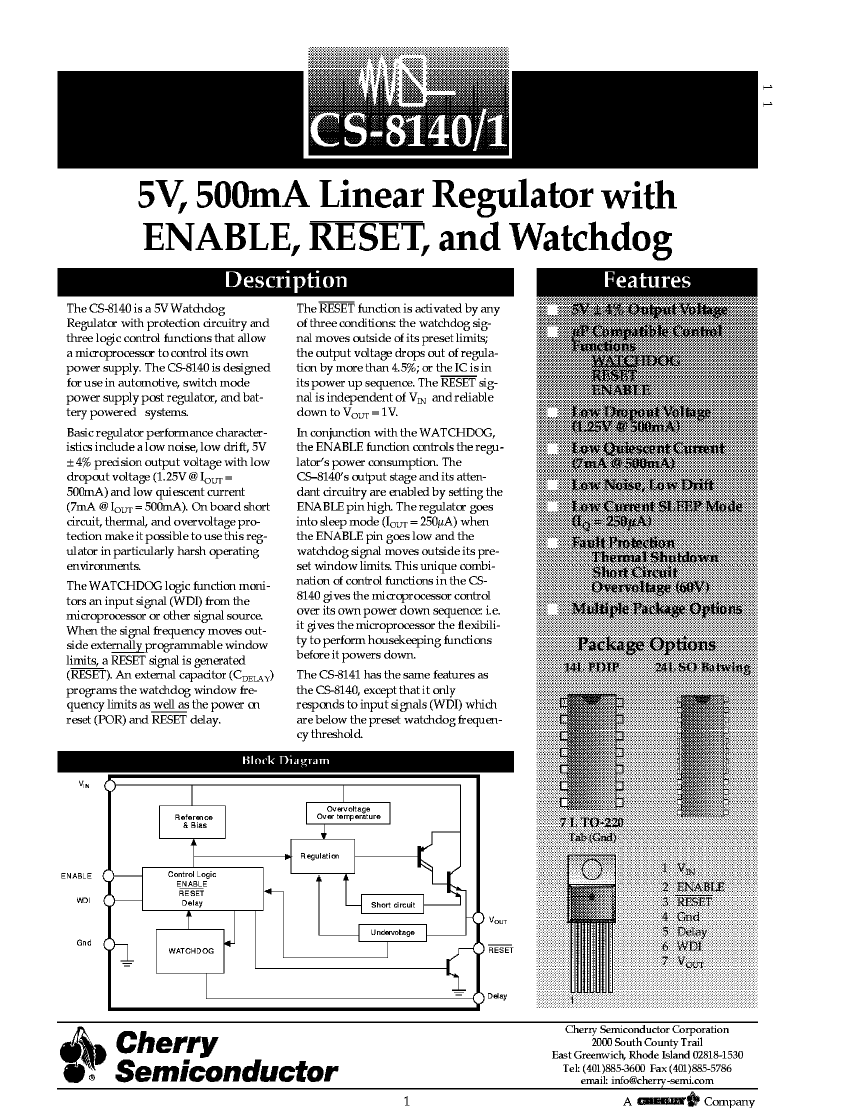

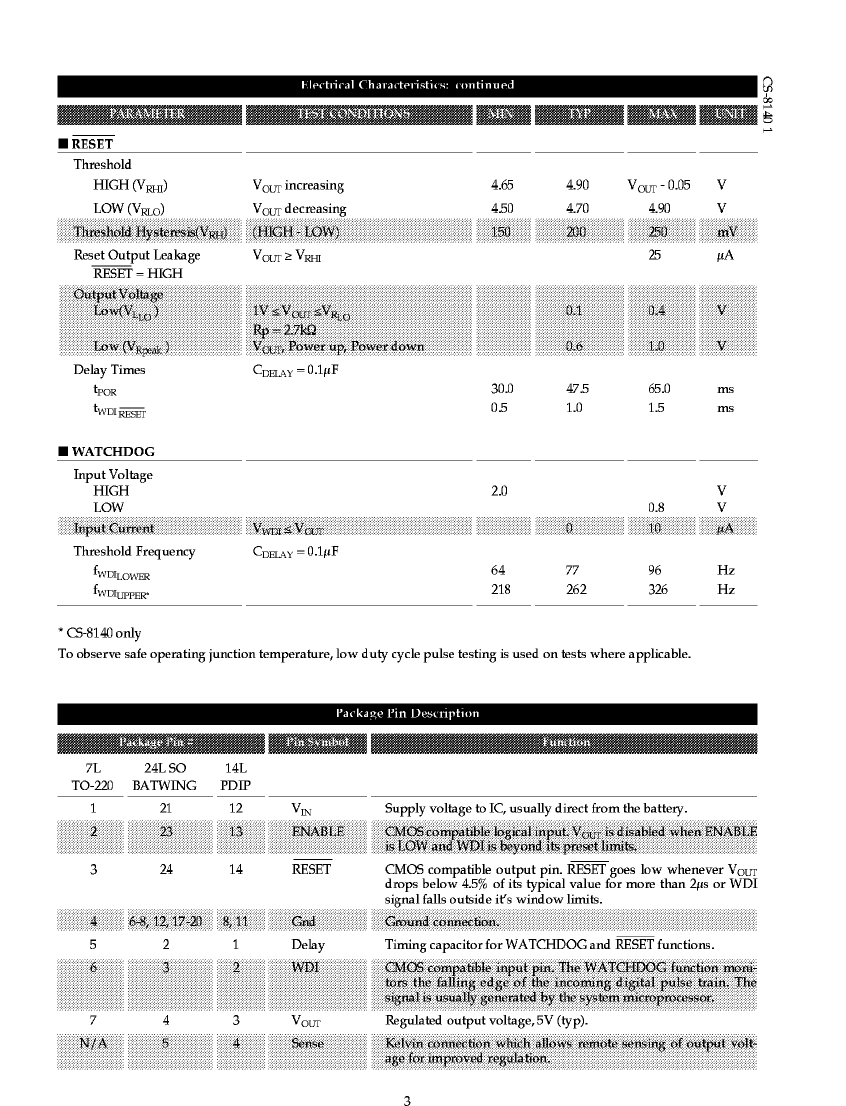

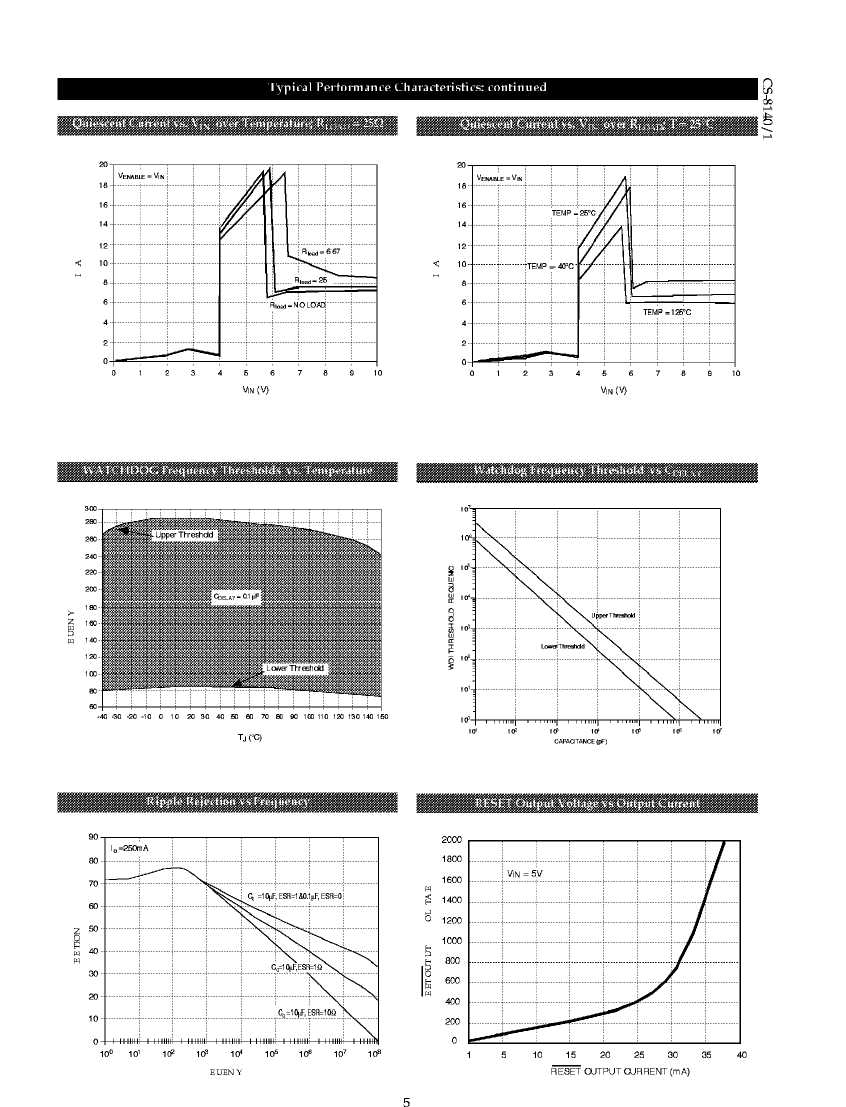

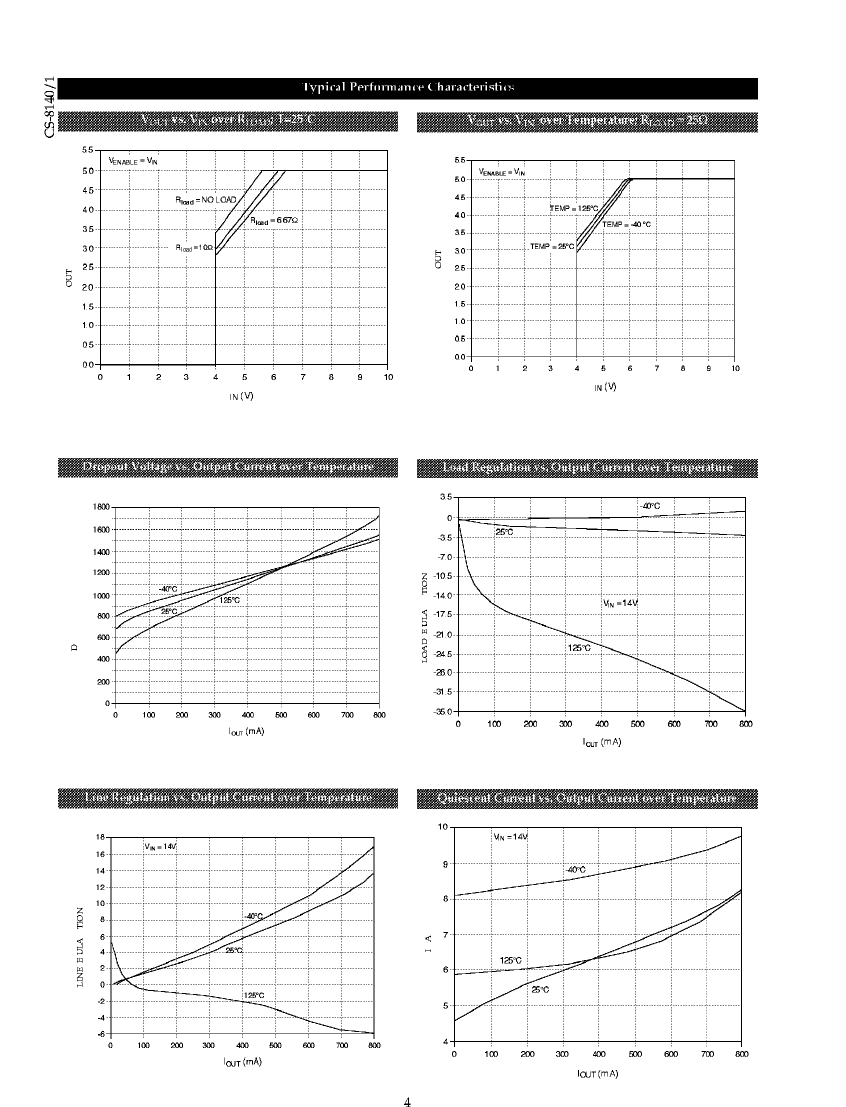

CS-8140TH7 Overview

IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,ZIP,7PIN,PLASTIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SFM
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Adjustability	FIXED
Nominal dropback voltage 1	1.25 V
Maximum absolute input voltage	26 V
JESD-30 code	R-PZIP-T7
JESD-609 code	e0
Maximum grid adjustment rate	0.025%
Maximum load regulation	0.08%
Output times	1
Number of terminals	7
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.5 A
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	ZIP
Encapsulate equivalent code	ZIP7H,.2,.7TB
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	1.27 mm
Terminal location	ZIG-ZAG
Maximum voltage tolerance	4%
Base Number Matches	1

	CS-8140TH7	CS-8141TH7
Description	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,ZIP,7PIN,PLASTIC	IC,VOLT REGULATOR,FIXED,+5V,BIPOLAR,ZIP,7PIN,PLASTIC
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SFM	SFM
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Adjustability	FIXED	FIXED
Nominal dropback voltage 1	1.25 V	1.25 V
Maximum absolute input voltage	26 V	26 V
JESD-30 code	R-PZIP-T7	R-PZIP-T7
JESD-609 code	e0	e0
Maximum grid adjustment rate	0.025%	0.025%
Maximum load regulation	0.08%	0.08%
Output times	1	1
Number of terminals	7	7
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current 1	0.5 A	0.5 A
Nominal output voltage 1	5 V	5 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	ZIP	ZIP
Encapsulate equivalent code	ZIP7H,.2,.7TB	ZIP7H,.2,.7TB
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
technology	BIPOLAR	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm
Terminal location	ZIG-ZAG	ZIG-ZAG
Maximum voltage tolerance	4%	4%
Base Number Matches	1	1
