Z8E80004SEC datasheet, PDF - EEWORLD Datasheet

Z8E80004SEC: DescriptionMicrocontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDSO8, SOIC-8; CategoryThe embedded processor and controller Microcontrollers and processors; File Size130KB，4 Pages; ManufacturerZilog, Inc.; Websitehttps://www.zilog.com/

Download Datasheet Parametric Compare View All

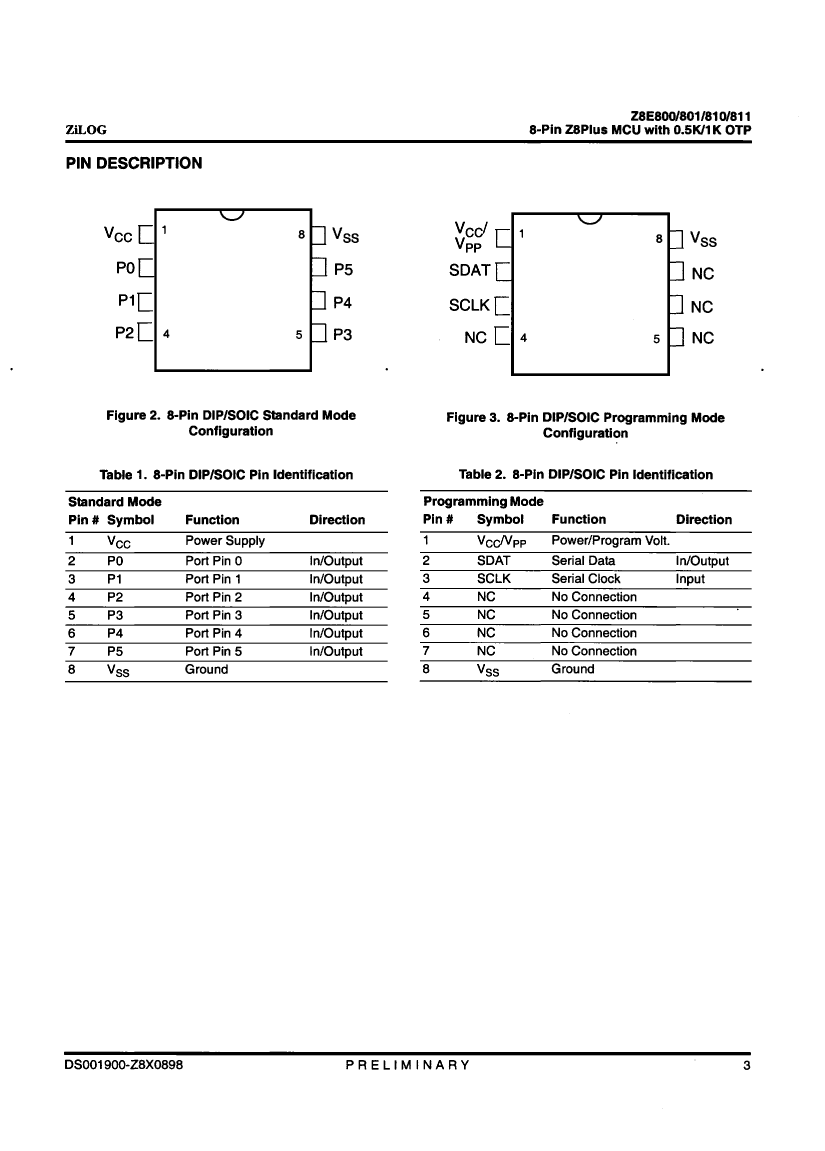

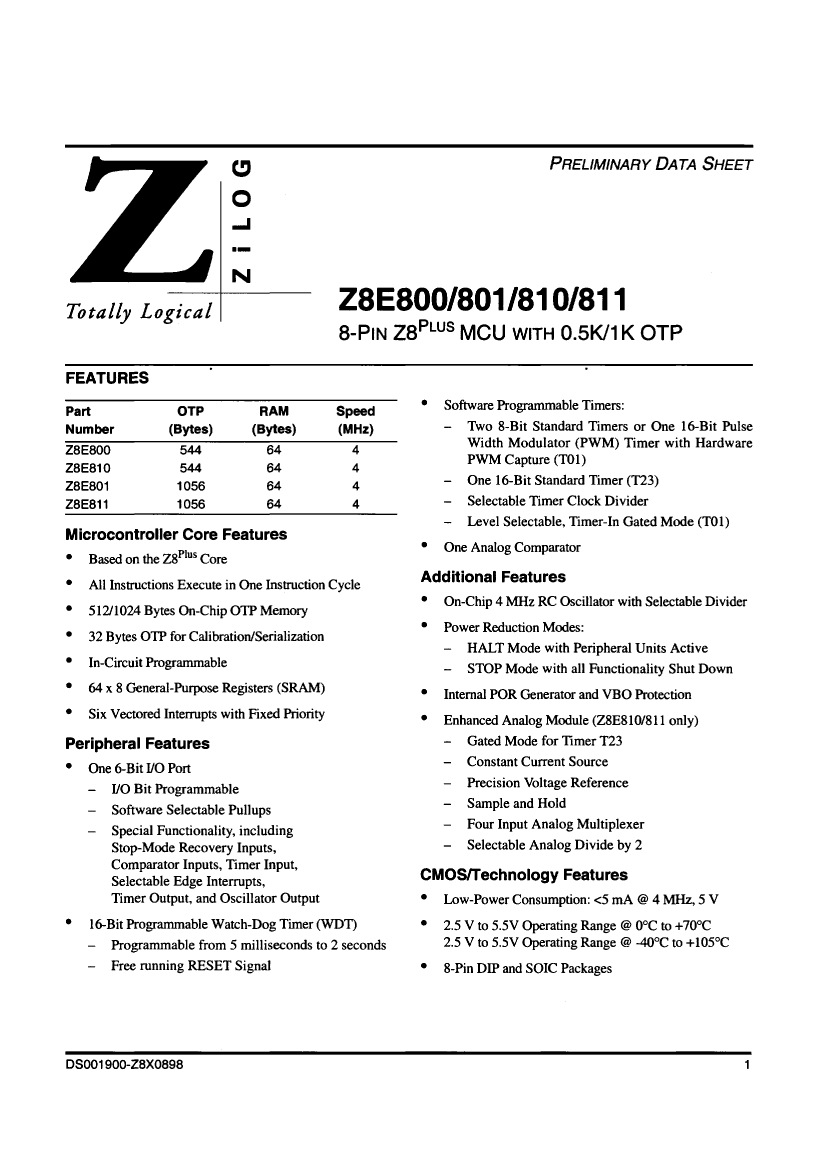

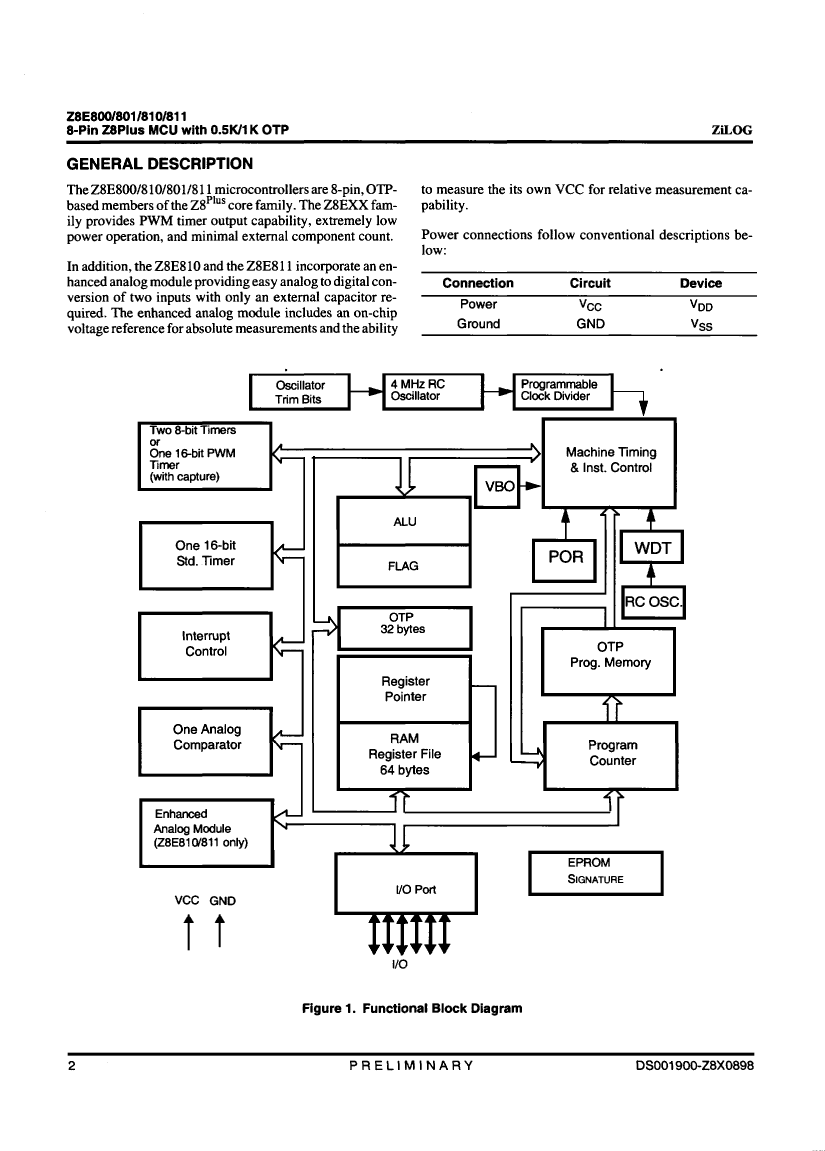

Z8E80004SEC Overview

Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDSO8, SOIC-8

Parameter Name	Attribute value
Parts packaging code	SOIC
package instruction	SOP,
Contacts	8
Reach Compliance Code	unknown
Has ADC	NO
Address bus width
bit size	8
maximum clock frequency	4 MHz
DAC channel	NO
DMA channel	NO
External data bus width
JESD-30 code	R-PDSO-G8
length	4.9 mm
Number of I/O lines	6
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
ROM programmability	OTPROM
Maximum seat height	1.75 mm
speed	4 MHz
Maximum supply voltage	5.5 V
Minimum supply voltage	2.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER
Base Number Matches	1

	Z8E80004SEC	Z8E81004SEC	Z8E81004SSC
Description	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDSO8, SOIC-8	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDSO8, SOIC-8	Microcontroller, 8-Bit, OTPROM, 4MHz, CMOS, PDSO8, SOIC-8
Parts packaging code	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,
Contacts	8	8	8
Reach Compliance Code	unknown	unknown	unknown
Has ADC	NO	NO	NO
bit size	8	8	8
maximum clock frequency	4 MHz	4 MHz	4 MHz
DAC channel	NO	NO	NO
DMA channel	NO	NO	NO
JESD-30 code	R-PDSO-G8	R-PDSO-G8	R-PDSO-G8
length	4.9 mm	4.9 mm	4.9 mm
Number of I/O lines	6	6	6
Number of terminals	8	8	8
Maximum operating temperature	105 °C	105 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-
PWM channel	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified
ROM programmability	OTPROM	OTPROM	OTPROM
Maximum seat height	1.75 mm	1.75 mm	1.75 mm
speed	4 MHz	4 MHz	4 MHz
Maximum supply voltage	5.5 V	5.5 V	5.5 V
Minimum supply voltage	2.5 V	2.5 V	2.5 V
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	3.9 mm	3.9 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	-	Zilog, Inc.	Zilog, Inc.
